ProLite LH9252UWS-B1AG

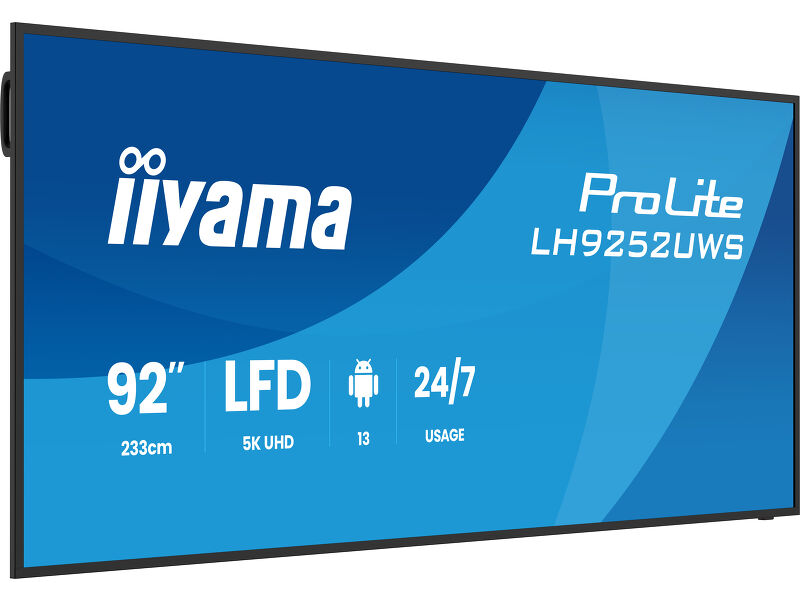

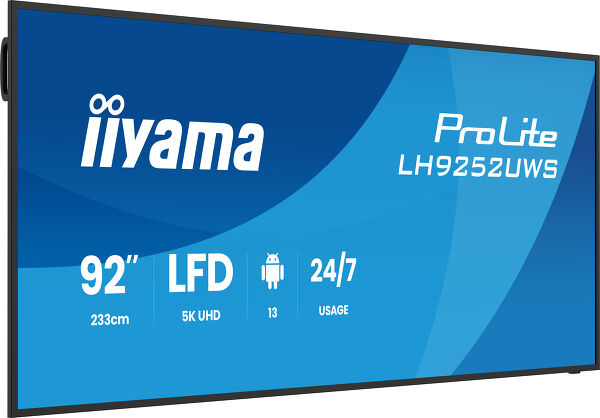

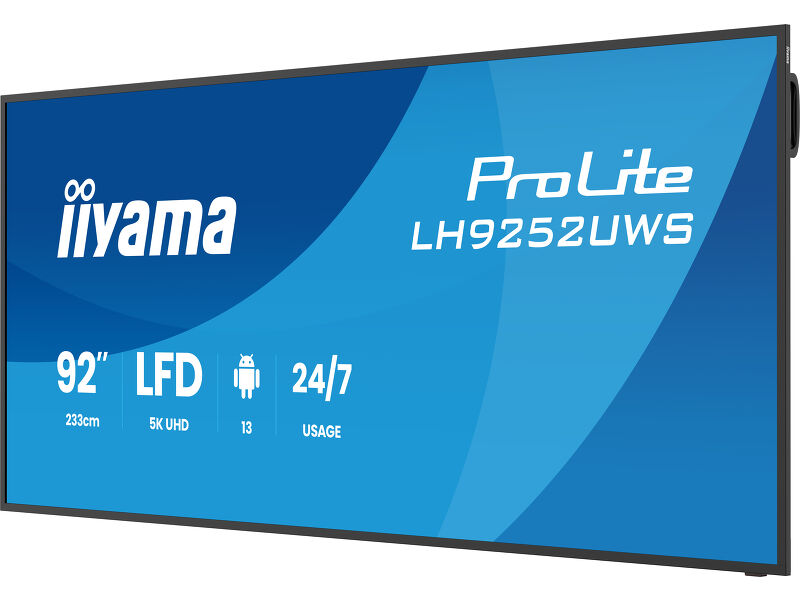

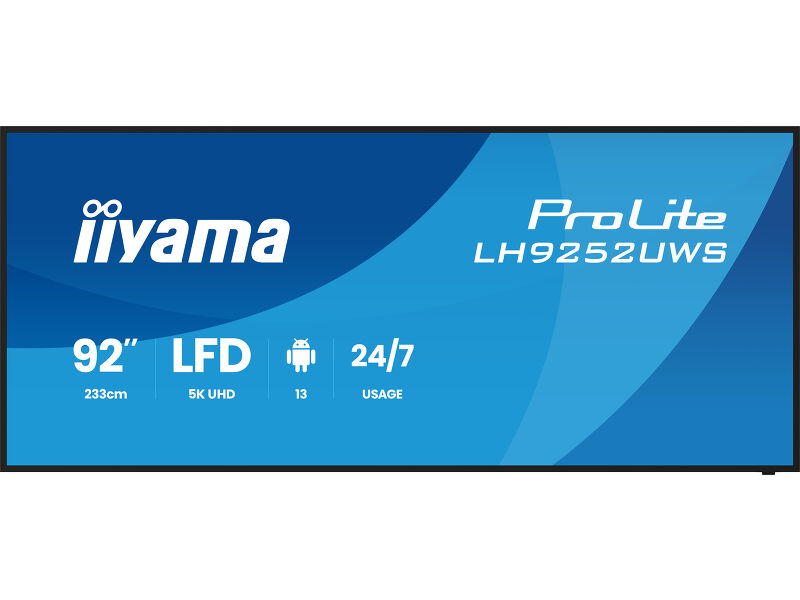

ProLite LH9252UWS-B1AG with 92" 5K collaboration display
The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.
21:9 Ultra-Wide Screen
With an ultra-wide aspect ratio, this professional display provides an expansive canvas to accommodate panoramic commercial signage. The 21:9 Ultra Wide format is also the perfect optimisation for your content capabilities, enhancing our messages and simultaneously attracting your audience on a larger scale.

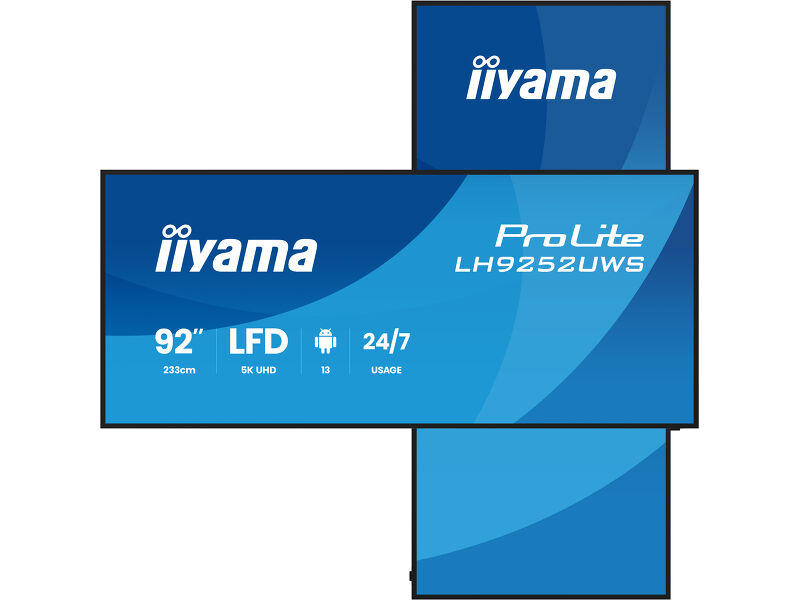

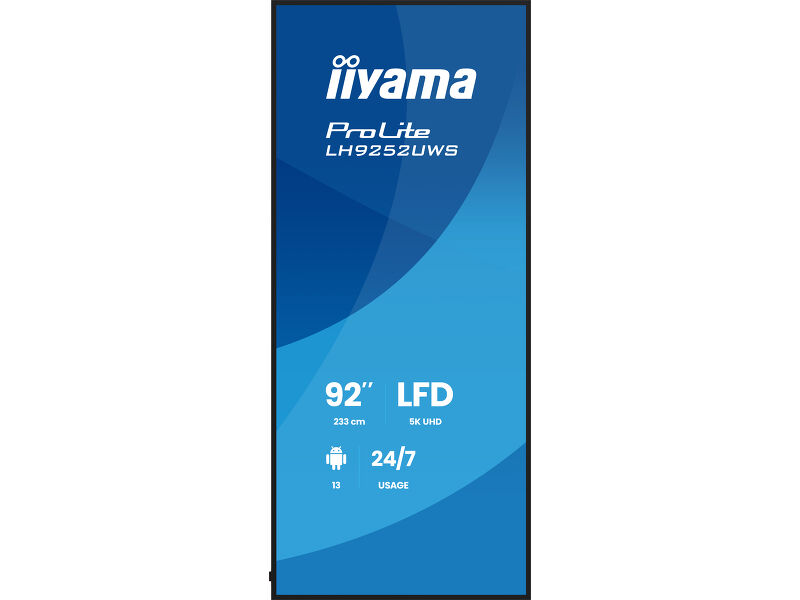

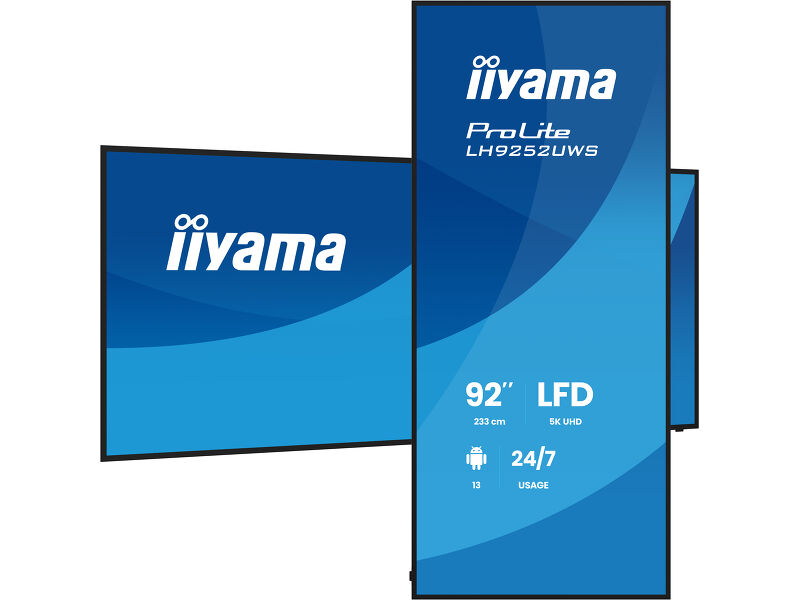

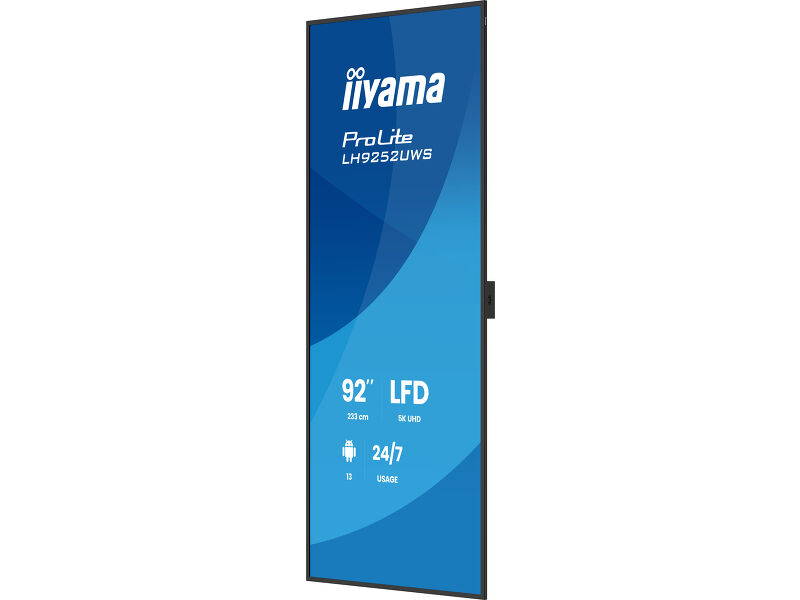

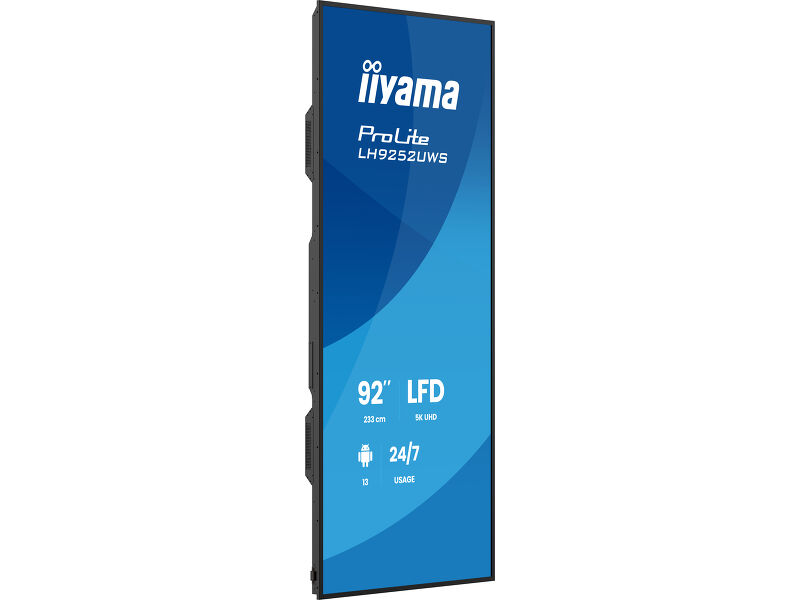

Flexible Orientation
The ability to position the displays in landscape or portrait orientation means you can make the most of any space and bring your messaging, advertisements, videos and safety information to your audience.
5K - 11 Mega Pixels
Experience stunning visuals on this IPS panel with 5KUW resolution (5120x2160), offering crisp and clear images for a truly immersive viewing experience.
USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port.
Standalone Solution
Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during presentations, video conferences, or multimedia playback.
Technical specification
DISPLAY CHARACTERISTICS
| Diagonal | 92", 233cm |
| Panel | VA Panel, AG coated glass, matte finish, haze 25% |
| Native resolution | 5120 x 2160 @60Hz (5K) |
| Aspect ratio | 21:9 |
| Panel brightness | 500 cd/m² |
| Static contrast | 5000:1 |
| Dynamic contrast | 5000:1 |
| Response time (GTG) | 6.5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B (8 bit + Hi-FRC) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 2141.952 x 903.636mm, 84.3 x 35.6" |
| Bezel width (sides, top, bottom) | 14.9mm, 14.9mm, 14.9mm |
| Pixel pitch | 0.13945 x 0.41835mm |

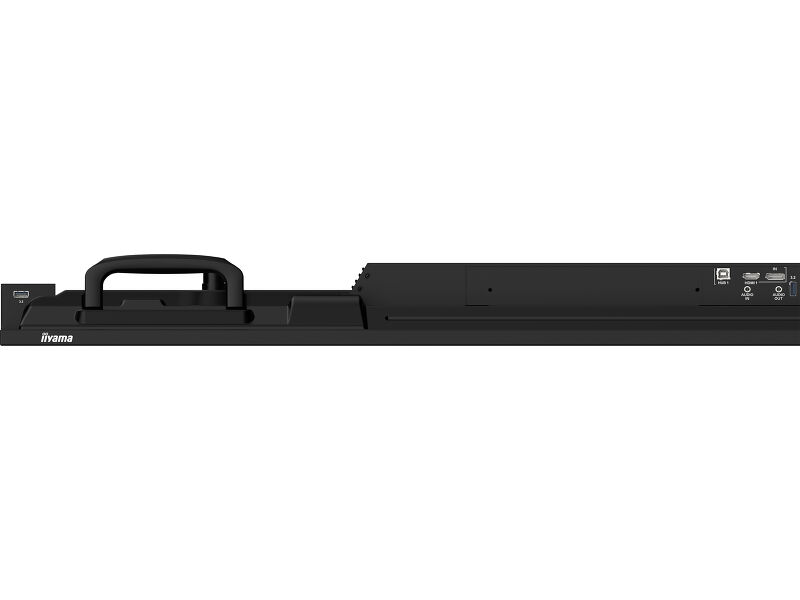

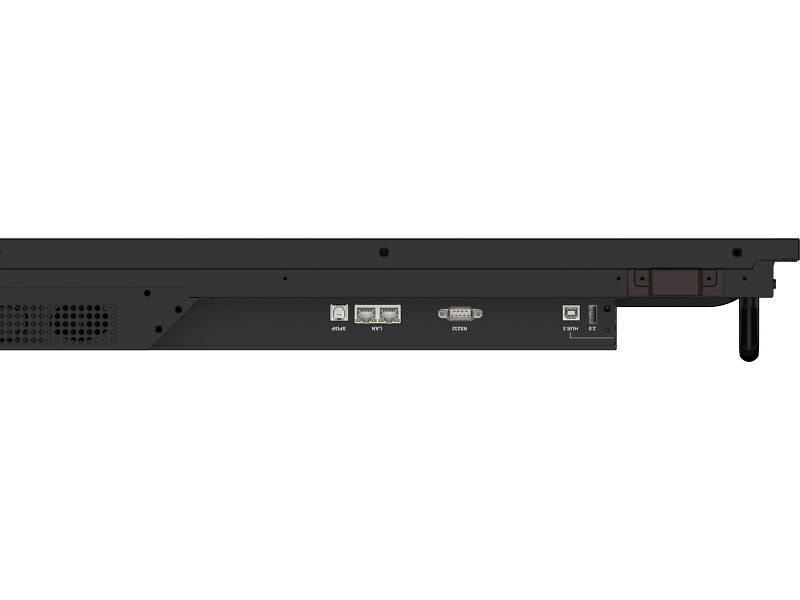

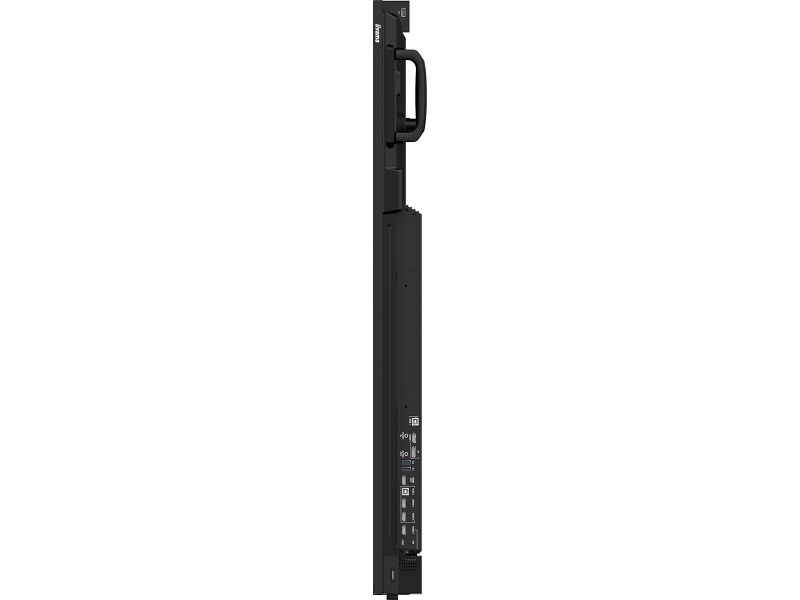

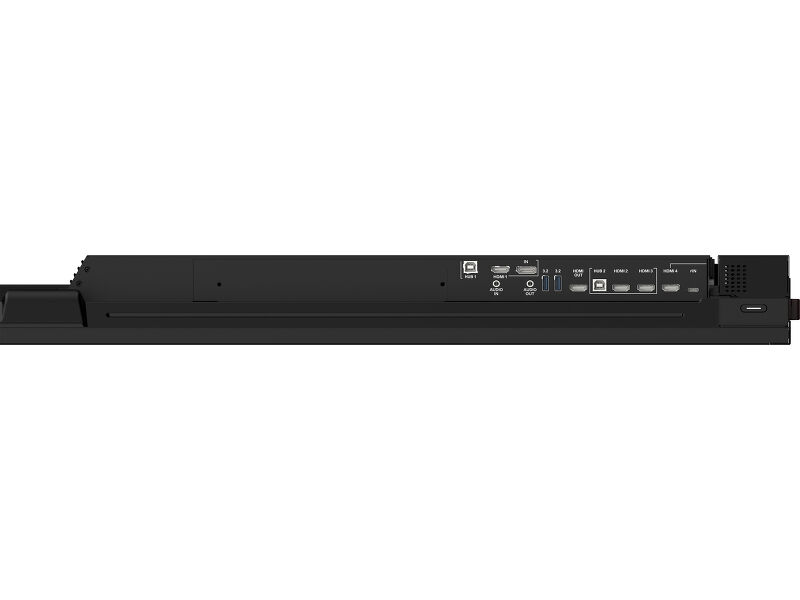

INTERFACES / CONNECTORS / CONTROLS
| Digital signal input |
HDMI x1 (5120 x 2160 60Hz, HDMI 2/3/4 x3: 3840 x 2160 60Hz) DisplayPort x1 (5120 x 2160 60Hz) USB-C x1 (3840 x 2160 60Hz) |
| Audio input | Mini jack x1 (3.5mm) |
| Monitor control input |
RS-232c x1 RJ45 (LAN) x2 (1000Mbps) |
| Digital signal output | HDMI x1 (Max. resolution 3840 x 2160 @60Hz HDMI2,0 HDCP 1.4) |
| Audio output |
Mini jack x1 (3.5mm) Speakers 2 x 20W (20W subwoofer) |
| Monitor control output | OPS Slot x1 (Intel OPS 80pin) |
| USB ports | x3 (1x Side Android only, 2x Side +2x top Public (can auto switch to current channel) USB 3.2 Gen1) |
| RJ45 (LAN) | x2 |
| USB HUB | x1 |
FEATURES
| Integrated software | Android 13 OS, iiyama DMS, iiyama Share, EShare |
| WiFi | yes (WiFi 6E + BT 5.2) |
| Hardware | SOC: RK3588 Octo-core A76x4 + A55x4, GPU Mali G640 MP4, RAM: 8GB, ROM: 128 GB |
| Extra | 1x Intel OPS 80pin |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Housing (bezel) | metal |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, CAT, FI, DA, ET, LV, LT, HU |
| Control buttons | Power key (1key with On: LED Off: , Long push(power off (LED :Red) Turn off/on backlight(Short click) Standby modus (LED :Red Flashing fast) |
| User controls | Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number) |
| Blue light reducer | yes |
| Flicker free | yes |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait |

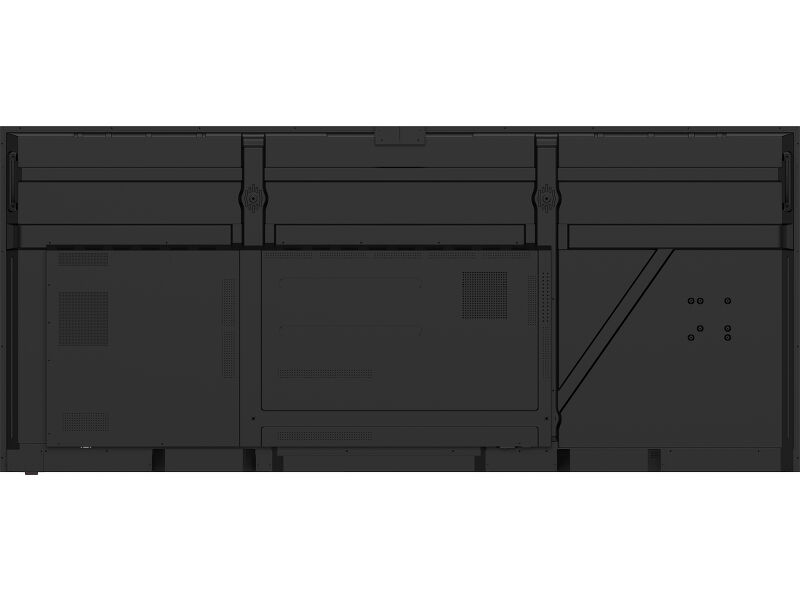

| VESA mounting | 800 x 600mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED

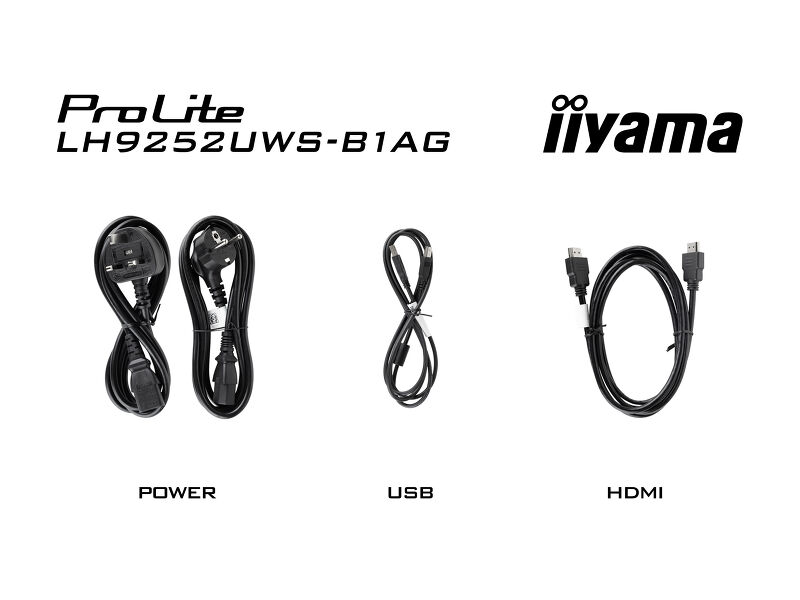

| Cables | power (3m), HDMI (3m), DP (3m), RS-232c (3m) |
| Guides | quick start guide, safety guide |
| Other | Guides, cable management cover, remote control, cable ties (5 units), webcam bracket, wall mount bracket, wall mount bracket set. |
| Remote control | yes (batteries included) |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 201W typical, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 2182 x 943.8 x 85.2mm |
| Box dimensions W x H x D | 2360 x 1072 x 225mm |
| Pallet volume | 50pcs |
| Pallet dimensions W x H x D | 2380 x 1140 x 120mm |
| Weight (without box) | 44kg |
| Weight (with box) | 63kg |
| EAN code | 4948570128051 |
Downloads
| User manual | LH92_10552UWS-B1AG-usermanual-e.pdf | Download |
| Technical specification | ProLite LH9252UWS-B1AG - gb_en.pdf | Download |
| EU Energy Label | LH9252UWS-B1AG EU Energy Label (2608231).pdf | Download |
| UK Energy Label | LH9252UWS-B1AG UK Energy Label (2608231).pdf | Download |
| 3D-File (.stp) | LH9252UWS-B1AG.zip | Download |

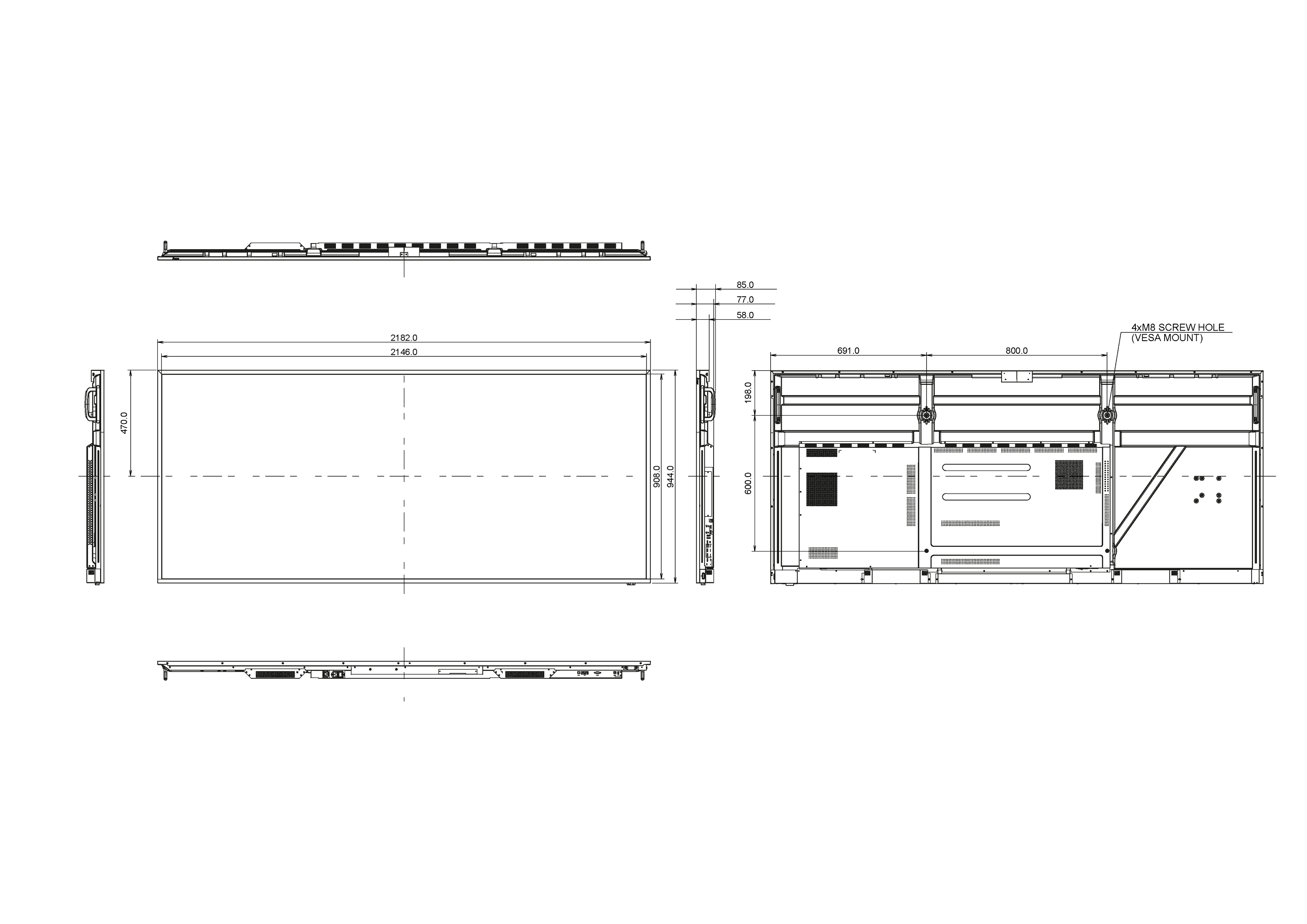

| Drawing | LH9252UWS-B1AG-drawing.pdf | Download |
| Guarantee label | LH9252UWS-B1AG.pdf | Download |
