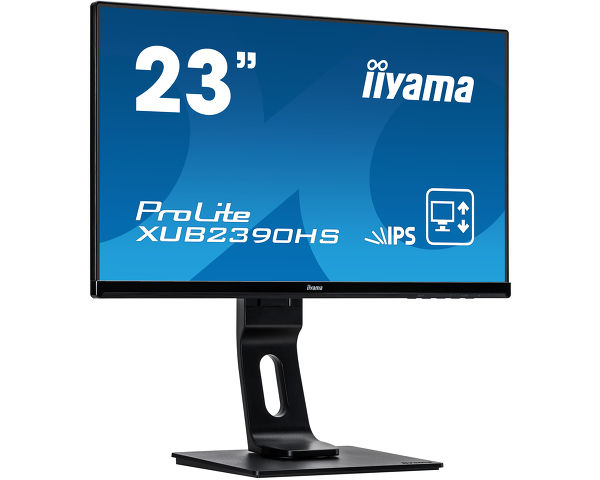

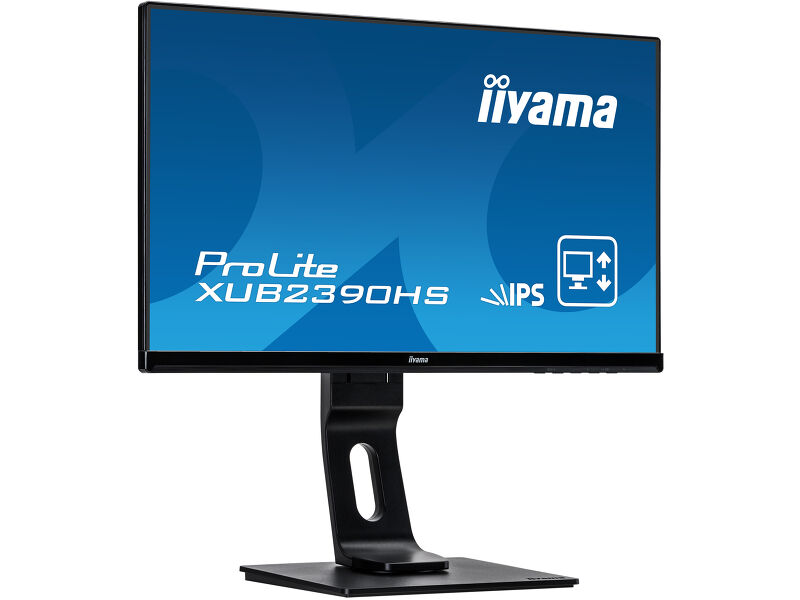

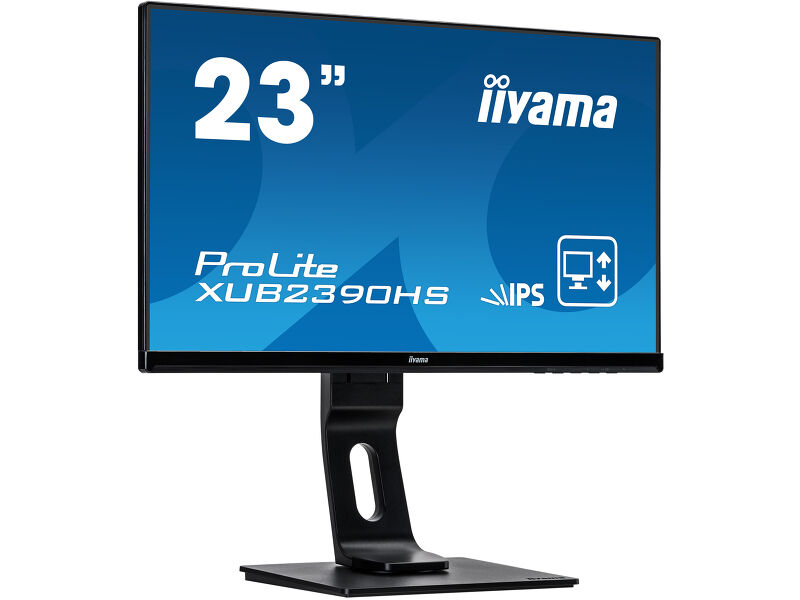

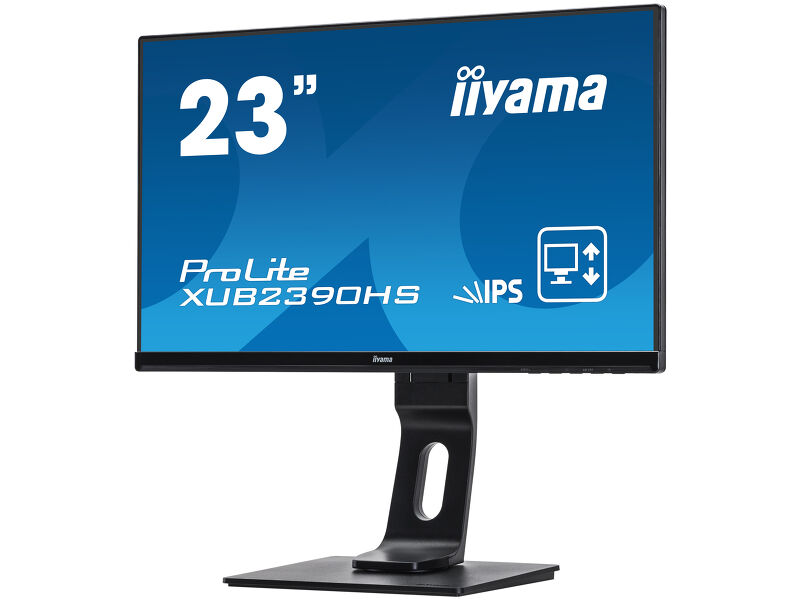

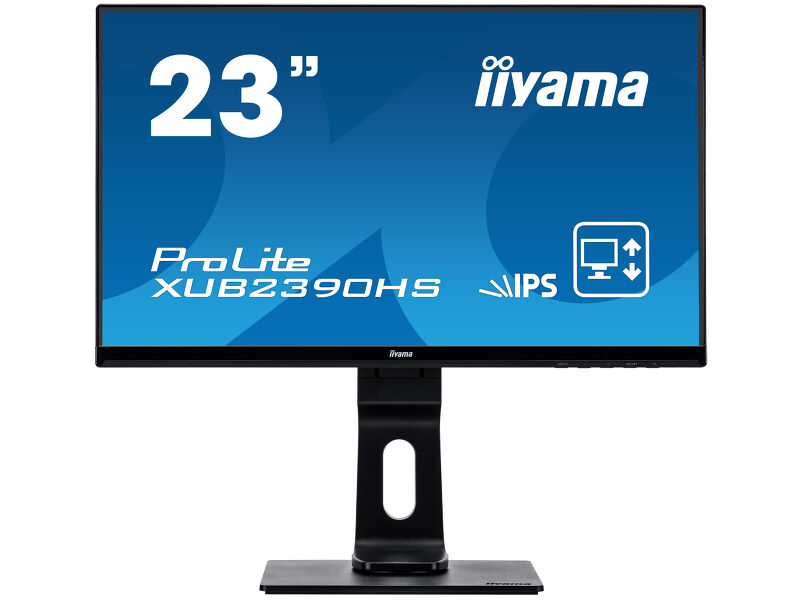

ProLite XUB2390HS-B1 (EOL) Replaced by: ProLite XUB2390HS-B5
23” IPS monitor with ultra flat front and height adjustable stand
ProLite XUB2390HS is a 23” LED monitor with latest IPS Panel technology considered to be the best all round panel type. It offers accurate and consistent colour reproduction with wide viewing angles and a fast response time. A truly ergonomic stand including pivot function makes the XUB2390HS an excellent choice for photographic design, web design, standard office use. It’s the perfect choice for multi-monitor applications.
Speakers-
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
-

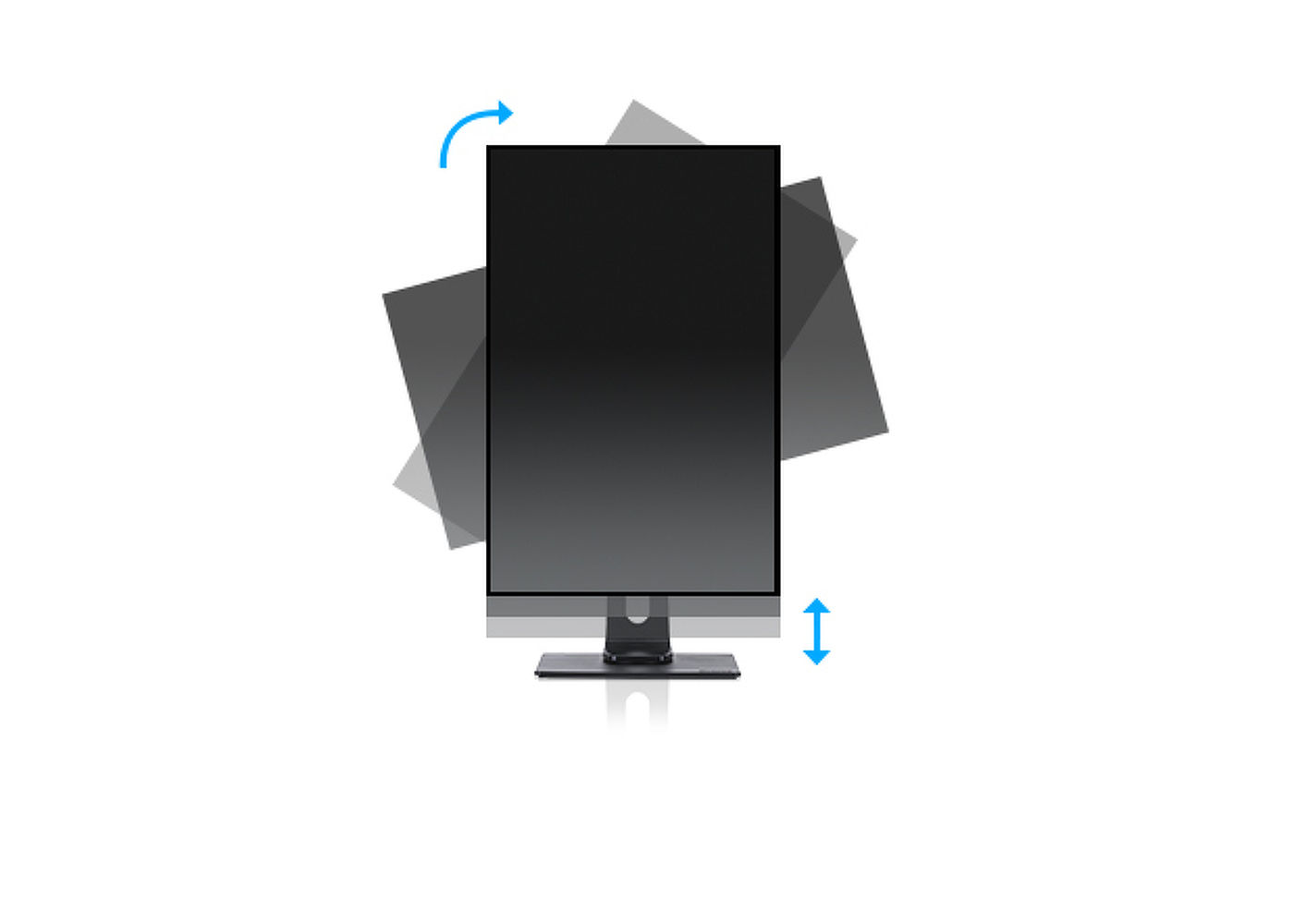

HAS + Pivot
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
-

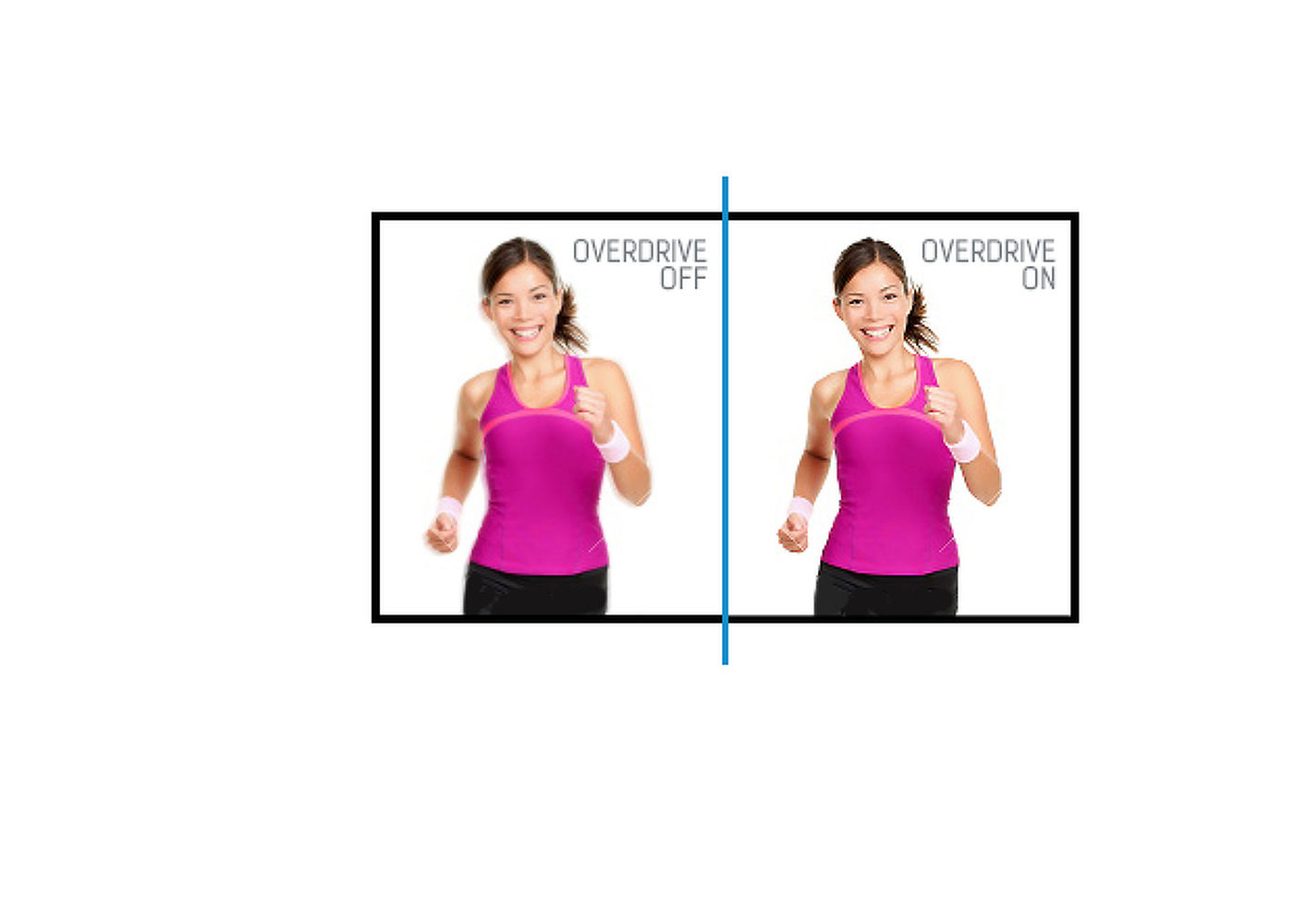

OverDrive ON / OFF
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
-
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
-
Speakers
This LED monitor is equipped with two stereo speakers.
Technical specification
DISPLAY CHARACTERISTICS
| Design | 3-side borderless |
| Diagonal | 23", 58.4cm |
| Panel | AH-IPS LED, matte finish |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 5M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 24 - 80kHz |
| Viewable area W x H | 509.2 x 286.4mm, 20 x 11.3" |
| Pixel pitch | 0.265mm |
| Colour | matte, black |
INTERFACES / CONNECTORS / CONTROLS

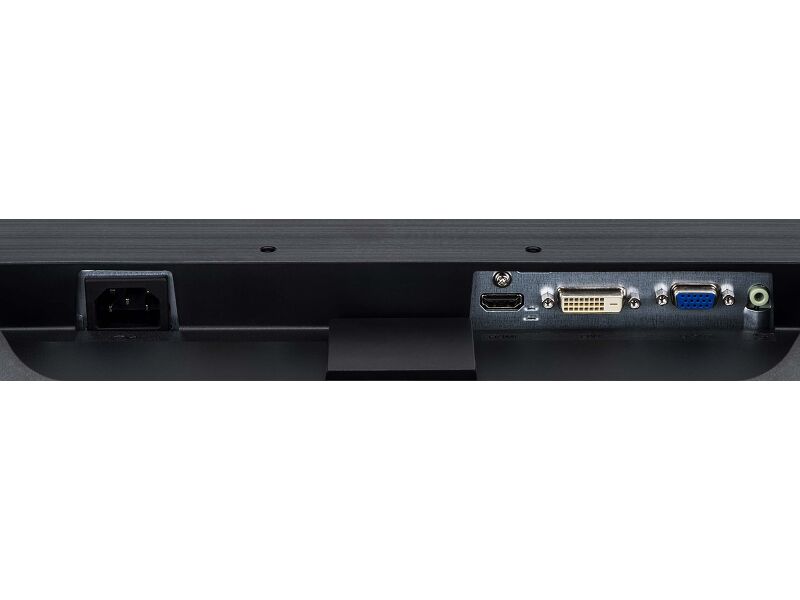

| Signal input |
VGA x1 DVI x1 HDMI x1 |
| HDCP | yes |
FEATURES
| Blue light reducer | yes |
| OSD languages | EN, DE, FR, ES, IT, PT, CN, RU, JP |
| Control buttons | Power, Menu, +/ Volume, -/ ECO, Auto |
| User controls | luminance (contrast, brightness, i-style Colour, ACR, ECO), image setup (clock, phase, H. position, V. position, aspect), colour (gamma, colour temp.), OSD setup (H. position, V. position, OSD time out, language), extra (reset, DDC/CI, input select, OD, HDMI audio, opening logo, information), volume, auto adjust |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |

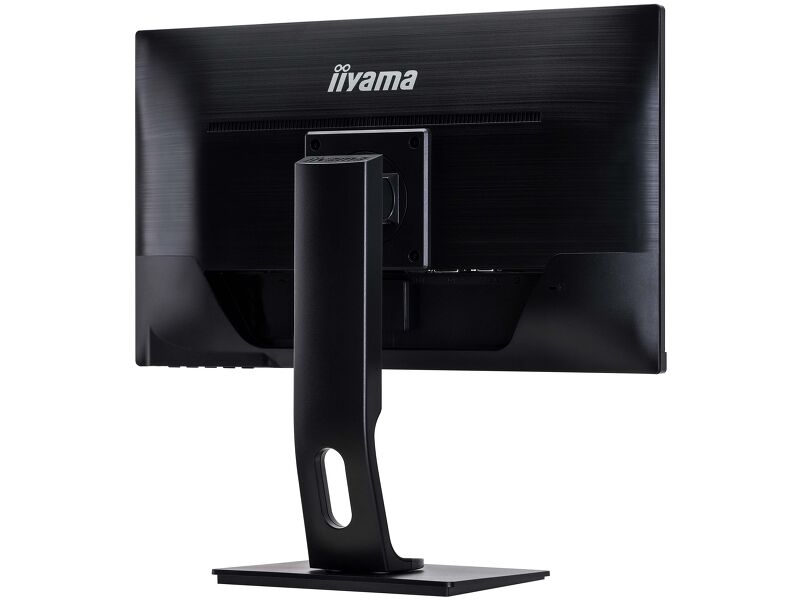

MECHANICAL
| Display position adjustments | height, pivot (rotation), swivel |
| Height adjustment | 130mm |

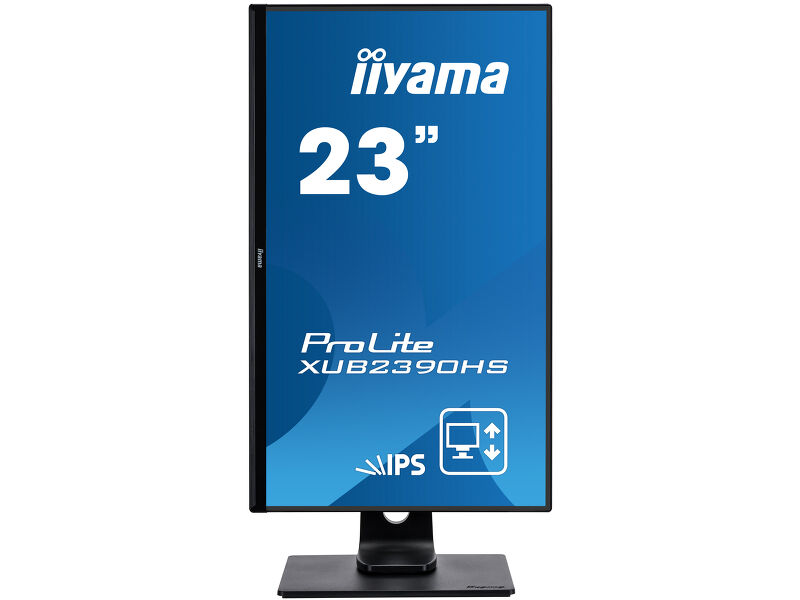

| Rotation (PIVOT function) | 90° |
| Swivel stand | 90°; 45° left; 45° right |

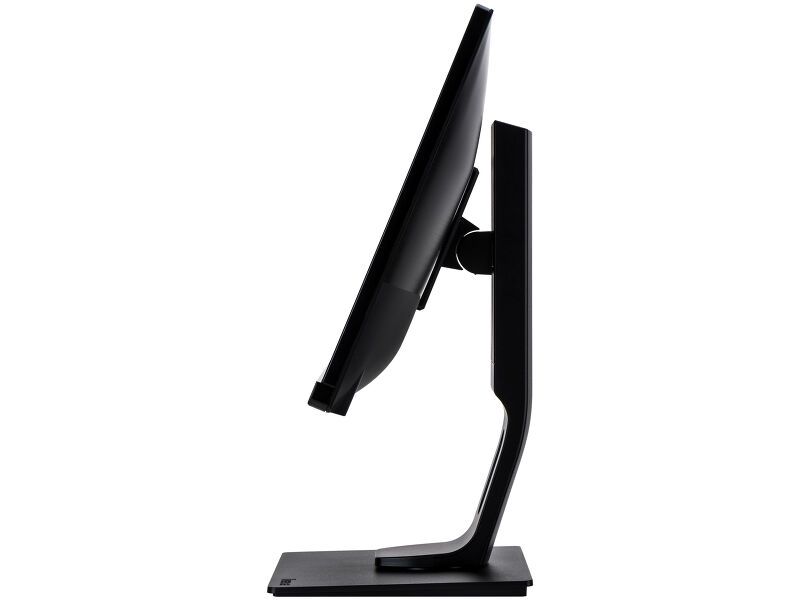

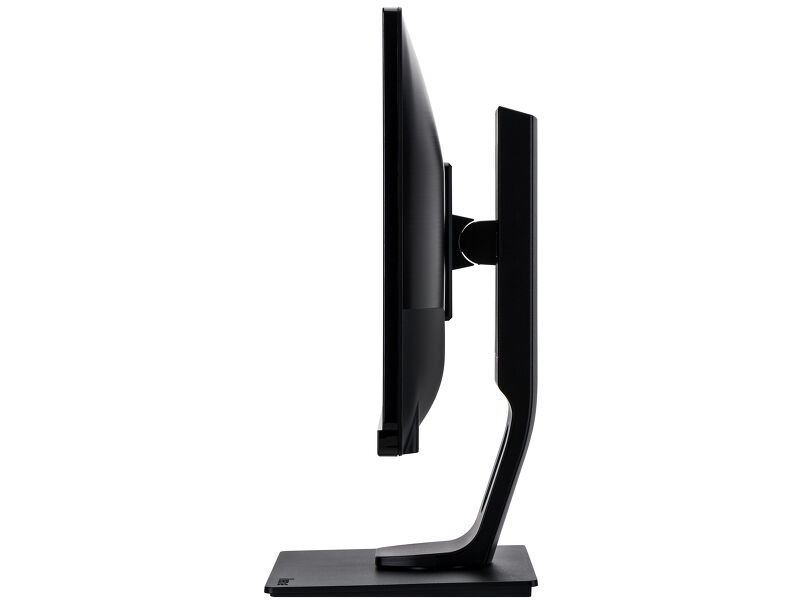

| Tilt angle | 20° up; 4° down |

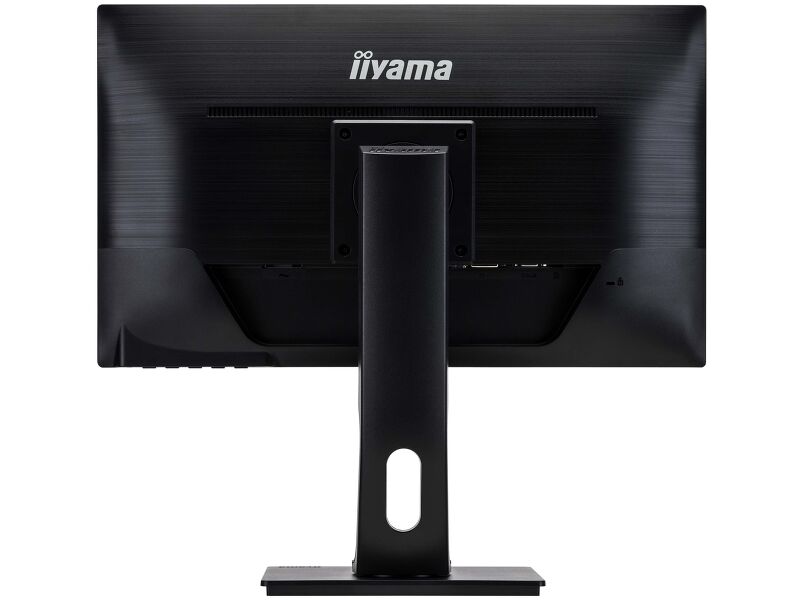

| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED

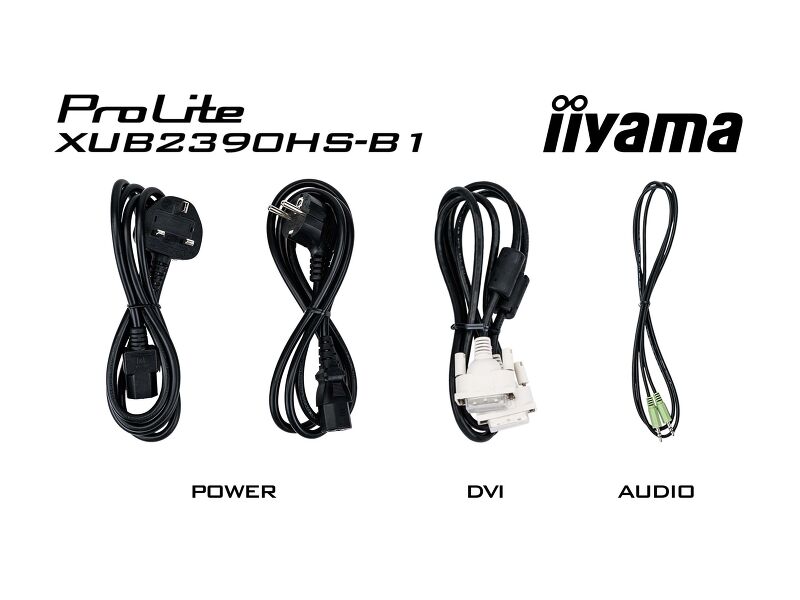

| Cables | power, DVI, Audio |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 22.1W typical, 0.43W stand by, 0.27W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 532.5 x 377.5 (507.5) x 210mm |
| Weight (without box) | 5.3kg |
| EAN code | 4948570113057 |
