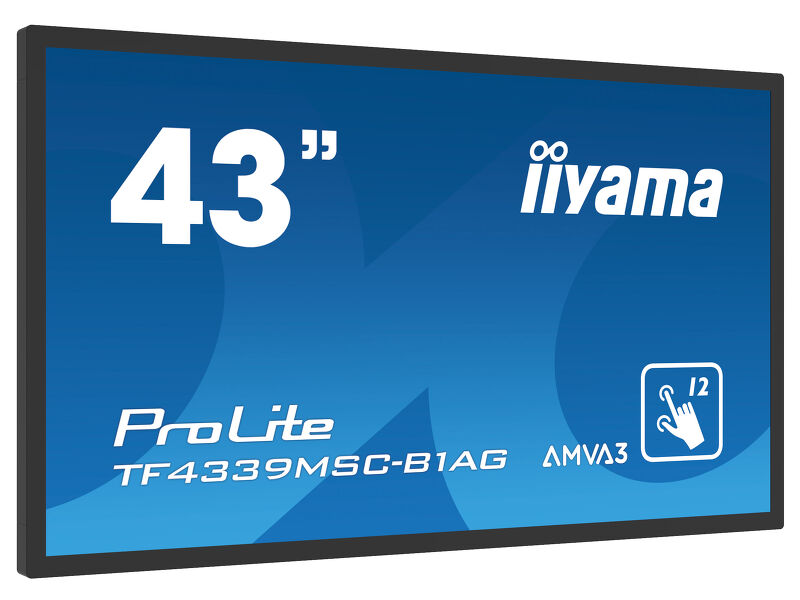

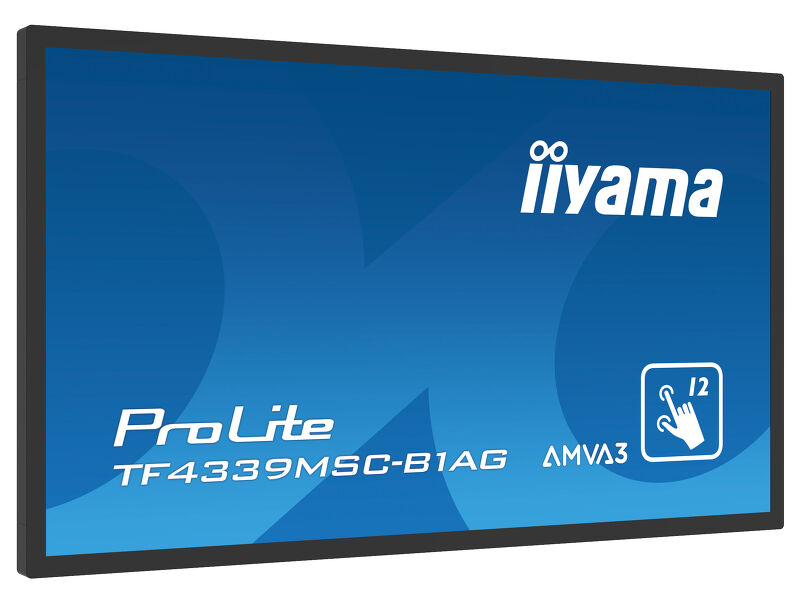

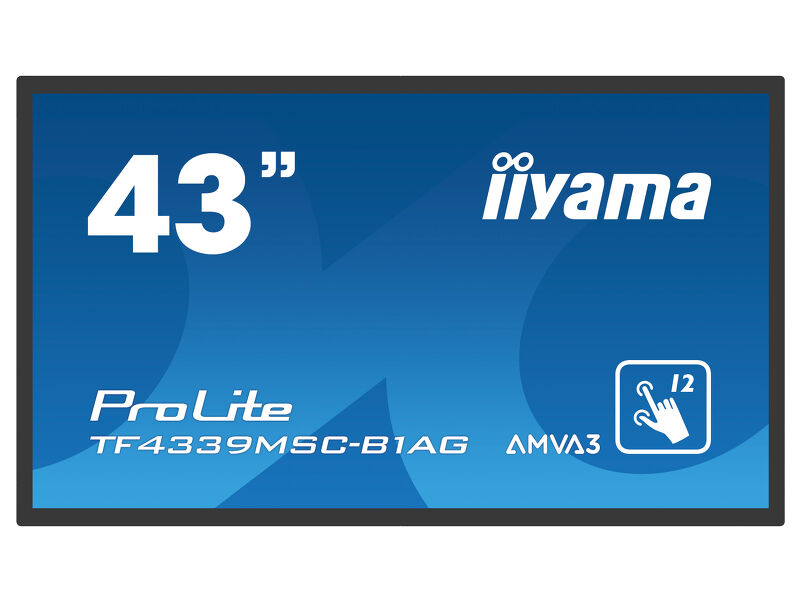

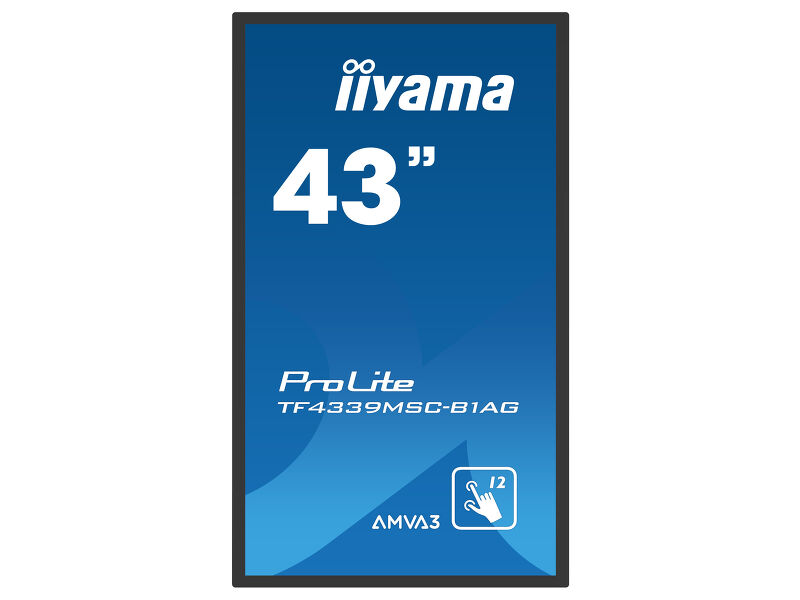

43" 12pt Open Frame PCAP interactive large format display with touch through glass function

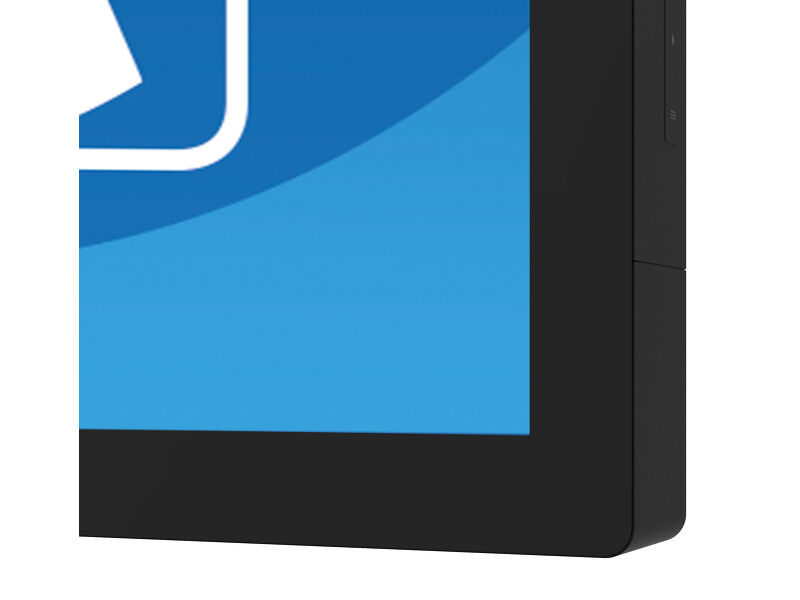

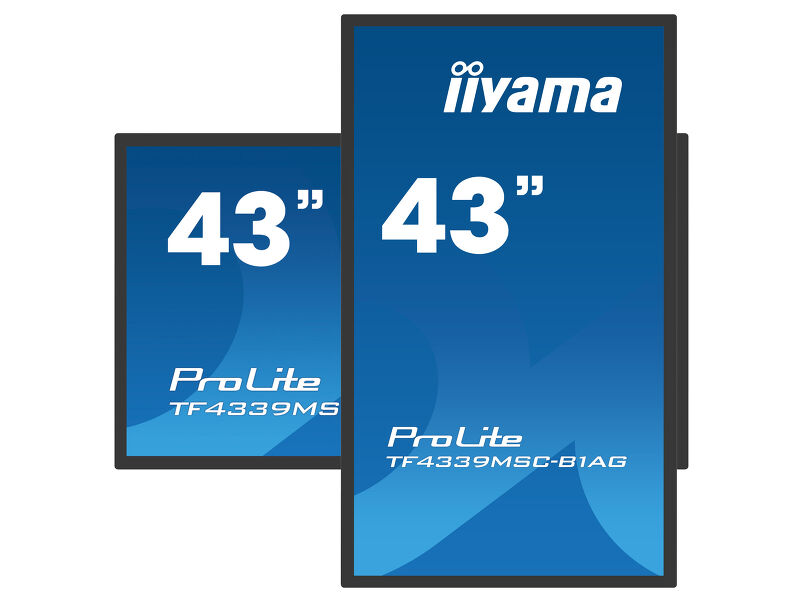

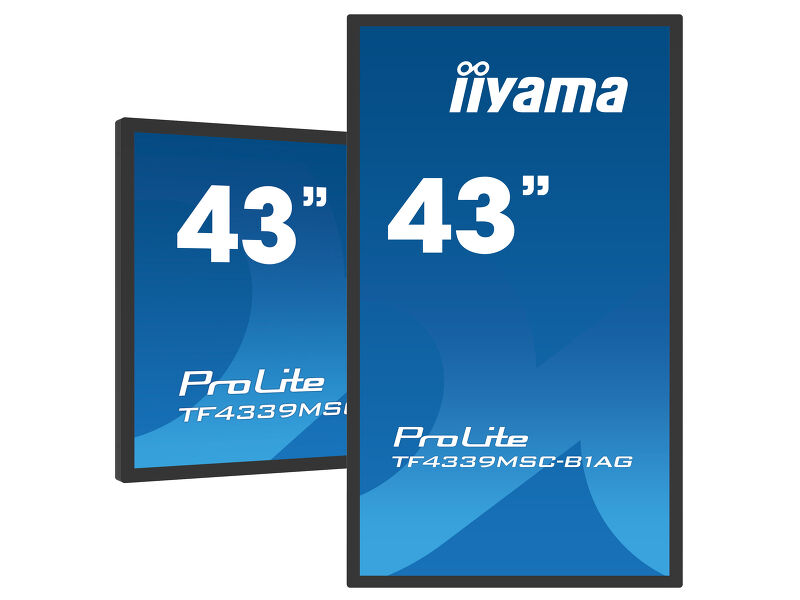

Touch-Through-Glass technology, guaranteeing a seamless and accurate touch response for true kiosk integration or behind-glass-retail applications. The vibrant, Full HD (1920x1080) TF4339MSC-B1AG Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes.

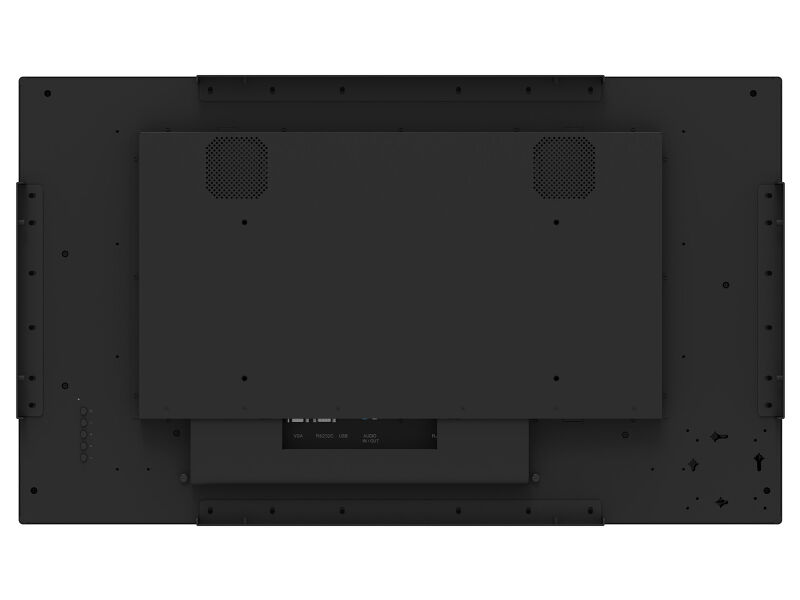

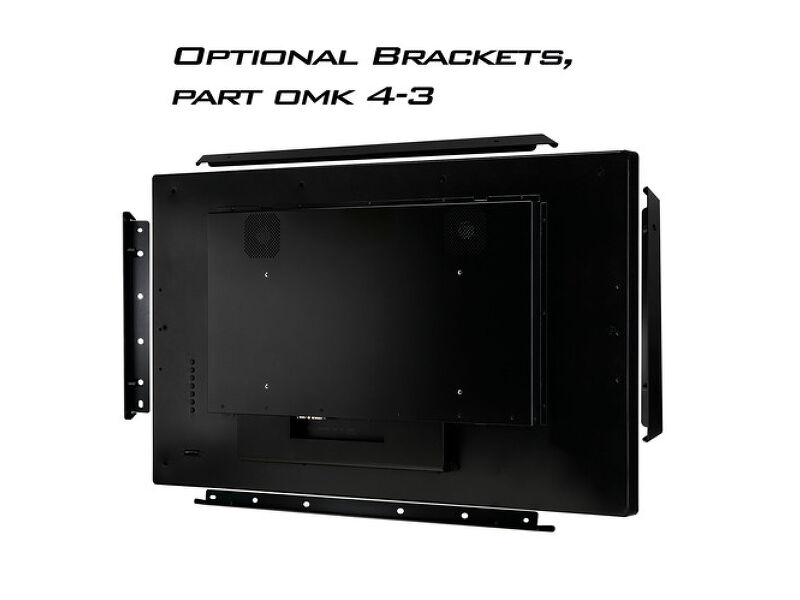

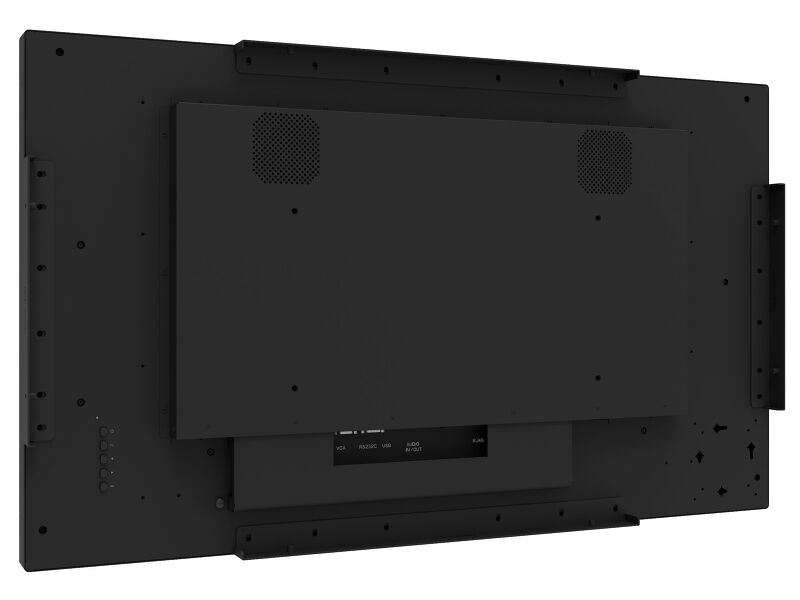

For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets (OMK4-3) making it an ideal solution for kiosk integrators and interactive multimedia.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

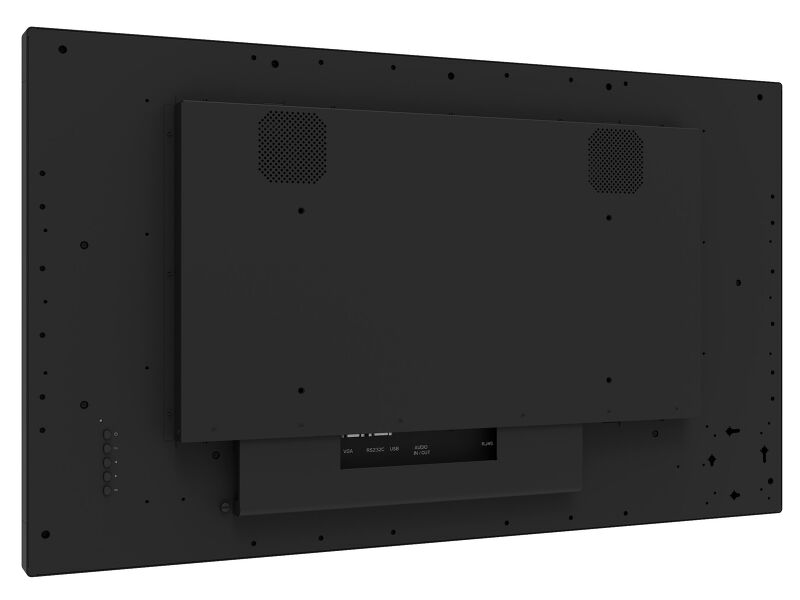

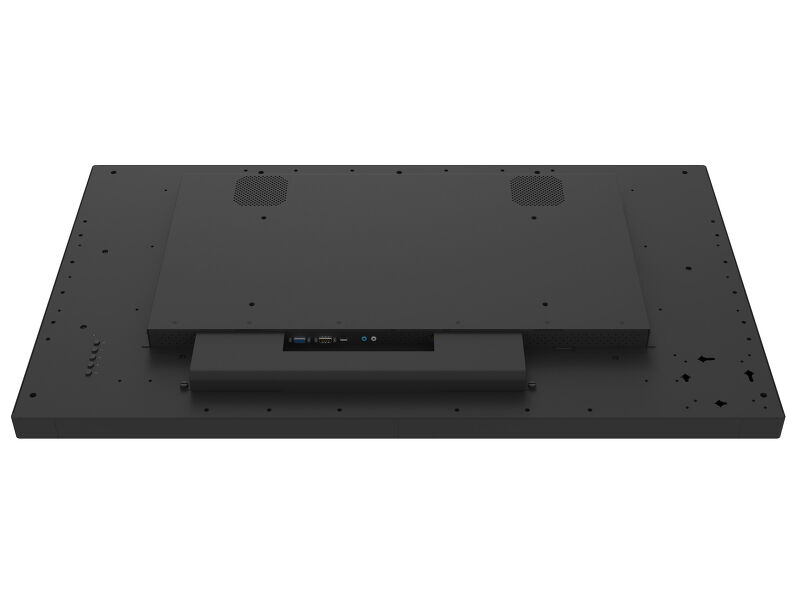

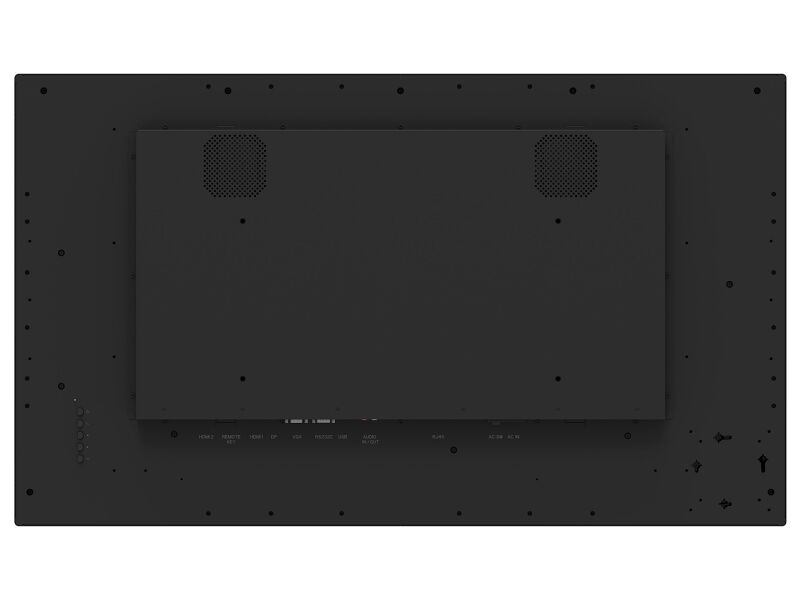

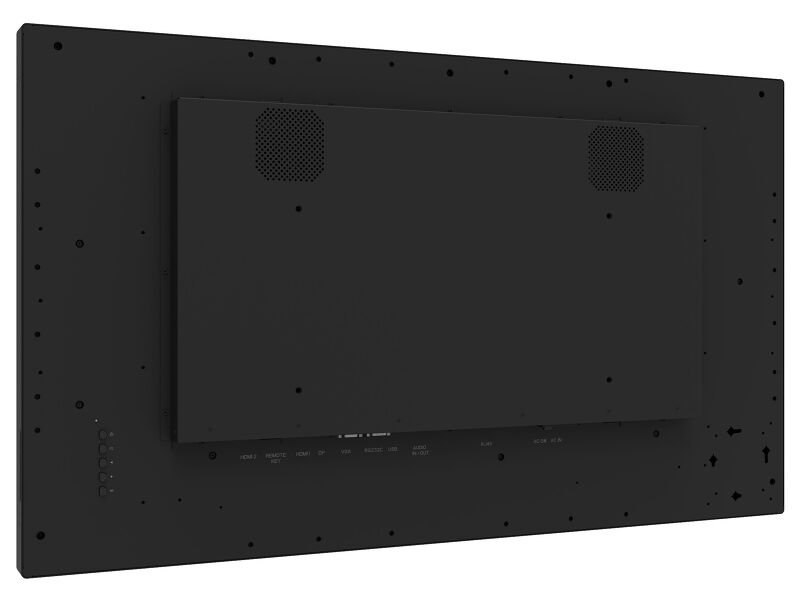

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
24/7 displays are designed for a continuous operation.
|Design||Edge to edge glass, Open Frame|
|Panel||AMVA3 LED, Anti-glare coated glass|
|Native resolution||1920 x 1080 @60Hz (2.1 megapixel Full HD)|
|Brightness||400 cd/m² typical|
|Brightness||340 cd/m² with touch|
|Static contrast||4000:1 typical|
|Response time (GTG)||8ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Horizontal Sync||30 - 83kHz|
|Viewable area W x H||529.25 x 940.86mm, 20.8 x 37.1"|
|Bezel colour and finish||black, matte|
|Reommended usage||retail, education|
|Touch technology||projective capacitive|
|Touch points||12 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

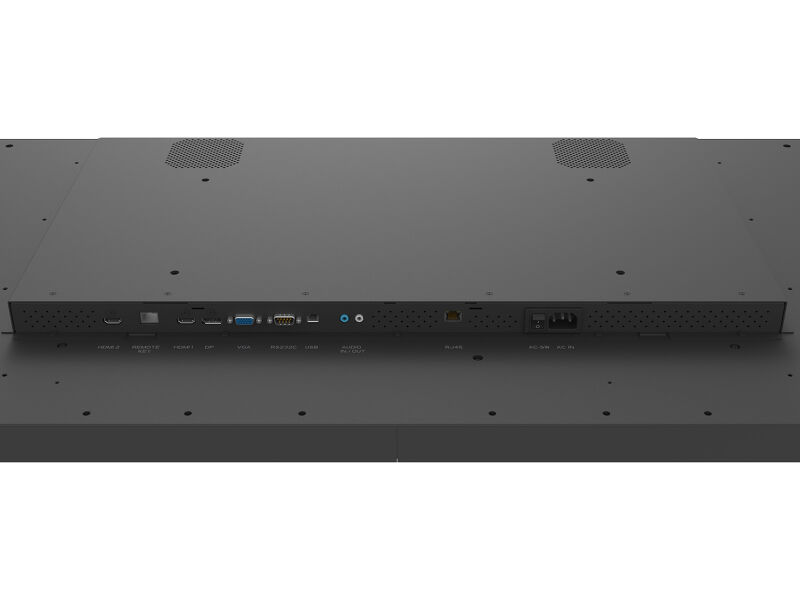

|Analog signal input||VGA x1|
|Digital signal input||
|Audio input||Mini jack x1|
|Monitor control input||
RJ45 (LAN) x1
Mini jack x1
Speakers 2 x 8W
|Max. non-stop operating time||24/7|
|60950 Ball drop test||yes|
|Water and dust protection||IP54 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, RU, NL, PL|
|Control buttons||Power, exit/back, down/left, up/right, enter|
|User controls||picture (picture mode, backlight, contrast, brightness, chroma, phase, sharpness, color temperature, reset), sound (treble, bass, balance, volume, mute, speaker, audio source, reset), screen (aspect, adjust screen, touch feature, touch switch), setting (language, schedule, power save, control settings, network settings, advanced), setting (advanced, information, all reset)|
|Orientation||landscape, portrait, face-up|
|VESA mounting||400 x 200mm|
|Mini PC mount||NUC INTEL|
|Operation temperature range||0°C - 40°C|
|Storage temperature range||- 20°C - 60°C|

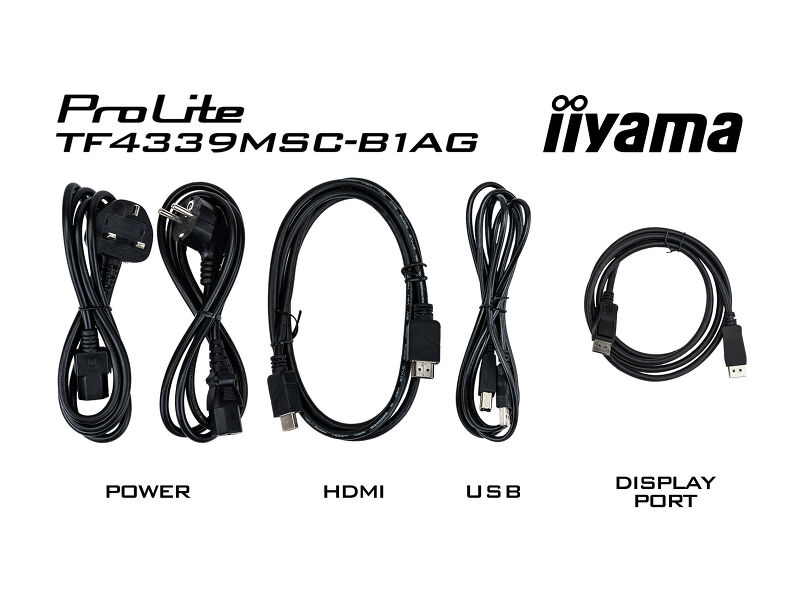

|Cables||power, USB, HDMI, DP|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||60W typical, 1.5W stand by, 0.3W off mode|
|Regulations||CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA|
|Energy efficiency class (Regulation (EU) 2017/1369)||G|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||985 x 577.5 x 68mm|
|Box dimensions W x H x D||1070 x 700 x 200mm|
|Pallet dimensions W x H x D||1130 x 1070 x 700mm|
|Weight (without box)||23kg|
