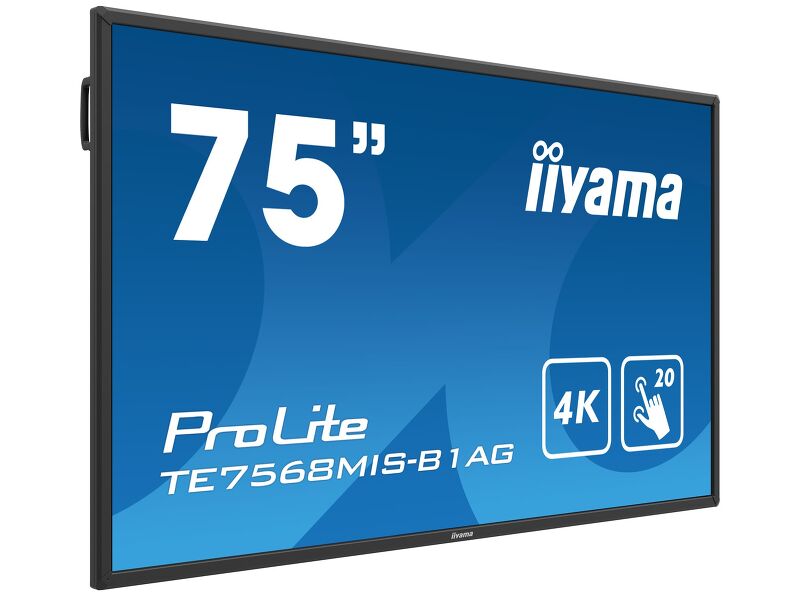

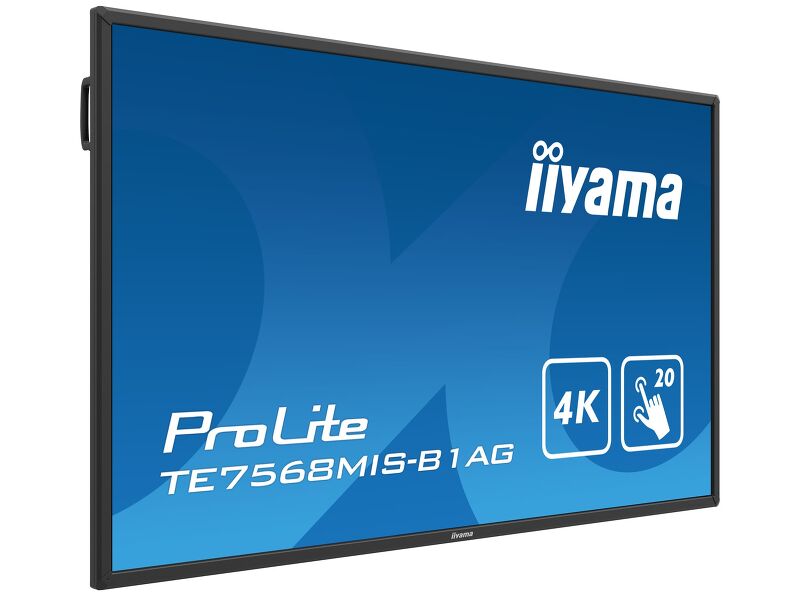

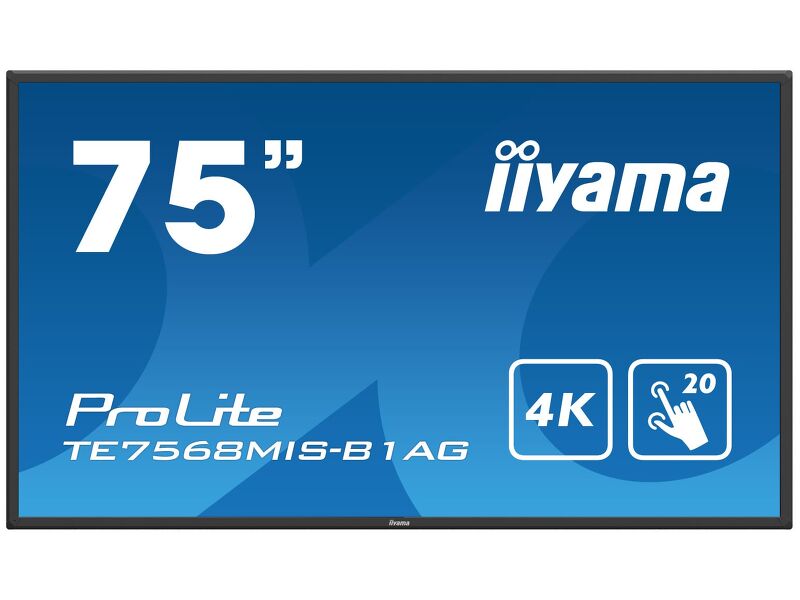

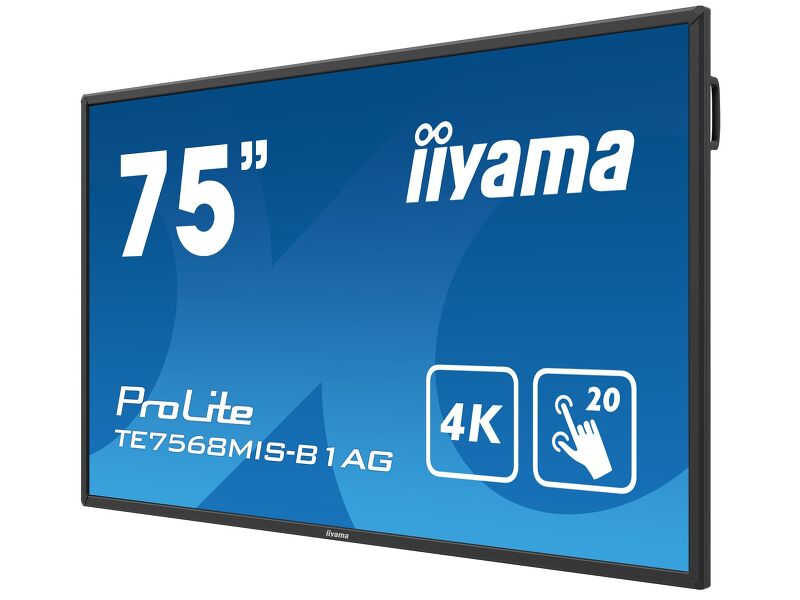

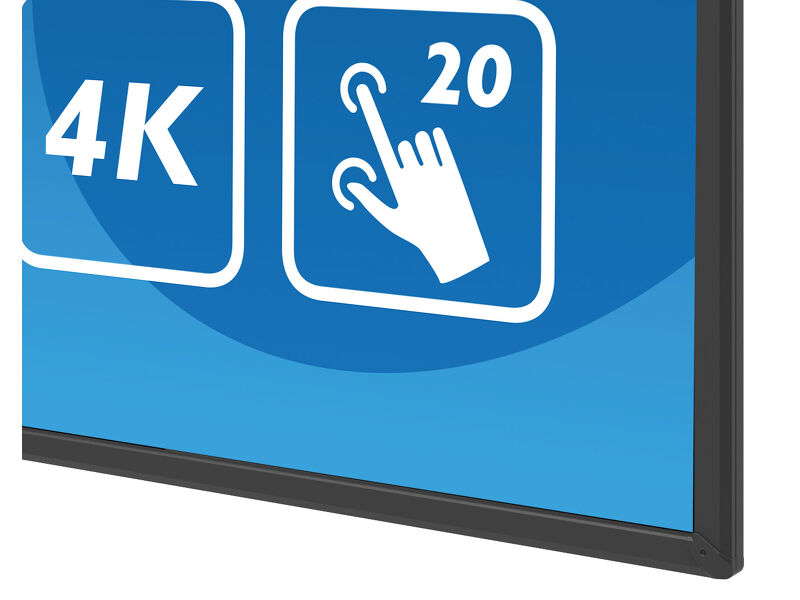

75’’ interactive 4K UHD LCD Touchscreen with integrated annotation software
The TE7568MIS-B1AG is a perfect solution for educational and corporate use. Its 75’’ infrared 20-point touchscreen with integrated interactive Note writing software allows users to make annotations on files opened directly from a USB device or internal memory. The display also supports the playback of presentations, video and almost any other type of content stored on a USB device or internal memory. The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840 x 2160 - 8.3 megapixel) guarantees stunning images with superb image quality from anywhere in the classroom or meeting room.
The anti-glare coating drastically reduces ambient reflection in high brightness environments without compromising image clarity and sharpness. The screen has a 24/7 non-stop operating time and is equipped with 4 mm thick glass to ensure a long durability in high-use environments like a classroom or meeting room.

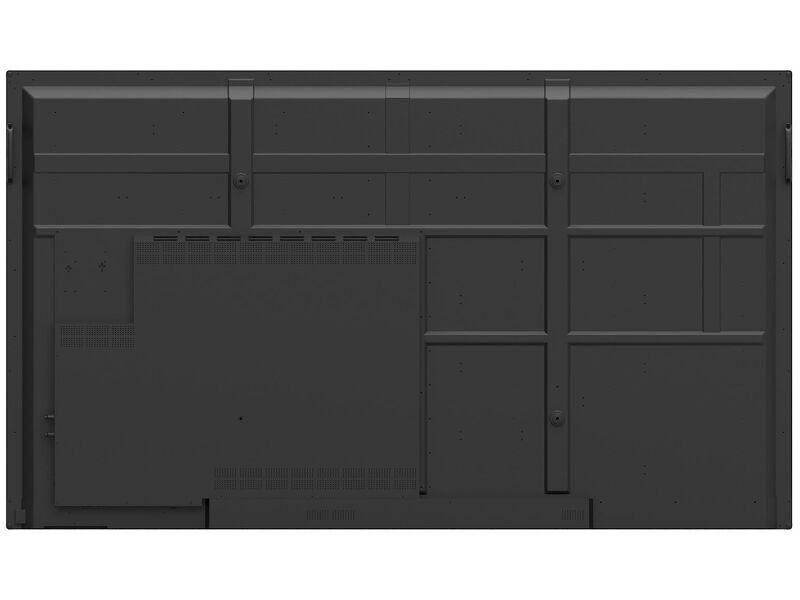

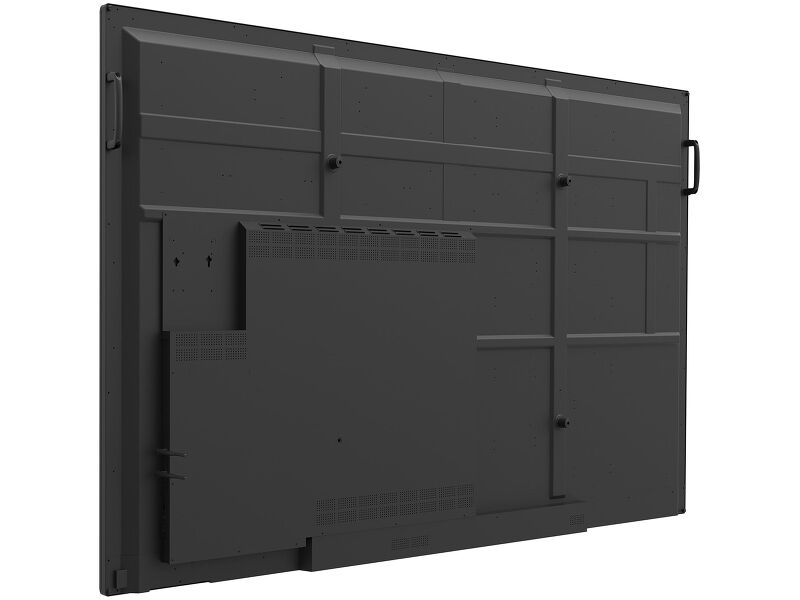

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with our additional WIFI module (OWM001). Note: this model has a non-centered lower VESA mounting pattern.
The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically "wear out" the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
24/7 displays are designed for a continuous operation.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Make notes, sketch, draw, write and share your ideas with your team or students or save them to a cloud drive or USB-stick; collaboration was never easier. Turn your iiyama professional display into a interactive digital whiteboard with Note, our Android-based writing and annotation software.
|Panel||IPS Direct LED, AG coated glass|
|Native resolution||3840 x 2160 (8.3 megapixel 4K UHD)|
|Brightness||350 cd/m² typical|
|Brightness||310 cd/m² with touch|
|Static contrast||1200:1 typical|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||1.07B 10bit|
|Horizontal Sync||30 - 80KHz|
|Vertical Sync||55 - 75Hz|
|Viewable area W x H||1649.66 x 927.94mm, 64.9 x 36.5"|
|Bezel colour and finish||black, matte|
|Touch points||20 (HID, only with supported OS)|
|Touch method||stylus, finger, glove|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||
RCA Composite x1
|Digital signal input||
HDMI x3 (v.2.0 x1, v.1.4a x2)
|Audio input||Mini jack x1|
|Monitor control input||
RJ45 (LAN) x1 (Internet for Android only)
|Digital signal output||HDMI x1|
S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 12W
|USB ports||x3 (v.2.0 x2, v.3.0 x1 media playback / peripherals / storage)|
|Extra||integrated, interactive annotation tools and applications to browse the Internet, show documents, presentations, video, etc.|
|Max. non-stop operating time||24/7|
|OSD languages||EN, DE, FR, IT, RU, CZ, NL, PL|
|User controls||General settings: Input, Brightness, Volume (volume, bass, treble, balance, sound mode, mute), Screen (aspect ratio, anti burn-in), Display (brightness, contrast, hue, sharpness, picture mode colour temp), Adjust H-position, V-position, clock, phase, auto), Advanced (wireless & networks, ethernet, share, device, display, storage, apps), Personal (security, language & input, start-up and shut-down, password, input setting, other setting), System (date & time, about device)|
|Warranty||5 years (for details and eligible countries please check the Warranty section of our website)|
|VESA mounting||800 x 400mm|
|Cables||power, VGA, USB, HDMI|
|Guides||quick start guide, safety guide|
|Remote control||yes (batteries included)|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||332W typical, 0,5W stand by, 0,5W off mode|
|Regulations||CB, CE, TÜV-Bauart, CU|
|Energy efficiency class||C|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||1763.5 x 1016.5 x 100.5mm|
|Weight (without box)||56kg|
|Energy efficiency class||C|
|Visible screen diagonal||189cm; 74,5"; (75" segment)|
|ON mode power consumption||332W|
|Annual energy consumption||485kWh/annum*|
|Power in Standby||0,5W stand by|
|Resolution||3840 x 2160|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
