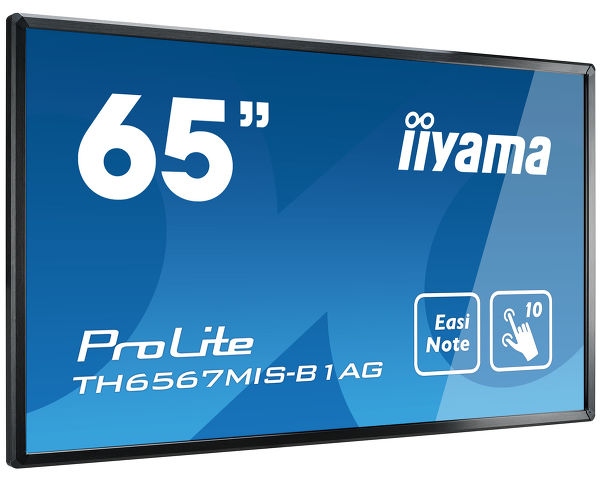

65’’ Interactive LCD Touchscreen with integrated annotation software and USB playback
The TH6567MIS-B1AG is a 65’’, 10-point touchscreen with integrated interactive EasiNote writing software allowing users to make annotations on files opened directly from a USB device or internal storage. The display supports also playback of presentations, video and almost any other type of content stored on the USB device or internal memory. The high quality commercial IPS LCD screen guarantees great viewing angles from all sides and delivers superb image performance from anywhere in a class or meeting-room. The Anti Glare screen drastically reduces ambient reflection in high brightness environments without compromising sharp clarity of the content. Unlike interactive whiteboards, there are no shadows or reductions in image performance to contend with. The TH6567MIS-B1AG is a perfect solution for educational and corporate use.

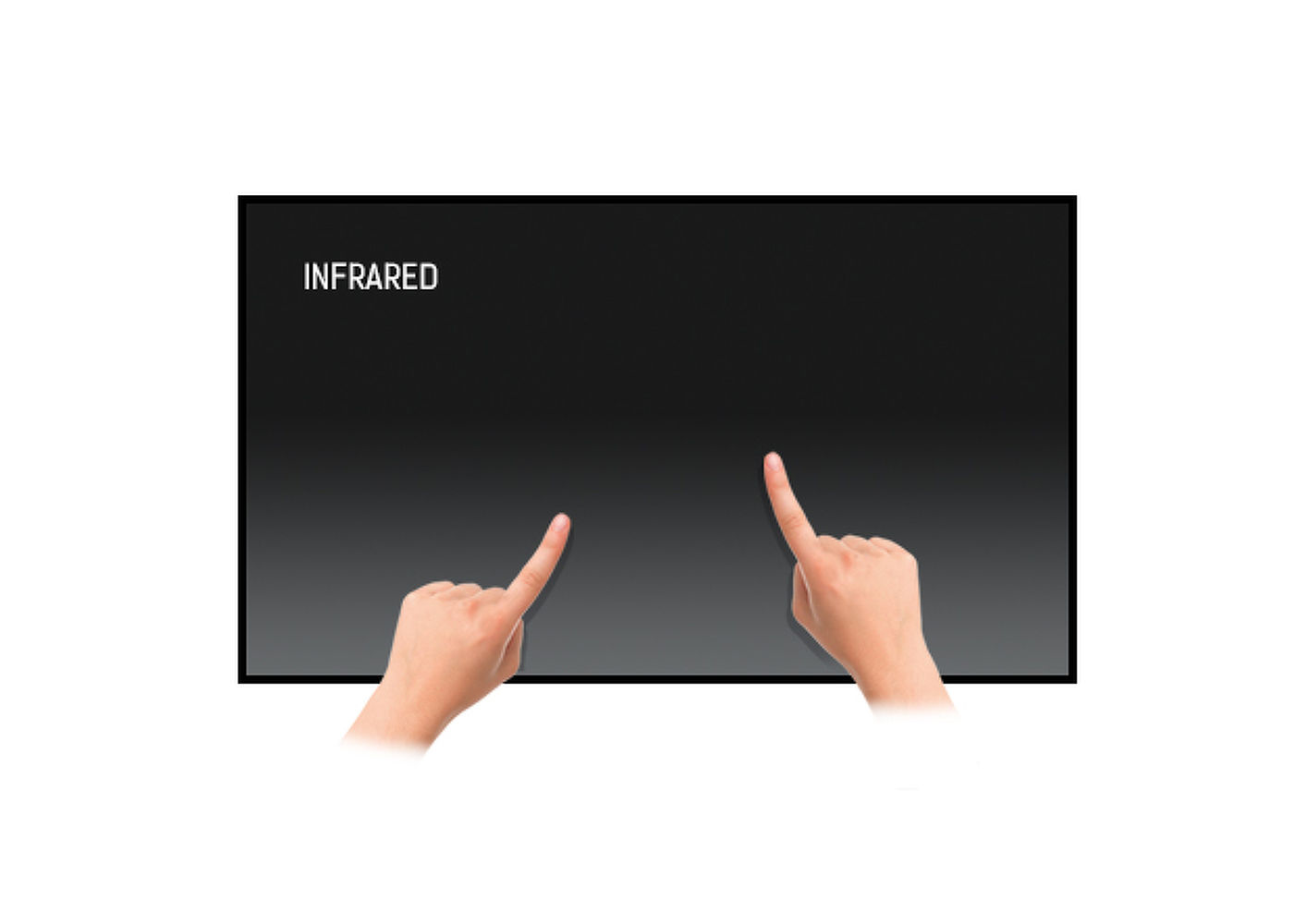

The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically "wear out" the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.

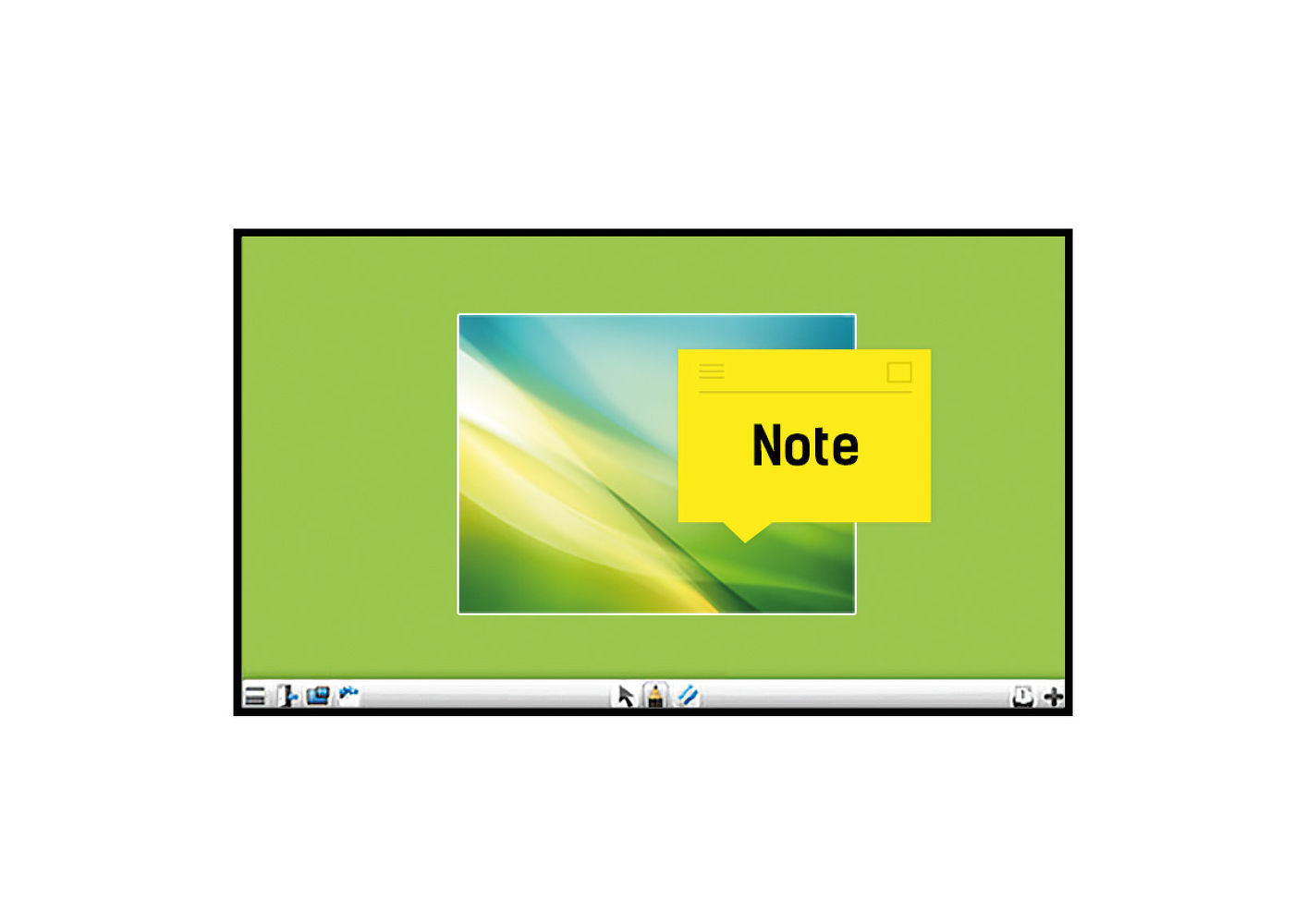

Make notes, sketch, draw, write and share your ideas with your team or students or save them to a cloud drive or USB-stick; collaboration was never easier. Turn your iiyama professional display into a interactive digital whiteboard with Note, our Android-based writing and annotation software.
24/7 displays are designed for a continuous operation.

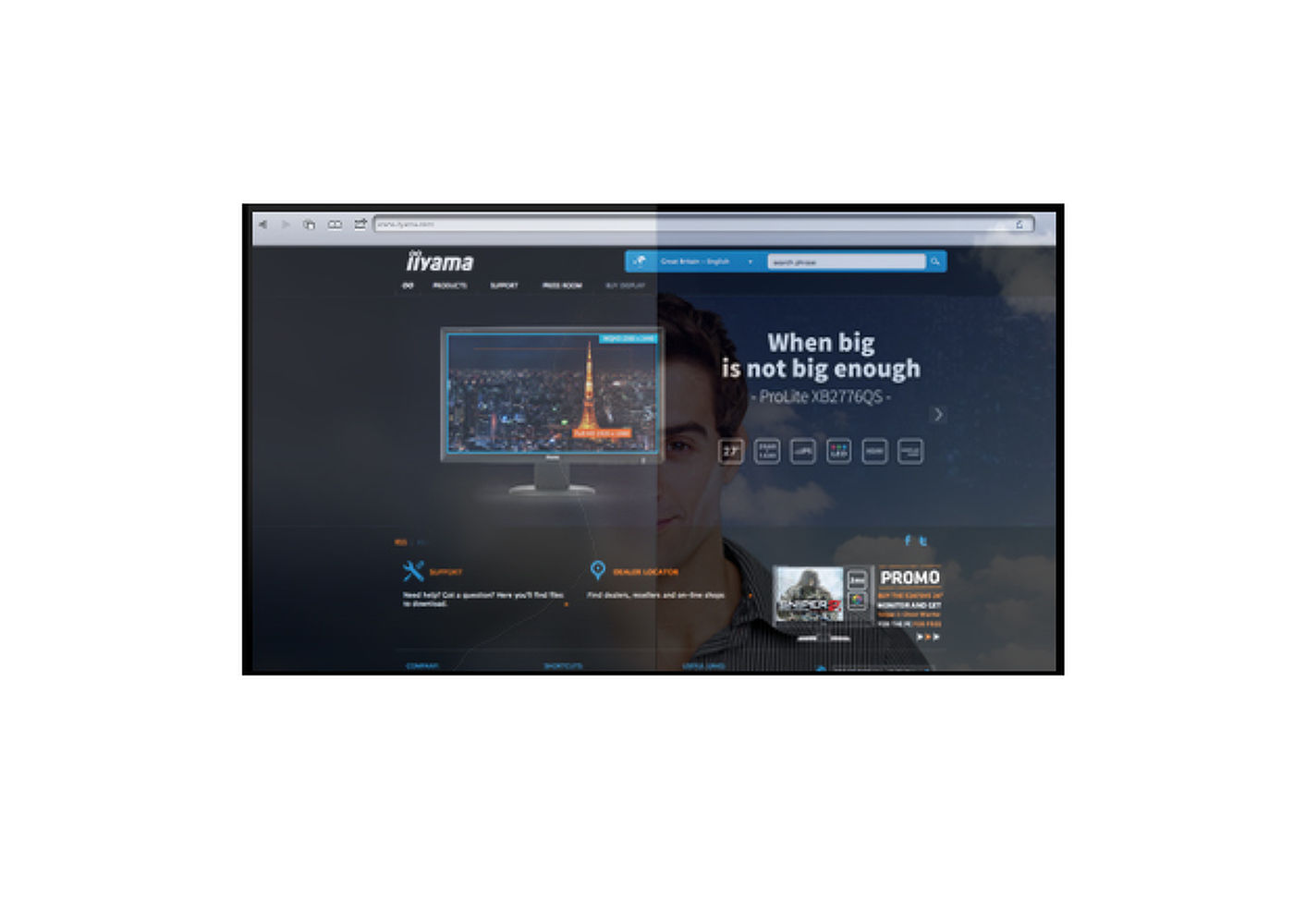

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.
| Diagonal | 65", 164cm |
| Panel | IPS LED, AG coated glass |
| Native resolution | 1920 x 1080 (Full HD 1080p, 2.1 megapixel) |
| Aspect ratio | 16:9 |
| Panel brightness | 350 cd/m² |
| Light transmittance | 88% |
| Static contrast | 1 400:1 |
| Advanced contrast | 0M:1 |
| Response time (GTG) | 6ms |
| Viewing zone | horizontal/vertical: 176°/176°, right/left: 88°/88°, up/down: 88°/88° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 1428.48 x 803.52mm, 56.2 x 31.6" |
| Pixel pitch | 0.744mm |
| Bezel colour and finish | black, matte |
| Touch technology | infrared |
| Touch points | 10 (multi touch (10 compatible touch points) activated by finger or pen, no pressure required to generate touch) |
| Touch method | stylus, finger |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Analog signal input | VGA x3 |
| Digital signal input |
DVI x1 HDMI x3 HDMI(MHL) x3 |
| Audio input | Mini jack x3 |
| Analog signal output | VGA x1 |
| Audio output |
Mini jack x1 Speakers 2 x 10W |
| USB HUB | x0 |
| Extra | integrated, interactive annotation tools and applications allowing to browse the Internet, show documents, presentations, video, etc. |
| Max. non-stop operating time | 24/7 |
| Media playback | yes |
| Housing (bezel) | metal |
| OSD languages | EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL |
| User controls | input, brightness, volume (volume, bass, treble, balance, sound mode, mute), zoom (H-position, V-position, phase, clock, aspect ratio, auto), screen (brightness, contrast, sharpness, colour temp.), advanced (Ethernet, display, storage, apps, language & input, date & time, startup and shutdown, floating annotations, about) |
| Plug&Play | DDC2B, Mac OSX |
| Orientation | landscape |
| Fanless design | yes |
| Cables | power, VGA, USB, HDMI |
| Touch pen | x3 |
| Guides | quick start guide, safety guide |
| Remote control | yes (batteries included) |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 173W typical, 0,5W stand by, 0,5W off mode |
| Regulations | CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 1521.5 x 897.5 x 99mm |
| Weight (without box) | 43kg |
| Related products | MD 052B2000 |
