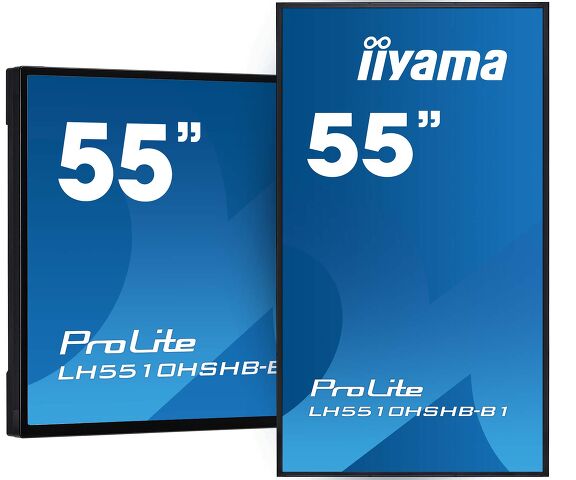

ProLite LH5510HSHB-B1

55" Professional Digital Signage display with an 24/7 operating time and 2500cd/m² brightness

Enjoy the sun with the ProLite LH5510HSHB. A professional high-brightness Full HD (1920x1080) digital signage display with 2500cd/m² for a crystal-clear image in any brightly-lit environment. Featuring a non-blackening IPS M+ LED panel for exceptional and long-lasting colour and image performance and a 50% lower power consumption than industry average.

The LH5510HSHB comes with a landscape and portrait orientation and 24/7 operating time, offering businesses an effective and energy-efficient solution to help capture their audience's attention in even the brightest of places.

55"1920 x 1080 75"3840 x 2160

Sunlight readable

This display features a high-brightness which makes it ideal for brightly-lit environments and sunny locations such as shop windows. The high-brightness ensures that your content is always clearly visible even when the sun is shining directly on your display.
LED blackening effect free

LED blackening or solar clearing happens when a regular LED display is installed in a location with direct sunlight on the display. The sunlight will heat-up the display and cause the LED’s to discolour and eventually turn black. A blackening effect free LED panel is specially designed to withstand higher temperatures up to 110 degrees Celsius of the LED panel preventing discolouration of the LED cells because of direct sunlight exposure.
Ultra-low power consumption

This display has an ultra-low power consumption compared to industry averages for high-brightness displays. The ultra-low power usage makes this display an ideal display for brands that value energy efficient solutions without having to sacrifice visibility.
24/7

24/7 displays are designed for a continuous operation.
Light sensor

The ambient light sensor detects changes in environmental lighting conditions and automatically adjusts the screens backlight brightness to compensate for an increase or decrease in light.

O
Technical specification

Show all Hide all

DISPLAY CHARACTERISTICS

Diagonal	55", 138.8cm
Panel	IPS M+ LED, matte finish
Native resolution	1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio	16:9
Brightness	2500 cd/m² typical
Static contrast	1000:1 typical
Response time	9ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln 8bit
Horizontal Sync	30 - 83KHz
Vertical Sync	50 - 76Hz
Viewable area W x H	1209.6 x 680.4mm, 47.6 x 26.8"
Bezel width (sides, top, bottom)	15.3mm, 15.3mm, 15.3mm
Pixel pitch	0.630mm
Bezel colour and finish	black, matte

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	DVI x1 HDMI x1 DisplayPort x1
Audio input	Mini jack x1
Monitor control input	RS-232c x1
Audio output	Speakers 2 x 5W
HDCP	yes

FEATURES

Extra	LCD Blacking Defect Free (H-Tni 110℃), handles, portrait orientation left and right, Sunlight readable
Max. non-stop operating time	24/7
Housing (bezel)	metal
Brightness sensor	yes

GENERAL

OSD languages	EN
Control buttons	Power, Up / Input Select, Menu, Down/ Brightness
User controls	brightness (OSD brightness, ambient light sensor OSD offset, brightness, contrast, exit), signal select, sound (volume, mute, exit), colour (sRGB, colour temperature, exit), image (auto adjustment, clock, phase, H. position, V. position, exit), tools (OSD control, reset, sharpness, 640/720, exit), exit
Plug&Play	DDC2B, Mac OSX

MECHANICAL

Orientation	landscape, portrait
Fanless design	yes
VESA mounting	400 x 200mm, 400 x 300mm
Operation temperature range	0°C - 50°C
Storage temperature range	- 20°C - 60°C
MTBF	100000 hours

ACCESSORIES INCLUDED

Cables	power (1.8m), HDMI (1.8m), RS-232c (2.5m)
Guides	quick start guide, safety guide
Other	light sensor cable

POWER MANAGEMENT

Power supply unit	internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	175W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY

Regulations	CB, CE, TÜV-Bauart, ErP, WEEE, CU, REACH
Energy efficiency class	C
Other	REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	1242.6 x 713.6 x 74.3mm
Box dimensions W x H x D	1386 x 835 x 212mm
Weight (without box)	37.5kg
EAN code	4948570116614

EU ENERGY EFFICIENCY LABEL

Manufacturer	iiyama
Model	ProLite LH5510HSHB-B1
Energy efficiency class	C
Visible screen diagonal	139cm; 54.6"; (55" segment)
ON mode power consumption	174.9W
Annual energy consumption	255kWh/annum*
Power in Standby	0.5W stand by
Resolution	1920 x 1080

This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
