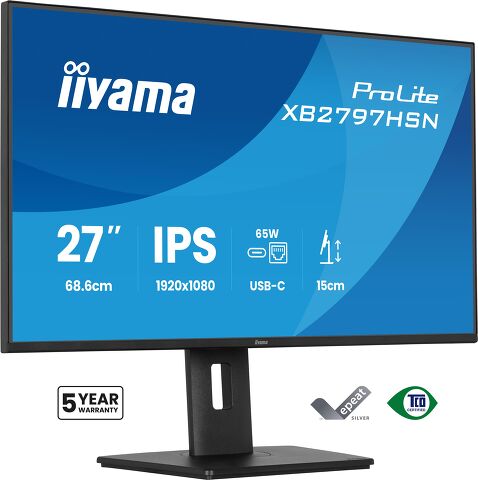

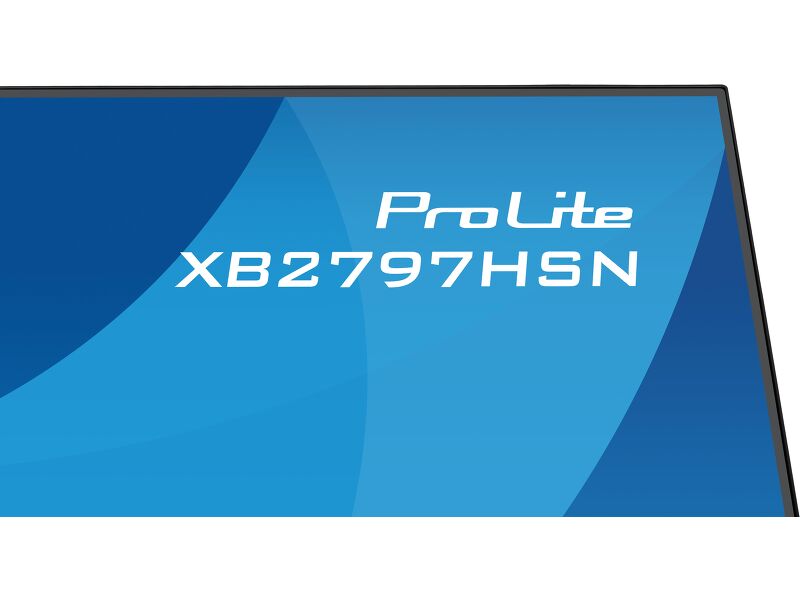

ProLite XB2797HSN-B1
27” Full HD monitor with USB-C docking and LAN that simplifies your daily setup

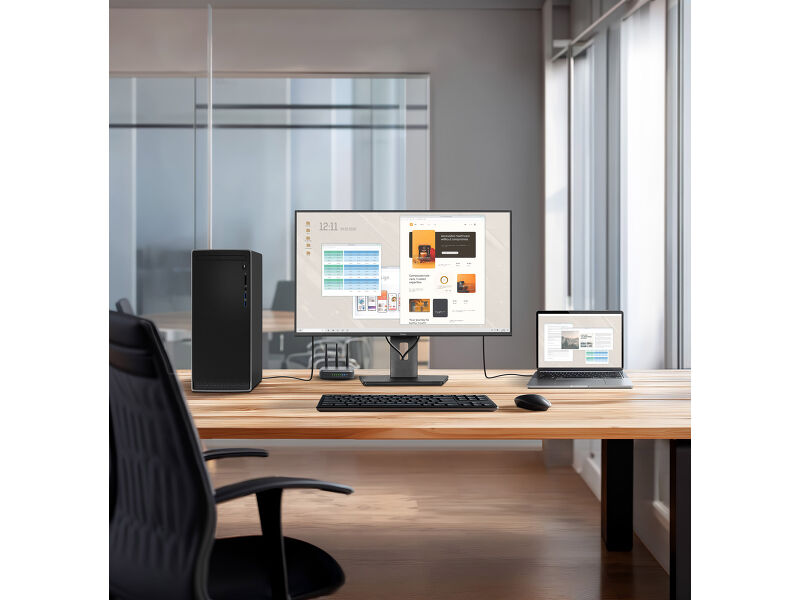

Designed for modern professionals who value efficiency and a clutter-free workspace, the ProLite XB2797HSN brings smart connectivity and reliable performance together in a versatile 27” display built for everyday business use.
The integrated USB-C dock with 65W Power Delivery allows you to transmit video, audio and data while simultaneously powering your laptop through a single cable. This streamlined solution keeps your desk tidy, reduces cable clutter and makes hot-desking quick and effortless. The built-in RJ45 (LAN) port ensures a stable wired network connection directly via the monitor, removing the need for additional adapters and supporting consistent performance throughout the working day.

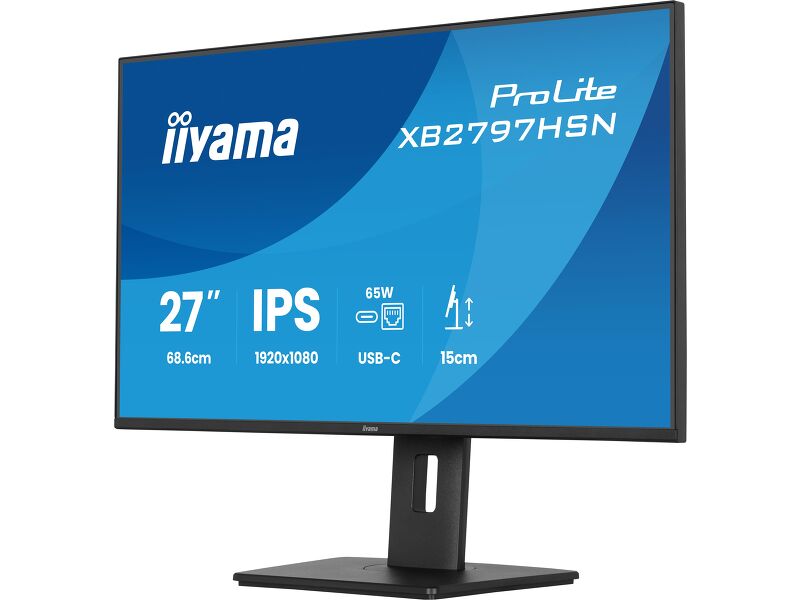

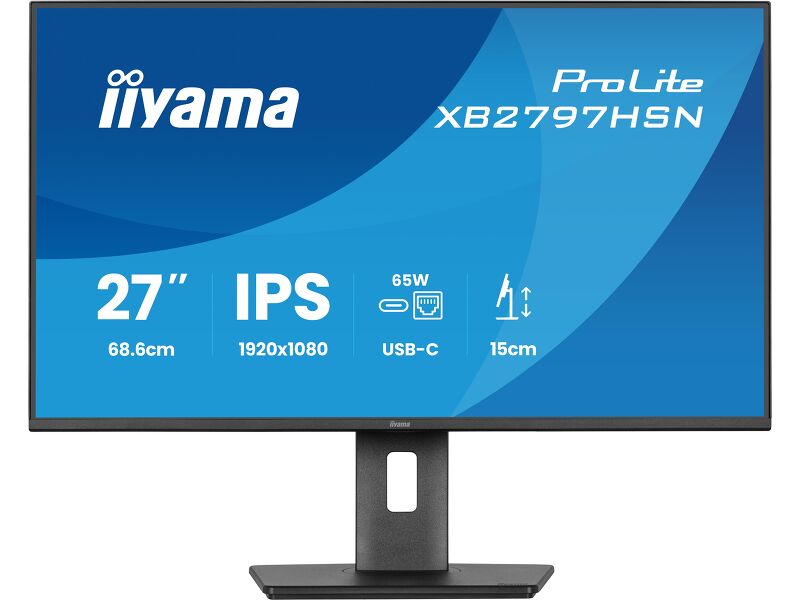

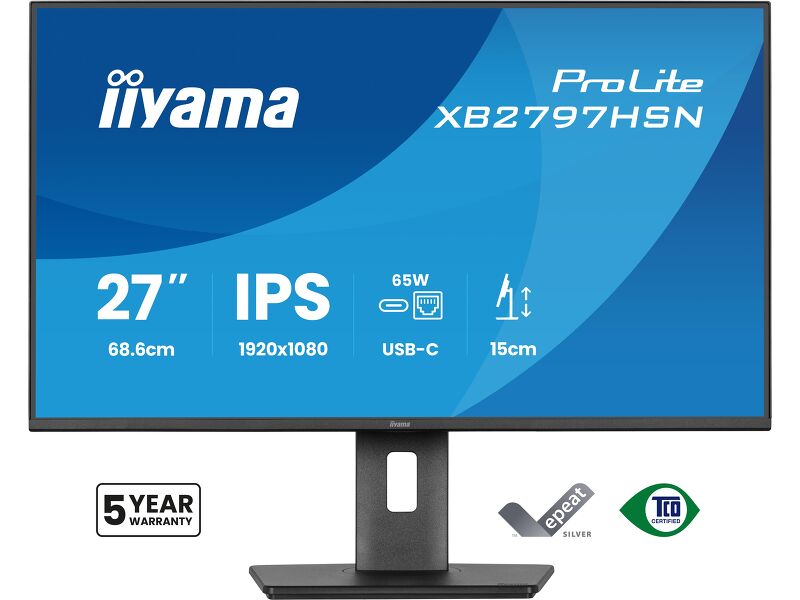

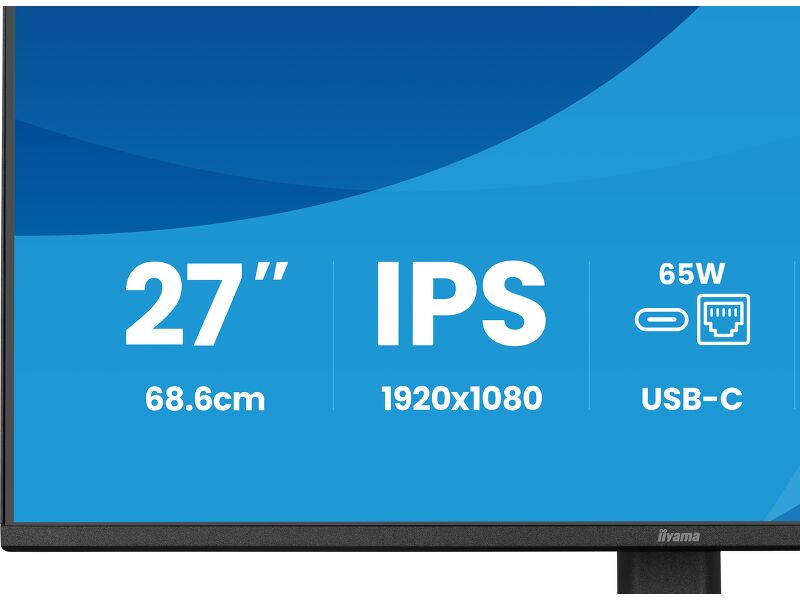

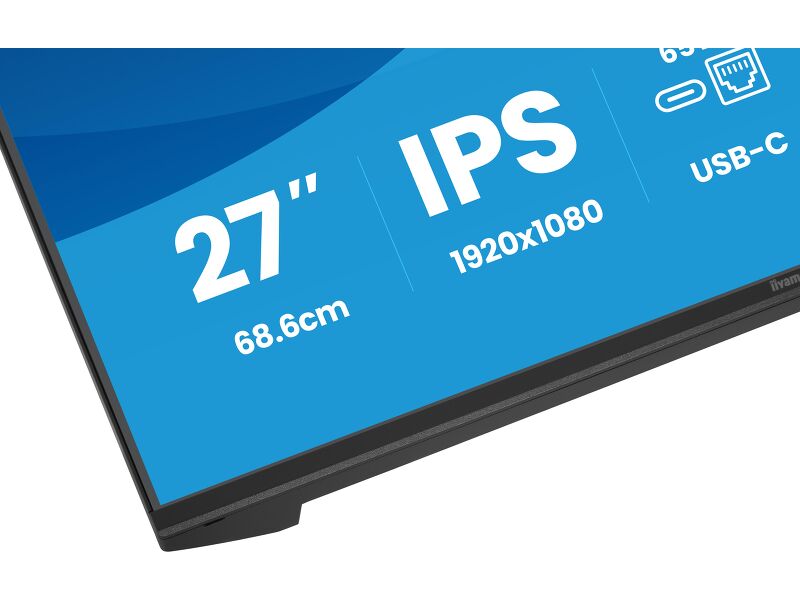

The 27” Full HD IPS panel (1920×1080) delivers clear, detailed visuals and accurate colour reproduction with wide viewing angles, making it ideal for office applications, document handling, web-based tasks and day-to-day multitasking. A DisplayPort output enables easy daisy-chaining for a dual-monitor setup, helping you expand your workspace and improve productivity with minimal effort.

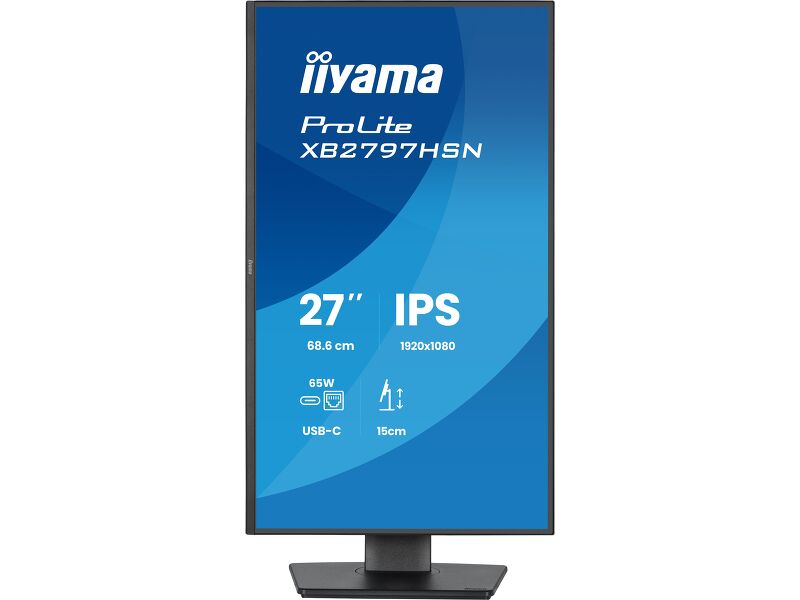

A 15cm height-adjustable stand with tilt, swivel and pivot functions, including portrait mode, allows you to customise the screen position for optimal ergonomics. TÜV Rheinland Eye Comfort certification confirms reduced blue light emissions and flicker-free technology, supporting comfortable viewing and sustained focus during long working hours.

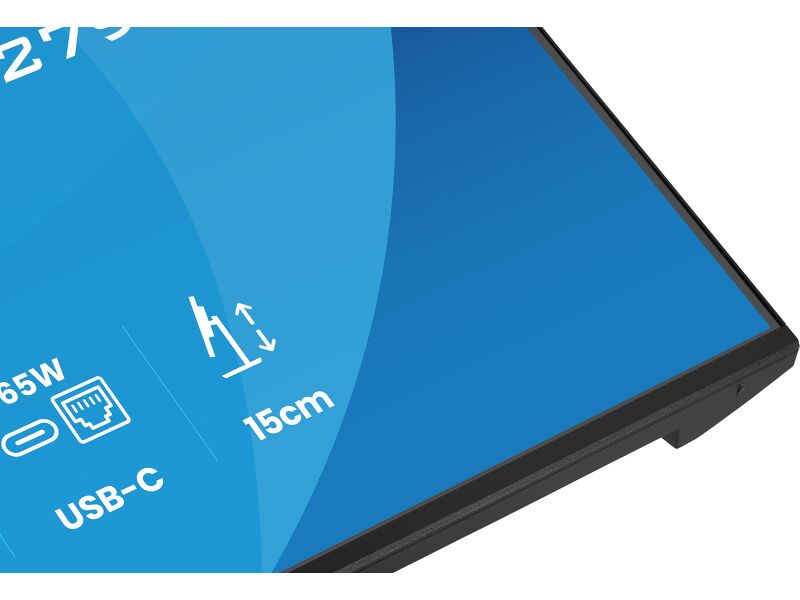

USB-C dock for tidy desk & easy connectivity
Connect everything with just one cable - handle video, data, and power while keeping your desk clean and organized.

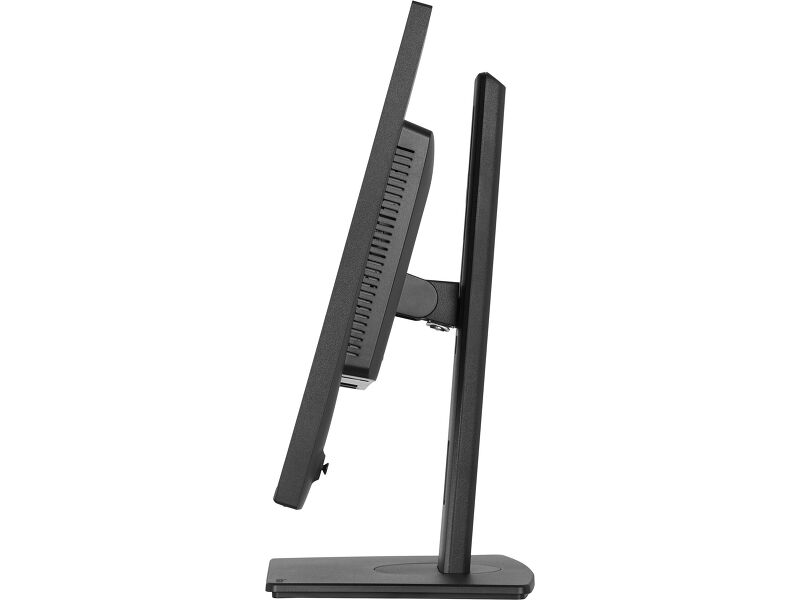

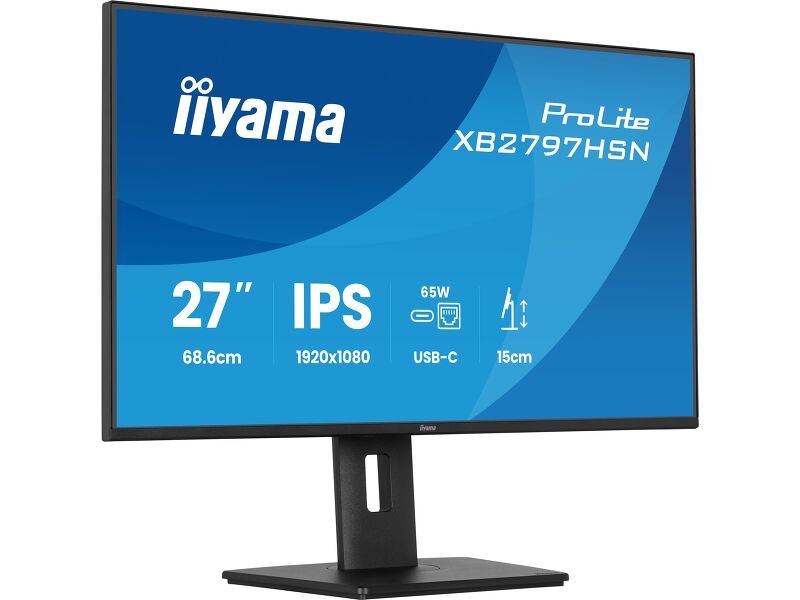

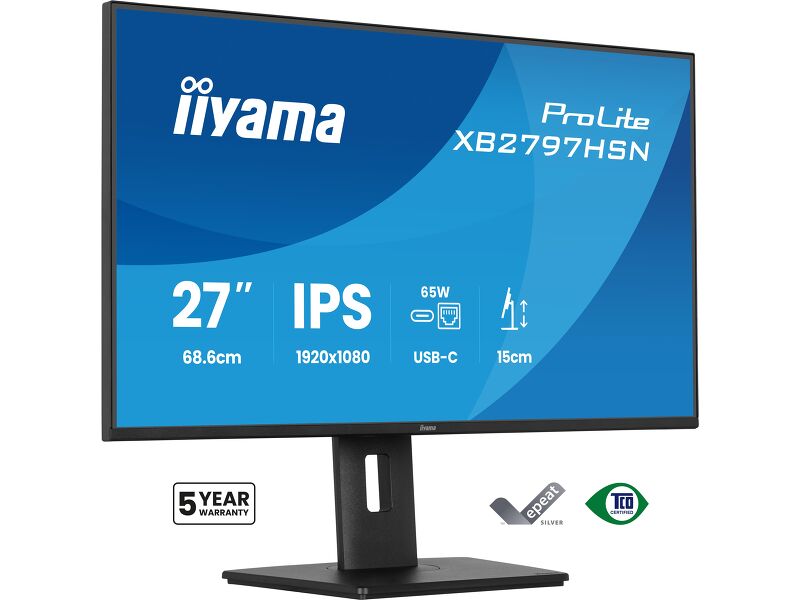

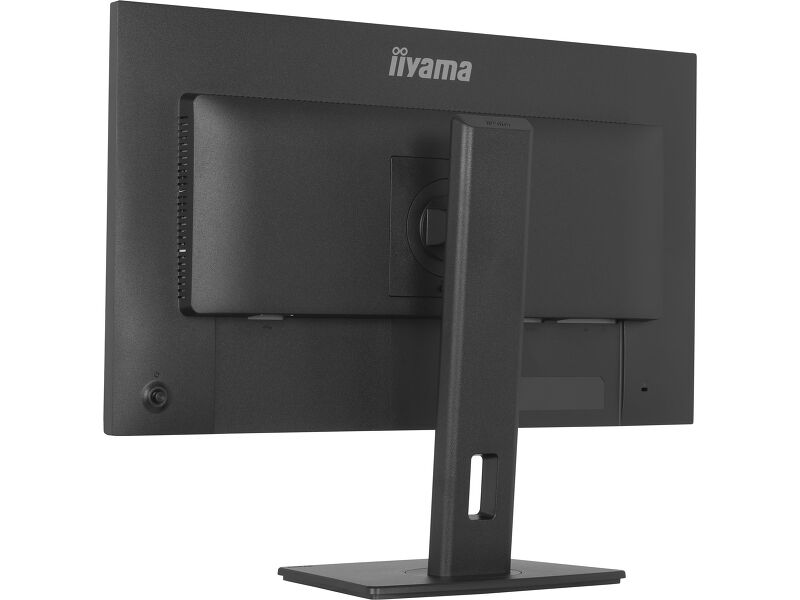

Adjustable stand for optimal comfort
Find your perfect screen position easily and maintain a healthy, comfortable posture all day long. Thanks to its fully adjustable stand, you can effortlessly adapt the monitor to your needs. Raise or lower the height, swivel left or right, or tilt the screen to reduce glare and find the optimal viewing angle. Whether you're working, designing, or attending long video calls, this flexibility helps reduce neck and back strain, improving both comfort and productivity throughout your day.
Built-in audio without extra clutter
Enjoy clear, pleasant sound for calls, videos, and music while keeping your desk free of extra speakers, thanks to the integrated audio.
Feel the difference with certified eye comfort
Hardware-based low blue light built into the panel, flicker-free technology and true-to-life colour accuracy all work together to support more comfortable viewing throughout the day. Backed by TÜV Rheinland Eye Comfort certification, this display lets you work, browse and create for longer with greater ease.

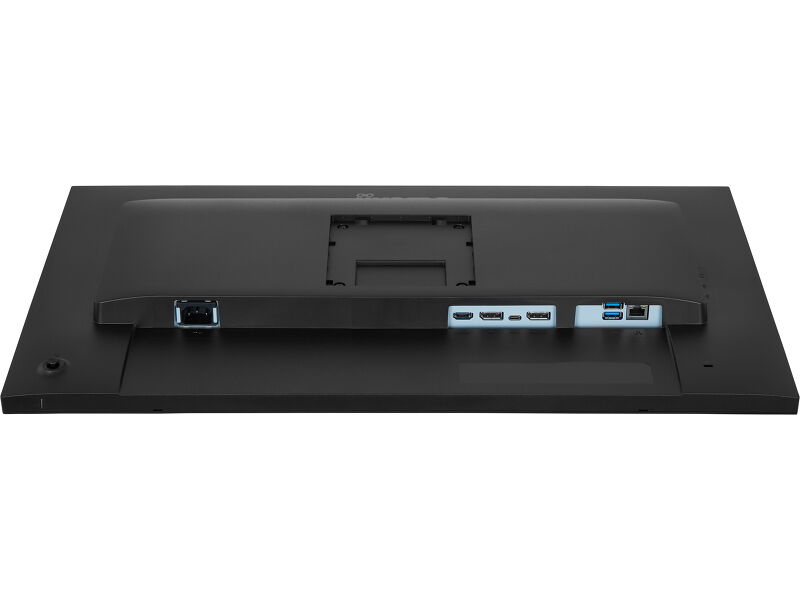

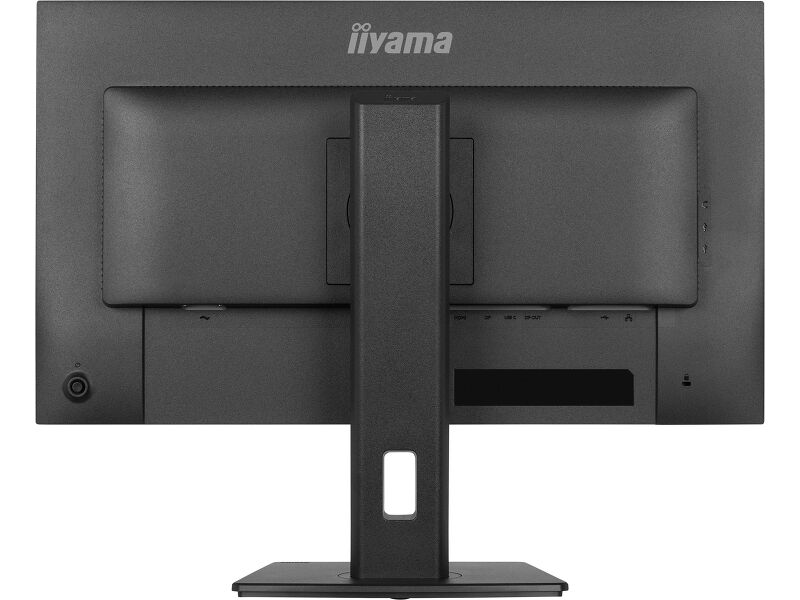

Versatile connectivity for all your devices
Connect multiple devices and accessories in one simple step with HDMI, DisplayPort and the USB hub, streamlining your workspace for maximum efficiency and ensuring a tidy, uninterrupted workflow.
Video
Technical specification
DISPLAY CHARACTERISTICS
| Design | 4-side slim bezel |
| Diagonal | 27", 68.6cm |
| Panel | IPS Panel Technology LED, matte finish |
| Native resolution | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 350 cd/m² |
| Static contrast | 1500:1 |
| Advanced contrast | 80M:1 |
| Response time (MPRT) | 1ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 30 - 115kHz |
| Viewable area W x H | 597.9 x 336.3mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Colour | matte, black |
INTERFACES / CONNECTORS / CONTROLS
| Signal input |
HDMI x1 (v.1.4) DisplayPort x1 (v.1.2) USB-C x1 (PD 65W) |

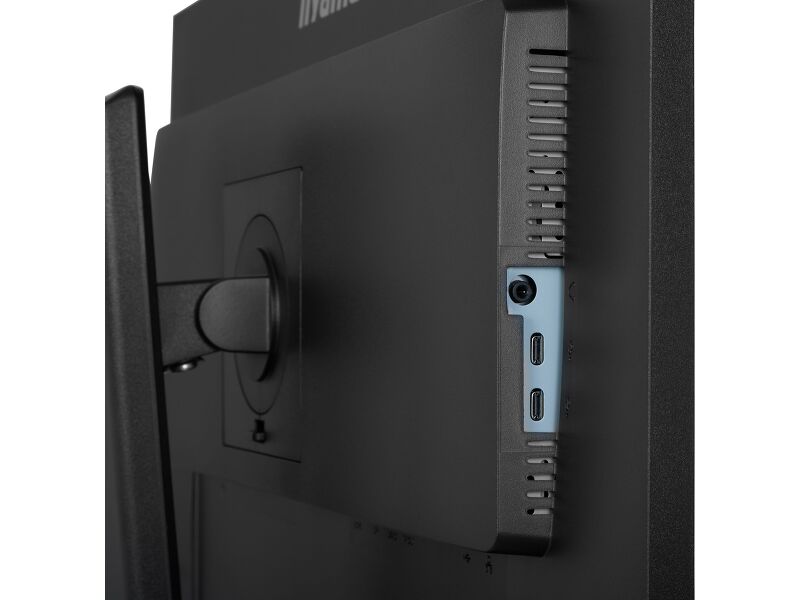

| USB HUB | x4 (2x Type-A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type-C (5Gbps, 7.5W)) |
| USB-C DOCK | x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit)) |
| HDCP | yes |
| Headphone connector | yes |
| RJ45 (LAN) | x1 |
FEATURES
| Flicker free | yes |
| Extra | i-Style colour, Eye Comfort |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL, UA |
| Control buttons | Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B |
MECHANICAL

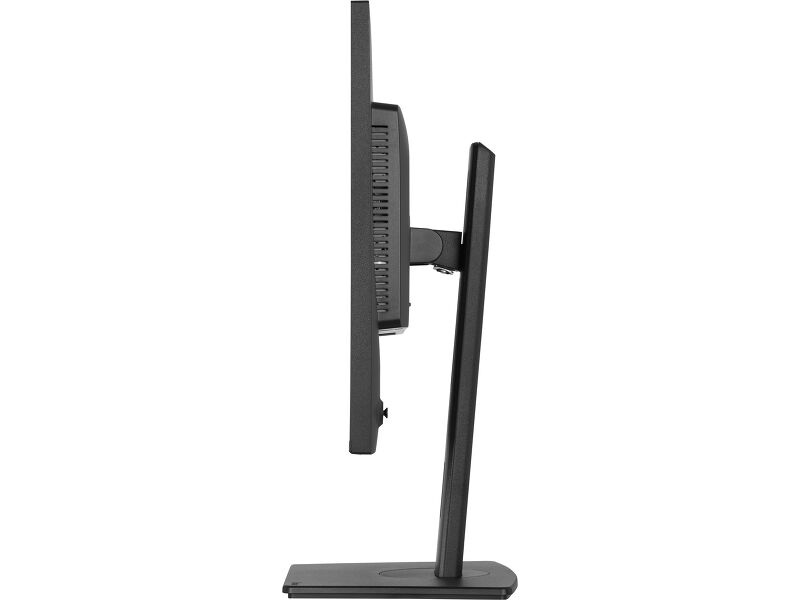

| Display position adjustments | height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment | 150mm |
| Rotation (PIVOT function) | 90° |
| Swivel stand | 120°; %3° left; %3° right |

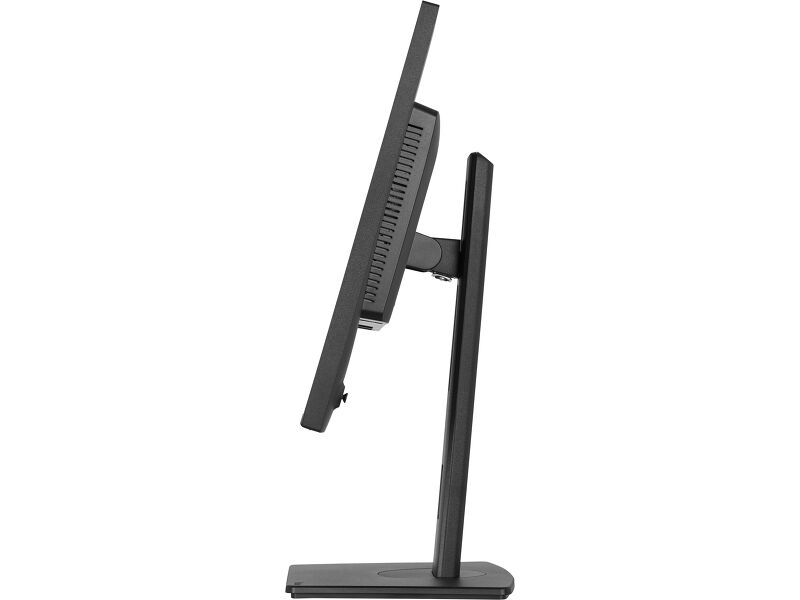

| Tilt angle | 23° up; 5° down |

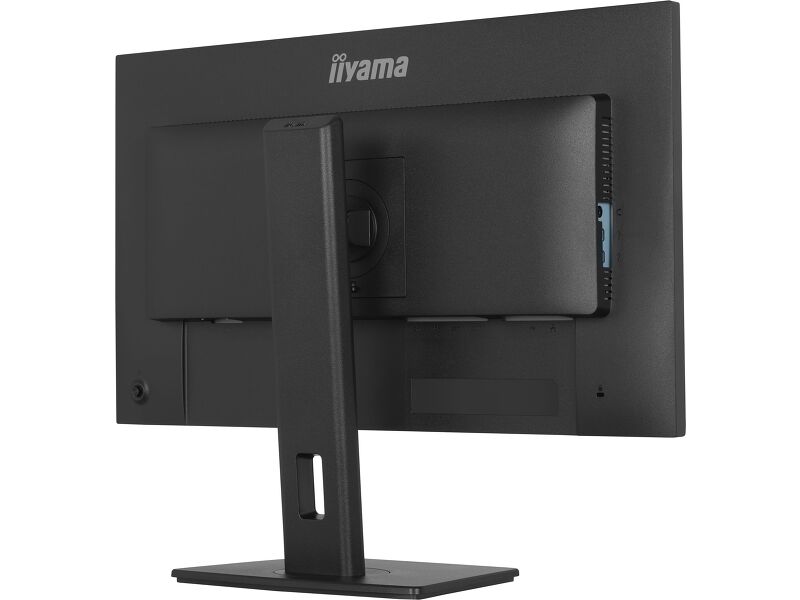

| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED

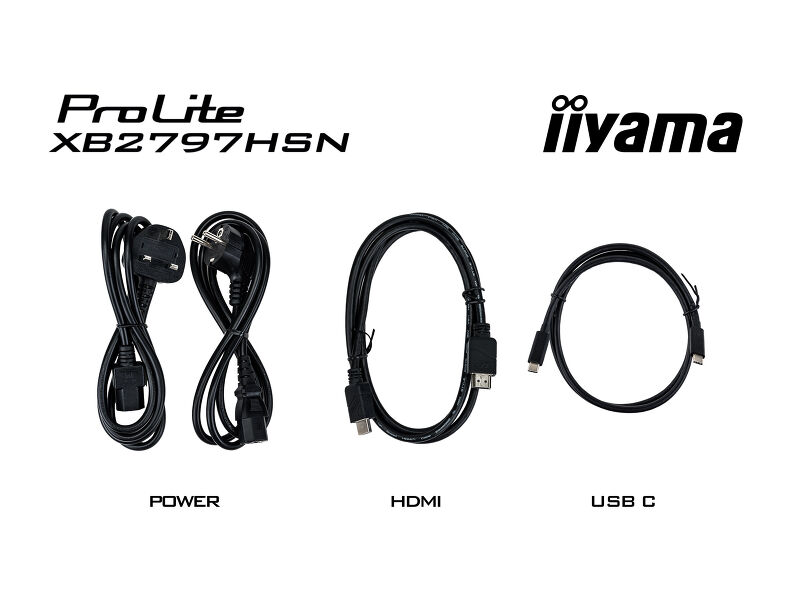

| Cables | power (1.5m), HDMI (1.5m), USB-C (1.0m) |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 17W default, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA, TCO Edge |
| Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | above 0.1%: Lead, Lead monoxide, Diboron trioxide |
| Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 611.5 x 403.5 (547.5) x 209.5mm |
| Box dimensions W x H x D | 691 x 447 x 142mm |
| Weight (without box) | 5.4kg |
| Weight (with box) | 8.0kg |
| EAN code | 4948570125913 |
Downloads
| User manual | XB24_2797HSN_2497HSNH_2797QSN-usermanual-e_rev.f.pdf | Download |
| Technical specification | ProLite XB2797HSN-B1 - en.pdf | Download |

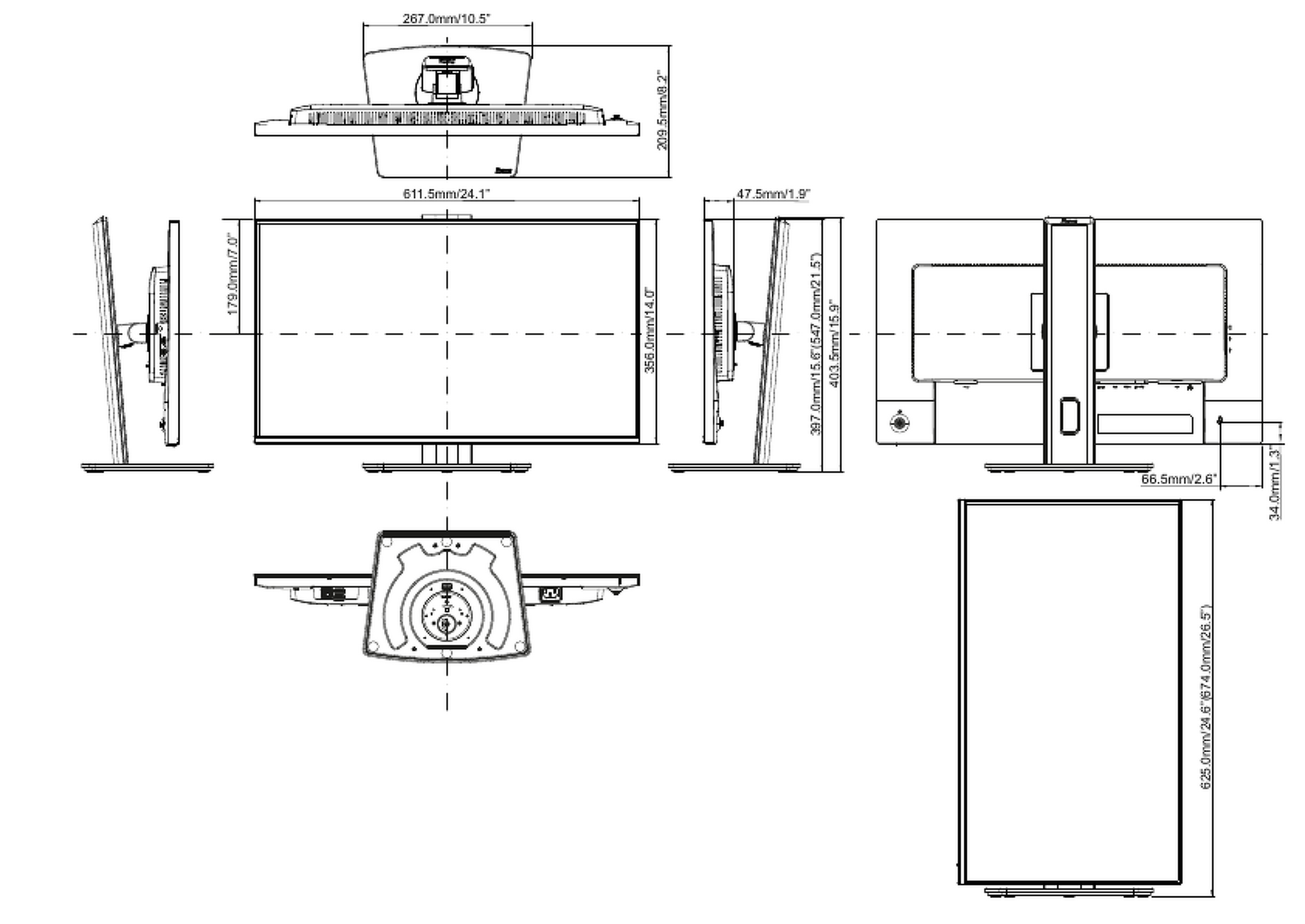

| Drawing | XB2797HSN-B1-6 views (1).pdf | Download |
| EU Energy Label | XB2797HSN-B1 EU Energy Label (2562289).pdf | Download |
| UK Energy Label | XB2797HSN-B1 UK Energy Label (2562289).pdf | Download |
| Product carbon footprint document | XB2797HSN-B1.pdf | Download |
| Disclosure of critical mineral content | XB2797HSN-B1_5.2.1 Disclosure of critical mineral content.pdf | Download |
| USB-C Dock white paper | USB-C_Dock_White_Paper_12.2024.pdf | Download |
| Disclosure of declarable substances | 6.2.2 Disclosure of declarable substances.pdf | Download |
| Disclosure of PFAS | 6.2.5b Disclosure of PFAS.pdf | Download |
FAQS
How to use the USB-C dock?
+To explore the features and benefits of a monitor with a USB-C dock, please watch the video below.
Why isn’t my notebook charging when connected to the USB-C input of my monitor in standby mode?
+To resolve the issue of your laptop not charging, please try the following steps:
1. Activate USB BC or disable USB standby mode in the monitor’s settings menu.
2. Update your PC’s BIOS/UEFI.
Is Adaptive Sync compatible with AMD FreeSync or NVIDIA G-Sync?
+Yes, Adaptive Sync is compatible with AMD FreeSync and NVIDIA G-Sync.
Why can't I select MBR when FreeSync/Adaptive Sync is activated?
+MBR cannot be selected when FreeSync/AdaptiveSync is activated, because MBR can interfere with the FreeSync/Adaptive Sync technology as they have different methods of improving motion clarity. MBR reduces motion blur (response time), while Adaptive Sync/FreeSync addresses stuttering. We recommend activating Adaptive Sync/FreeSync on systems with fluctuating or unstable frame rates. MBR performs best on powerful systems that maintain a consistently high frame rate.
Why is my monitor displaying a "No Signal" message?
+If your monitor is displaying a "No Signal" message, please check the following:
1. Ensure the cables are properly connected at both ends.
2. Select the correct signal input (HDMI/DP) or choose AUTO.
For guidance on selecting an input while the screen is in standby mode, please consult the user manual. On desktop monitors, common methods include pressing the INPUT, AUTO, or "2" buttons, or moving the joystick backward.
I have an Apple MAC-system, will my iiyama monitor work?
+Yes, your iiyama monitor will work with your Apple Mac system. However, it depends on the signal input how to connect. Since Apple Mac systems from 2020 onwards only have Thunderbolt 3 (USB-C) ports for video output, you have two options:
1. Connect directly to the USB-C signal input on your iiyama monitor.
2. In case your monitor only has HDMI or Displayport, you will need a Mac-compatible dongle that supports one of the video inputs available. Apple offers a USB-C Digital AV Multiport Adapter (MW5M3AM) that can be used for this purpose.
3. If your iiyama monitor has touchscreen capabilities, please refer to the user manual to verify touch functionality compatibility with your Mac system.
The picture on my monitor is flickering. What steps can I take to fix it?
+To resolve the issue of a blinking picture, please follow these steps:
1. Inspect the Signal Cable.
Ensure the signal cable is securely connected at both ends and free from any physical damage. Avoid any sharp bends or squishing of the cable.
2. Use a Shorter Cable.
If possible, use a cable shorter than 3 meters and connect the monitor directly to a wall power socket, avoiding the use of adapters.
3. Disable FreeSync/Adaptive Sync.
For desktop or gaming monitors, try disabling FreeSync or Adaptive Sync in the monitor's settings menu.
