ProLite X2481HS-B1 (EOL) Replaced by: ProLite X2483HSU-B5
24” VA monitor with 3 000:1 static contrast

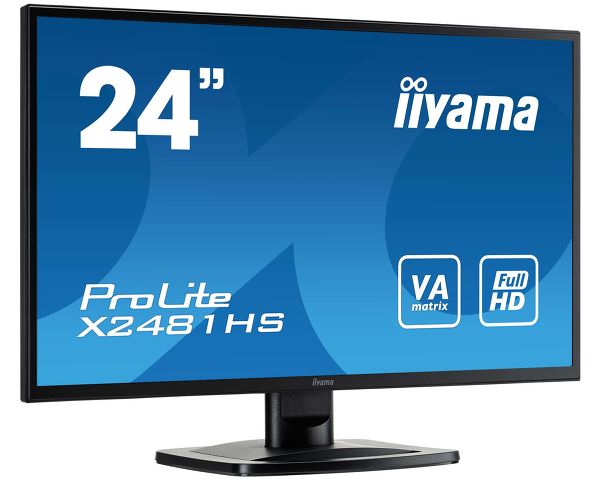

ProLite X2481HS - a 24” LED backlit LCD Screen featuring VA panel technology, guarantees accurate and consistent colour reproduction with wide viewing angles. Offering 3000:1 Native Contrast Ratio, the Prolite X2481HS provides excellent performance for Photographic, Design and Web-design.
Speakers-
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
-
Speakers
This LED monitor is equipped with two stereo speakers.
-
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
-
Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
-
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Technical specification
DISPLAY CHARACTERISTICS
| Diagonal | 23.6", 60cm |
| Panel | VA LED, matte finish |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 12M:1 |
| Response time (GTG) | 6ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 24 - 80kHz |
| Viewable area W x H | 521.28 x 293.22mm, 20.5 x 11.5" |
| Pixel pitch | 0.2715mm |
| Colour | matte |
INTERFACES / CONNECTORS / CONTROLS
| Signal input |
VGA x1 DVI x1 HDMI x1 |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| OSD languages | EN, DE, FR, ES, IT, PT, CN, RU, JP |
| Control buttons | Power, Menu, +/Volume/Blue Light Reducer, -, Auto |
| User controls | luminance (contrast, brightness, ECO, i-style Colour, ACR), image steup (clock, phase, H. position, V. position, aspect), colour (gamma, colour temperature, sRGB), OSD setup (H. position, V. position, OSD time out, language), extra (reset, signal select, HDMI audio, OD, information), volume, auto adjust |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
MECHANICAL
| Display position adjustments | tilt |
| Tilt angle | 21° up; 4° down |
| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED
| Cables | power, DVI, Audio |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 25W typical, 0.3W stand by, 0.25W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 543.5 x 389 x 213.5mm |
| Weight (without box) | 3.7kg |
| EAN code | 4948570113576 |
Compatible accessories
Downloads
| User manual | XB_X2481HS-usermanual-e-revF.pdf | Download |
| Technical specification | ProLite X2481HS-B1 - en.pdf | Download |
| Drawing | E2481HS_X2481HS-B1_odd.pdf | Download |
| EU Energy Label | X2481HS-B1 EU Energy Label pdf data(366266).pdf | Download |
| UA Energy Label | X_XB2481HS-1 Ukraine Energy Label pdf data.PDF | Download |
| UK Energy Label | X2481HS-B1 UK Energy Label pdf data(366266).pdf | Download |
custom
| COLOUR PROFILES INF&ICC 13 | COLOUR PROFILES INF&ICC 23.12.2025.zip | Download |
