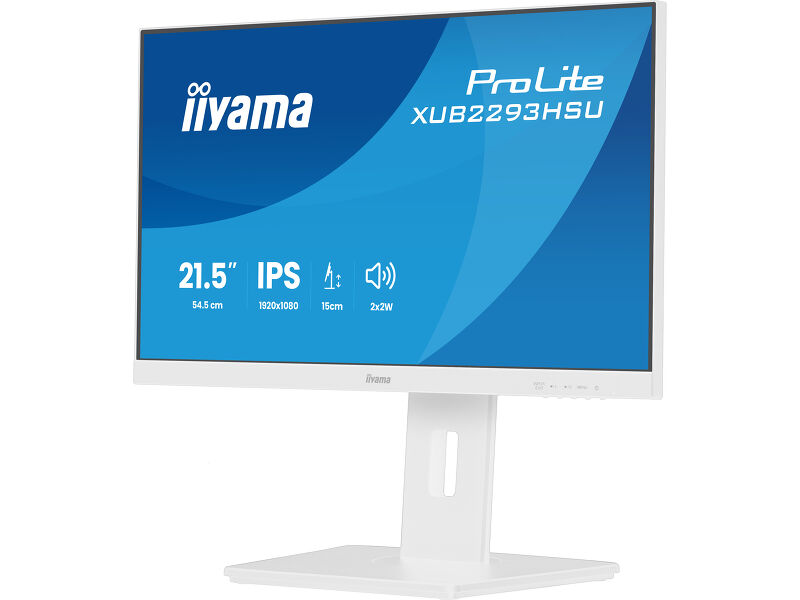

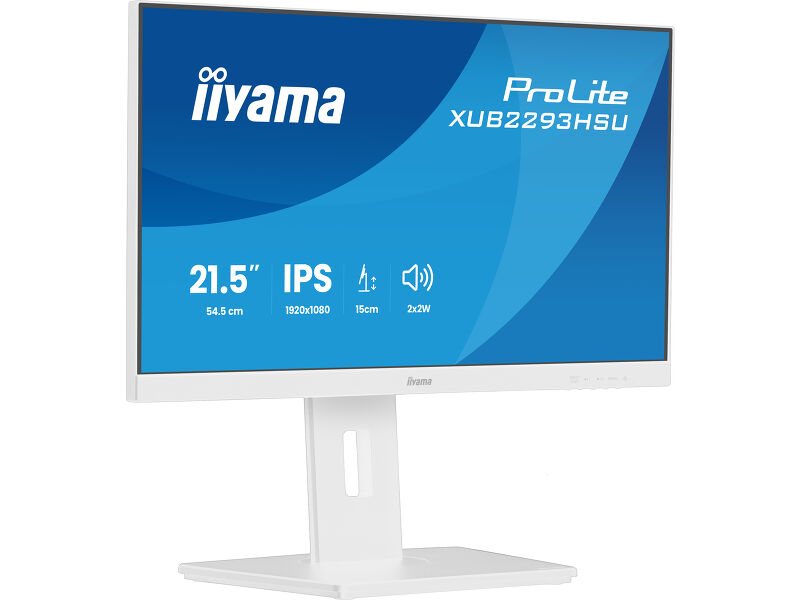

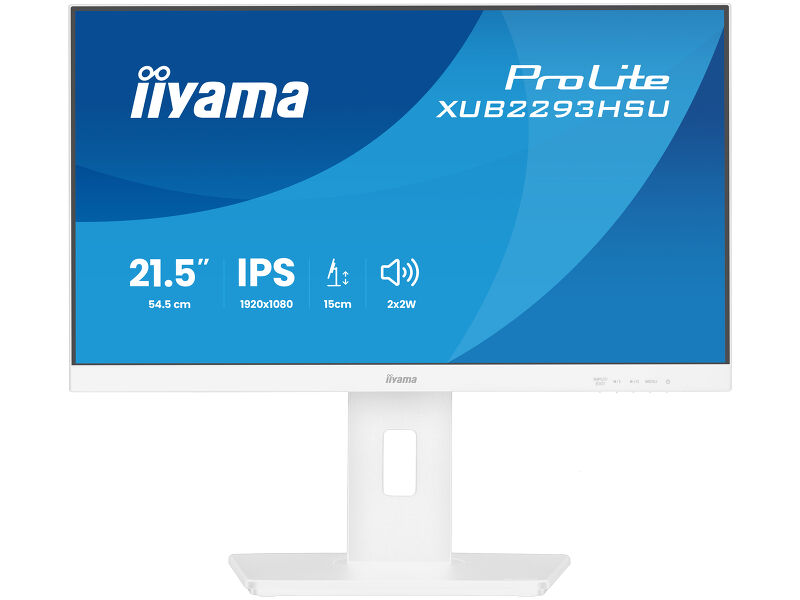

21,5" IPS monitor sa dizajnom bez okvira sa tri strane, integrisanim USB čvorištem, brzinom osvežavanja od 100Hz i podesivim postoljem po visini
ProLite XUB2293HSU je odličan izbor za profesionalce koji traže kompaktan i monitor visokih performansi za konfiguracije sa više monitora i kancelarijski rad. Njegov elegantan dizajn od ivice do ivice obezbeđuje besprekorne vizuelne prikaze, što ga čini savršenim za konfiguracije sa dva ili tri ekrana.
Takođe dostupan u crnoj : ProLite XUB2293HSU-B7
| Dizajn | bez okvira sa 3 strane |
| Dijagonala | 21.5", 54.5cm |
| Panel | IPS tehnologija panela LED, mat završna obrada |
| Osnovna rezolucija | 1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Osnovna rezolucija | 100Hz |
| Format ekrana | 16:9 |
| Osvetljenje | 300 cd/m² |
| Statički kontrast | 1000:1 |
| Napredni kontrast | 80M:1 |
| Vreme odziva (MPRT) | 1ms |
| Zona gledanja | horizontalno/vertikalno: 178°/178°, desno/levo: 89°/89°, gore/dole: 89°/89° |
| Podržane boje | 16.7mln (sRGB: 96%; NTSC: 72%) |
| Horizontalna sinhronizacija | 30 - 110KHz |
| Vidljiva površina Š x V | 478.7 x 260.3mm, 18.8 x 10.3" |
| Razmak piksela | 0.249mm |
| Boja | mat, bela |

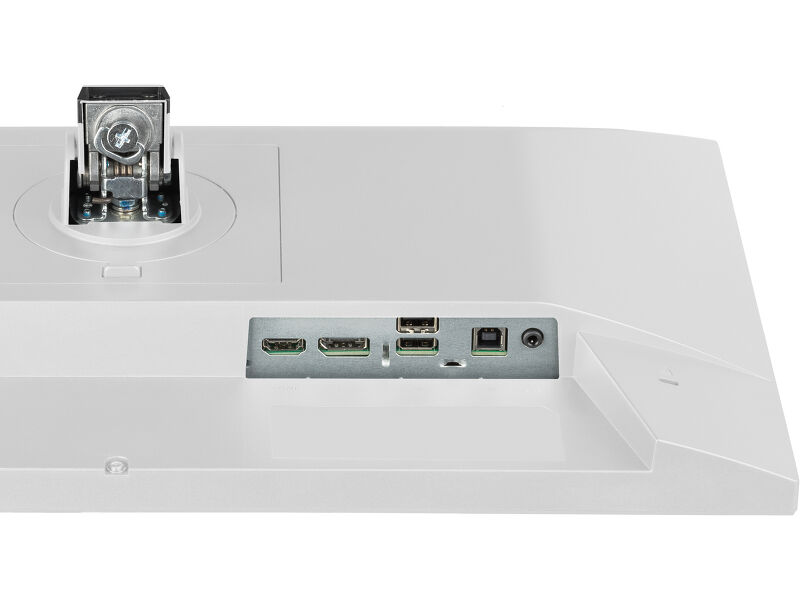

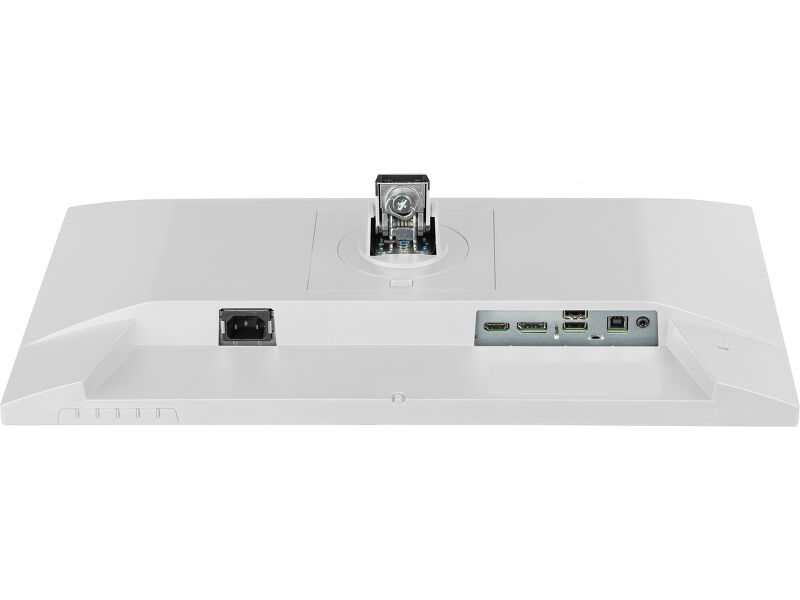

| Ulaz signala |
HDMI x1 DisplayPort x1 |
| USB HUB | x2 (2.0 (DC5V, 500mA)) |
| HDCP | da |
| Priključak za slušalice | da |
| Smanjeno emitovanje plave svetlosti | da |
| Bez treperenja | da |
| Adaptive Sync podrška | da |
| Dodatno | i-style Boje |
| OSD jezici | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Kontrolni tasteri | Uključivani, Podešavanje/ Jačina, Podešavanje/ i-style Boje, Ulaz/Izlaz |
| Korisničke kontrole | podešavanje slike (osvetljenost, kontrast, Eko, ACR, OD, MBR, adaptivna sinhronizacija), podešavanja boja (i-Style boja, reduktor plavog svetla, temperatura boje, korisnička podešavanja), OSD (horizontalna pozicija OSD-a, vertikalna pozicija OSD-a, rotacija OSD-a, vreme OSD-a), jezik, poziv, razno (meko i oštro, podešavanje video režima, početni logo, RGB opseg, LED, informacije o ekranu), izbor ulaza, podešavanja zvuka (jačina zvuka, isključivanje zvuka) |
| Zvučnici | 2 x 2W |
| Pogodnost | Kensington-lock™ priprema, DDC/CI, DDC2B, Mac OSX |

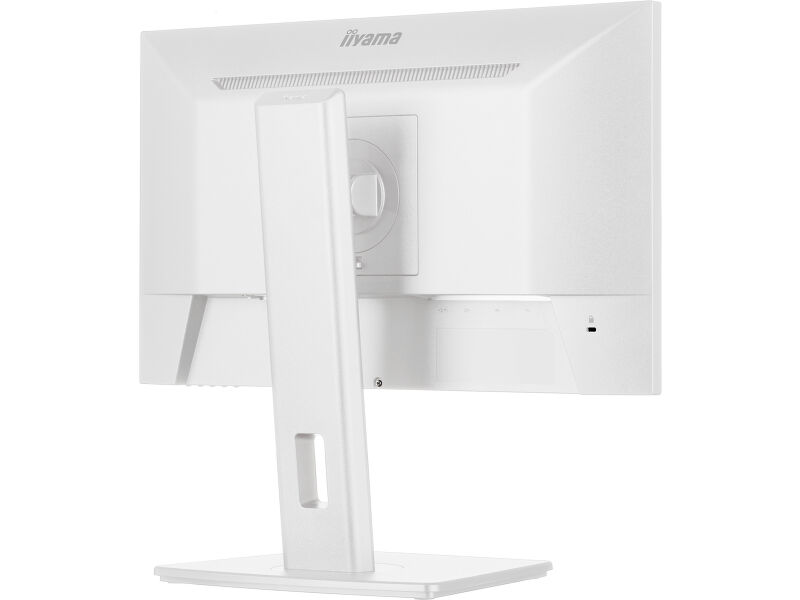

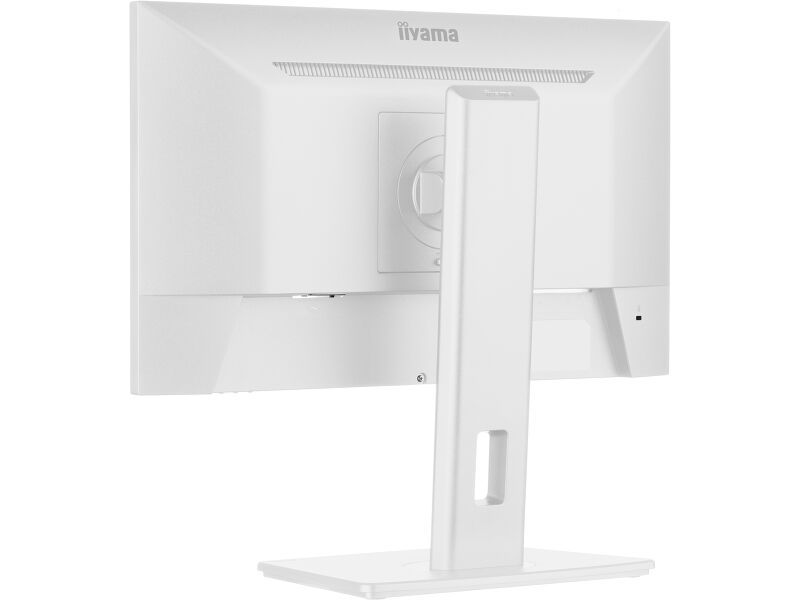

| Podešavanje položaja prikaza | visina, okretanje, nagib, pivot (rotacija u obe strane) |
| Podešavanje visine | 150mm |

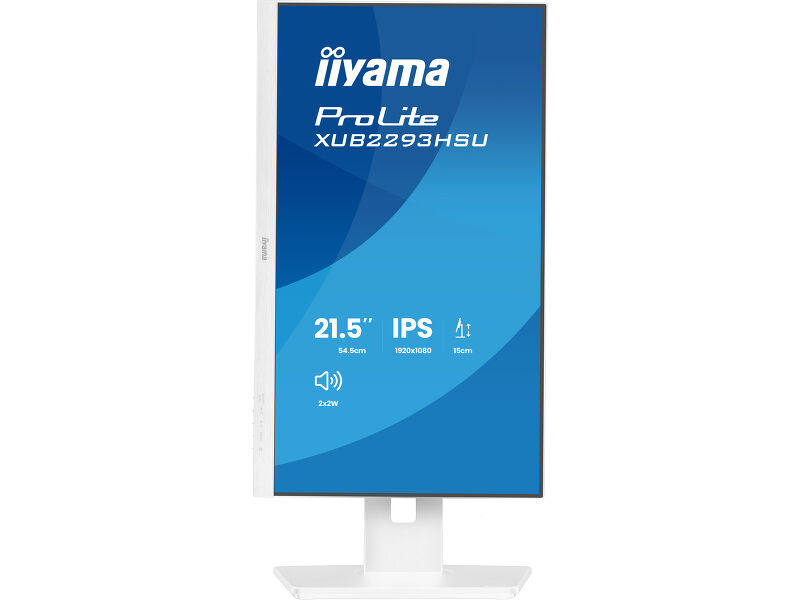

| Rotacija (PIVOT funkcija) | 90° |
| Okretno postolje | 120°; 60° levo; 60° desno |
| Ugao nagiba | 23° gore; 5° dole |

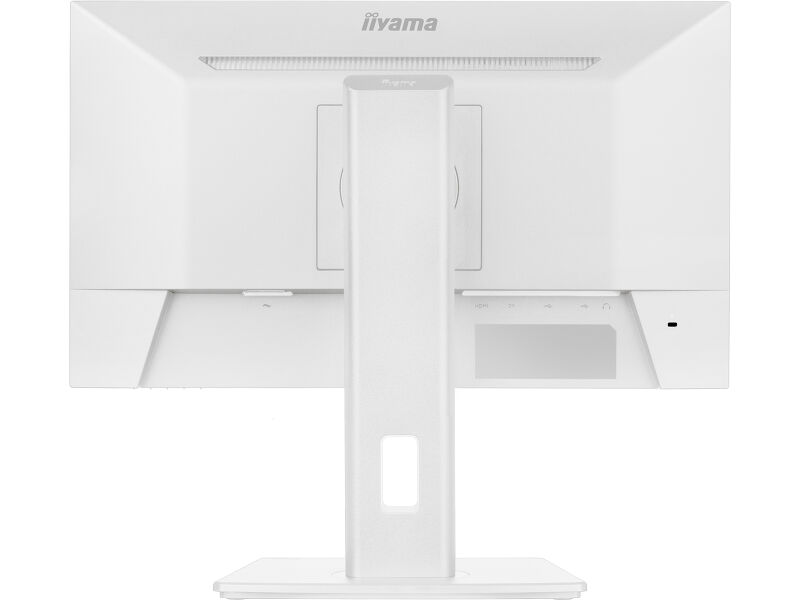

| VESA montiranje | 100 x 100mm |
| Sistem upravljanja kablovima | da |

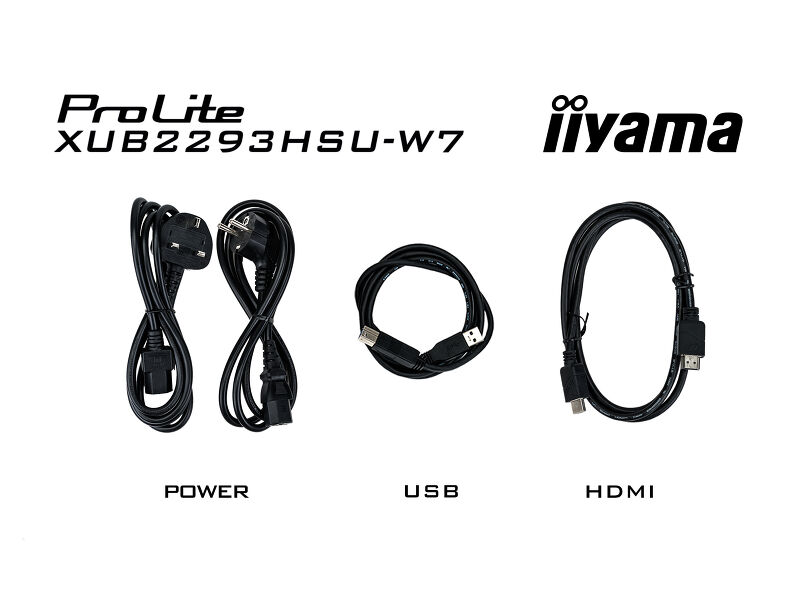

| Kablovi | Strujni kabl (1.5m), USB (1.5m), HDMI (1.5m) |
| Ostalo | kratko uputstvo, bezbednosni vodič |
| Napajanje | interna |
| Potrošnja energije | % 1W tipično, 0.5W stand by, 0.3W iskljucen |

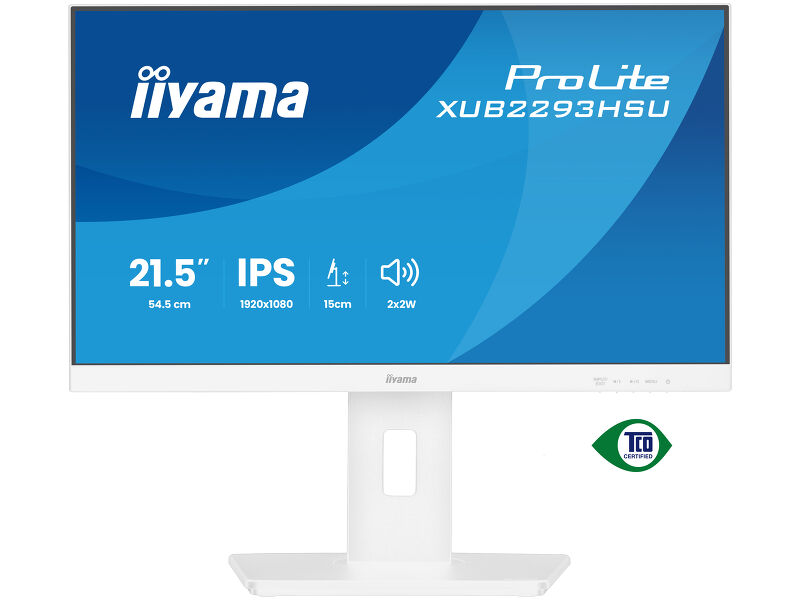

| Propisi | TCO Sertifikat, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS podrška, ErP, WEEE, REACH, UKCA |
| Klasa energetske efikasnosti (Regulation (EU) 2017/1369) | E |
| EPEAT | *registration varies by country, go to www.epeat.net for details |
| REACH SVHC | iznad 0.1%: Olova |
| Dimenzije proizvoda Š x V x D | 492 x 328.5 (478.5) x 209.5mm |
| Dimenzije kutije Š x V x D | 620 x 395 x 126mm |
| Težina (bez kutije) | 3.9kg |
| Težina (sa kutijom) | 5.3kg |
| EAN kod | 4948570126910 |
Yes, Adaptive Sync is compatible with AMD FreeSync and NVIDIA G-Sync.
MBR cannot be selected when FreeSync/AdaptiveSync is activated, because MBR can interfere with the FreeSync/Adaptive Sync technology as they have different methods of improving motion clarity. MBR reduces motion blur (response time), while Adaptive Sync/FreeSync addresses stuttering. We recommend activating Adaptive Sync/FreeSync on systems with fluctuating or unstable frame rates. MBR performs best on powerful systems that maintain a consistently high frame rate.
If your monitor is displaying a "No Signal" message, please check the following:
1. Ensure the cables are properly connected at both ends.
2. Select the correct signal input (HDMI/DP) or choose AUTO.
For guidance on selecting an input while the screen is in standby mode, please consult the user manual. On desktop monitors, common methods include pressing the INPUT, AUTO, or "2" buttons, or moving the joystick backward.
Yes, your iiyama monitor will work with your Apple Mac system. However, it depends on the signal input how to connect. Since Apple Mac systems from 2020 onwards only have Thunderbolt 3 (USB-C) ports for video output, you have two options:
1. Connect directly to the USB-C signal input on your iiyama monitor.
2. In case your monitor only has HDMI or Displayport, you will need a Mac-compatible dongle that supports one of the video inputs available. Apple offers a USB-C Digital AV Multiport Adapter (MW5M3AM) that can be used for this purpose.
3. If your iiyama monitor has touchscreen capabilities, please refer to the user manual to verify touch functionality compatibility with your Mac system.
To resolve the issue of a blinking picture, please follow these steps:
1. Inspect the Signal Cable.
Ensure the signal cable is securely connected at both ends and free from any physical damage. Avoid any sharp bends or squishing of the cable.
2. Use a Shorter Cable.
If possible, use a cable shorter than 3 meters and connect the monitor directly to a wall power socket, avoiding the use of adapters.
3. Disable FreeSync/Adaptive Sync.
For desktop or gaming monitors, try disabling FreeSync or Adaptive Sync in the monitor's settings menu.
