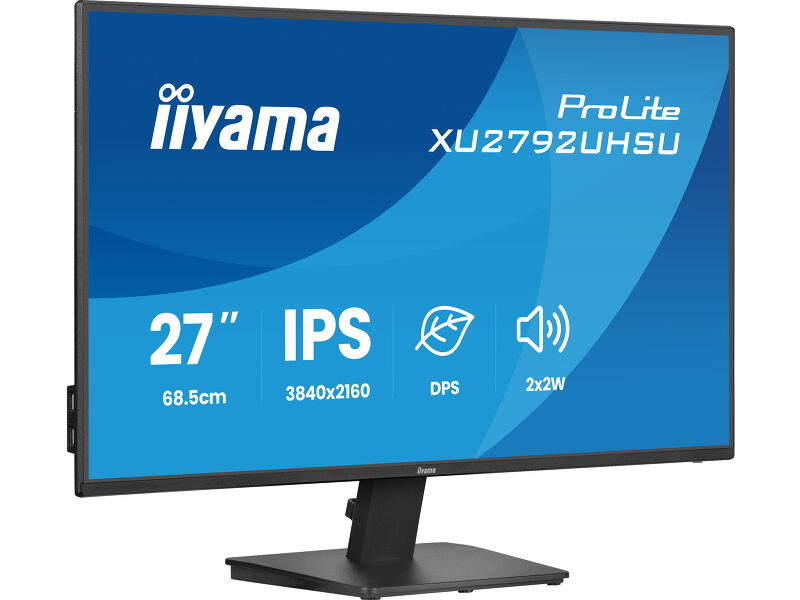

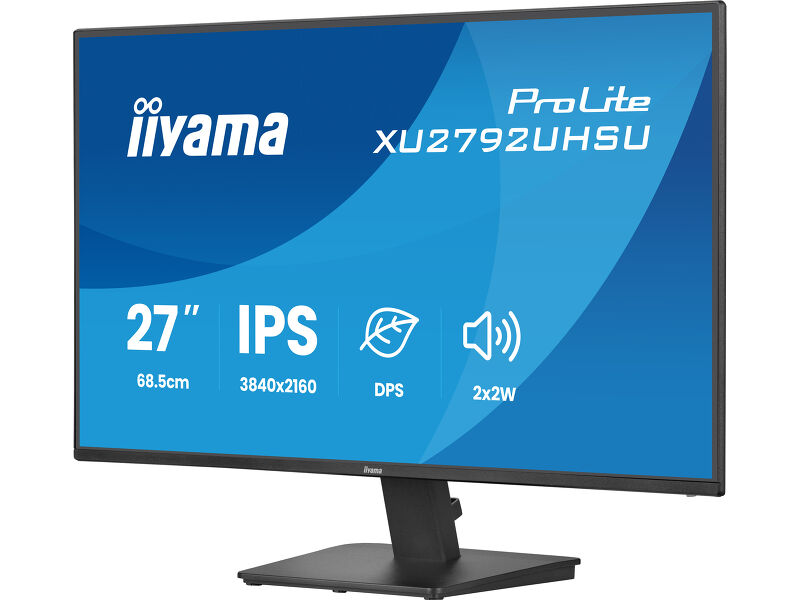

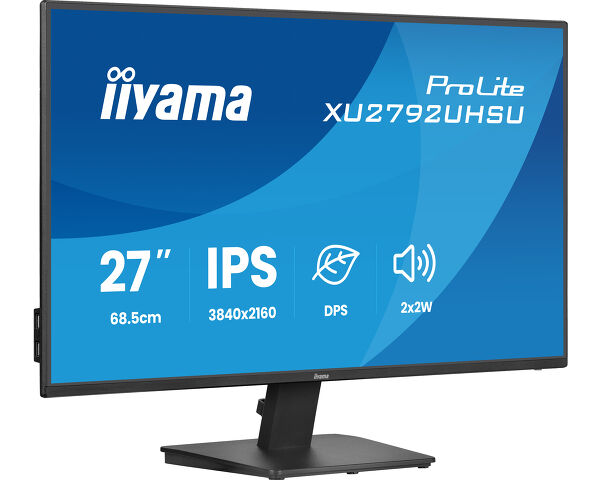

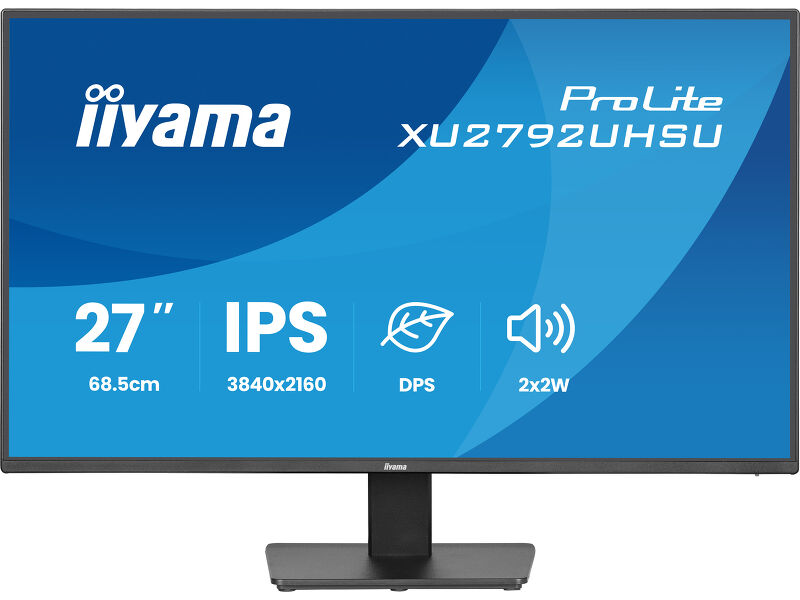

ProLite XU2792UHSU-B6
27’’ IPS technology panel featuring 4K resolution and Dynamic Power Saving (DPS)
The ProLite XU2792UHSU with its stylish front design and 4K resolution effortlessly accommodates four times more information than a Full HD display. Equipped with IPS panel for precise color reproduction and wide viewing angles, alongside high contrast and brightness values, it ensures impeccable performance for both photographic and web design tasks. With the Dynamic Power Saving (DPS) feature, simply toggle a switch to enjoy intelligent brightness adjustment for optimal energy efficiency without compromising on brilliance. Redefine your creative workflow with the ProLite XU2792UHSU.
Szintén elérhető állítható magasságú állvánnyal : ProLite XUB2792UHSU-B6
-
Dynamic Power Saving (DPS)
Dynamic Power Saving (DPS) intelligently detects the current image and adjusts brightness dynamically to save power. The default setting is « On » which may slightly dim the screen. Simply switch to « Off » for optimal brightness.
-
-
-
-
Video
Műszaki adatok
KIJELZŐ JELLEMZŐI
| Design | ultra slim |
| Átló | 27", 68.5cm |
| Panel | IPS LED, matte finish |
| Natív felbontás | 3840 x 2160 @60Hz (DisplayPort, 8.3 megapixel 4K UHD) |
| Képarány | 16:9 |
| Fényerő | 350 cd/m² |
| Statikus kontraszt | 1300:1 |
| Speciális kontraszt | 80M:1 |
| Válaszidő (GTG) | 4ms |
| Látótér | horizontális/vertikális: 178°/178°, jobb/bal: 89°/89°, fel/le: 89°/89° |
| Szín támogatás | 1.07B 8bit (sRGB: 100%, NTSC 72%) |
| Horizontális szinkronizálás | 30 - 140kHz |
| Látható terület Sz x M | 596.7 x 335.7mm, 23.5 x 13.2" |
| Pixel magasság | 0.155mm |
| Szín | matt, fekete |

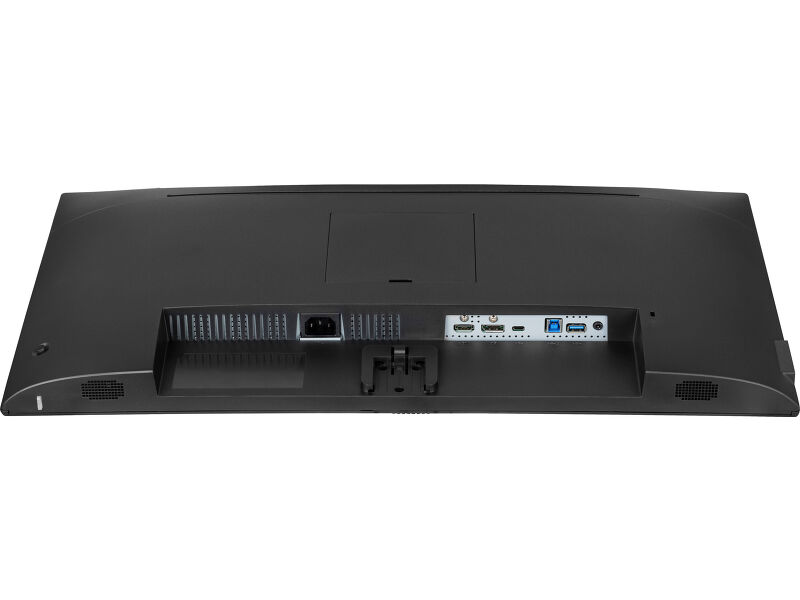

INTERFÉSZEK / CSATLAKOZÓK / VEZÉRLŐK
| Jelbemenet |
HDMI x1 (v.2.0) DisplayPort x1 (v.1.2) |

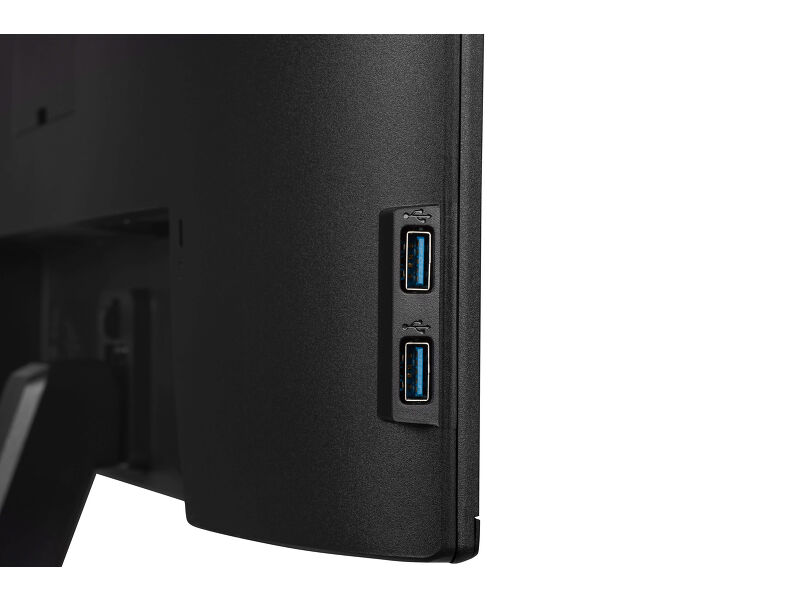

| USB HUB | x4 (3x Type A (v.3.2 Gen 1 (5Gbit; 4.5W), 1x Type C (5Gbps, 15W)) |
| HDCP | igen |
| Hangszóró csatlakozó | igen |
JELLEMZŐK
| Kékfény csökkentés | igen |
| Villogásmentes | igen |
| OSD nyelvek | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Vezérlőgombok | Joystick: Center (Power/Menu), Up (Input Select), Down, Right (Volume/Mute), Left (Submenu) |
| Felhasználói vezérlők | picture adjust (brightness, contrast, ECO, ACR, OD, X-Res technology, DPS), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature, user preset), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI, display information), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, LED, USB BC), input select (source) audio settings (volume, mute) |
| Hangszórók | 2 x 2W |
| Kényelem | Kensington-lock™ előkészítve, DDC2B, Mac OSX |
MECHANIKUS
| Kijelző helyzetének beállításai | billenthető |
| Hajlásszög | 20° fel; 4° le |
| VESA állvány | 100 x 100mm |
| Kábelkezelő rendszer | igen |
TARTOZÉKOKAT TARTALMAZZA

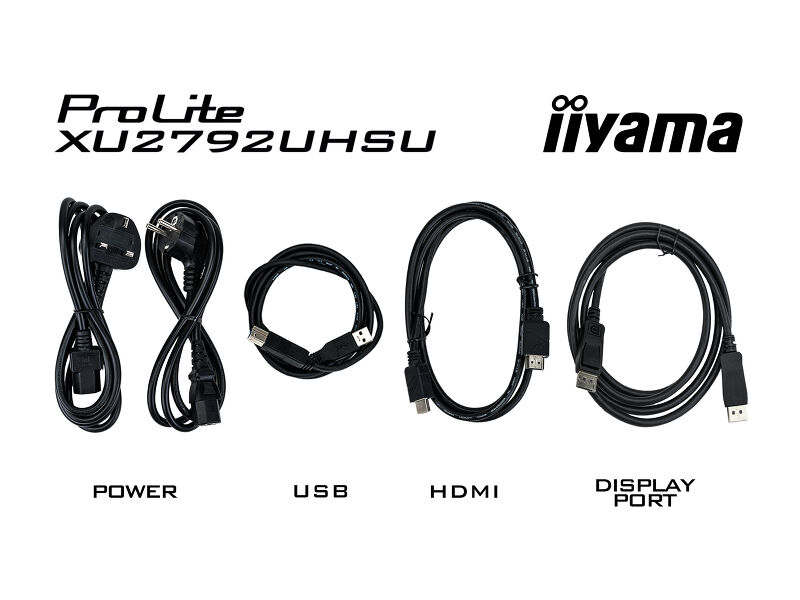

| Kábelek | áramellátás, USB, HDMI, DP |
| Egyéb | gyors üzembe helyezési útmutató, biztonsági útmutató |
ENERGIAGAZDÁLKODÁS
| Tápegység | belső |
| Áramellátás | AC 100 - 240V, 50/60Hz |
| Energiafogyasztás | 34W jellemző, 0.5W készenlét, 0.3W kikapcsolva |
| Áramfogyasztás | 0.5W készenlét |
FENNTARTHATÓSÁG
| Előírások | TCO Certified, CE, TÜV-GS, EAC, PSE, RoHS támogatás, ErP, WEEE, VCCI, HATÓTÁVOLSÁG, UKCA |
| Energiahatékonysági osztály ((EU) 2017/1369 rendelet) | F |
| EPEAT Ezüst | *registration varies by country, go to www.epeat.net for details |
| REACH SVHC | 0,1% felett: Vezet |
MÉRETEK / SÚLY
| Termék méretei Sz x H x M | 614.5 x 439.5 x 190mm |
| Doboz mértei Sz x H x M | 688 x 473 x 124mm |
| Súly (doboz nélkül) | 4.7kg |
| Súly (dobozzal) | 7.1kg |
| EAN kód | 4948570123797 |
FAQS
Why isn’t my notebook charging when connected to the USB-C input of my monitor in standby mode?
+To resolve the issue of your laptop not charging, please try the following steps:
1. Activate USB BC or disable USB standby mode in the monitor’s settings menu.
2. Update your PC’s BIOS/UEFI.
Is Adaptive Sync compatible with AMD FreeSync or NVIDIA G-Sync?
+Yes, Adaptive Sync is compatible with AMD FreeSync and NVIDIA G-Sync.
Why can't I select MBR when FreeSync/Adaptive Sync is activated?
+MBR cannot be selected when FreeSync/AdaptiveSync is activated, because MBR can interfere with the FreeSync/Adaptive Sync technology as they have different methods of improving motion clarity. MBR reduces motion blur (response time), while Adaptive Sync/FreeSync addresses stuttering. We recommend activating Adaptive Sync/FreeSync on systems with fluctuating or unstable frame rates. MBR performs best on powerful systems that maintain a consistently high frame rate.
Why is my monitor displaying a "No Signal" message?
+If your monitor is displaying a "No Signal" message, please check the following:
1. Ensure the cables are properly connected at both ends.
2. Select the correct signal input (HDMI/DP) or choose AUTO.
For guidance on selecting an input while the screen is in standby mode, please consult the user manual. On desktop monitors, common methods include pressing the INPUT, AUTO, or "2" buttons, or moving the joystick backward.
I have an Apple MAC-system, will my iiyama monitor work?
+Yes, your iiyama monitor will work with your Apple Mac system. However, it depends on the signal input how to connect. Since Apple Mac systems from 2020 onwards only have Thunderbolt 3 (USB-C) ports for video output, you have two options:
1. Connect directly to the USB-C signal input on your iiyama monitor.
2. In case your monitor only has HDMI or Displayport, you will need a Mac-compatible dongle that supports one of the video inputs available. Apple offers a USB-C Digital AV Multiport Adapter (MW5M3AM) that can be used for this purpose.
3. If your iiyama monitor has touchscreen capabilities, please refer to the user manual to verify touch functionality compatibility with your Mac system.
The picture on my monitor is flickering. What steps can I take to fix it?
+To resolve the issue of a blinking picture, please follow these steps:
1. Inspect the Signal Cable.
Ensure the signal cable is securely connected at both ends and free from any physical damage. Avoid any sharp bends or squishing of the cable.
2. Use a Shorter Cable.
If possible, use a cable shorter than 3 meters and connect the monitor directly to a wall power socket, avoiding the use of adapters.
3. Disable FreeSync/Adaptive Sync.
For desktop or gaming monitors, try disabling FreeSync or Adaptive Sync in the monitor's settings menu.
