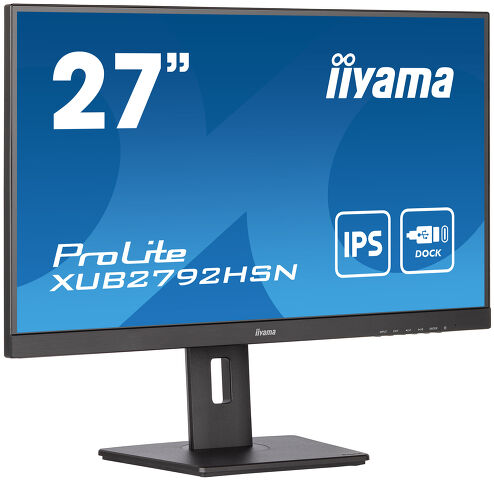

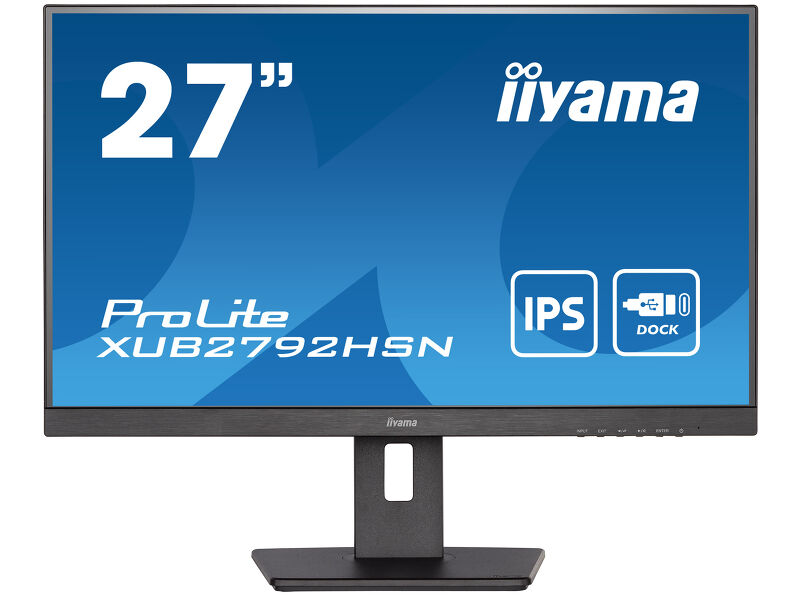

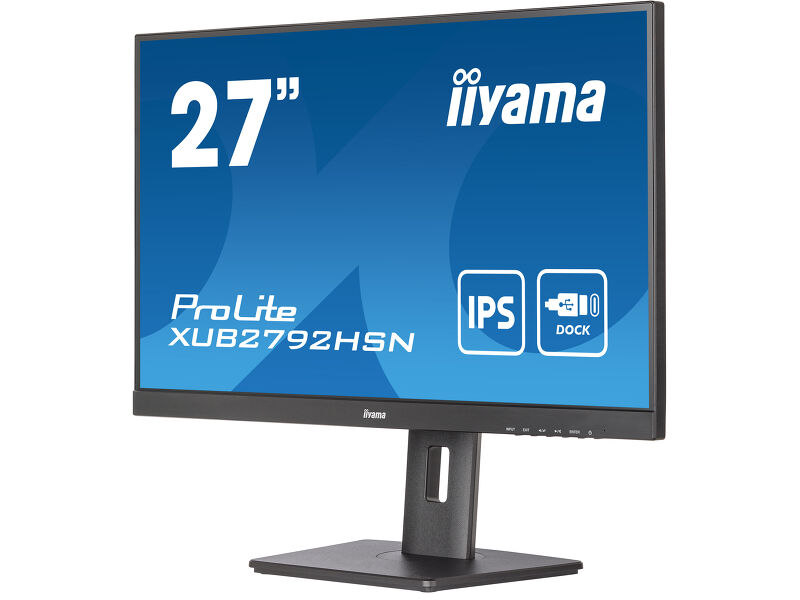

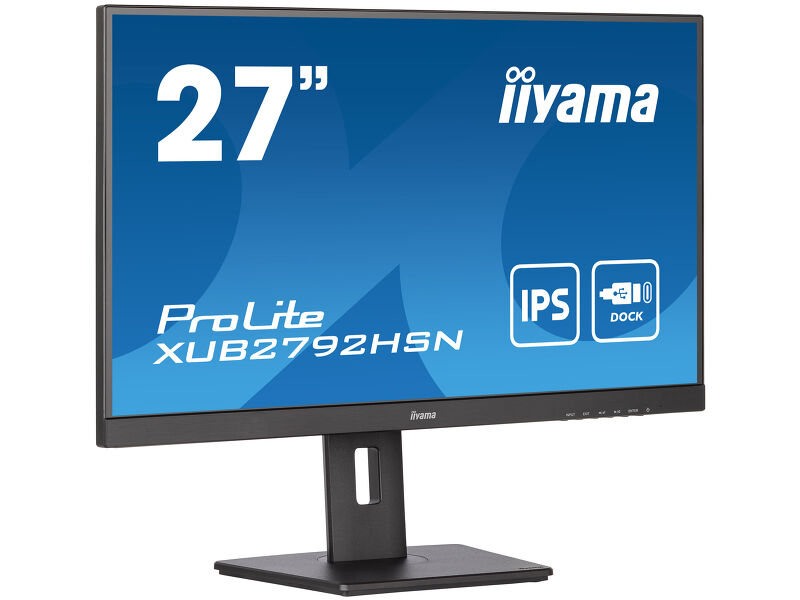

27’’ IPS technology panel with USB-C dock and RJ45 (LAN)
Equipped with a USB-C dock connector, the XUB2792HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2792HSN allows you to easily adjust the screen position to your preferences.
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
|Panel||IPS Panel Technology LED, matte finish|
|Native resolution||1920 x 1080 @75Hz (2.1 megapixel Full HD)|
|Panel brightness||250 cd/m²|
|Response time (GTG)||4ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln (sRGB: 99%; NTSC: 72%)|
|Horizontal Sync||30 - 85kHz|
|Viewable area W x H||597.8 x 336.3mm, 23.5 x 13.2"|

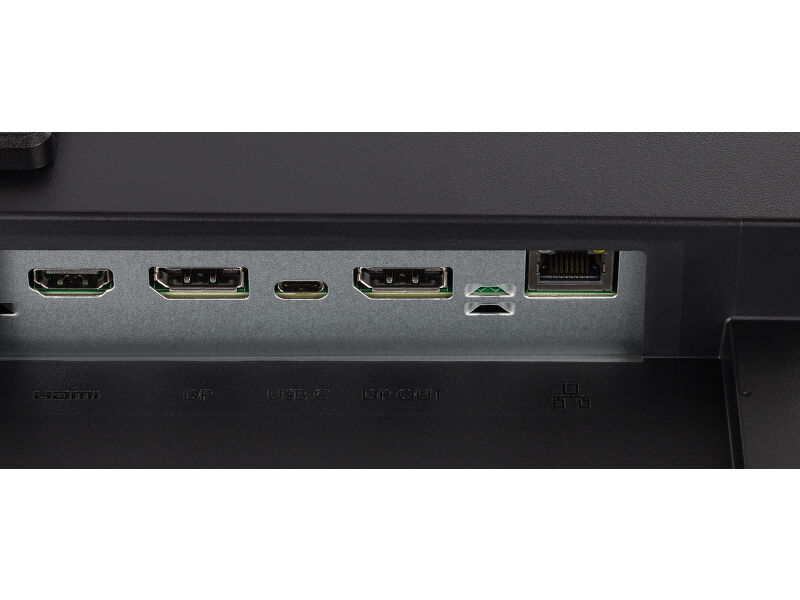

USB-C x1 (Power delivery 65W)
|Signal output||DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)|

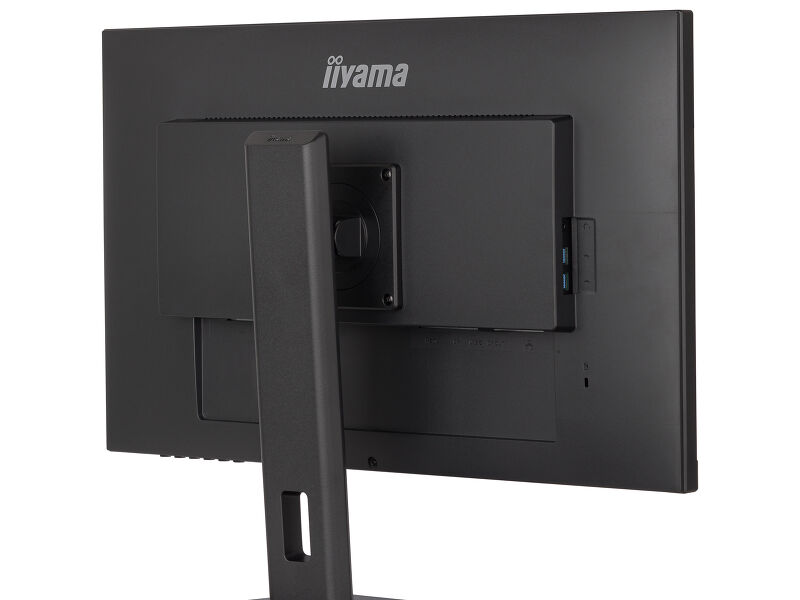

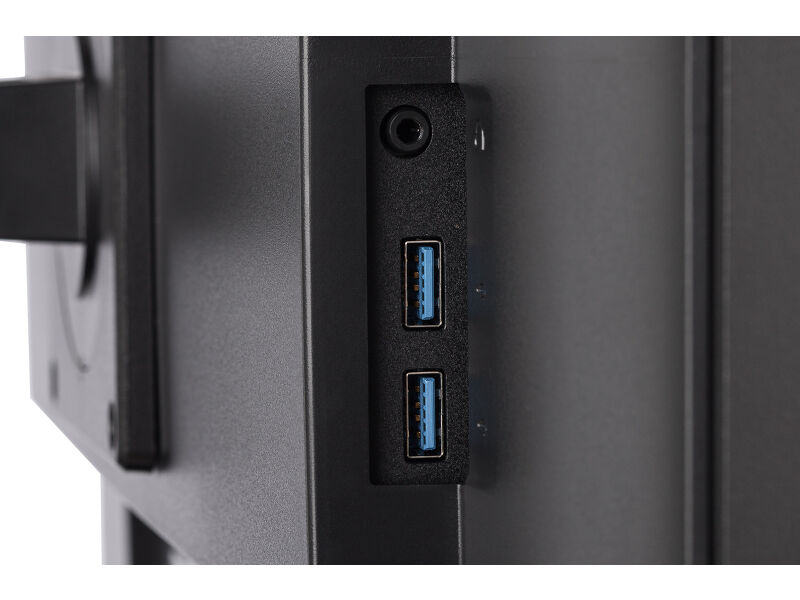

|USB HUB||x2 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))|
|USB-C DOCK||x1 (Power delivery 65W, LAN, DP out, USB v. 3.2 (Gen 1, 5Gbit))|
|Blue light reducer||yes|
|OSD languages||EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL|
|Control buttons||Power, Menu/ Select, Up/ Volume, Down/ Eco, Exit, Input|
|User controls||picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, USB, MST, information), input select, audio settings (volume, mute)|
|Speakers||2 x 2W|
|Convenience||Kensington-lock™ prepared, DDC2B|
|Display position adjustments||height, swivel, tilt, pivot (rotation both sides)|

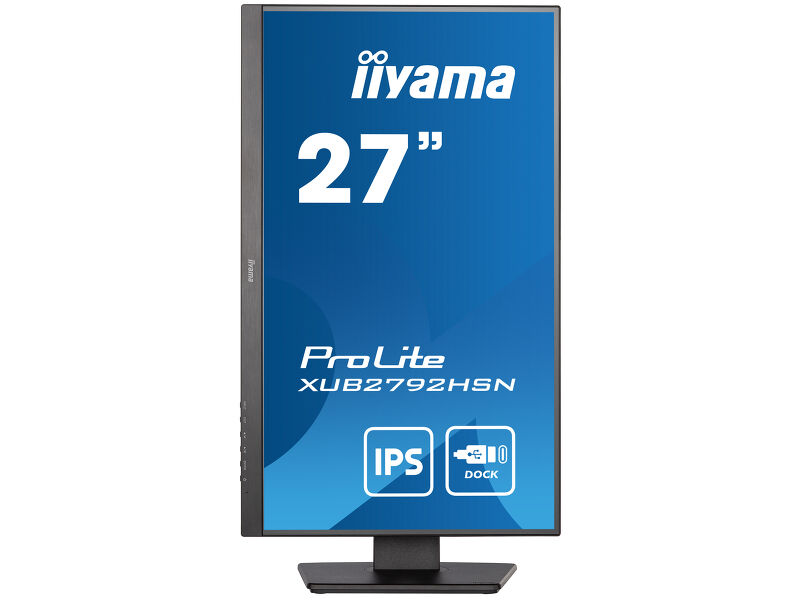

|Rotation (PIVOT function)||90°|
|Swivel stand||90°; 45° left; 45° right|

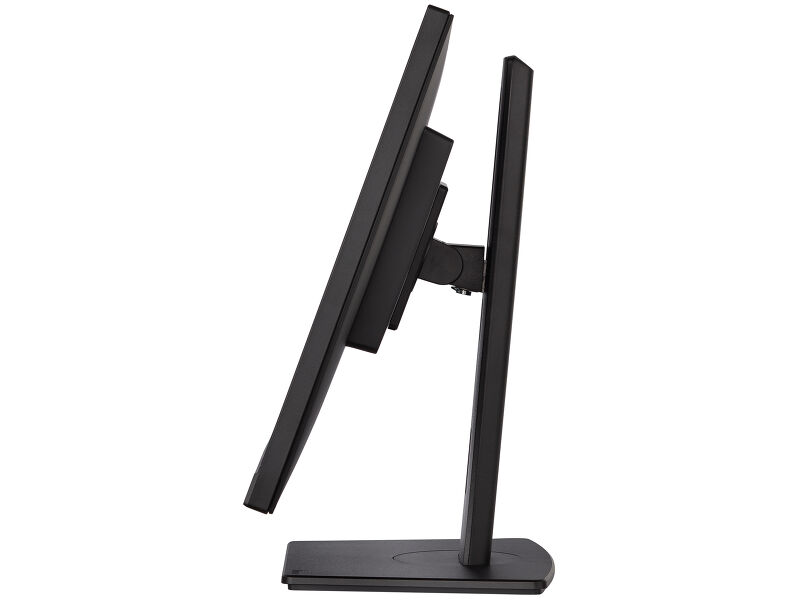

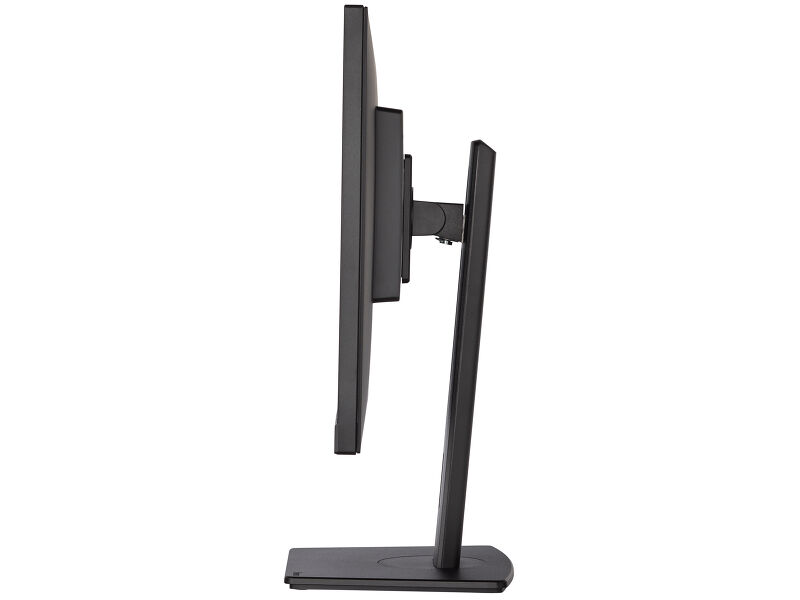

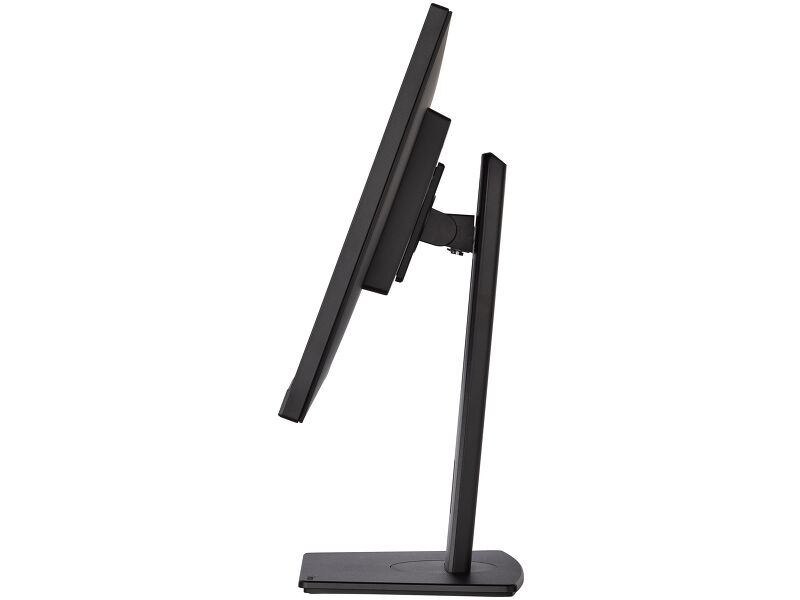

|Tilt angle||23° up; 5° down|

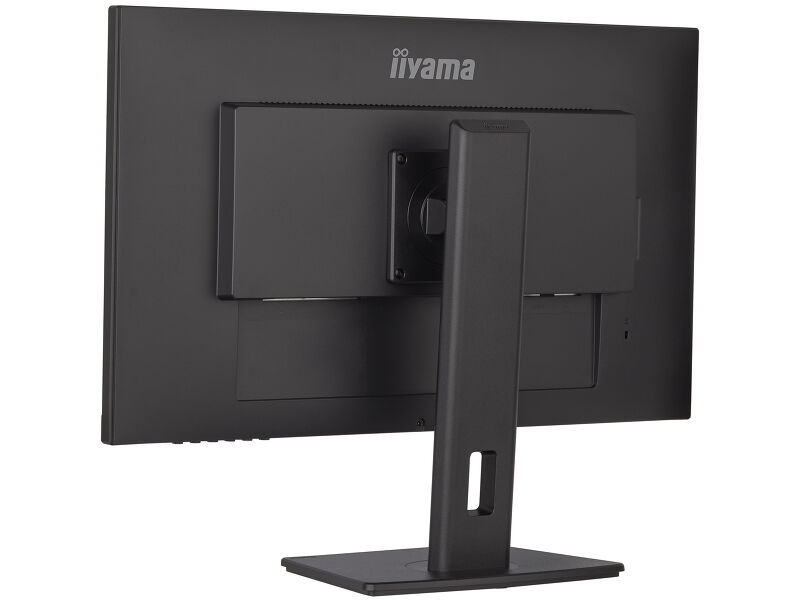

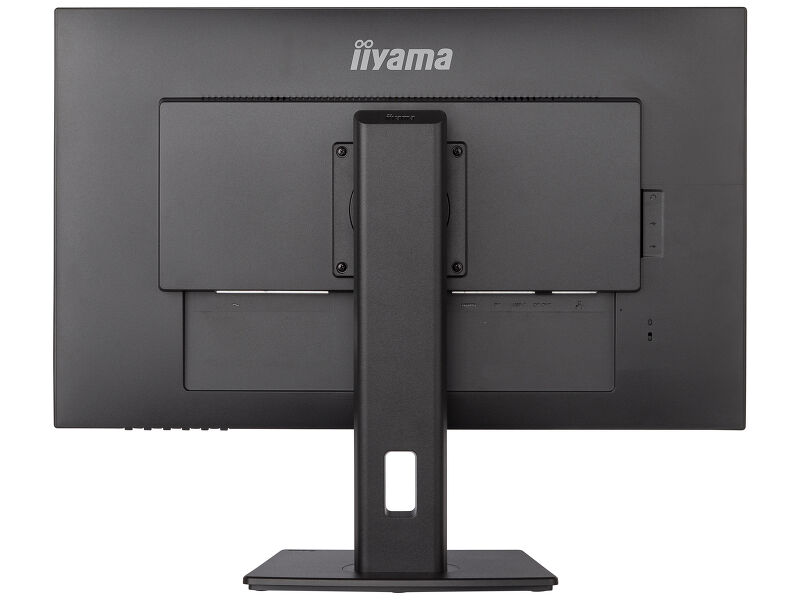

|VESA mounting||100 x 100mm|
|Cable management system||yes|
|Cables||power, HDMI, USB-C|
|Other||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||20W typical, 0.5W stand by, 03W off mode|
|Regulations||TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA|
|TCO Certified||XUB2792HSN-B5 H|
|Energy efficiency class (Regulation (EU) 2017/1369)||E|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||612 x 393.5 (543.5) x 209.5mm|
|Box dimensions W x H x D||693 x 170 x 440mm|
|Weight (without box)||6.6kg|
|Weight (with box)||8.4kg|
|Technical specification||ProLite XUB2792HSN-B5 - en.pdf||Download|
|EU Energy Label||XUB2792HSN-B5 EU Energy Label (1329955).pdf||Download|
|UK Energy Label||XUB2792HSN-B5 UK Energy Label (1329955).pdf||Download|
|USB-C Dock White Paper||USB-C_Dock_White_Paper_30.12.pdf||Download|
