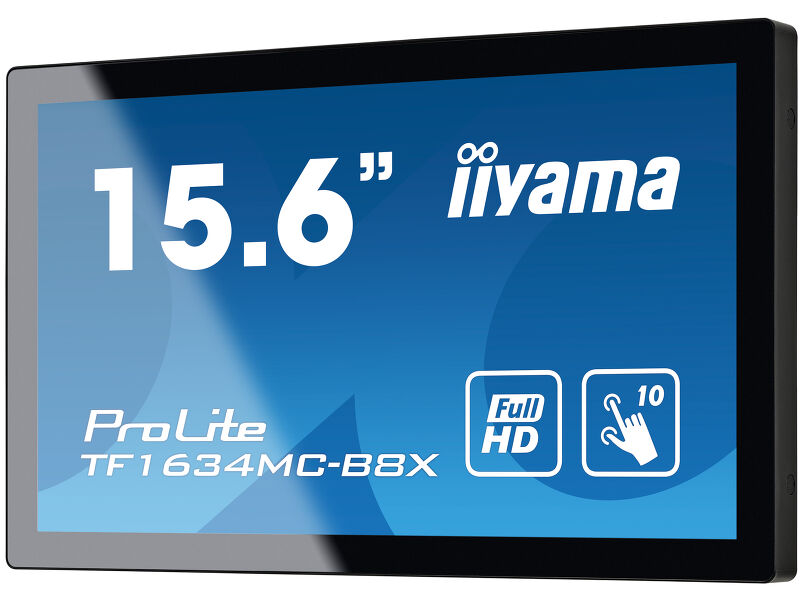

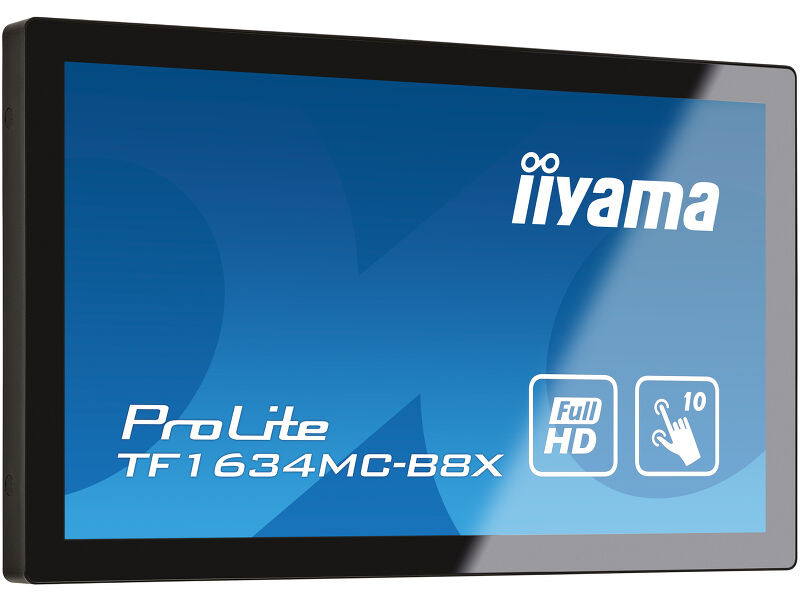

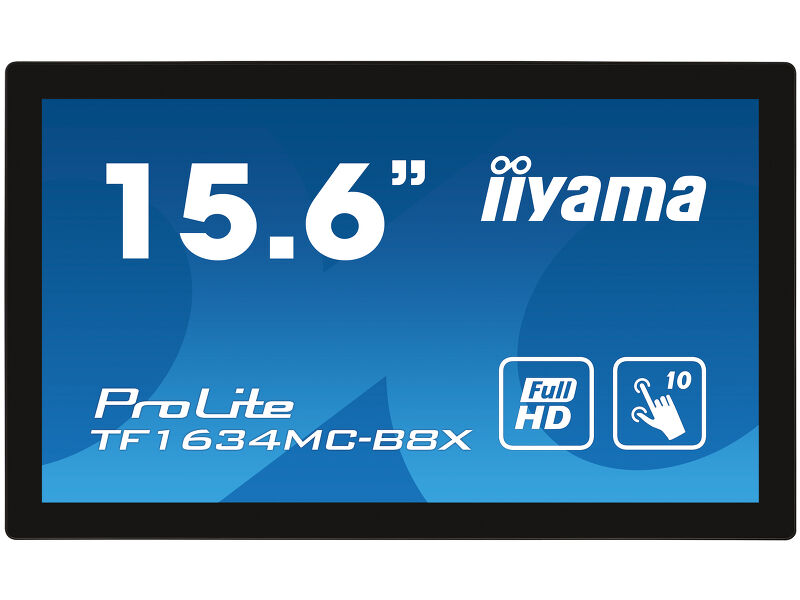

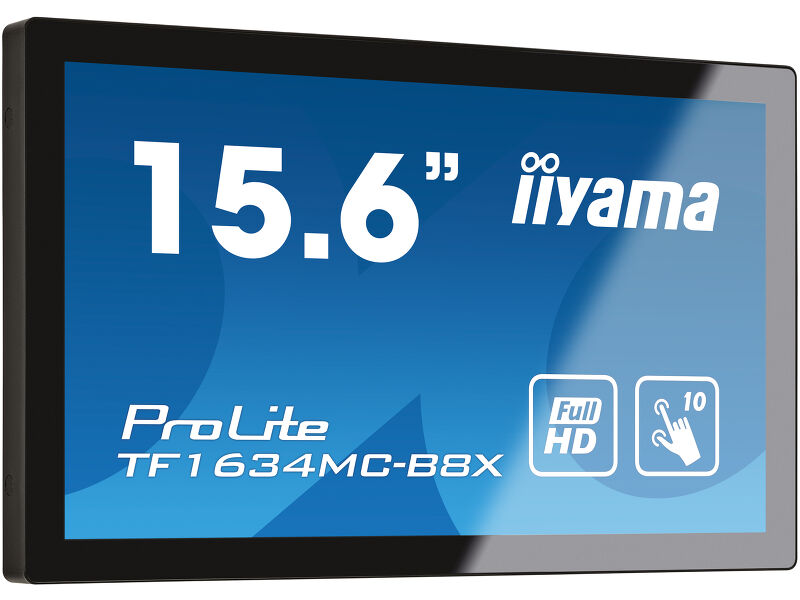

15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function
The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
|Design||Edge to edge glass, Open Frame|
|Panel||IPS Panel Technology LED|
|Native resolution||1920 x 1080 @60Hz (2.1 megapixel)|
|Panel brightness||450 cd/m²|
|Brightness||405 cd/m² with touch|
|Static contrast||700:1 with touch|
|Response time (GTG)||25ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.2mln (6bit + Hi-FRC)|
|Horizontal Sync||30 - 84kHz|
|Viewable area W x H||344.2 x 193.6mm, 13.6 x 7.6"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

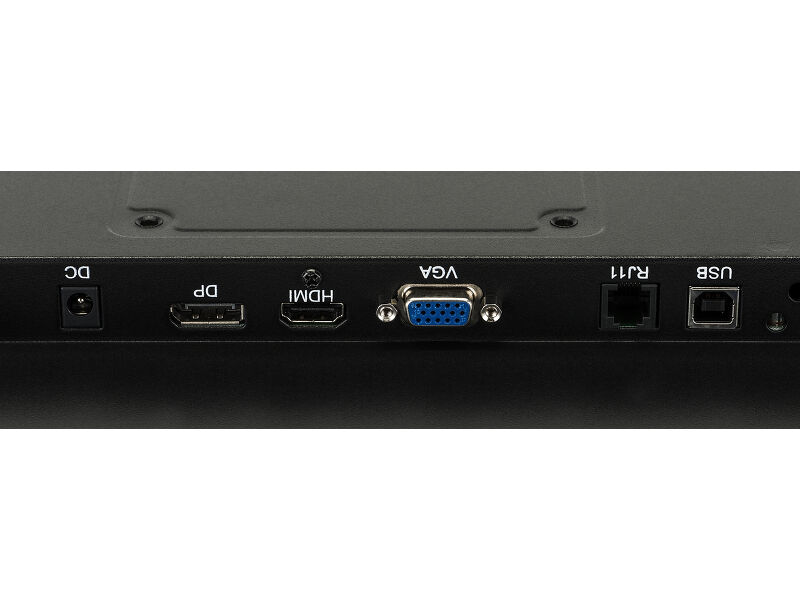

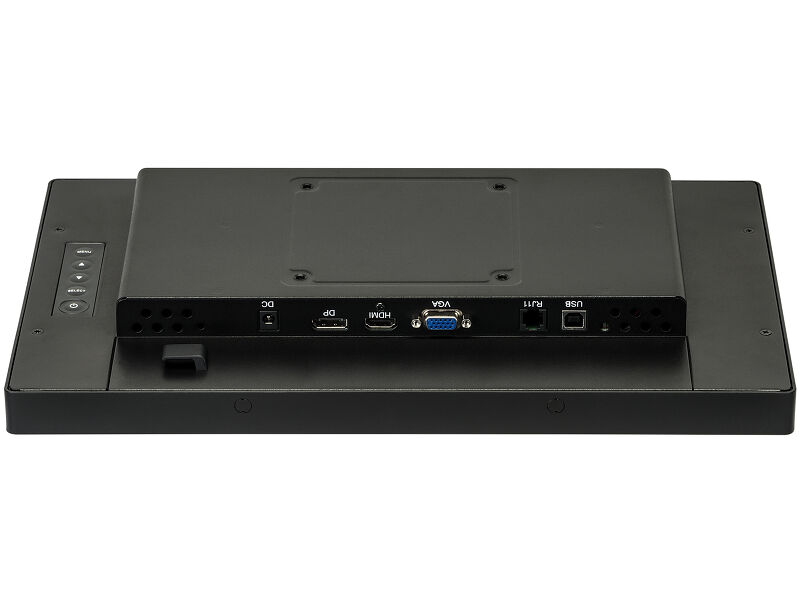

|Analog signal input||VGA x1|
|Digital signal input||
|Extra||Anti-fingerprint coating, touch through-glass|
|Water and dust protection||IP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power|
|User controls||picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)|
|Orientation||landscape, portrait, face-up|

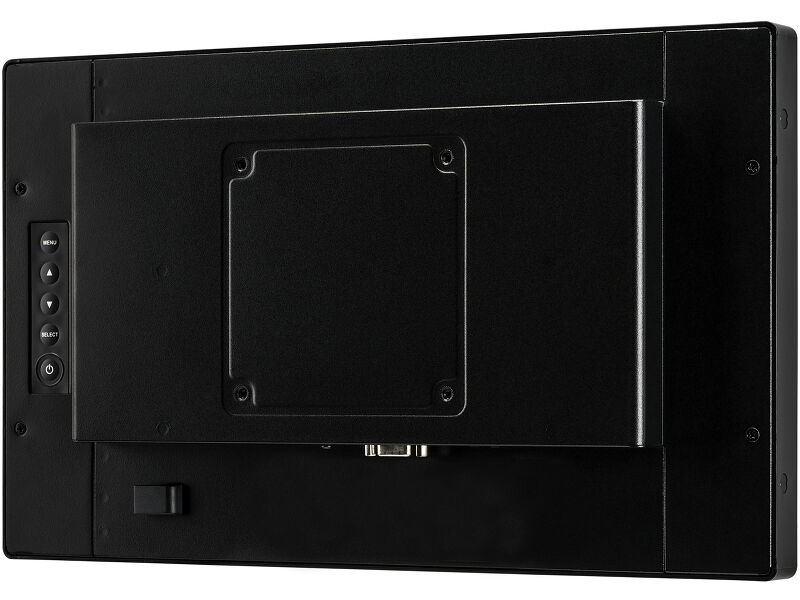

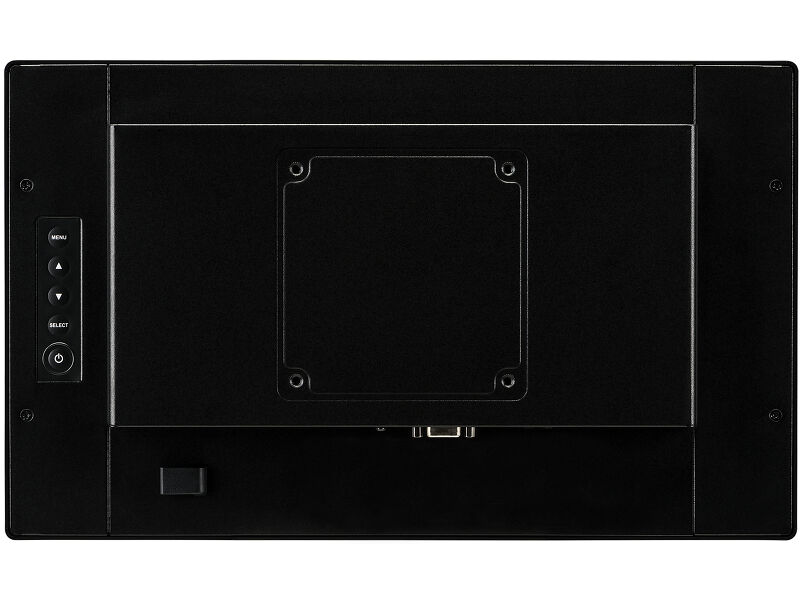

|VESA mounting||100 x 100mm|

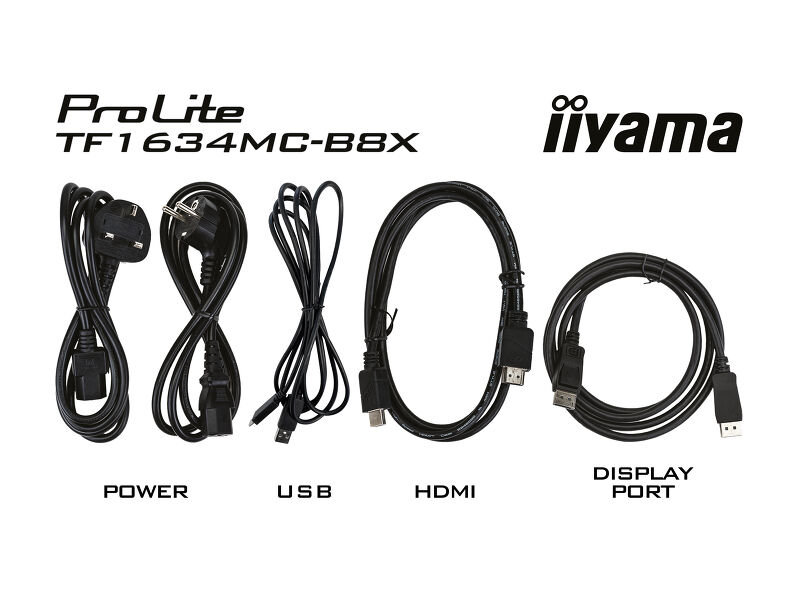

|Cables||power, USB, HDMI, DP|
|Guides||quick start guide, safety guide|
|Power supply unit||external|
|Power supply||DC 12 V|
|Power usage||18W typical, 1.5W stand by, 0.3W off mode|
|Regulations||CE, EAC, RoHS support, ErP, WEEE, cULus, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||F|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||381 x 230.5 x 46mm|
|Box dimensions W x H x D||455 x 365 x 290mm|
|Pallet dimensions W x H x D||115 x 97 x 204mm|
|Weight (without box)||2.0kg|
|Weight (with box)||3.9kg|
|Technical specification||ProLite TF1634MC-B8X - gb_en.pdf||Download|
|UK Energy Label||TF1634MC-B8X UK Energy Label pdf data (391713).pdf||Download|
