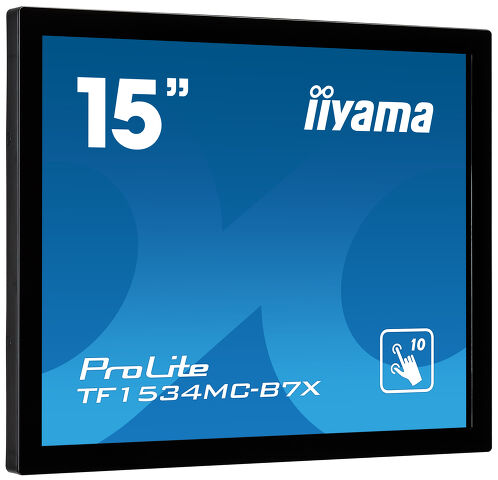

15’’ 10pt touch Open Frame monitor with Touch Through-Glass function
The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
|Native resolution||1024 x 768 (0.8 megapixel)|
|Panel brightness||370 cd/m²|
|Brightness||330 cd/m² with touch|
|Response time (BTB)||8ms|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Colour support||16.2mln (6bit + Hi-FRC)|
|Horizontal Sync||31.4 - 60kHz|
|Viewable area W x H||304 x 228mm|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||
|Extra||anti-fingerprint coating, touch through-glass|
|Water and dust protection||IP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power|
|User controls||picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)|
|Orientation||landscape, portrait, face-up|
|VESA mounting||100 x 100mm|
|Cables||power, USB, HDMI, DP|
|Guides||quick start guide, safety guide|
|Power supply unit||external|
|Power supply||DC DC 12 V|
|Power usage||9W typical, 1.5W stand by, 0.3W off mode|
|Regulations||CE, EAC, RoHS support, ErP, WEEE, cULus, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||E|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||337.5 x 265.5 x 44.5mm|
|Box dimensions W x H x D||435 x 335 x 165mm|
|Pallet dimensions W x H x D||910 x 1140 x 1987mm|
|Weight (without box)||2.7kg|
|Weight (with box)||4kg|
|Product series||ProLite TF1634MC-B7X, ProLite TF1734MC-B7X, ProLite TF2234MC-B7X, ProLite TF1934MC-B7X|
|Related products||RC TOUCHV01, OMK1-1|
