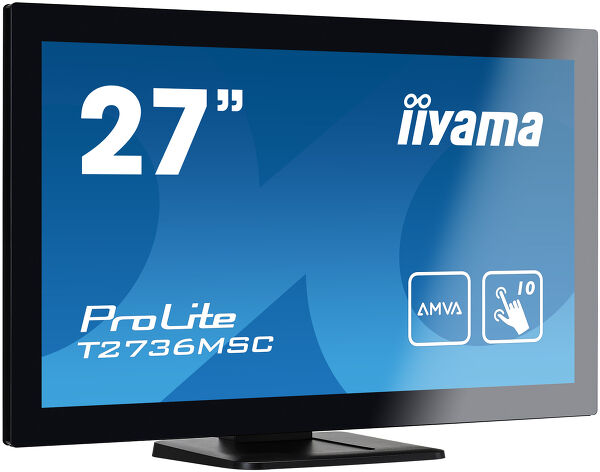

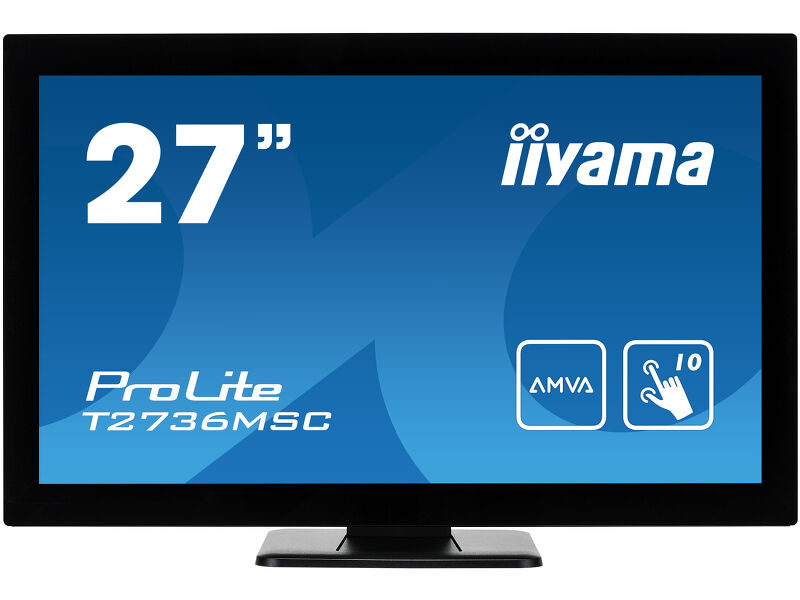

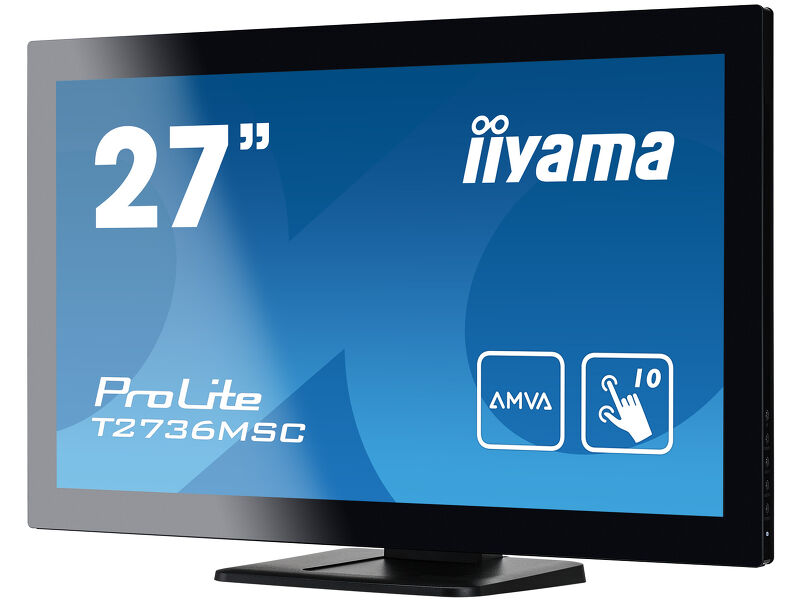

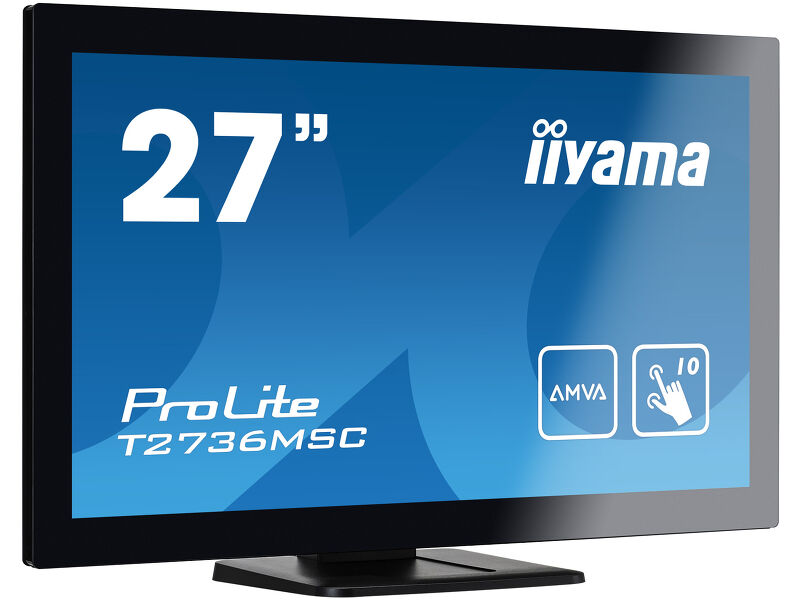

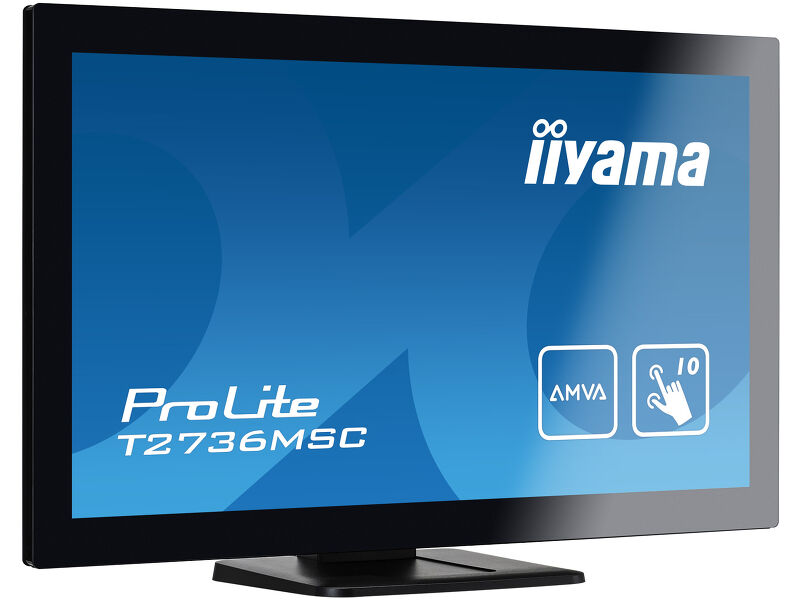

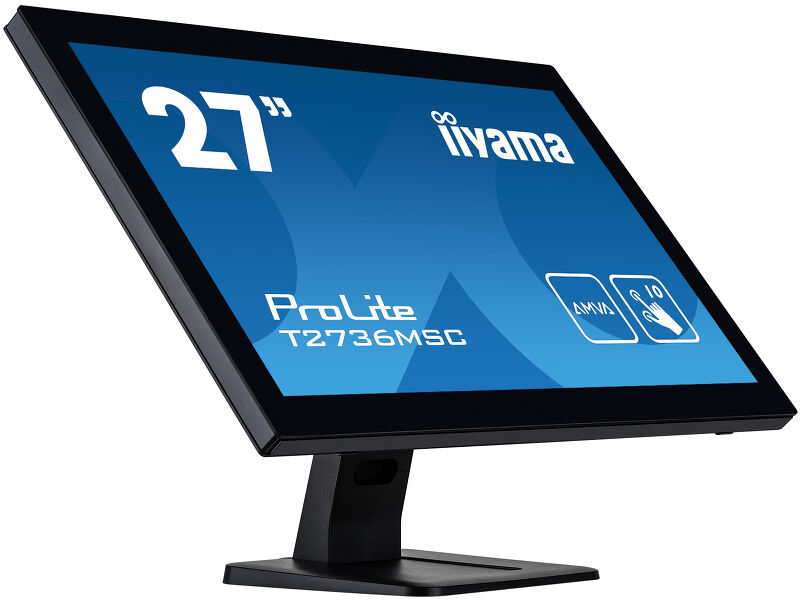

27" 10 point touch monitor with edge to edge glass and AMVA panel
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2736MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
This LED monitor is equipped with two stereo speakers.
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
AMVA technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
| Design | Edge to edge glass |
| Diagonal | 27", 68.6cm |
| Panel | AMVA LED |
| Native resolution | 1920 x 1080 @60Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 300 cd/m² |
| Brightness | 255 cd/m² with touch |
| Light transmittance | 85% |
| Static contrast | 3000:1 |
| Advanced contrast | 12M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 80kHz |
| Viewable area W x H | 597.6 x 336.15mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Bezel colour and finish | black, matte |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | yes |

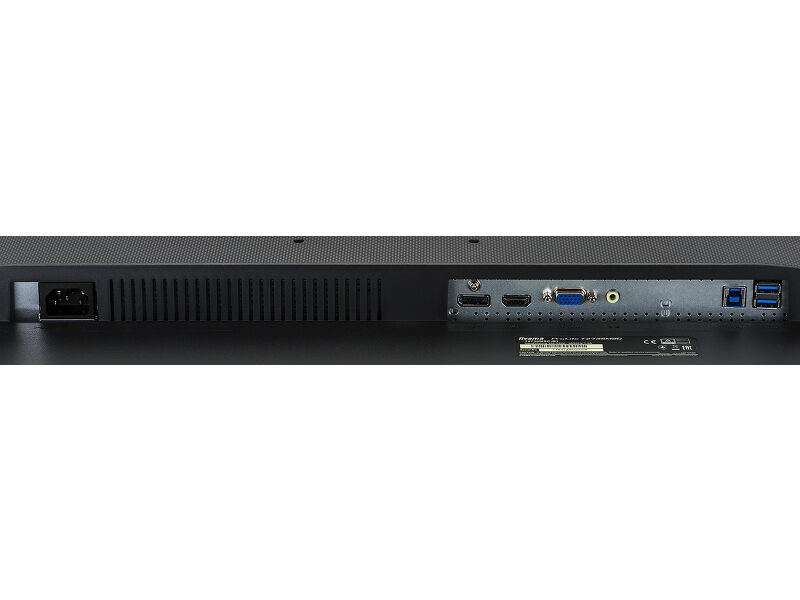

| Analog signal input | VGA x1 |
| Digital signal input |
HDMI x1 DisplayPort x1 |
| Audio output | Speakers 2 x 2W |
| HDCP | yes |

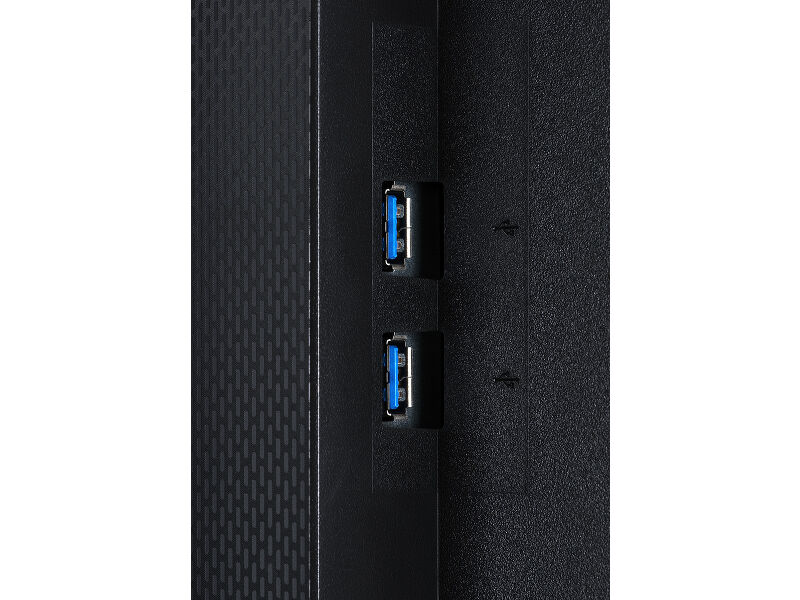

| USB HUB | x4 (v.3.0) |
| Glass thickness | 2.2mm |
| Glass hardness | 7H |
| OSD key lock | yes |
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |

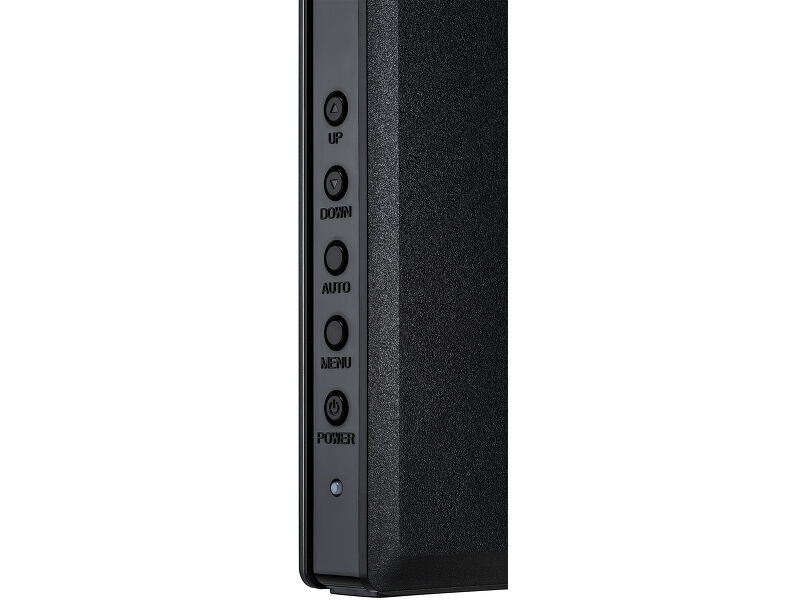

| Control buttons | Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power |
| User controls | Picture adjust (brightness, contrast, ECO, i-Style colour, ACR), geometry (pixel clock, phase, H.position, V.position, aspect), colour settings (gamma, colour temp), OSD (H.position, V. position, OSD time, language), extra (reset, signal select, audio input, opening logo, LED, OD, information, volume, auto adjust) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer | yes |
| Plug&Play | DDC2B |

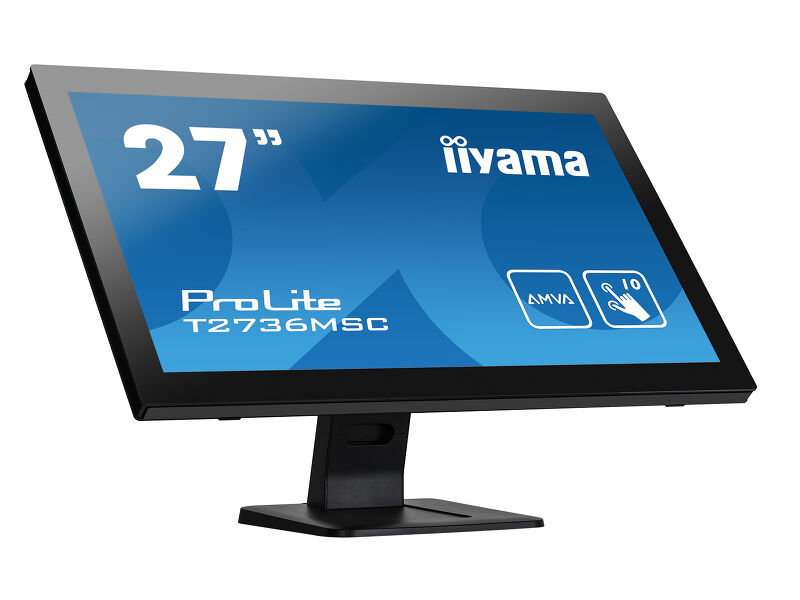

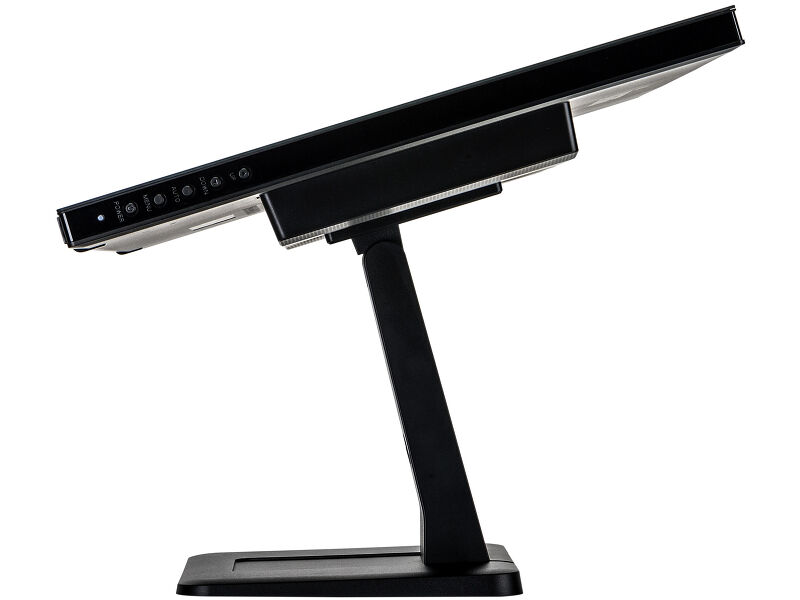

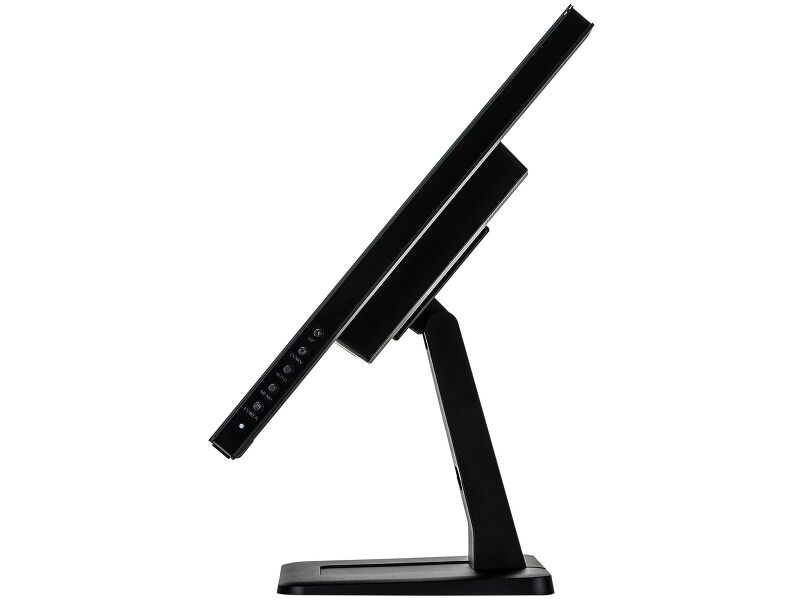

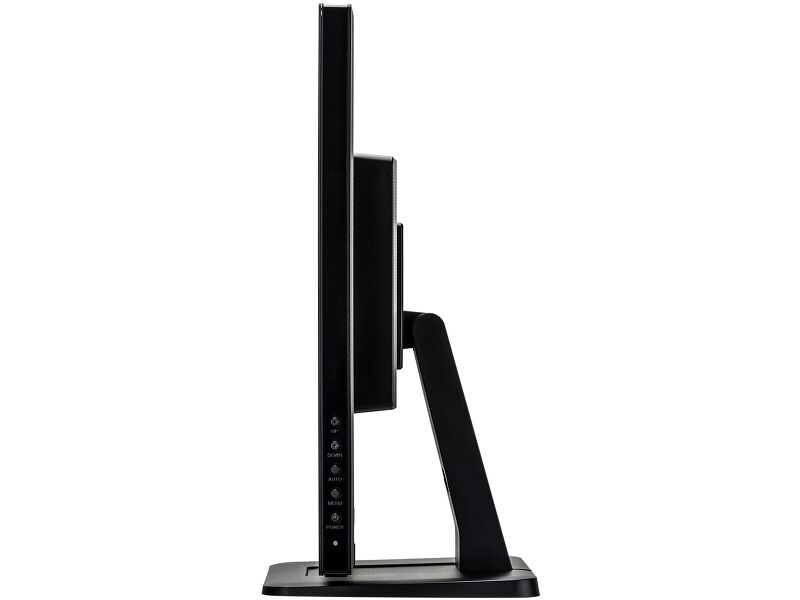

| Tilt angle | 73° up; 3° down |

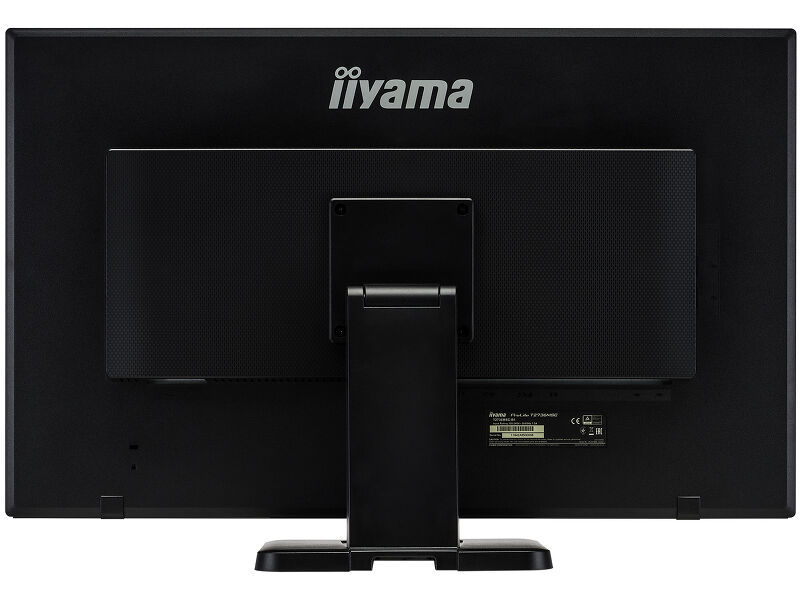

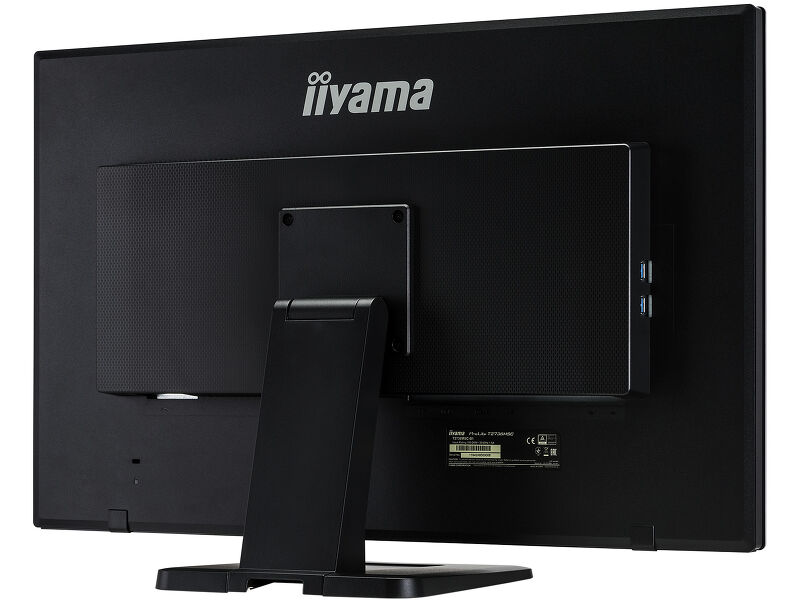

| VESA mounting | 100 x 100mm |

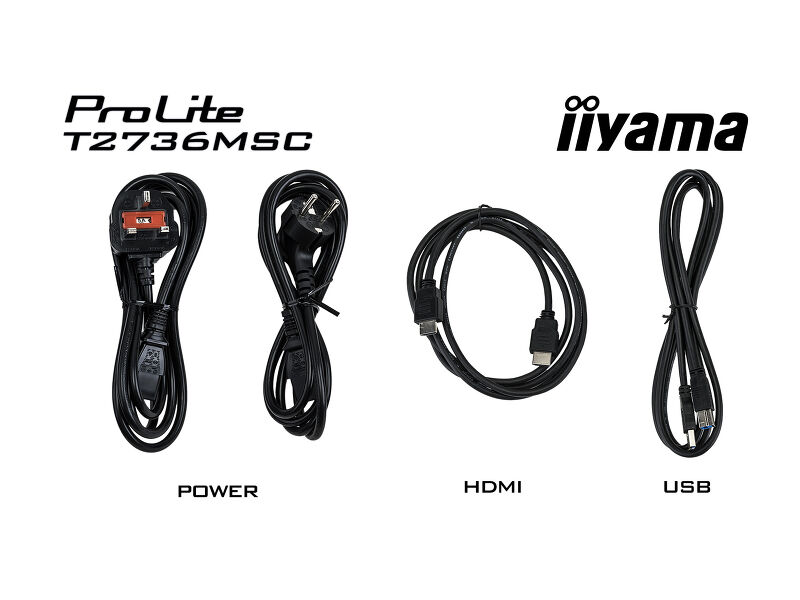

| Cables | power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m) |
| Guides | quick start guide, safety guide |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 28W typical, 0.5W stand by, 0.5W off mode |
| Regulations | CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 659.5 x 444 x 220.5mm |
| Weight (without box) | 7.4kg |
| EAN code | 4948570116423 |
| Product series | ProLite T2236MSC-B2, ProLite T2336MSC-B2, ProLite T2336MSC-B2AG, ProLite T2236MSC-B2AG |
