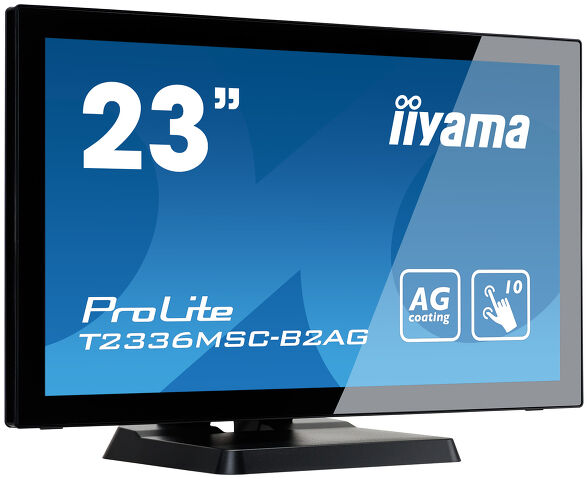

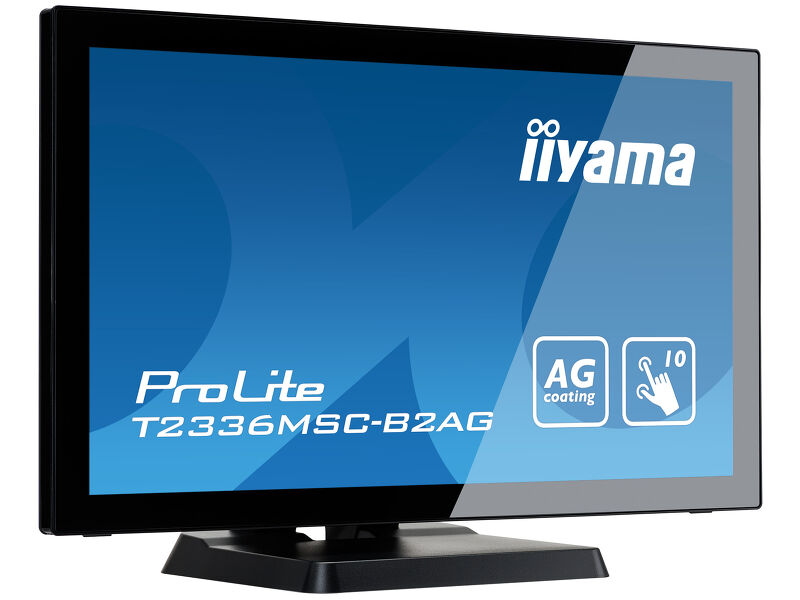

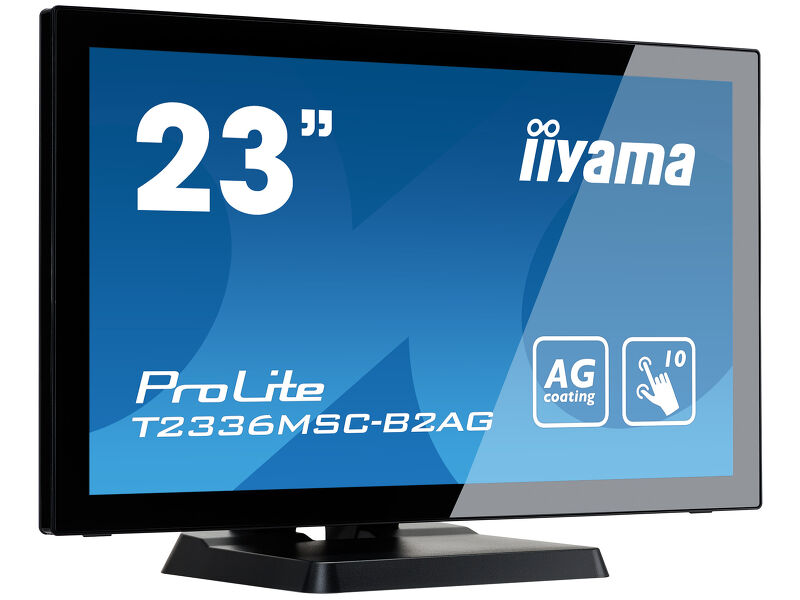

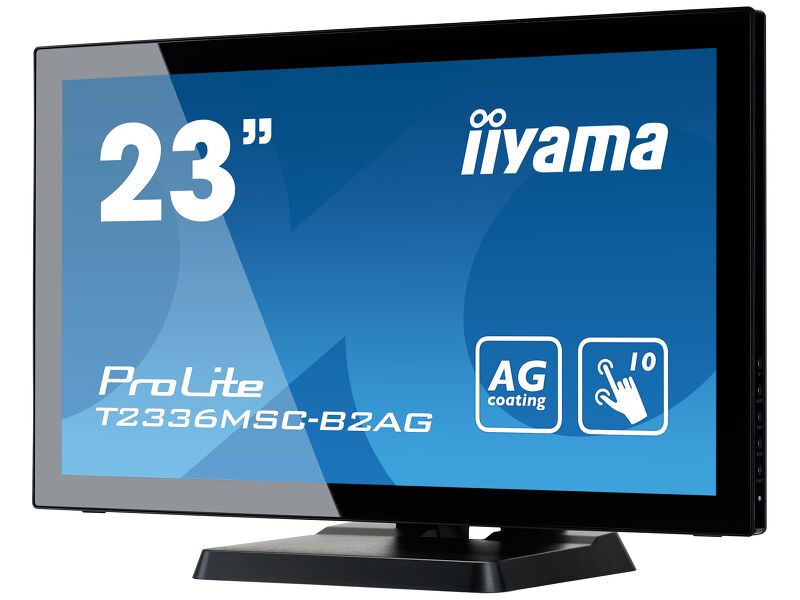

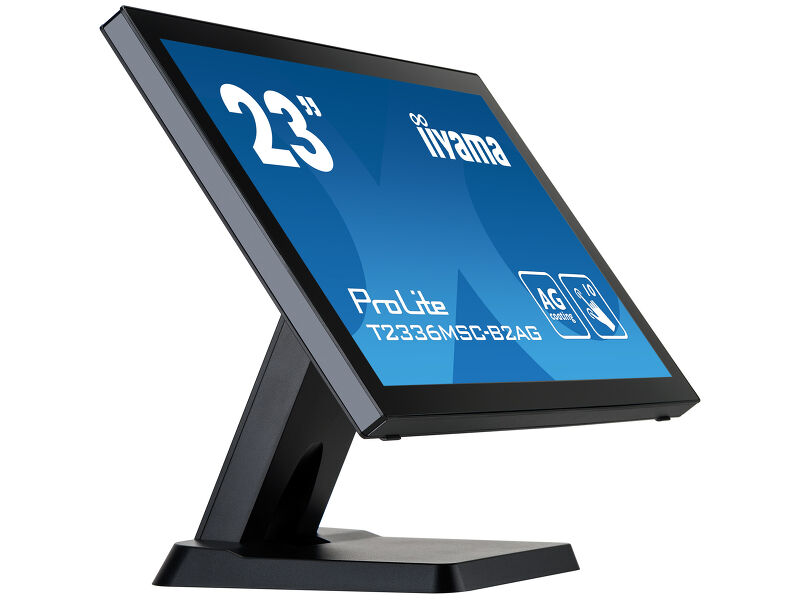

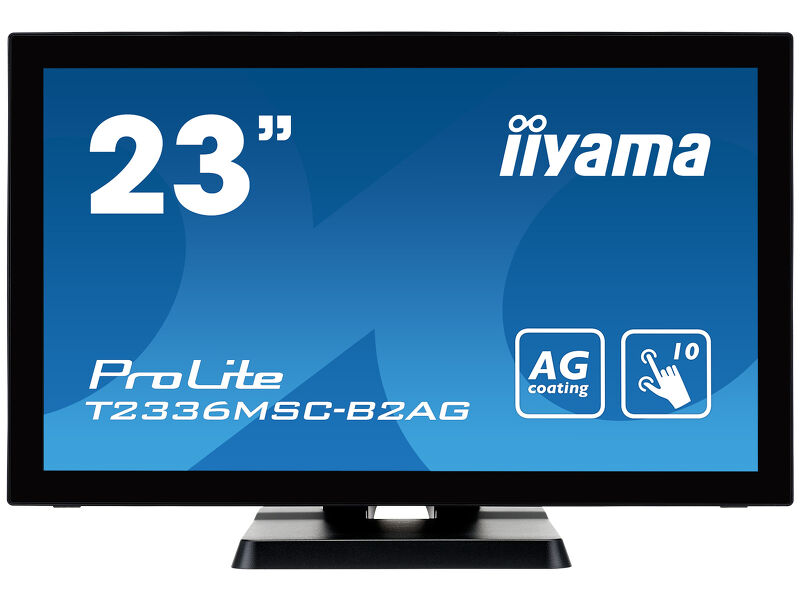

23" 10 point touch monitor with edge-to-edge glass and Anti Glare coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
This LED monitor is equipped with two stereo speakers.
|Design||Edge to edge glass|
|Panel||IPS LED, AG85|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Panel brightness||250 cd/m²|
|Brightness||215 cd/m² with touch|
|Static contrast||1 000:1 with touch|
|Response time (GTG)||5ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Horizontal Sync||30 - 80kHz|
|Viewable area W x H||509.18 x 286.41mm, 20 x 11.3"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

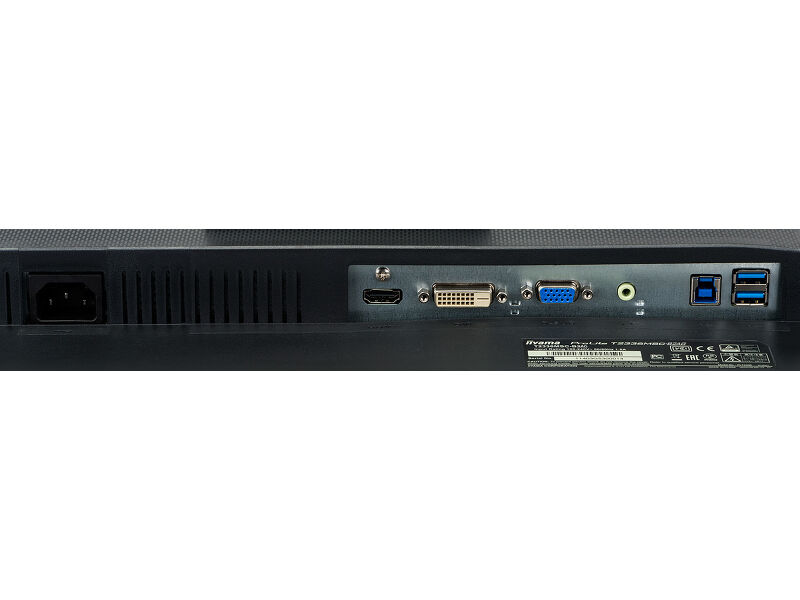

|Analog signal input||VGA x1|
|Digital signal input||
|Audio output||Speakers 2 x 2W|
|USB HUB||x4 (v.3.2 (Gen 1, 5Gbit))|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, PT, CN, RU, JP|
|Control buttons||Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power|
|User controls||luminance (contrast, brightness, ECO, i-Style colour, ACR), image setup (clock, phase, H.position, V.position, aspect), colour temp., OSD setup (H.position, V. position, timeout, language), extra (reset, signal select, HDMI audio, OD, information), volume, auto adjust|
|Blue light reducer||yes|

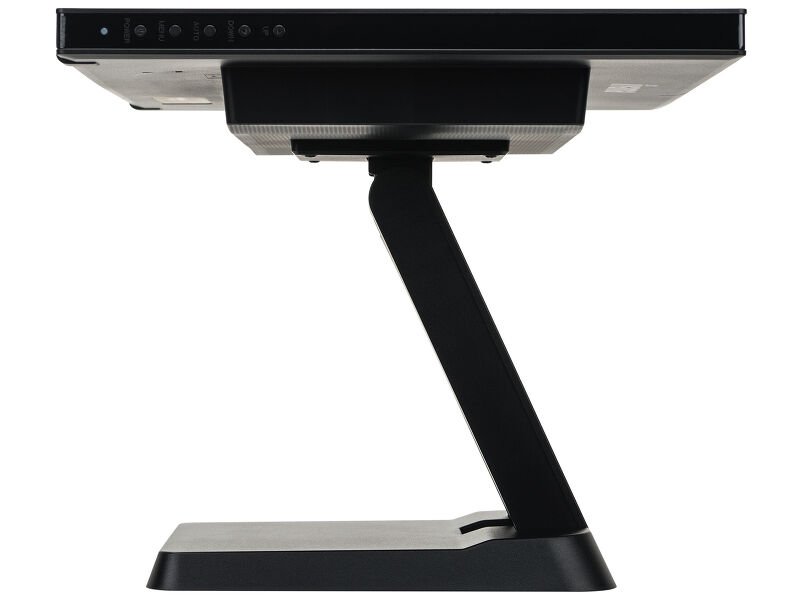

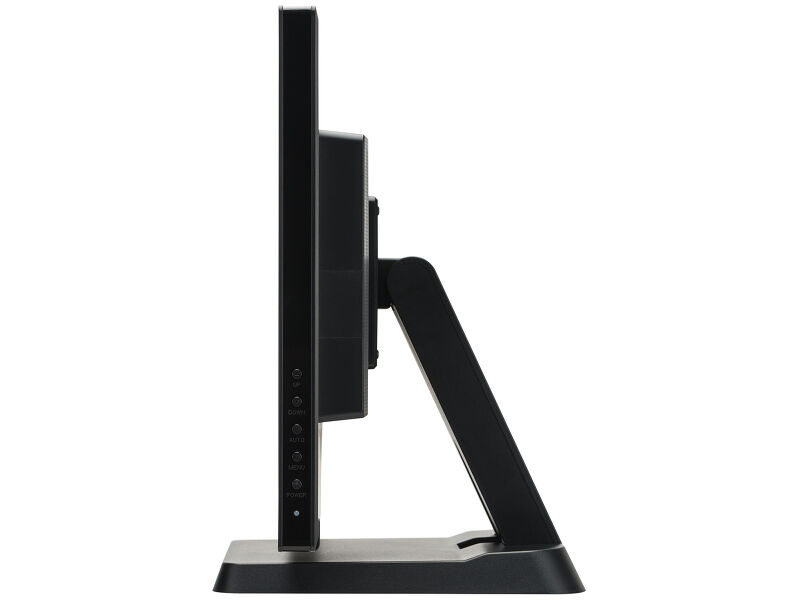

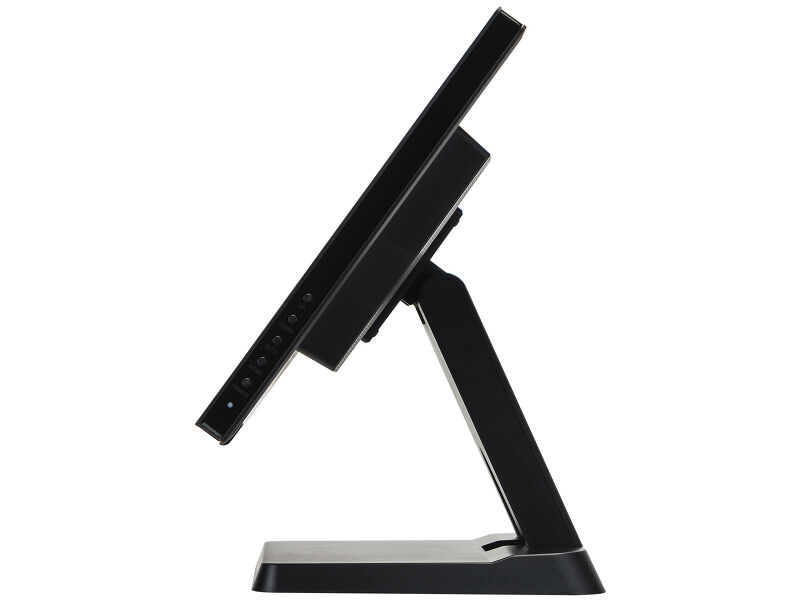

|Tilt angle||90° up; 5° down|

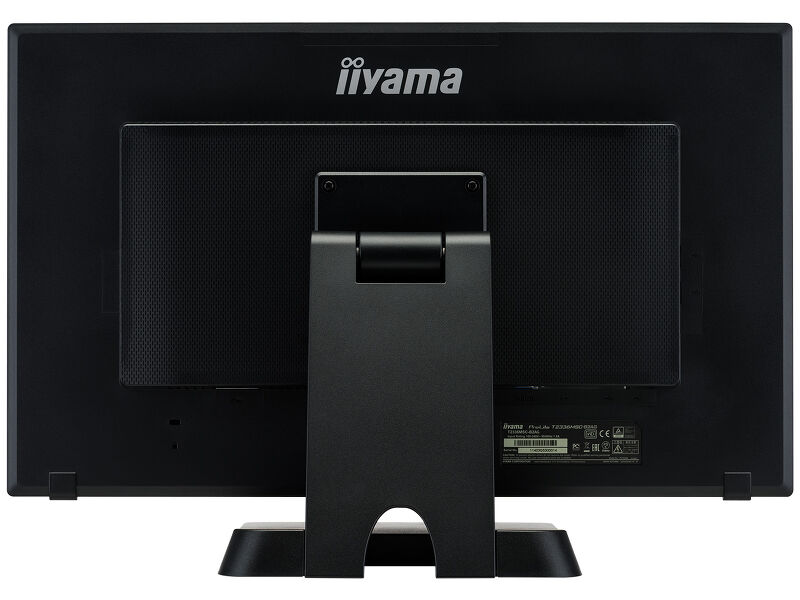

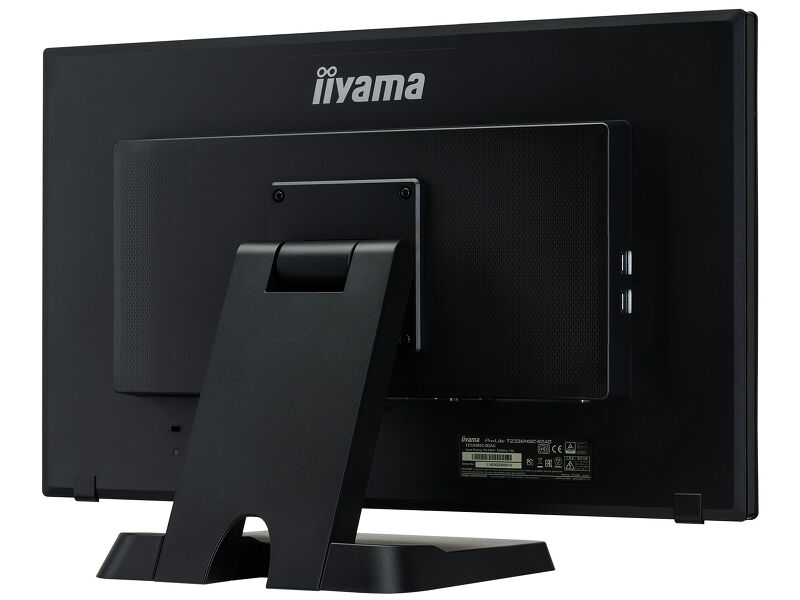

|VESA mounting||100 x 100mm|
|Cables||power, VGA, DVI, USB, Audio|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||25.3W typical, 0.4W stand by, 0.32W off mode|
|Regulations||CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, cULus, VCCI, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||F|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||561 x 379 x 254mm|
|Weight (without box)||6.3kg|
