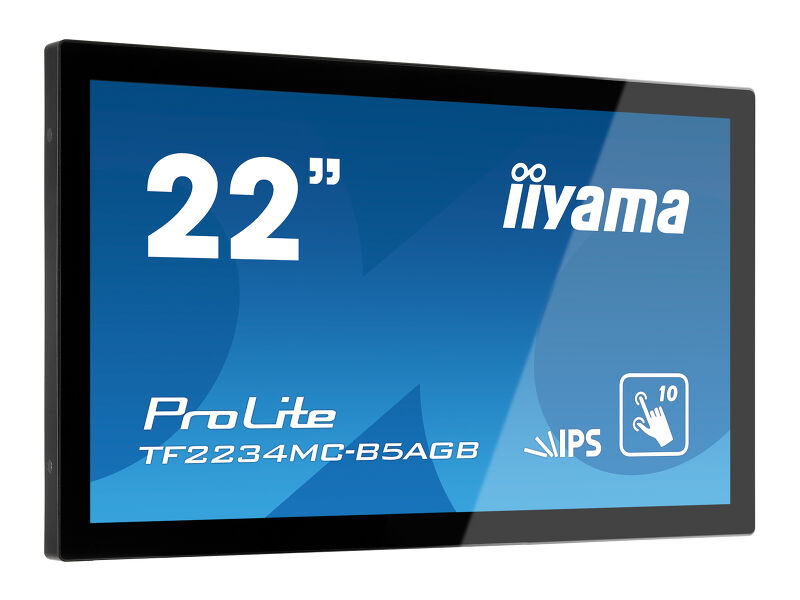

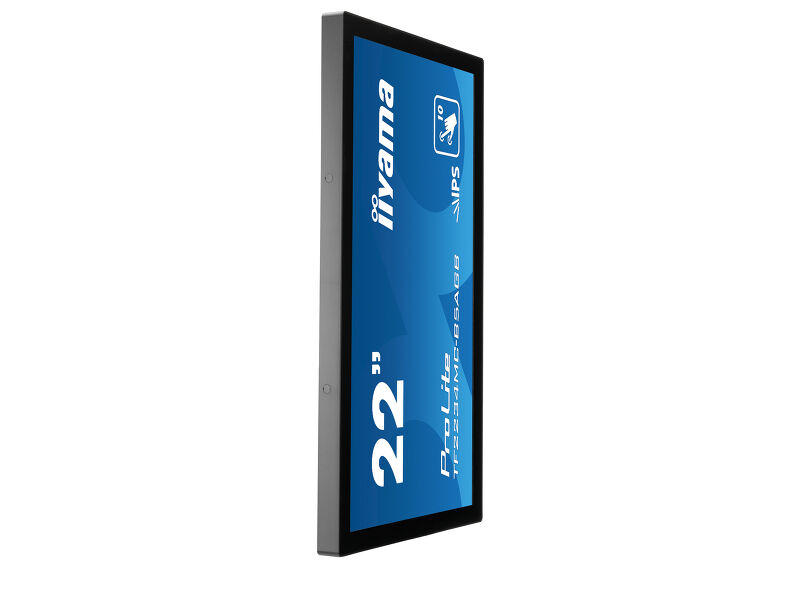

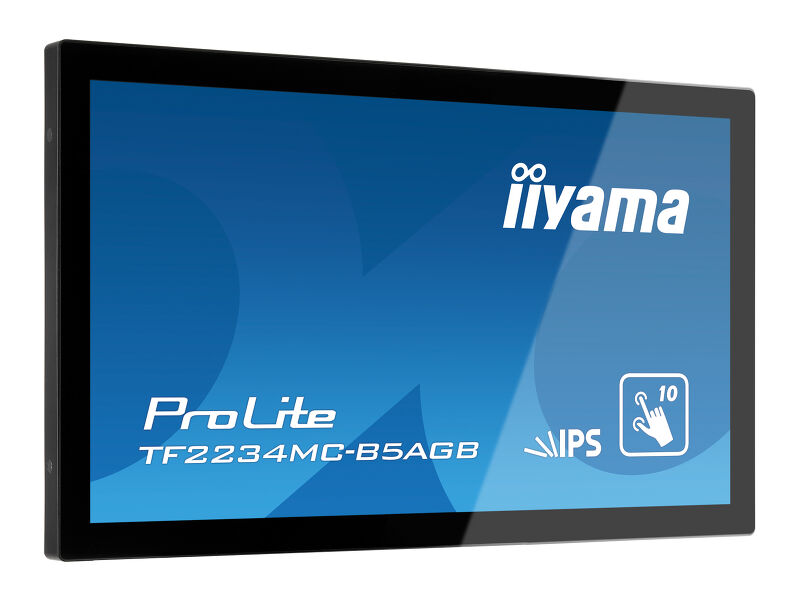

10pt touch open frame monitor with AG-coating and high brightness

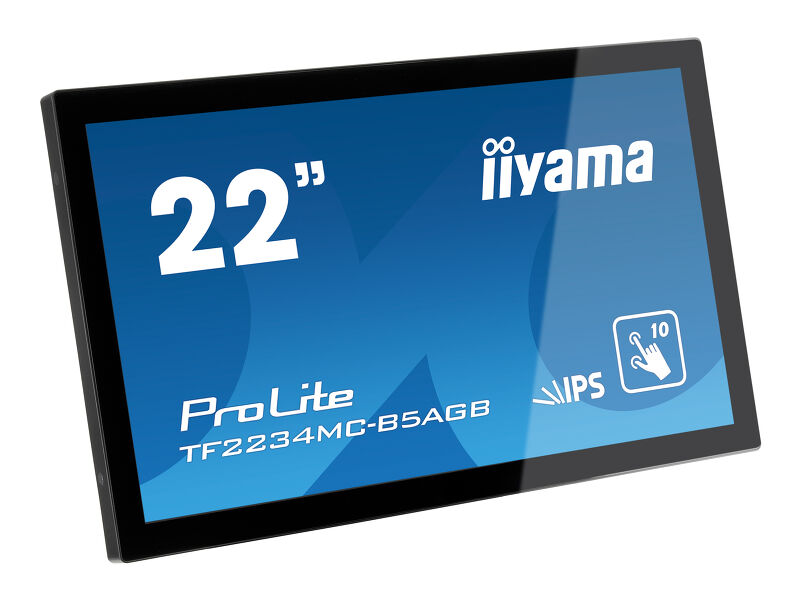

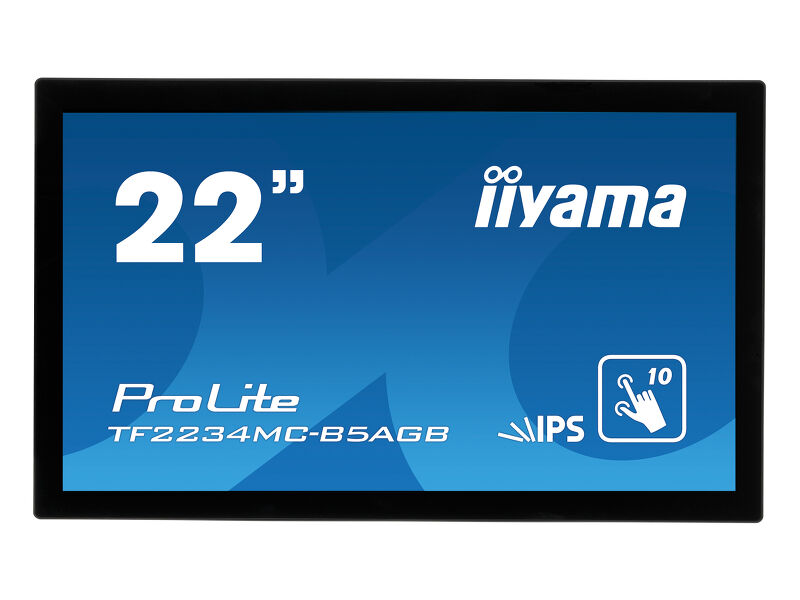

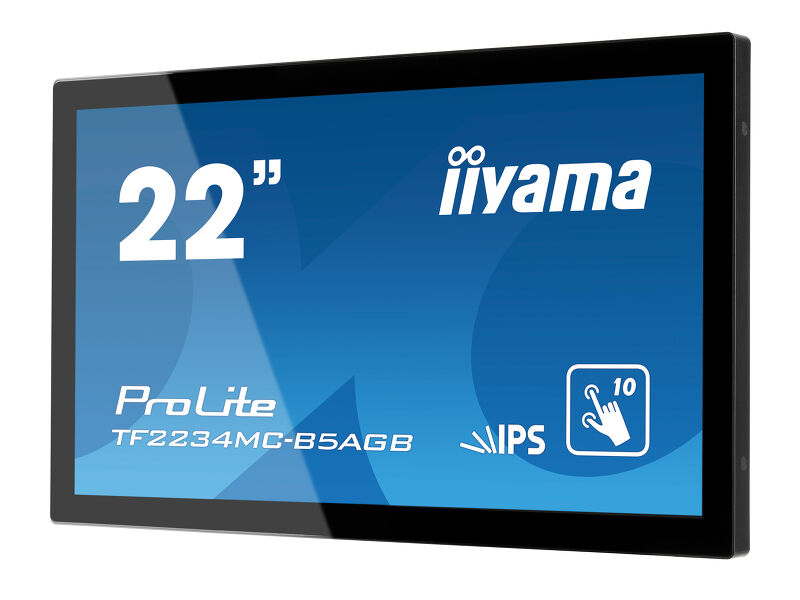

ProLite TF2234MC uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. ProLite TF2234MC is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail and Interactive Presentations.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Tato technologie využívá elektrickou vodivost. Tento povrch garantuje nejen dokonalou kvalitu obrazu, ale také trvanlivost a odolnost vůči poškrábání. Navíc eventuální poškrábání povrchu nemá vliv na samotnou dotekovou funkci. Panel rovněž rozpozná dotek provedený prstem (také v latexové rukavice) rovněž tak speciálním stylusem.

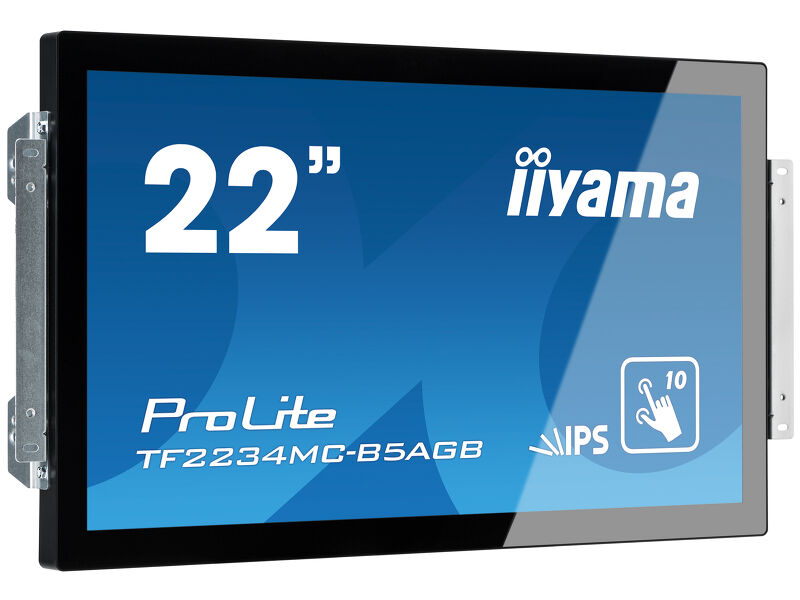

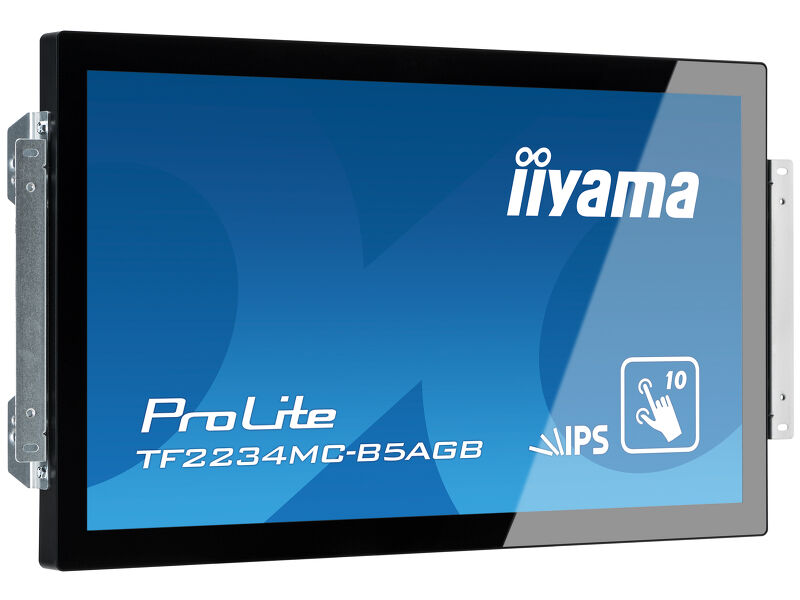

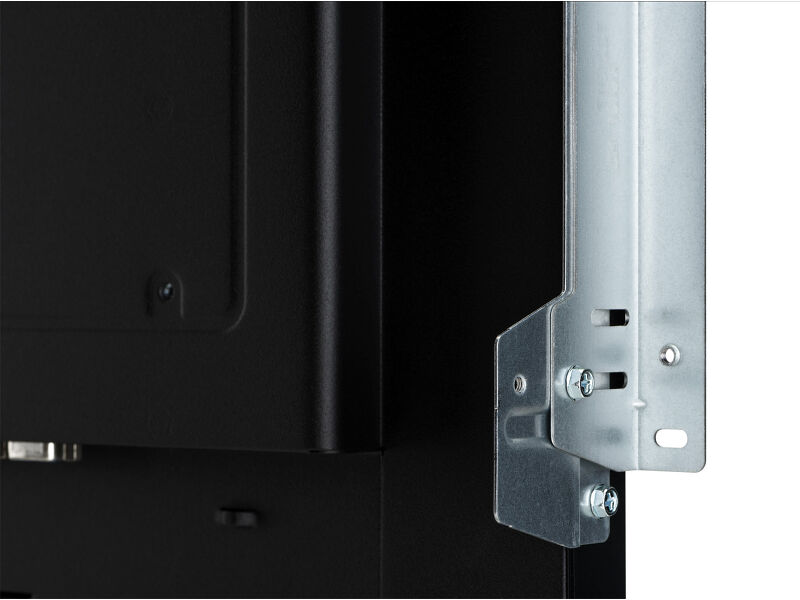

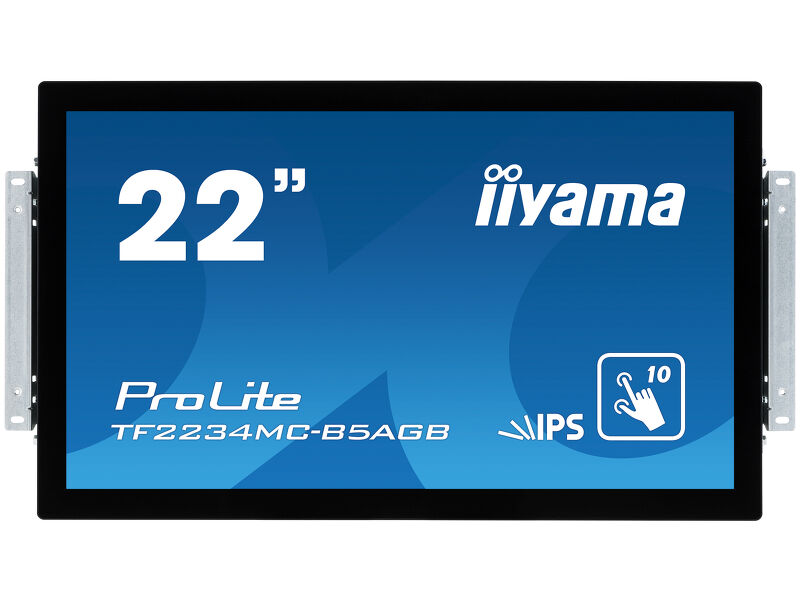

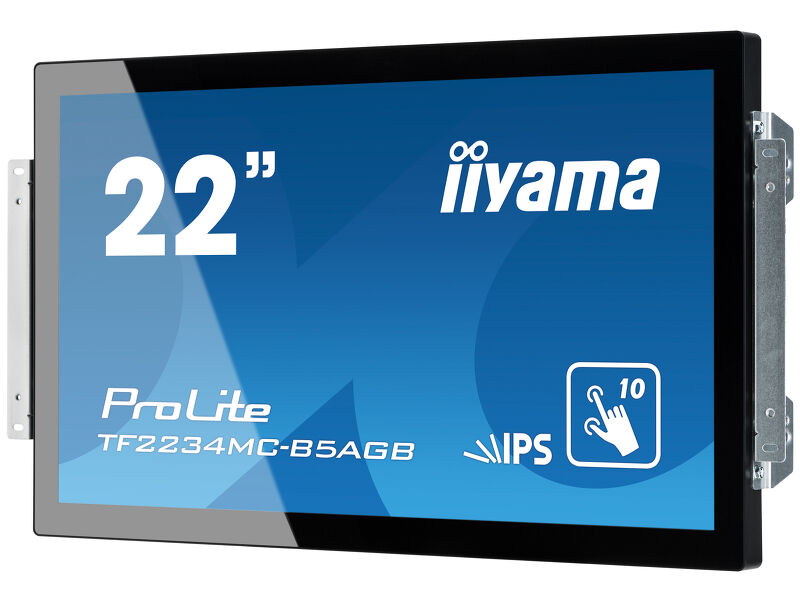

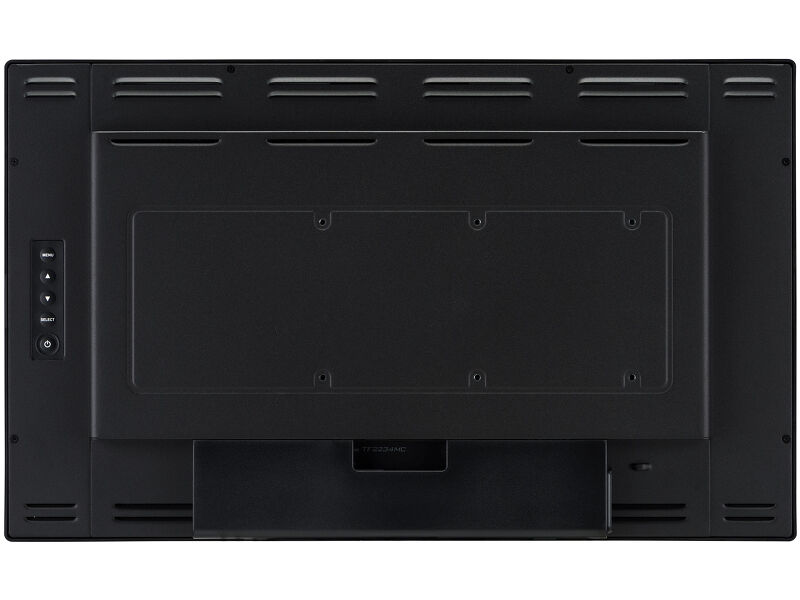

Tento open frame monitor je vybaven externími montážními konzolemi. Ty zaručují snadnou instalaci a činí z něj ideální řešení pro kiosky a Instore Retail.
Anti Glare vrstva se používá v úrovni profesionálních displejů, aby nedocházelo k problémům s odrazy světelných zdrojů, které mají vliv na reprodukci barev, kontrast a ostrost. Dělá to také obrazovku méně náchylnou k prachu, mastnotám a stopám nečistot.
Odolnost proti poškrábání je nezbytné pro dotykové řešení používaných na veřejných místech a ve školách. Tohoto je dosaženo díky sklu pokrývající obrazovku. To zaručuje vysokou odolnost dotykové funkce, a co je ještě důležitější, dotyková funkce zůstává neovlivněna, i když je poškrábané sklo.
Design | Open Frame |
Úhlopříčka monitoru | 21.5", 55cm |
Panel | IPS LED, AG potažené sklo |
Nativní rozlišení | 1920 x 1080 (2.1 megapixel Full HD) |
Formát obrazu | 16:9 |
Jas | 350 cd/m² |
Jas | 300 cd/m² kromě dotekového panelu |
Propustnost světla | 85% |
Kontrast | 1 000:1 kromě dotekového panelu |
Čas rekace (GTG) | 8ms |
Úhel sledování | horizontální/vertikální: 178°/178°, na parvo/na lefo: 89°/89°, nahoru/dolů: 89°/89° |
Barevná podpora | 16.7mln |
Horizontalfrequenz | 30.0 - 84.0kHz |
Arbeitsfläche H x B | 476.6 x 268.1mm, 18.8 x 10.6" |
Velikost bodů | 0.247mm |
Barva rámečku | černá, matná |
Touchscreen Technologie | projective capacitive |
Touchpunkte | 10 (HID, pouze s podporovanými OS) |
Metoda dotyku | stylus, prst, rukavice (latex) |
Touch interface | USB |
Podporované OS | Všechny monitory iiyama jsou Plug & Play a kompatibilní s Windows a Linuxem. Podrobnosti o podporovaném operačním systému pro dotykové modely naleznete v instrukčním souboru ovladače, který je k dispozici v sekci Stažení. |

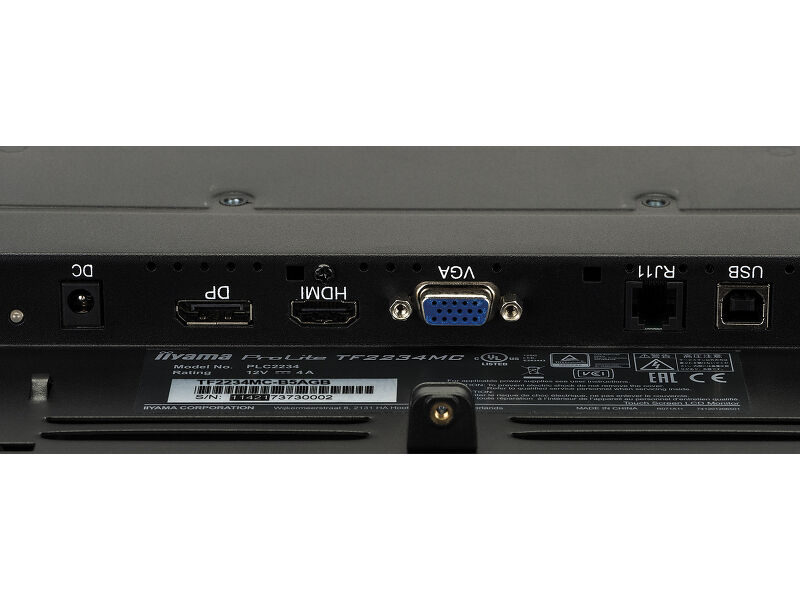

Analogové vstupní porty | VGA x1 |
Digitální vstupní porty |
HDMI x1 DisplayPort x1 |
HDCP | ano |
Tloušťka skla | 1.5mm |
Tvrdost skla | 6H |
Ochrana proti vodě a prachu | IP65 (front) |
Zámek kláves OSD | ano |
Jazyky OSD | EN, DE, FR, ES, IT, CN, JP |

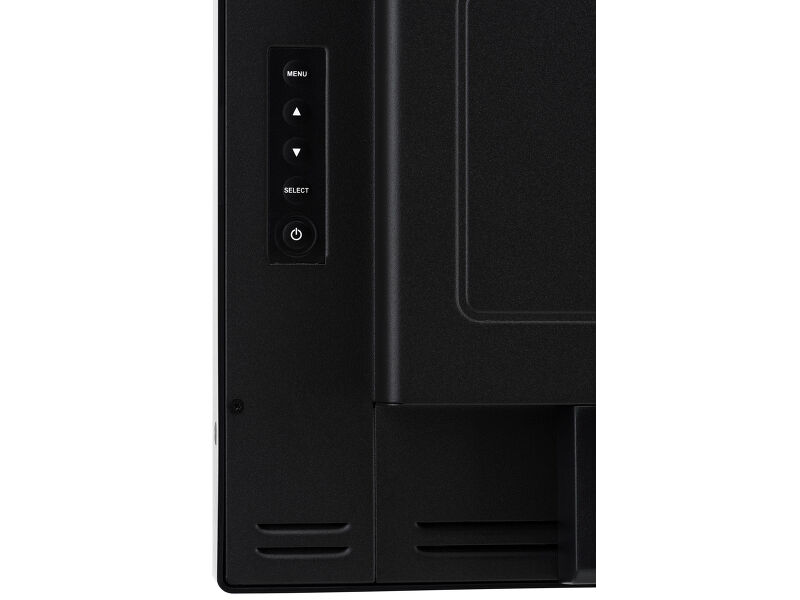

Kontrolní tlačítka | Menu, Nahoru / Jas, Dolů / kontrast, Výběr / Auto, Power |
Nastavitelné parametry | kontrast, jas, automatické nastavení, H.pozice, V.pozice, H.rozměr, fáze, OSD H.pozice, OSD V.pozice, časový limit OSD, obnovit, výběr vstupu, jazyk OSD, teplota barev |
Plug&Play | DDC2B |

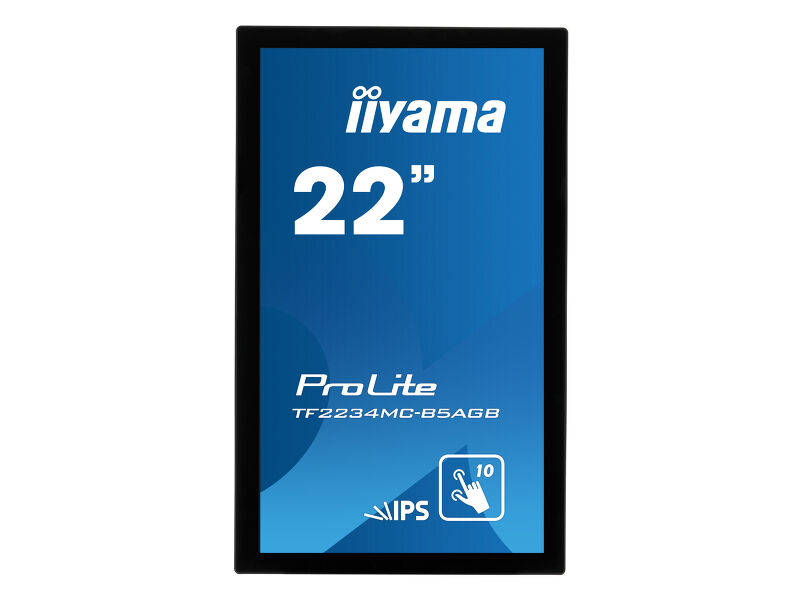

Orientace | horizontální, vertikální, face-up |

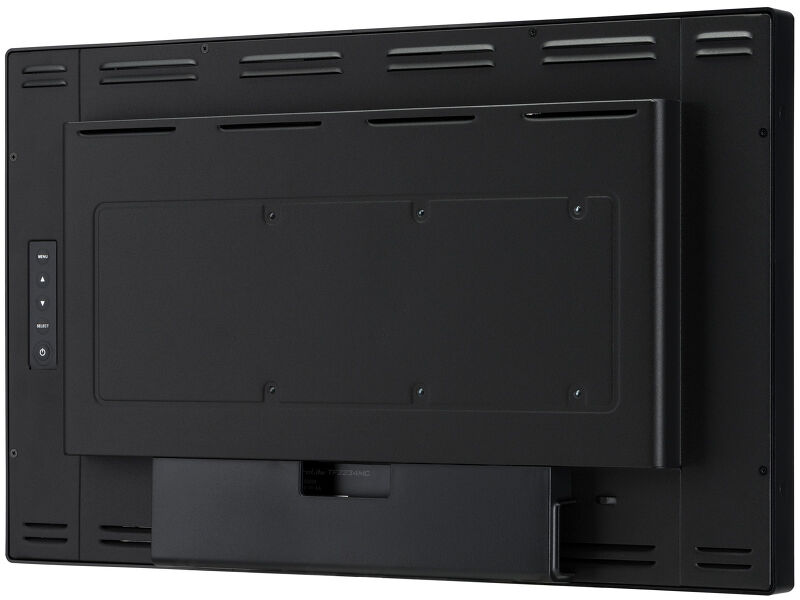

VESA | 100 x 100mm |

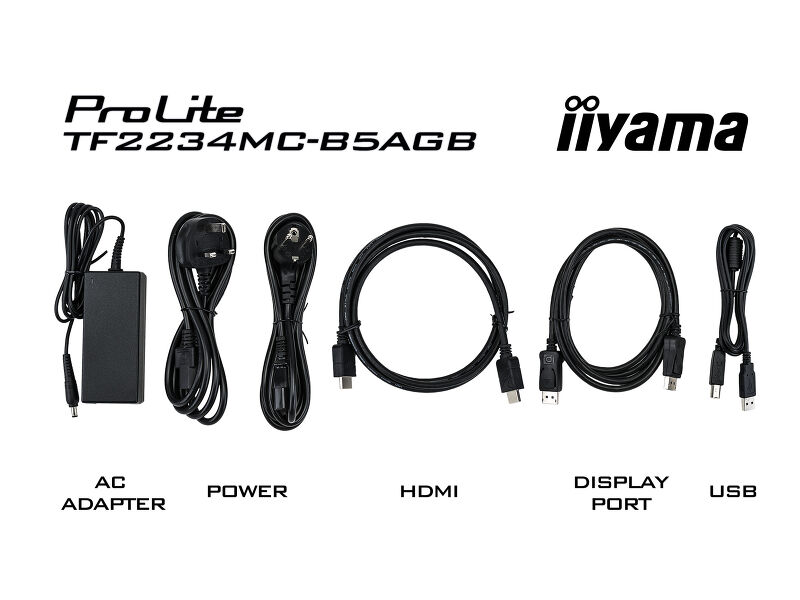

Kabely | napájecí, USB, HDMI, DP |
Příručky | uživatelský manuál, instrukce bezpečnosti |
Ostatní | AC adaptér, Touch Panel Driver Disk (CD-ROM), L-bracket |

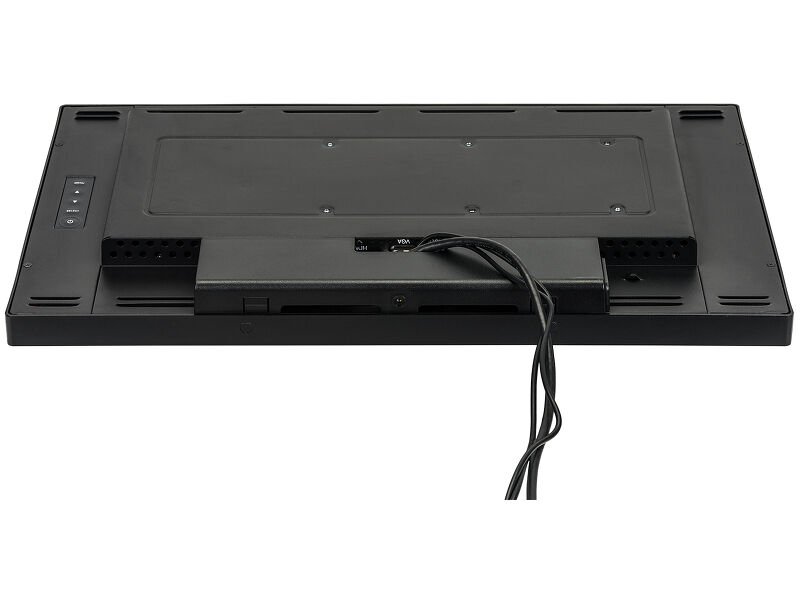

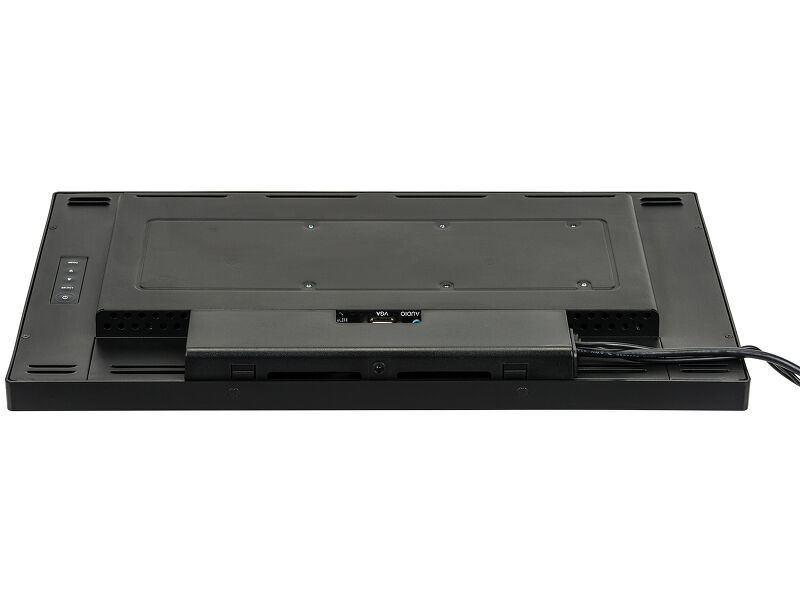

Kryt kabelů | ano |
Napájecí zdroj: | externí |
Napájení | DC 12 V |
Odběr energie: | 27W typisch, 2W odpočinek, 2W vypnutý |
Předpisy | CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, VCCI, REACH |
REACH SVHC | nad 0.1% olova |
Rozměry výrobku Š x V x D | 517.5 x 313.5 x 46mm |
Váha (bez balení) | 4.4kg |
EAN code | 4948570116201 |
Související produkty | RC TOUCHV01 |
