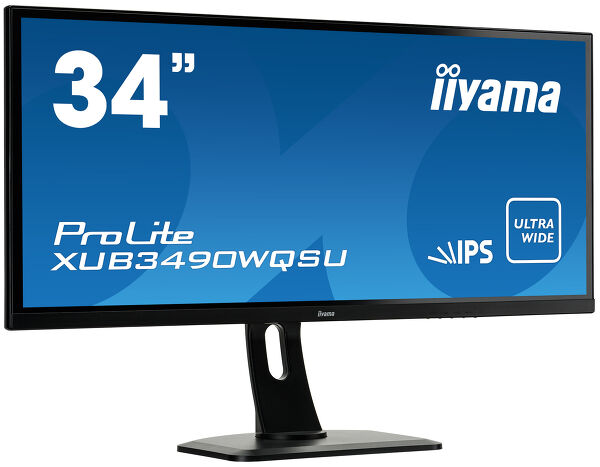

ProLite XUB3490WQSU-B1 (EOL) Replaced by: ProLite XUB3493WQSU-B6
34” IPS ultra-wide screen with a height adjustable stand
ProLite XUB3490WQSU is a 34” LED monitor featuring the latest IPS Panel technology considered to be the best all round panel type. It offers accurate and consistent colour reproduction with wide viewing angles and a fast response time. UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area. The large amount of space and good pixel density offered by the size and resolution of this screen provide great potential on the desktop. Very suitable for those who want to use side-by-side applications, watch a movie shot in widescreen format or enrich their gaming experience.
-
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
-
ULTRA WIDE - UWQHD
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.
-
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
-
Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
-
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
three-sixty view
Technical specification
DISPLAY CHARACTERISTICS
| Diagonal | 34", 86.7cm |
| Panel | AH-IPS, matte finish |
| Native resolution | 3440 x 1440 (4.9 megapixel UWQHD) |
| Aspect ratio | 21:9 |
| Panel brightness | 320 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 10bit (8bit + Hi-FRC) (sRGB: 109%, NTSC: 77%) |
| Horizontal Sync | 30 - 100kHz |
| Viewable area W x H | 799.8 x 334.8mm, 31.5 x 13.2" |
| Pixel pitch | 0.2325mm |
| Colour | matte |
INTERFACES / CONNECTORS / CONTROLS
| Signal input |
HDMI x3 (1xv2.0) DisplayPort x1 (v1.2) |
| USB HUB | x4 (2xv.2.0 & 2xv.3.0 (charger)) |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| Flicker free | yes |
| Extra | USB 3.0 battery charger |
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL |
| Control buttons | Power, Menu, +/ Volume/Mute, -/ ECO/Blue Light Reducer, Input |
| User controls | picture adjust (contrast, brightness, i-style colour, OD, ACR, ECO), colour adjust (gamma, colour temp.), manual image adjust (video mode adjust, black tuner, memorize setting), PiP/PbP (PiP/PbP, sub win 1/2/3/4 input, PiP size, PiP position, swap), OSD setup (H.position, V. position, OSD timeout, language), extra (reset, auto off, input select, audio input, DisplayPort, opening logo, information), volume, mute |
| Speakers | 2 x 3W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
MECHANICAL
| Display position adjustments | height, swivel, tilt |
| Height adjustment | 130mm |
| Swivel stand | 90°; 45° left; 45° right |
| Tilt angle | 20° up; 4° down |
| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI, Audio, DP |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 48W typical, 0.5W stand by, 0.5W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-GS, RoHS support, ErP, ENERGY STAR®, WEEE, EPEAT, REACH |
| EPEAT Silver | EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Silver certification means the monitor meets all required criteria plus at least 50% of the optional requirements. EPEAT Silver is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country. |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 827.5 x 404.5 (534.5) x 230mm |
| Weight (without box) | 8.5kg |
| EAN code | 4948570114566 |
COMPATIBLE ACCESSORIES
| Mounts / Stands / Brackets | MD BRPCV02 |
Awards
Digital Home DE 01/2019 XUB3490WQSU-B1
Compatible accessories
Downloads
| User manual | XUB3490WQSU-usermanual-e-revJ.pdf | Download |
| Technical specification | ProLite XUB3490WQSU-B1 - en.pdf | Download |
| EU Energy Label | XUB3490WQSU-1 EU Energy Label pdf data.pdf | Download |
| UA Energy Label | XUB3490WQSU-1 Ukraine Energy Label pdf data.pdf | Download |
Other
| COLOUR PROFILES INF&ICC 13 | COLOUR PROFILES INF&ICC 23.12.2025.zip | Download |
