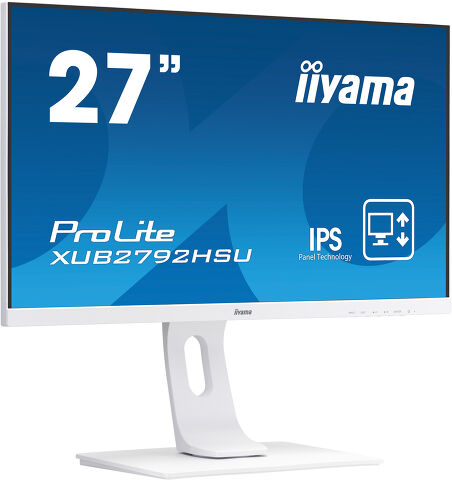

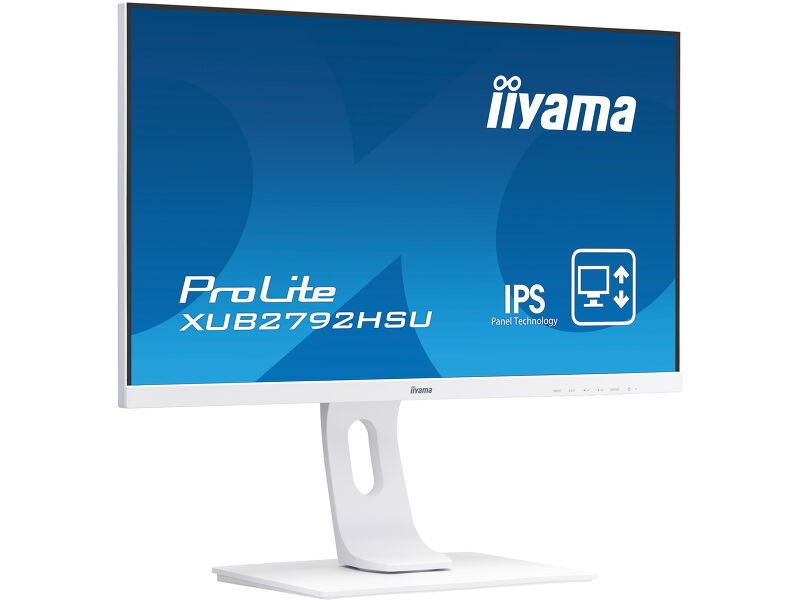

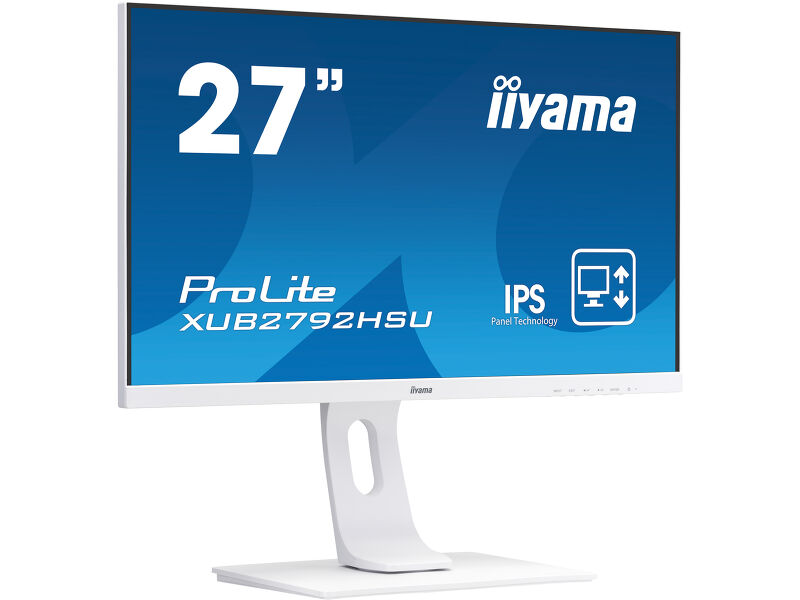

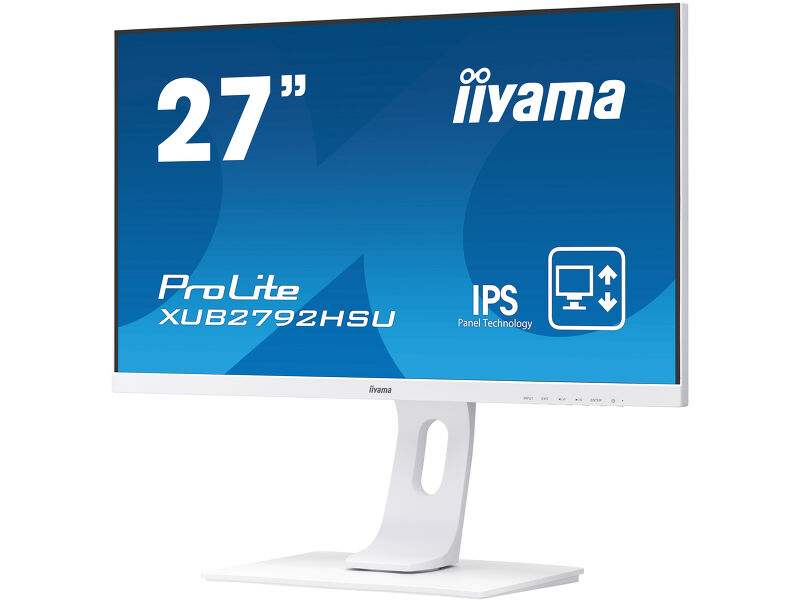

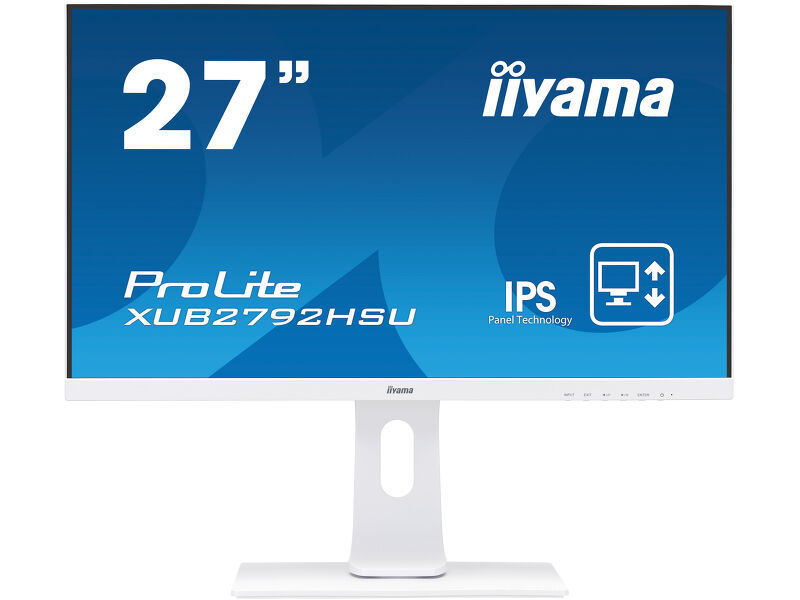

ProLite XUB2792HSU-W1 (EOL) Replaced by: ProLite XB2797HSU-W1
27” IPS panel technology monitor with ultra flat front and a height adjustable stand
Stylish ultra-flat front design and full HD resolution make the ProLite XUB2792HSU a perfect addition to the desk of any graphic designer. The IPS panel technology offers accurate and consistent colours reproduction with wide viewing angles (178°/178°) and fast response time. High contrast and brightness values guarantee the monitor will provide excellent performance for photography and web design, and the height adjustable stand ensures you can easily adjust the screen position to your preferences. Very suitable for multi-monitor Digital Signage and office applications.
Available also in black : ProLite XB2792HSU-B1 and in black : ProLite XB2792HSU-B1 A
-
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
-
Slim Line
Slim Line monitors feature a sleek bezel and are therefore particularly suitable for video wall or a multi-monitor set-up.
-
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
-

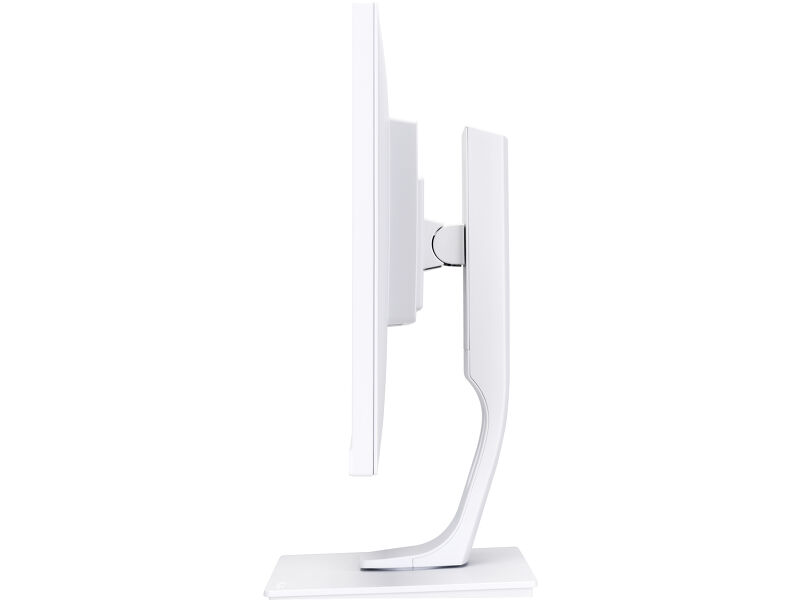

HAS + Pivot
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
-
Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
Video
Technical specification
DISPLAY CHARACTERISTICS
| Design | ultra slim |
| Diagonal | 27", 68.6cm |
| Panel | IPS Panel Technology LED, matte finish |
| Native resolution | 1920 x 1080 @75Hz (2.1 megapixel Full HD, HDMI & DisplayPort) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%, NTSC 72%) |
| Horizontal Sync | 31 - 83kHz |
| Viewable area W x H | 597.8 x 336.3mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
| Colour | matte, white |

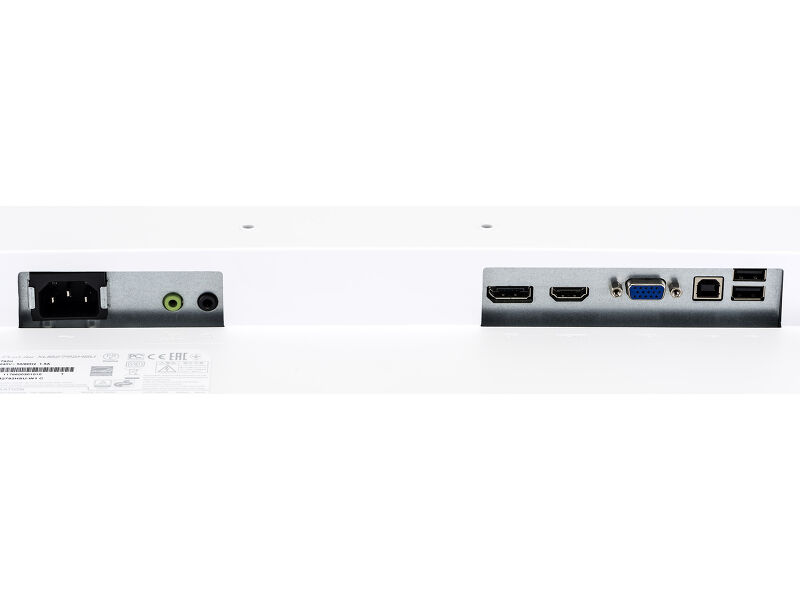

INTERFACES / CONNECTORS / CONTROLS
| Signal input |
VGA x1 (1920 x 1080 @60Hz) HDMI x1 (1920 x 1080 @75Hz) DisplayPort x1 (1920 x 1080 @75Hz) |
| USB HUB | x2 (v.2.0) |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| Flicker free | yes |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons | Power, Menu/ Select, +/ Volume, -/ ECO, Exit, Input |
| User controls | auto adjust, picture adjust (brightness, contrast, ECO, blue light reducer, ACR, OD), geometry (H. position, V. position, pixel clock, phase), colour settings (colour temperature, user preset, i-Style Colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, display information), input select (input source), audio settings (volume, mute, audio input) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
MECHANICAL
| Display position adjustments | height, pivot (rotation), swivel, tilt |
| Height adjustment | 130mm |

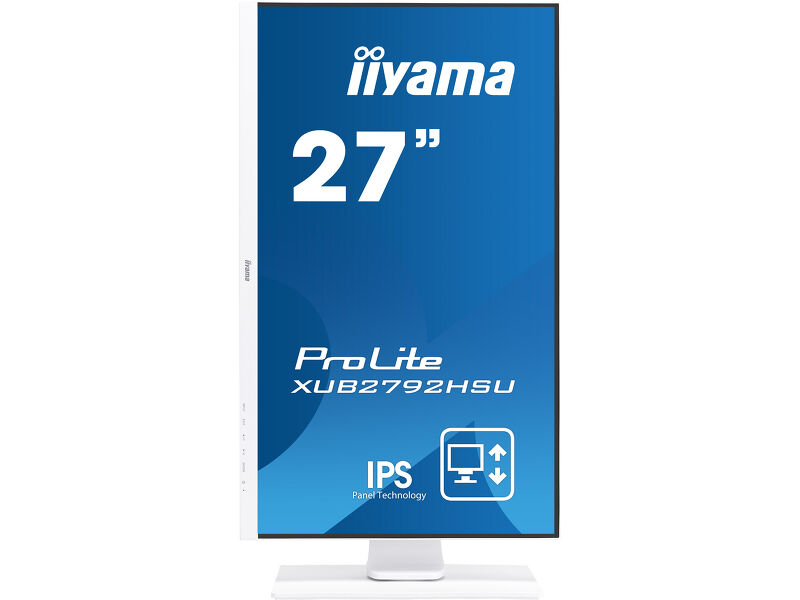

| Rotation (PIVOT function) | 90° |
| Swivel stand | 90°; 45° left; 45° right |

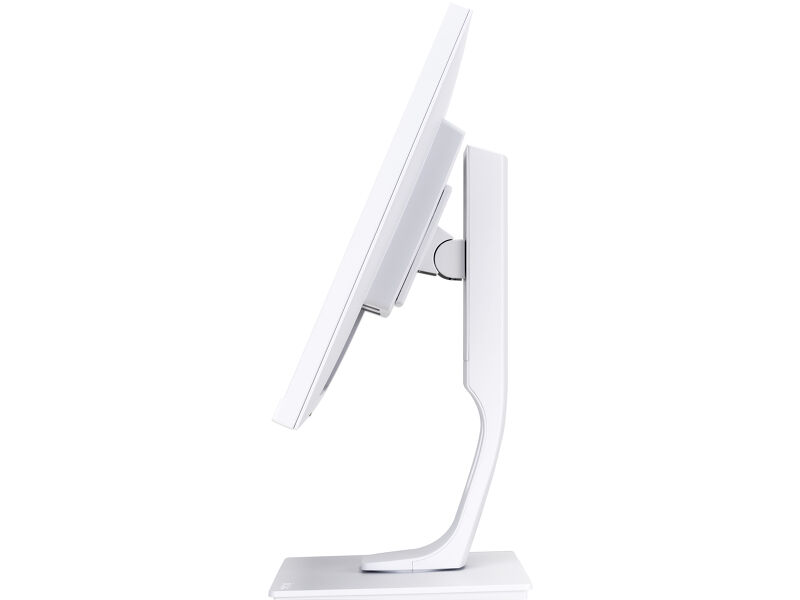

| Tilt angle | 22° up; 5° down |

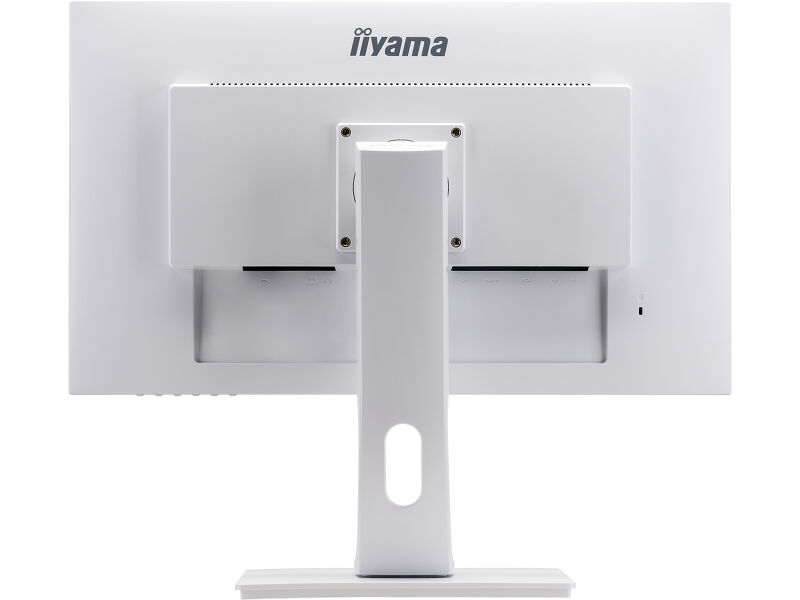

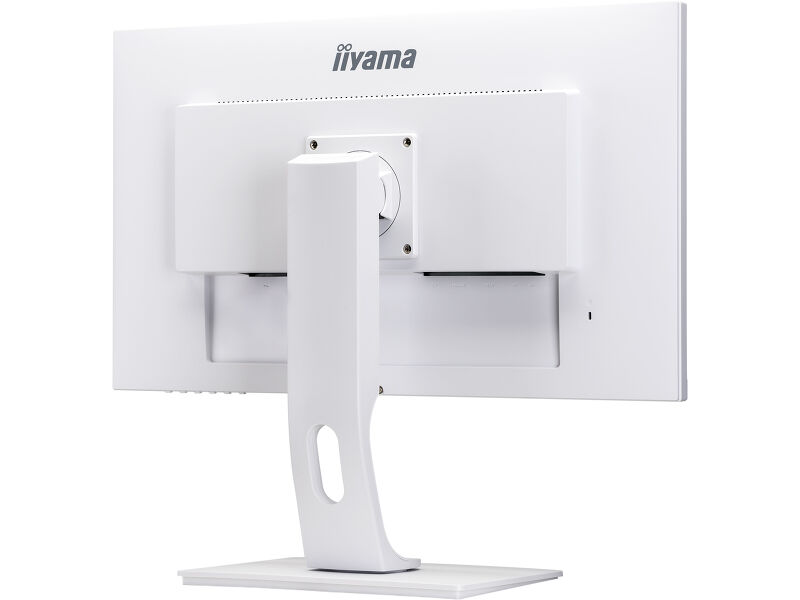

| VESA mounting | 100 x 100mm |
| Operation temperature range | 5°C - 35°C |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 16.5W typical, 0.5W stand by, 0.5W off mode |
SUSTAINABILITY
| Regulations | TCO Certified, CE, TÜV-GS, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, ENERGY STAR® |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 612 x 411.5 (541.5) x 230mm |
| Weight (without box) | 7.1kg |
| EAN code | 4948570117666 |
COMPATIBLE ACCESSORIES
| Mounts / Stands / Brackets | DS1002C-B1, DS1002D-B1, DS1001C-B1, MD BRPCV04-W |
