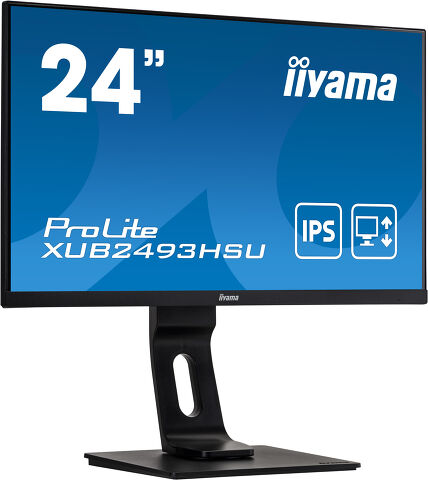

24” IPS panel technology with ultra-flat front and height adjustable stand
Stylish edge-to-edge design makes the ProLite XUB2493HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design, and the height adjustable stand ensures you can easily adjust the screen position to your preferences. It is a great choice for both multi-monitor Digital Signage and office applications.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
|Panel||IPS panel technology LED, matte finish|
|Native resolution||1920 x 1080 @75Hz (DisplayPort&HDMI, 2.1 megapixel Full HD)|
|Panel brightness||250 cd/m²|
|Response time (GTG)||4ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln (sRGB: 96%; NTSC: 72%)|
|Horizontal Sync||30 - 84kHz|
|Viewable area W x H||527.0 x 296.5mm, 20.7 x 11.7"|
VGA x1 (1920 x 1080 @60Hz)
HDMI x1 (1920 x 1080 @75Hz)
DisplayPort x1 (1920 x 1080 @75Hz)
|USB HUB||x2 (v. 2.0)|
|Blue light reducer||yes|
|OSD languages||EN, DE, FR, ES, IT, PT, RU, JP, NL, PL|
|Control buttons||Signal / Auto Adjust, + / Volume, - / Eco, Menu, Power|
|User controls||picture adjust (contrast, brightness, i-Style Colour, adv. contrast, Eco, OD, X-Res technology), image settings (auto adjust, pixel clock, phase, H. position, V. position, sharp and soft, aspect), colour settings (gamma, 6-axis, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, language), extra (reset, DDC/CI, signal select, audio source, HDMI range, opening logo, LED, information, volume)|
|Speakers||2 x 2W|
|Convenience||Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX|
|Display position adjustments||height, pivot (rotation), swivel, tilt|
|Rotation (PIVOT function)||90°|
|Swivel stand||90°; 45° left; 45° right|
|Tilt angle||22° up; 5° down|
|VESA mounting||100 x 100mm|
|Cables||power, USB, HDMI|
|Other||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||19W typical, 0.5W stand by, 0.5W off mode|
|Regulations||CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||F|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||539.5 x 373 (503) x 210mm|
|Box dimensions W x H x D||682 x 418 x 190mm|
|Weight (without box)||4.8kg|
|Technical specification||ProLite XUB2493HSU-B1 - en.pdf||Download|
|Drawing||XUB2493HSU-B1-with portrait rotation.pdf||Download|
|EU Energy Label||XUB2493HSU-B1 EU Energy Label pdf data(352216).pdf||Download|
|UK Energy Label||XUB2493HSU-B1 UK Energy Label pdf data(352216).pdf||Download|
