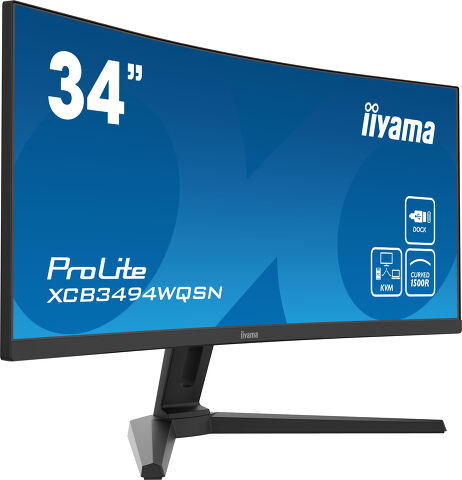

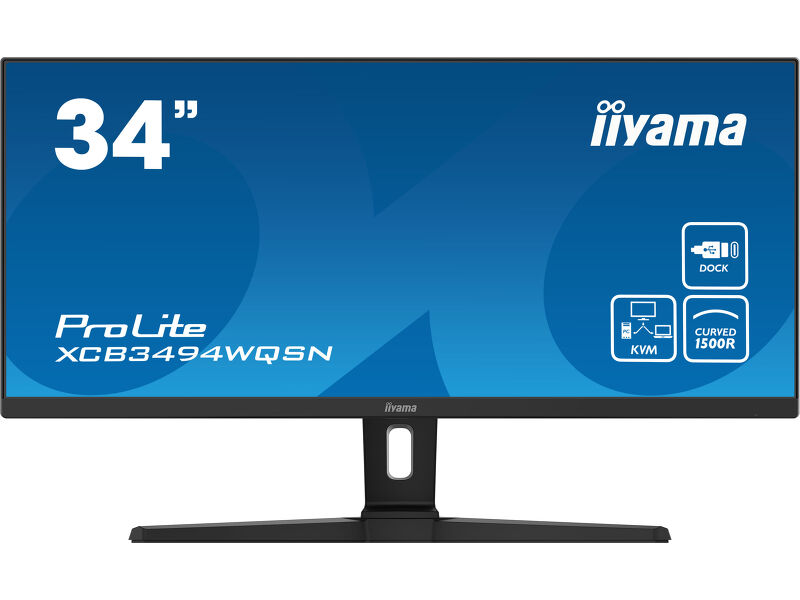

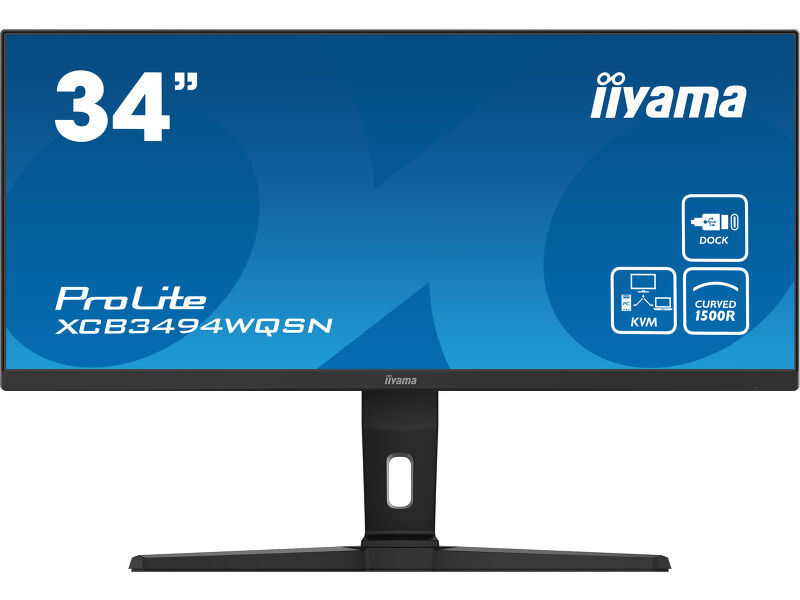

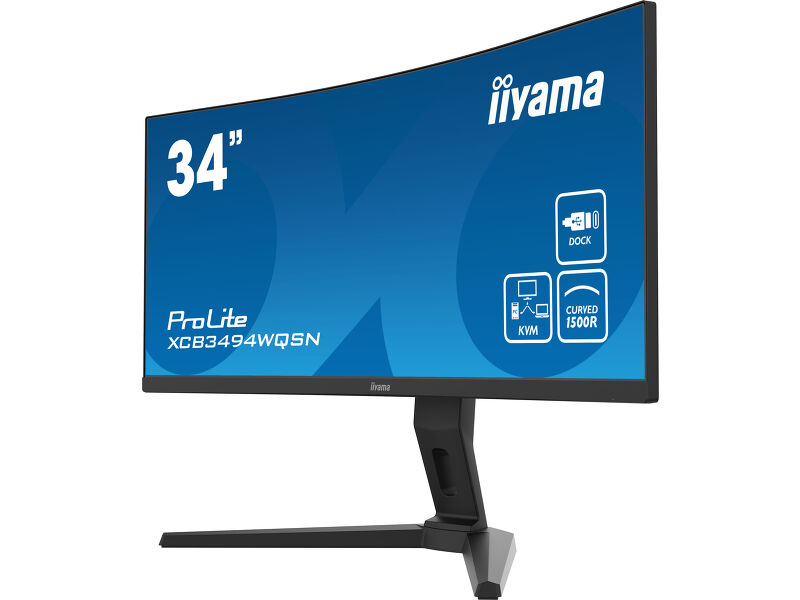

34’’ UWQHD curved with USB-C dock and KVM switch
Inspired by the curve of the human eye, the 1500R curved VA screen offers superb images along with a comfortable and immersive viewing experience. Equipped with the KVM switch, the XCB3494WQSN enables you to connect multiple computers which can be operated over one console (monitor, keyboard, mouse). The USB-C dock connector allows you to simplify your workspace by using a single cable to both send the signal from your notebook to your monitor while charging the notebook from the monitor. Additionally, if your monitor is connected to the Internet via a LAN cable, your notebook will automatically be connected to the network.
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

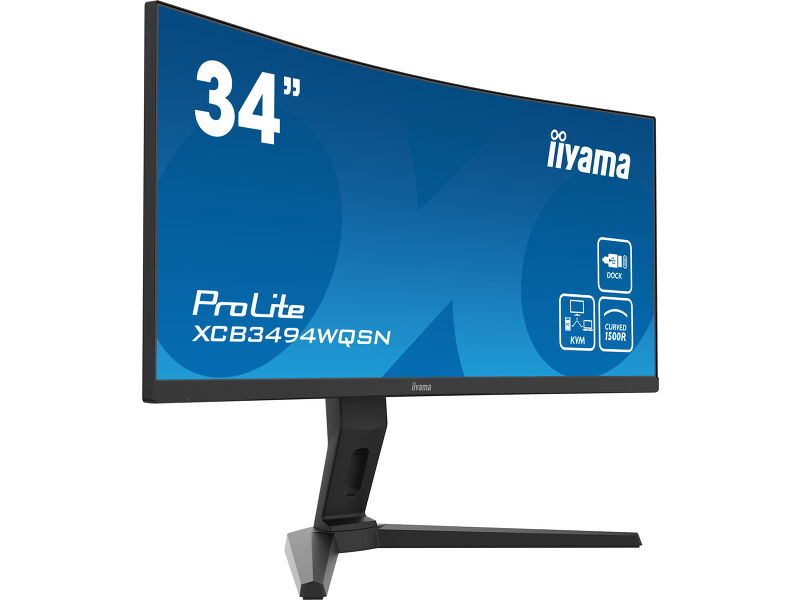

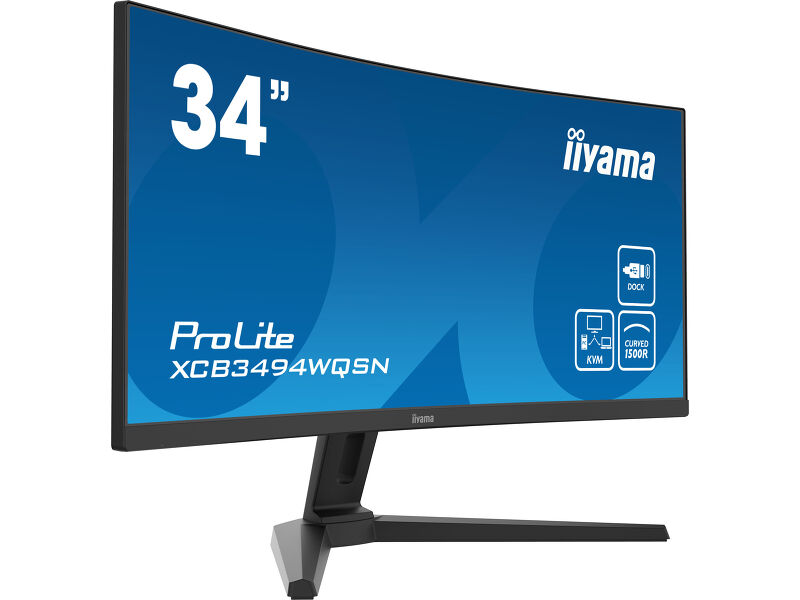

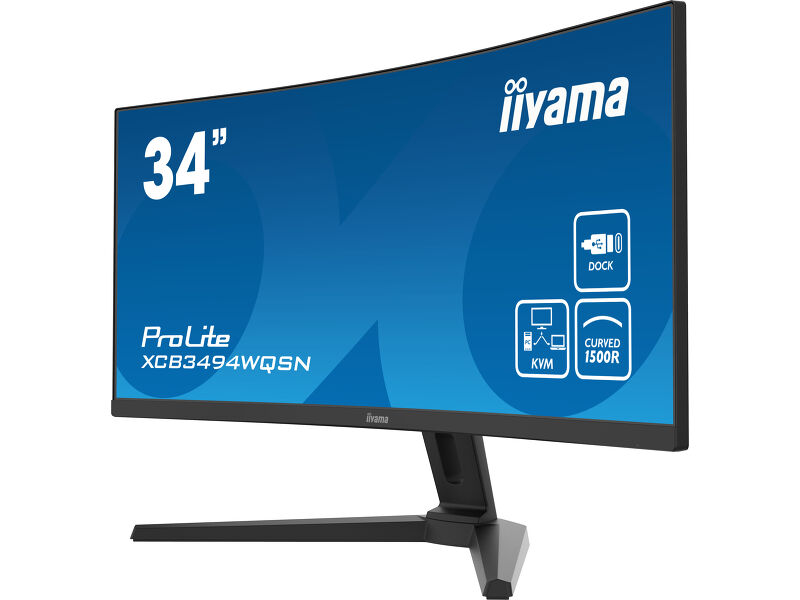

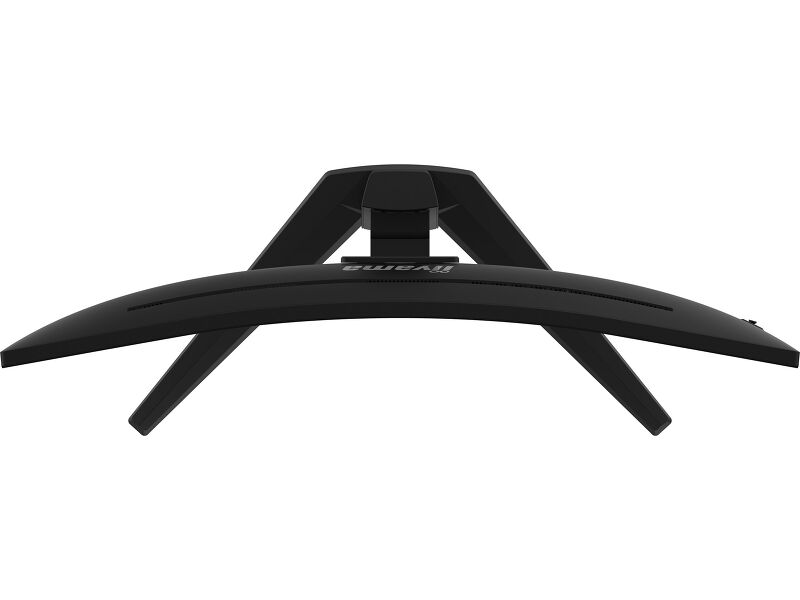

The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.
|Panel||VA panel, matte finish|
|Native resolution||3440 x 1440 @120Hz (4.9 megapixel UWQHD)|
|Panel brightness||300 cd/m²|
|Response time (MPRT)||0.4ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln (sRGB: 99%; NTSC: 93%)|
|Horizontal Sync||30 - 185kHz|
|Viewable area W x H||797.2 x 333.7mm, 31.4 x 13.1"|
HDMI x1 (3440 x 1440@ 100Hz)
DisplayPort x1 (3440 x 1440@ 120Hz)
USB-C x1 (Power delivery 65W)
|USB HUB||x3 (v.3.0 (DC5V, 900mA))|
|USB-C dock||x1 (Power delivery 65W, LAN, USB 3.0)|
|Blue light reducer||yes|
|FreeSync support||HDMI: 3440 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz|
|OSD languages||EN, DE, FR, ES, IT, PT, RU, JP, NL, PL|
|Control buttons||joystick controller: Push (Menu), Up, Down, Left (Eco), Right (Blue Light Reducer), Input, Volume +, Volume -, Power|
|User controls||picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD, black tuner), image adjust (video mode adjust, sharp and soft, X-Res technology), colour settings (gamma, 6-axis, colour temp., i-Style colour), signal select, audio adjust (volume, mute), setup menu (OSD H. Position, OSD V. Position, OSD time, language), extra1 (HDR, FreeSync Premium, HDMI range, MBR), Extra2 (reset, DDCCI, opening logo, LED, USB-C, KVM, USB Standby mode, information)|
|Speakers||2 x 2W|
|Convenience||Kensington-lock™ prepared, DDC2B|

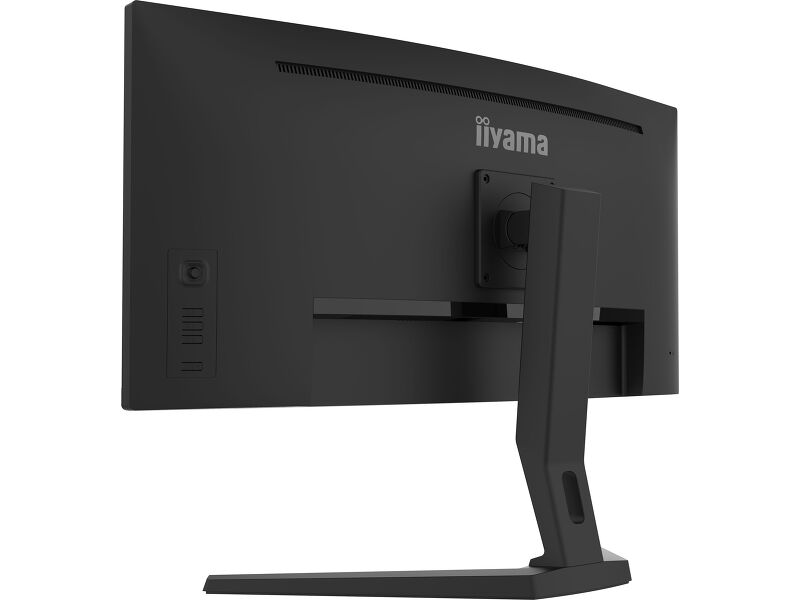

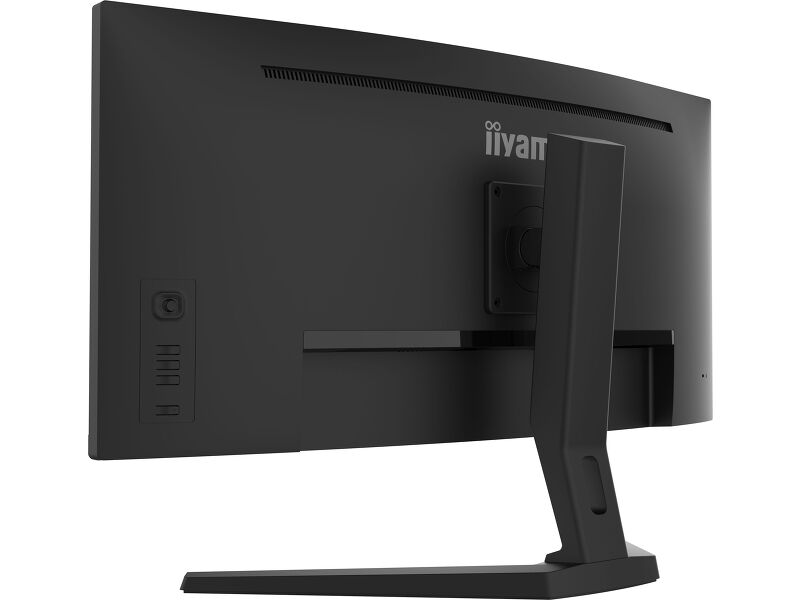

|Display position adjustments||height, tilt|
|Tilt angle||20° up; 3° down|
|VESA mounting||100 x 100mm|

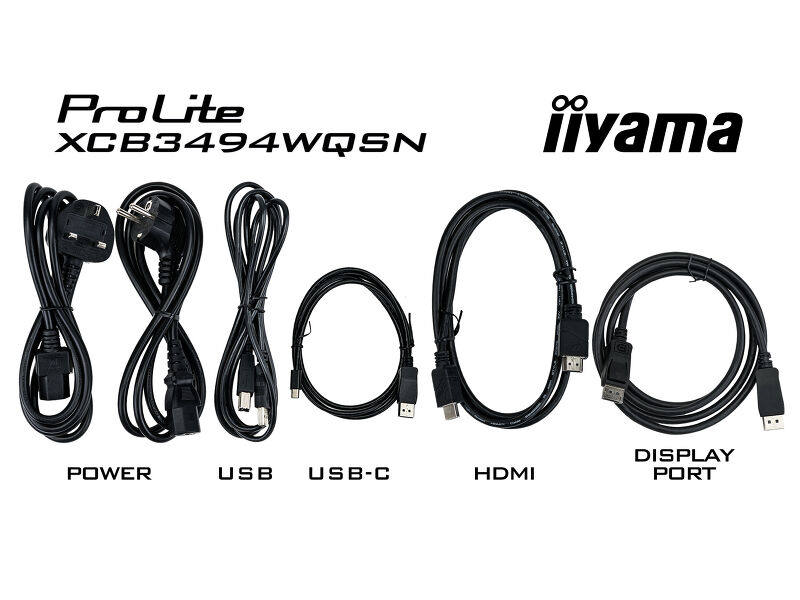

|Cables||power, USB, HDMI, DP, USB-C|
|Other||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||56W typical, 0.5W stand by, 0.5W off mode|
|Regulations||CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA|
|Energy efficiency class (Regulation (EU) 2017/1369)||G|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||809.5 x 425 (555) x 275mm|
|Box dimensions W x H x D||900 x 480 x 282mm|
|Weight (without box)||8.7kg|
|Weight (with box)||12kg|
