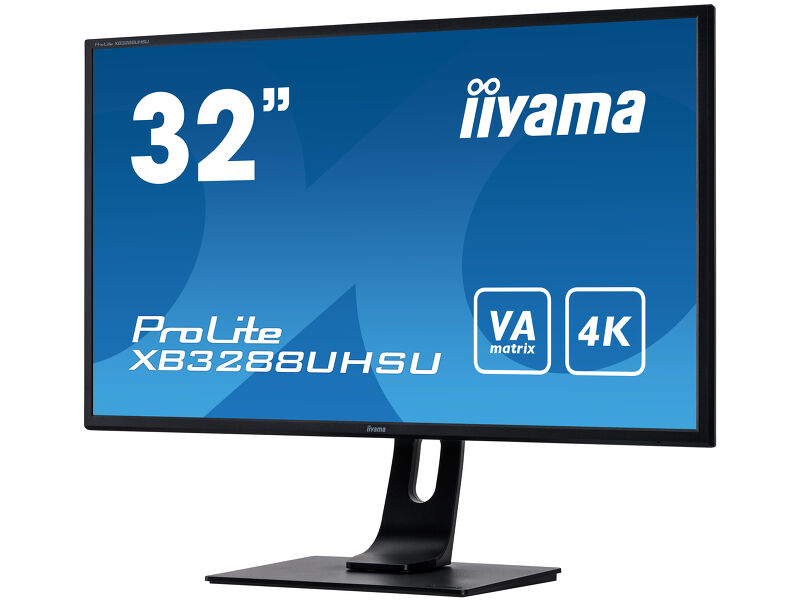

ProLite XB3288UHSU-B1 (EOL) Replaced by: ProLite XB3294UHSCP-B1
32'' VA panel with 4K resolution
The ProLite XB3288UHSU-B1 is a 32’’ 4K monitor capable of displaying 4 times more information than a Full HD screen. It will hence suit a massive range of applications requiring an above average viewable area, like desktop publishing, CAD/CAM drawing, data virtualization, photographic and web design. The VA panel technology offers exceptional colour performance, high contrast and wide viewing angles. HDMI, DisplayPort and a headphone socket ensure compatibility across various devices and media platforms. The height adjustable stand ensures you can easily adjust the screen position to your preferences.
-
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
-
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
-
PIP
PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.
-
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
-
Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!
Video
three-sixty view
Technical specification
DISPLAY CHARACTERISTICS
| Diagonal | 31.5", 80cm |
| Panel | VA, matte finish |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 300 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 3ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 10bit (NTSC: 95%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 698.4 x 392.9mm, 27.5 x 15.5" |
| Pixel pitch | 0.181mm |
| Colour | matte |

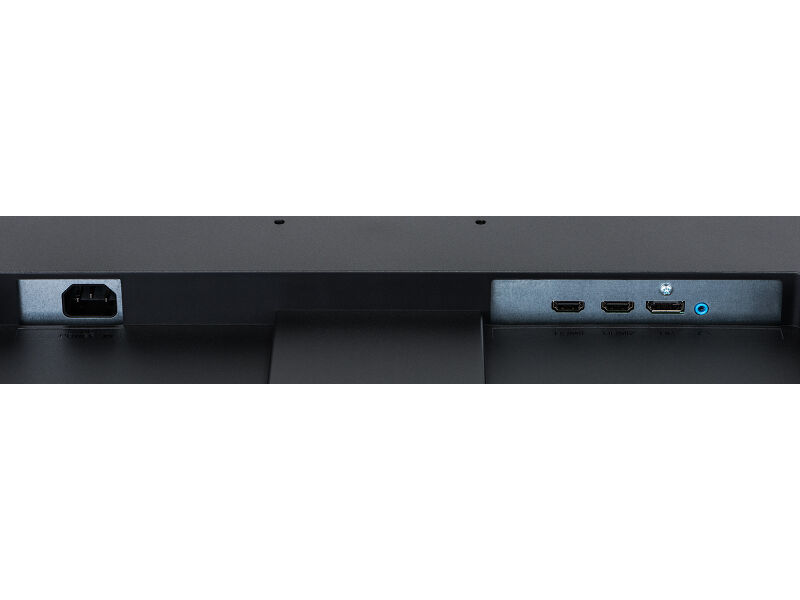

INTERFACES / CONNECTORS / CONTROLS
| Signal input |
HDMI x2 (v.2.0) DisplayPort x1 (v.1.2) |

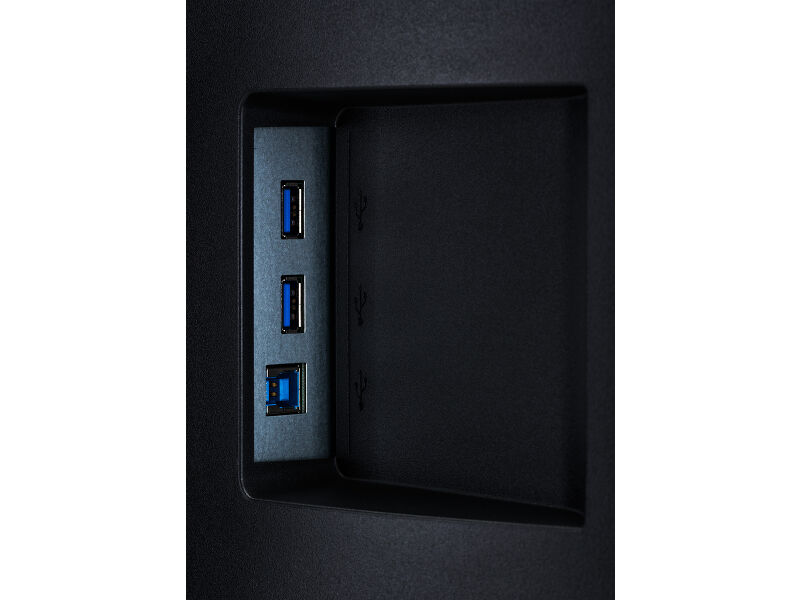

| USB HUB | x2 (v.3.0 (DC5V, 900mA)) |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| Flicker free | yes |
| Adaptive Sync support | @38~60Hz |
| HDR | yes |
| OSD languages | EN, DE, FR, IT, RU, JP, CZ, NL, PL |
| Control buttons | power/Menu, Scroll up/Input select, Scroll down, Left/ECO mode, Right/Volume |
| User controls | picture (picture format, brightness, contrast, black tuner, sharpness, OD, ACR, ECO mode, X-Res Technology), colour (warm, normal, cool, user colour, i-Style colour, blue light reducer), PiP/PbP (mode, sub win input, PiP size, PiP position, swap), input select, audio (volume, mute, audio input), language , OSD settings ( OSD H. position, OSD V. position, OSD background, OSD time out), setup menu (DP format, HDMI RGB range, HDR, FreeSync, opening logo, LED, auto pow. off, memory recall, information) |
| Speakers | 2 x 3W |
| Convenience | Kensington-lock™ prepared, DDC/CI, Mac OSX |
MECHANICAL

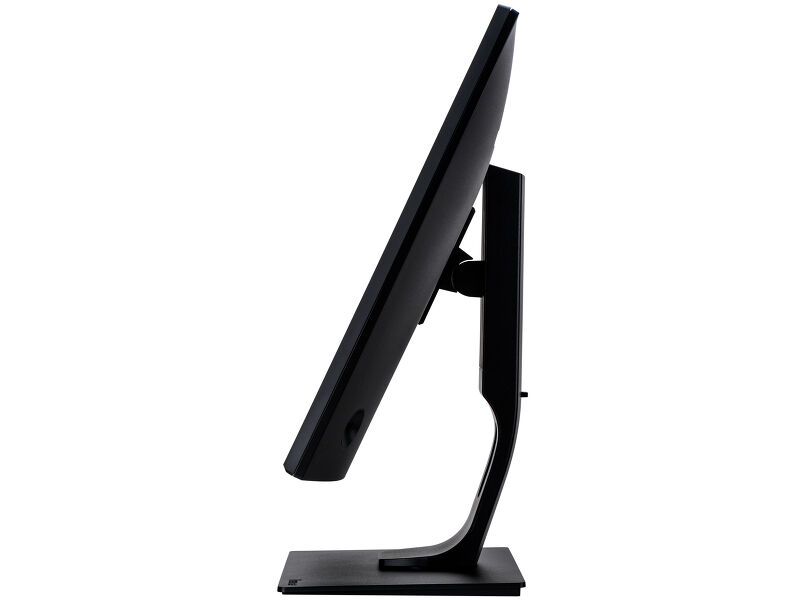

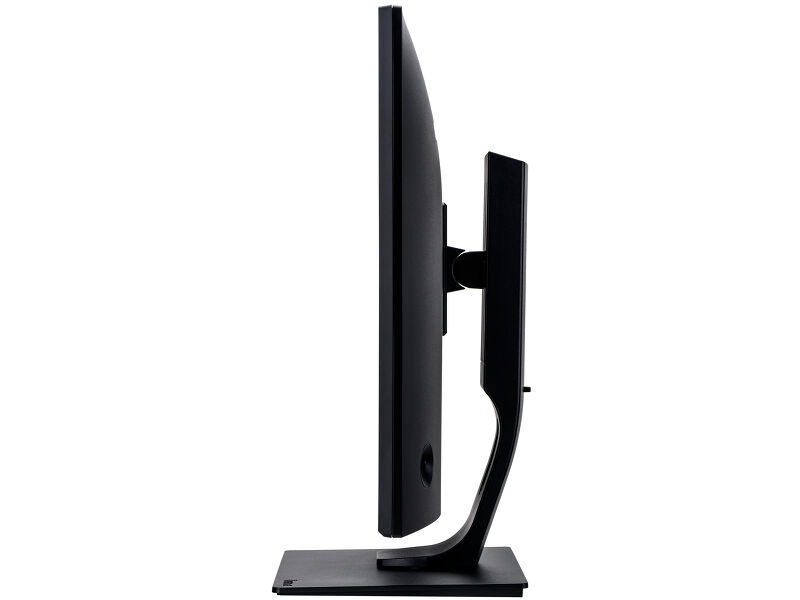

| Display position adjustments | height, swivel, tilt |
| Height adjustment | 130mm |
| Swivel stand | 90°; 45° left; 45° right |
| Tilt angle | 22° up; 3° down |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 5°C - 35°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED

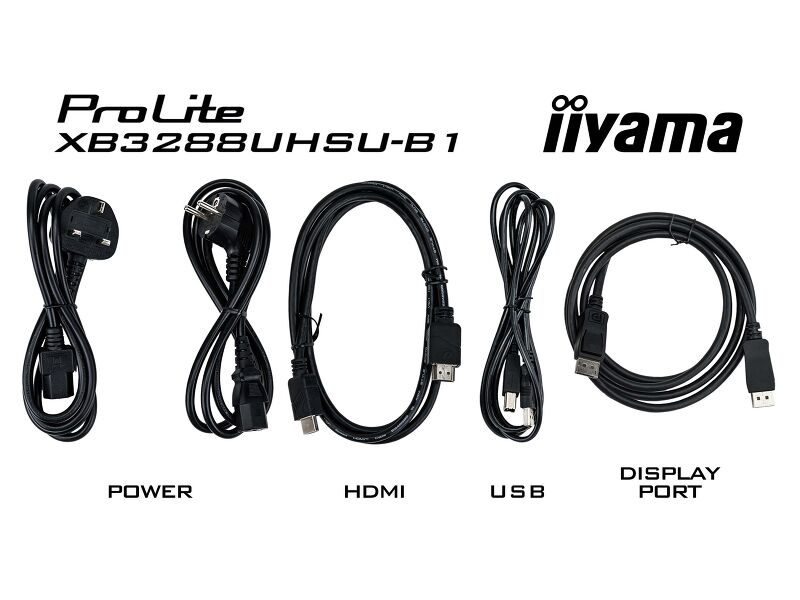

| Cables | power, USB, HDMI, DP |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 47W typical, 0.5W stand by, 0.5W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, EPEAT, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 730 x 458.5 (578.5) x 230mm |
| Box dimensions W x H x D | 810 x 215 x 509mm |
| Weight (without box) | 8.9kg |
| Weight (without stand) | 6.2kg |
| EAN code | 4948570116966 |
COMPATIBLE ACCESSORIES
| Mounts / Stands / Brackets | MD BRPCV04 |
Downloads
| User manual | XB3288UHSU-usermanual-e-revE.pdf | Download |
| Technical specification | ProLite XB3288UHSU-B1 - en.pdf | Download |
| Drawing | XB3288UHSU-B1_odd.pdf | Download |
| EU Energy Label | XB3288UHSU-B1 EU Energy Label pdf data(401986).pdf | Download |
| UK Energy Label | XB3288UHSU-B1 UK Energy Label pdf data(401986).pdf | Download |
Drivers/ Firmware / Software
| COLOUR PROFILES INF&ICC 13 | COLOUR PROFILES INF&ICC 23.12.2025.zip | Download |
