Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration

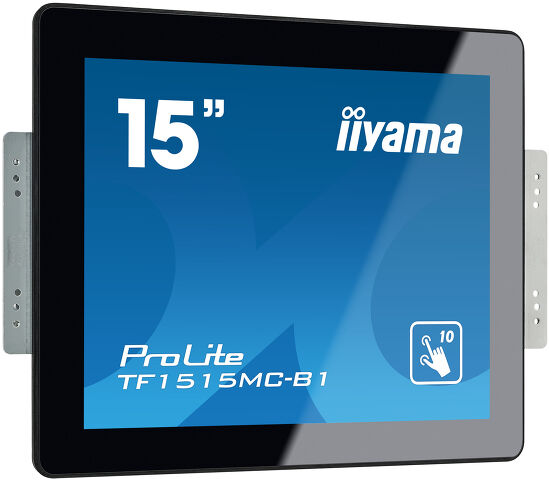

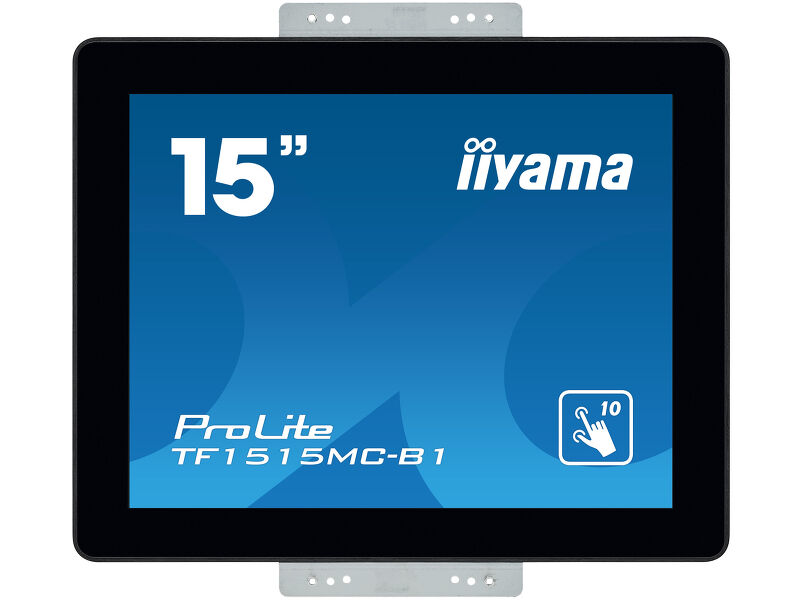

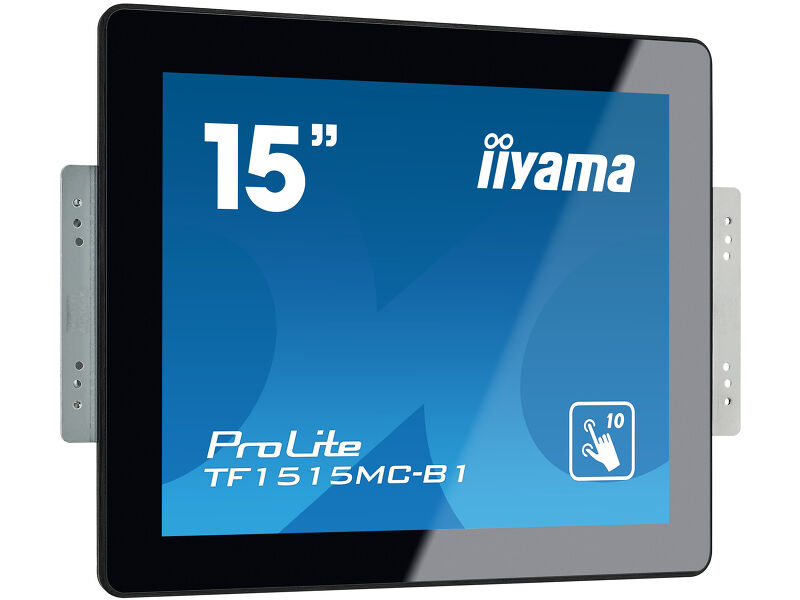

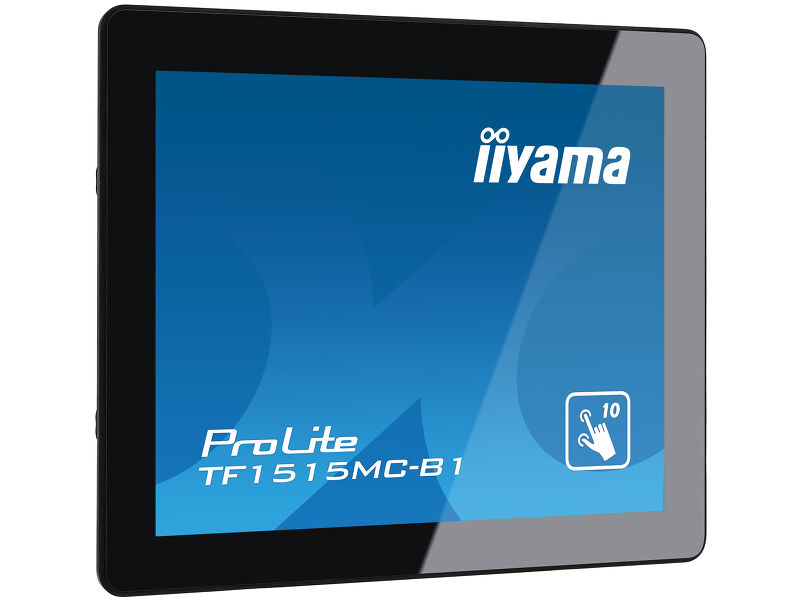

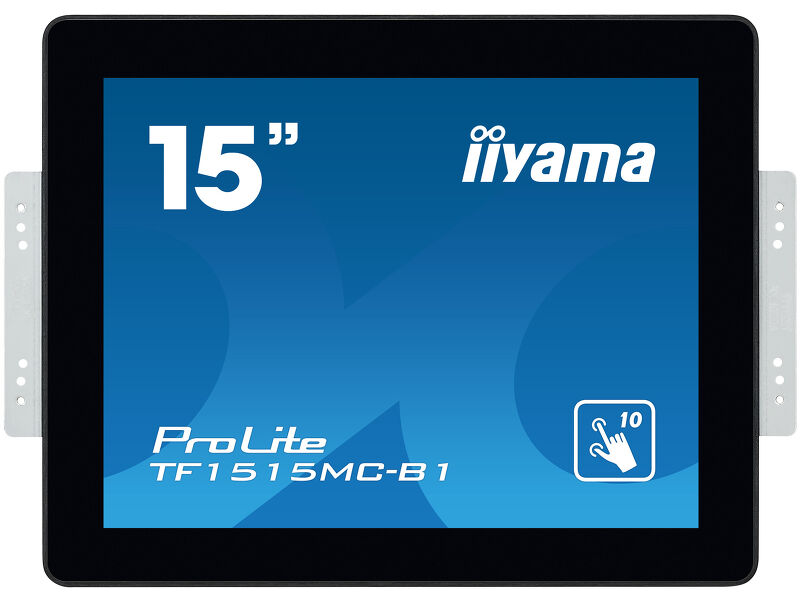

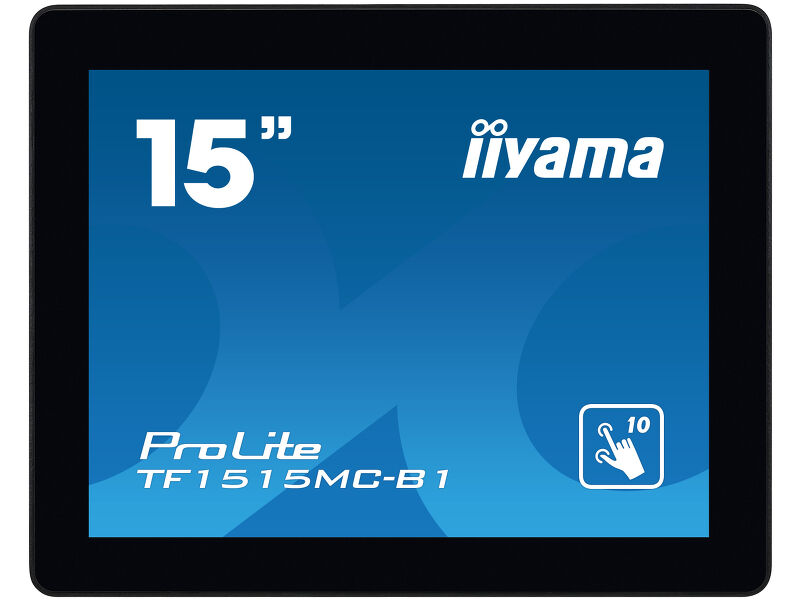

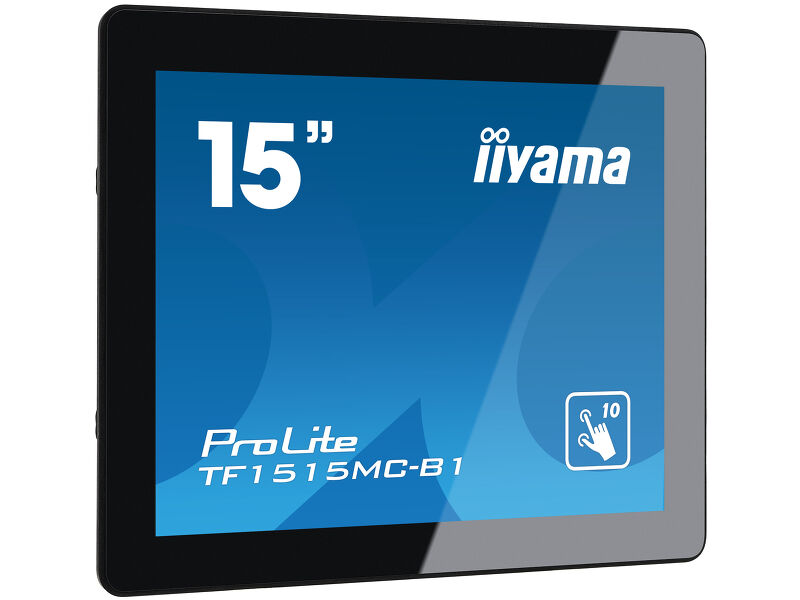

The ProLite TF1515MC-B1 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B1 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

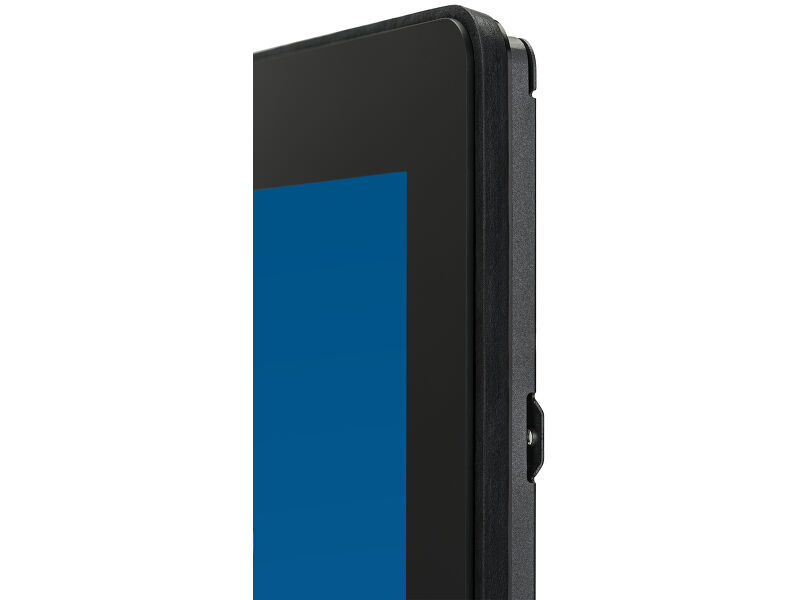

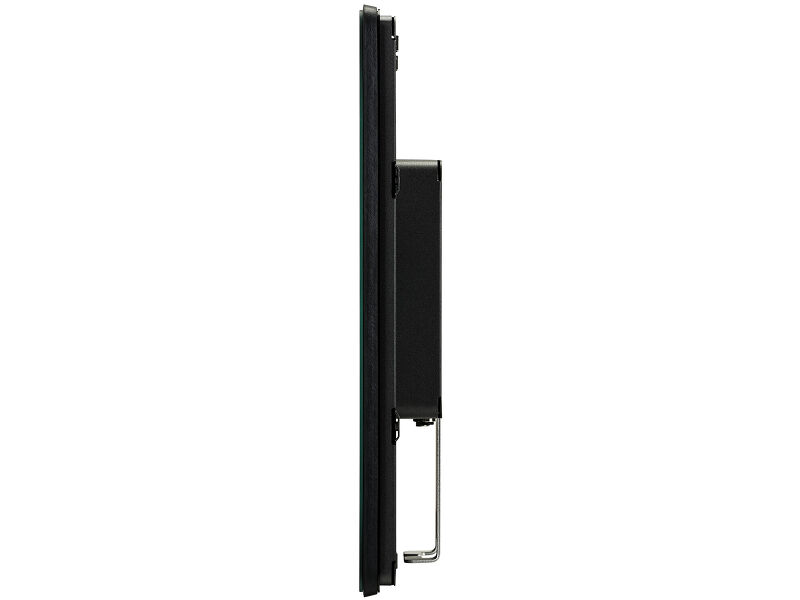

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

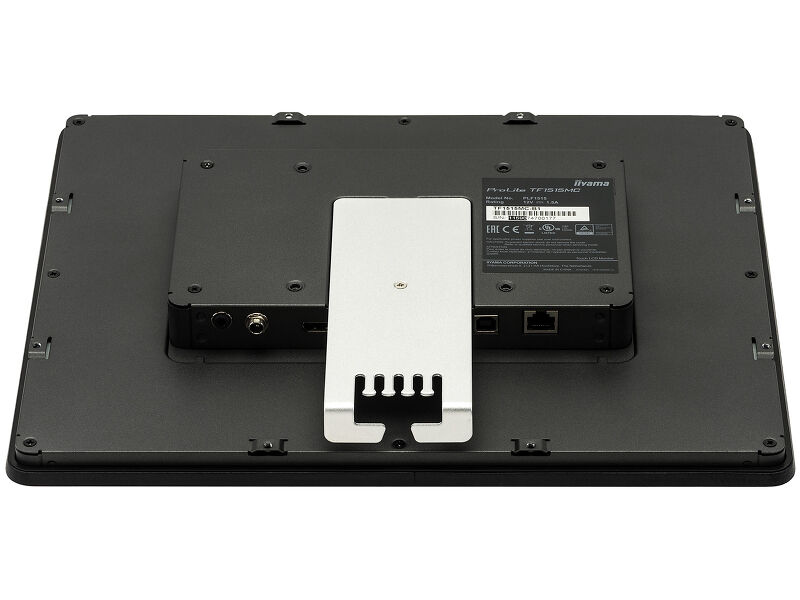

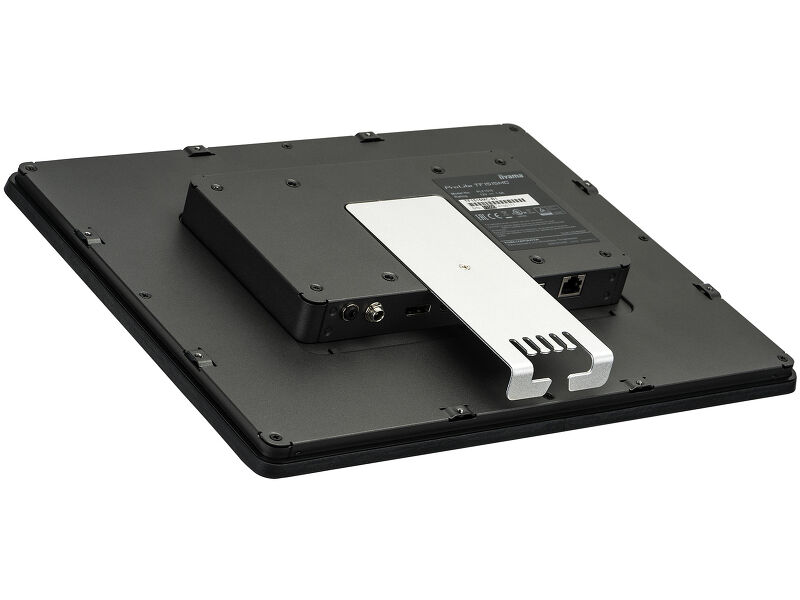

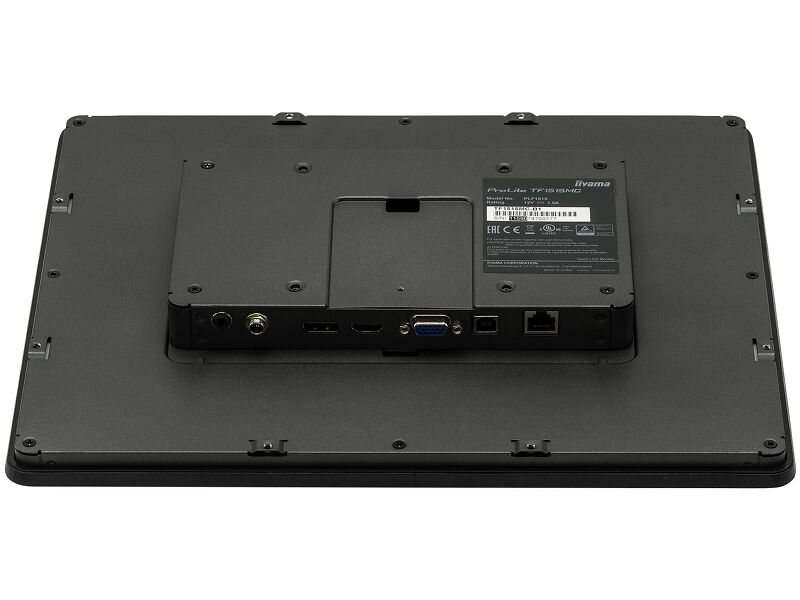

Cables can be neatly tied and routed with the special cable cover, so they cannot come loose or move around. A lockable DC connector ensures fixing the power cable.

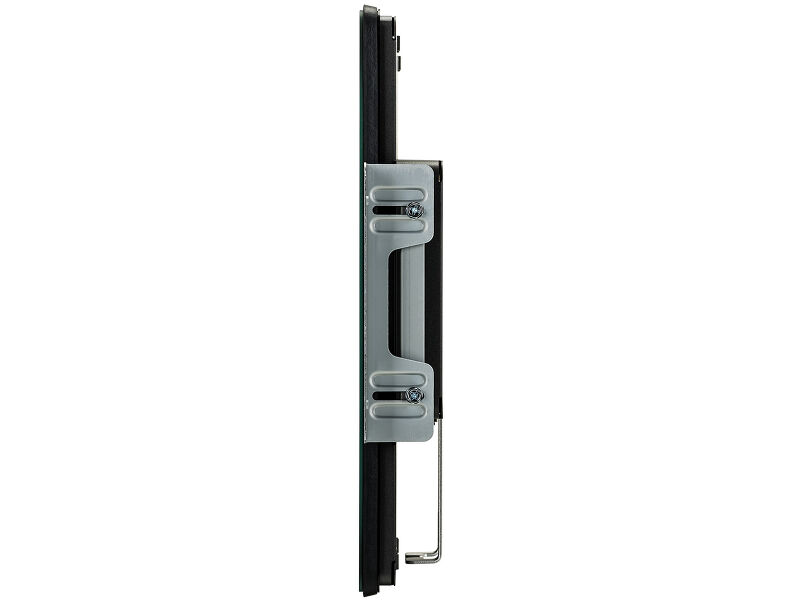

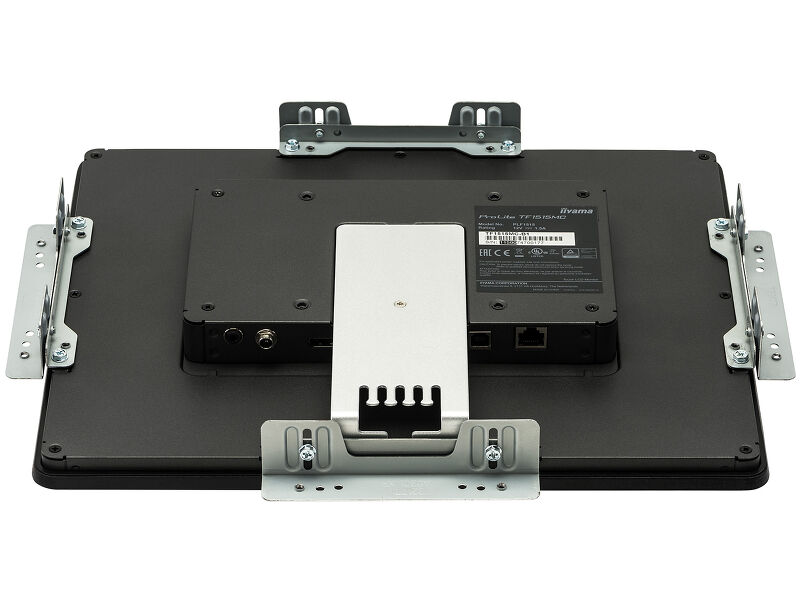

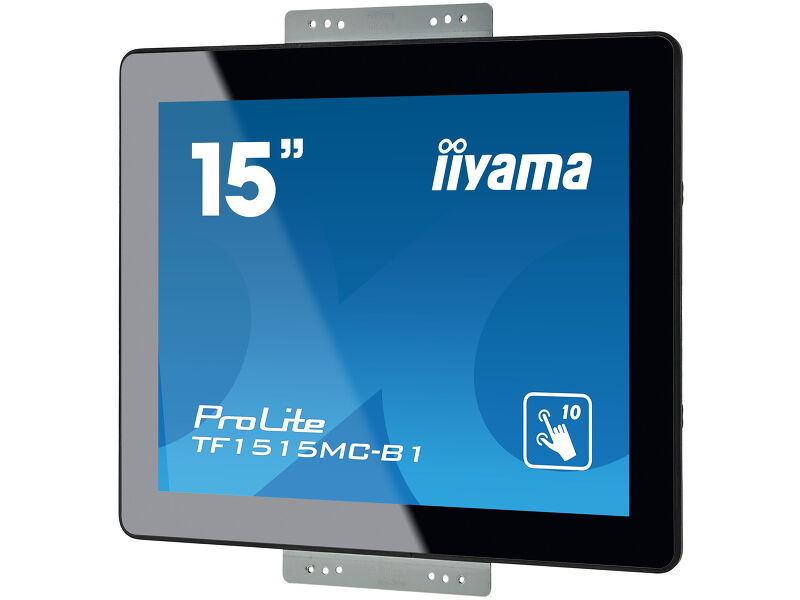

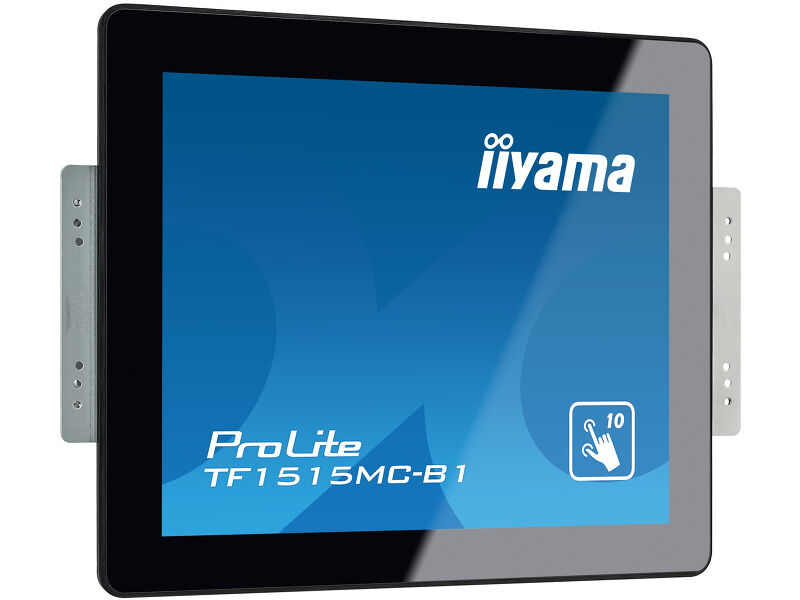

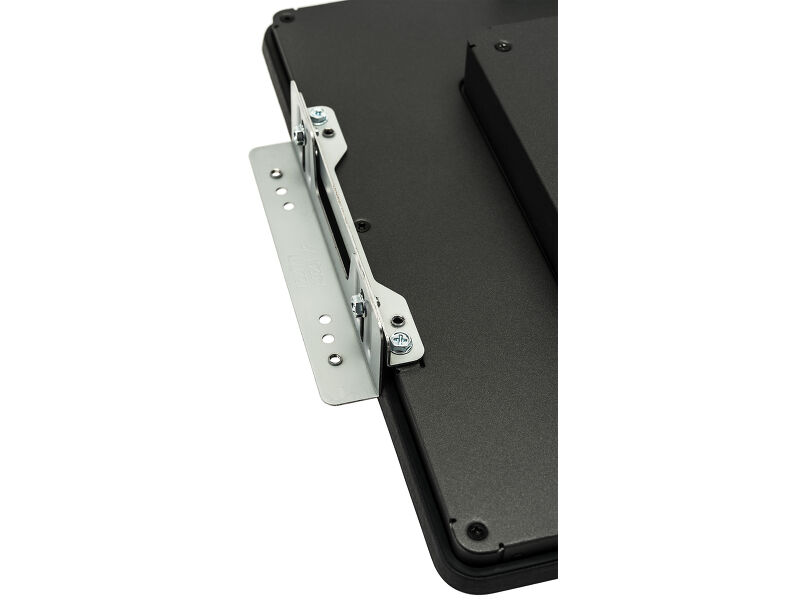

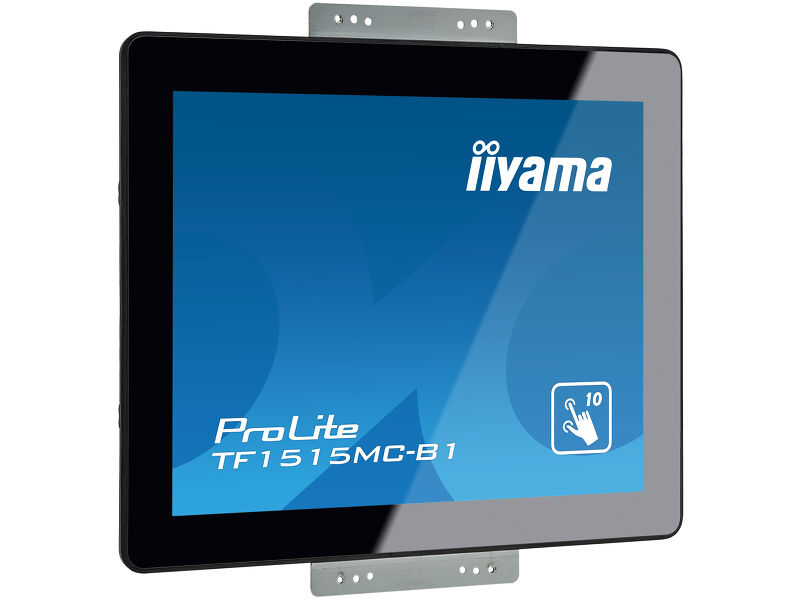

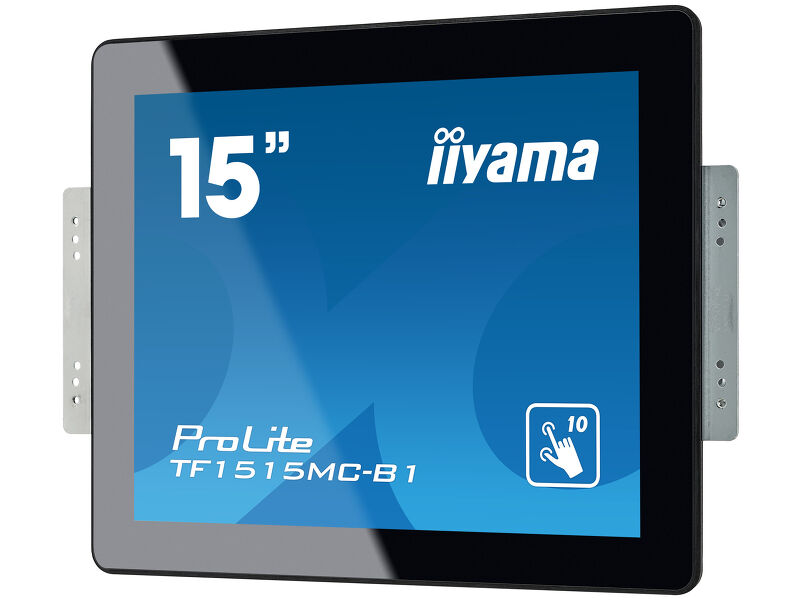

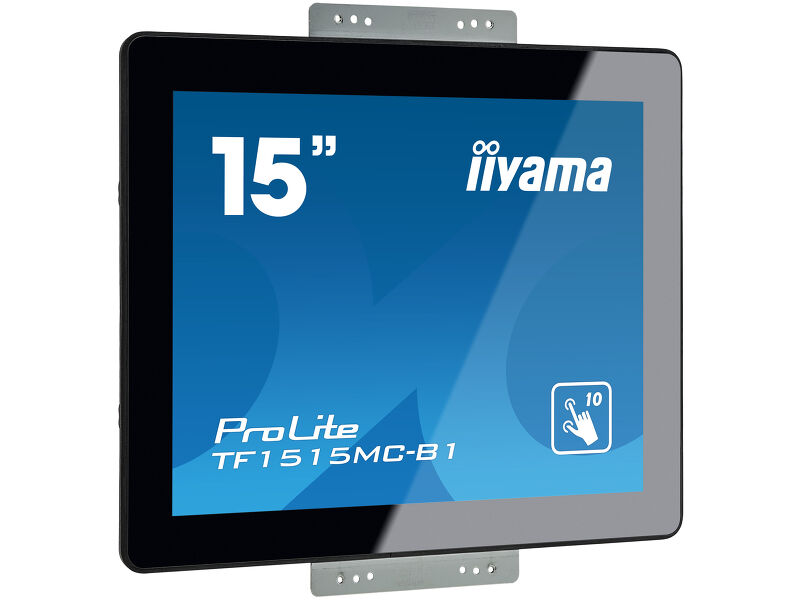

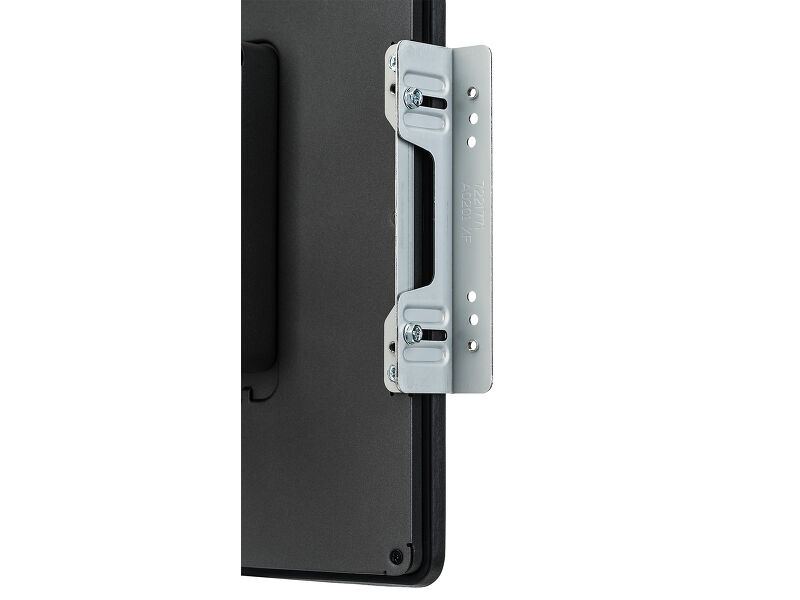

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
|Native resolution||1024 x 768 (0.8 megapixel)|
|Brightness||350 cd/m² typical|
|Brightness||300 cd/m² with touch|
|Static contrast||800:1 with touch|
|Viewing zone||horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||30 - 60KHz|
|Vertical Sync||56 - 75Hz|
|Viewable area W x H||304.1 x 228.1mm, 12 x 9"|
|Bezel colour and finish||black|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

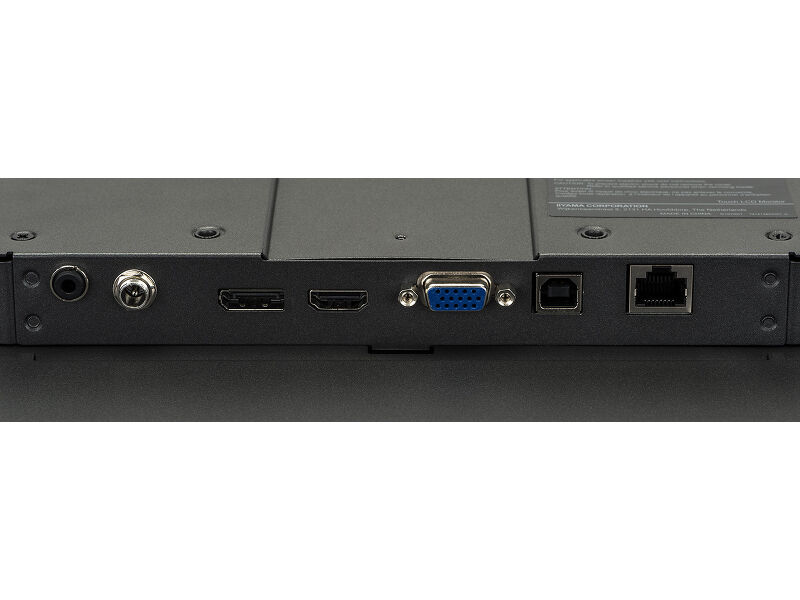

|Analog signal input||VGA x1|
|Digital signal input||
|Audio output||Mini jack x1|
|60950 Ball drop test||yes|
|Water and dust protection||IP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power|
|User controls||contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature|
|Orientation||landscape, portrait, face-up|

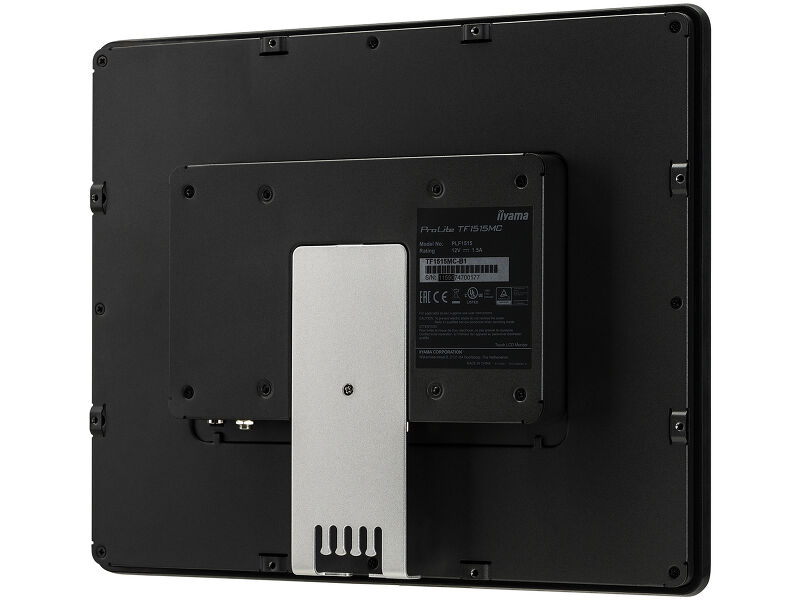

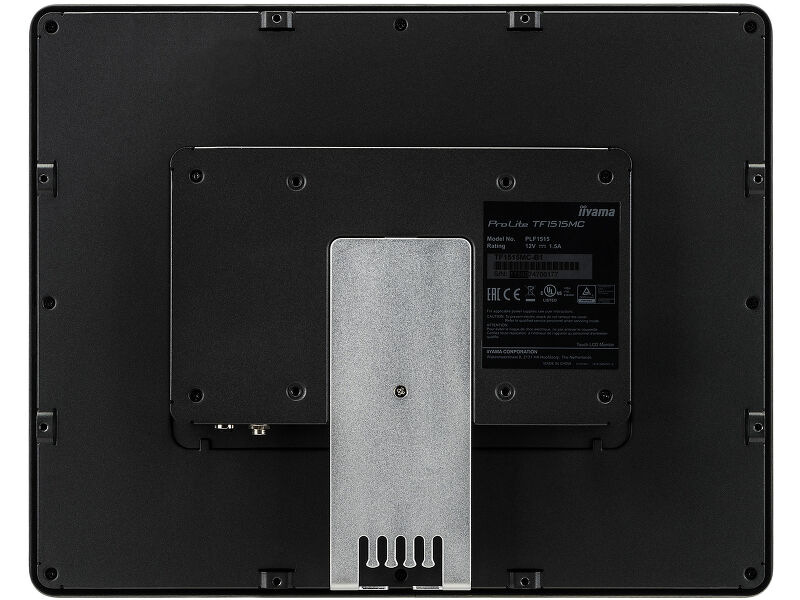

|VESA mounting||100 x 100mm|
|Operation temperature range||0°C - 40°C|
|Storage temperature range||- 20°C - 60°C|

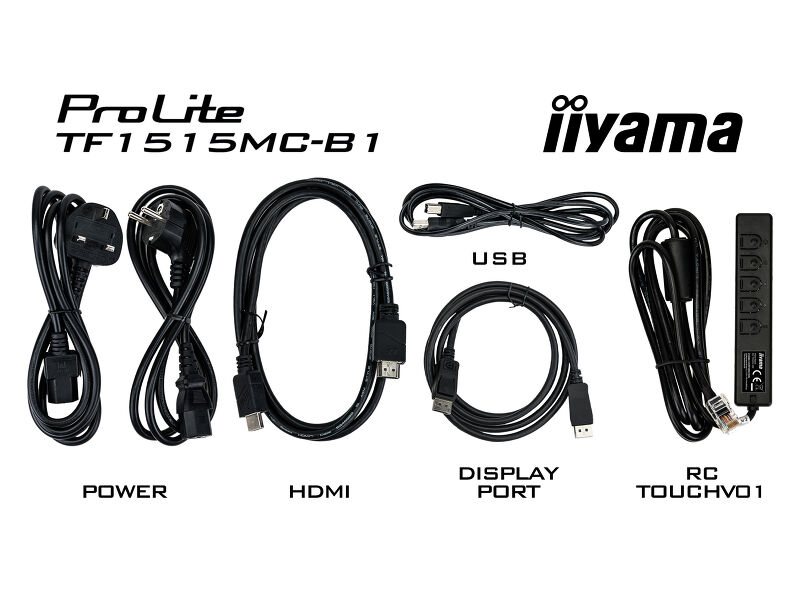

|Cables||power, USB, HDMI, DP|
|Guides||quick start guide, safety guide|
|Other||AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket, external control pad|
|Power supply unit||external|
|Power supply||DC 12 V|
|Power usage||16W typical, 1.2W stand by, 1.2W off mode|
|Regulations||CB, CE, TÜV-Bauart, CU, cULus|
|Energy efficiency class||A|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||291 x 364 x 41.5mm|
|Weight (without box)||2.9kg|
|Energy efficiency class||A|
|Visible screen diagonal||38cm; 15"; (15" segment)|
|ON mode power consumption||11W|
|Annual energy consumption||15kWh/annum*|
|Power in Standby||1.2W stand by|
|Resolution||1024 x 768|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
