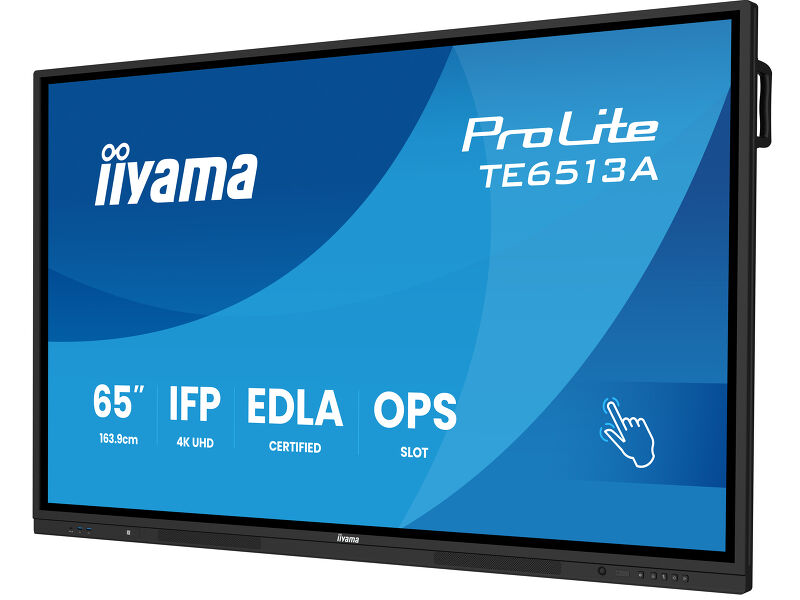

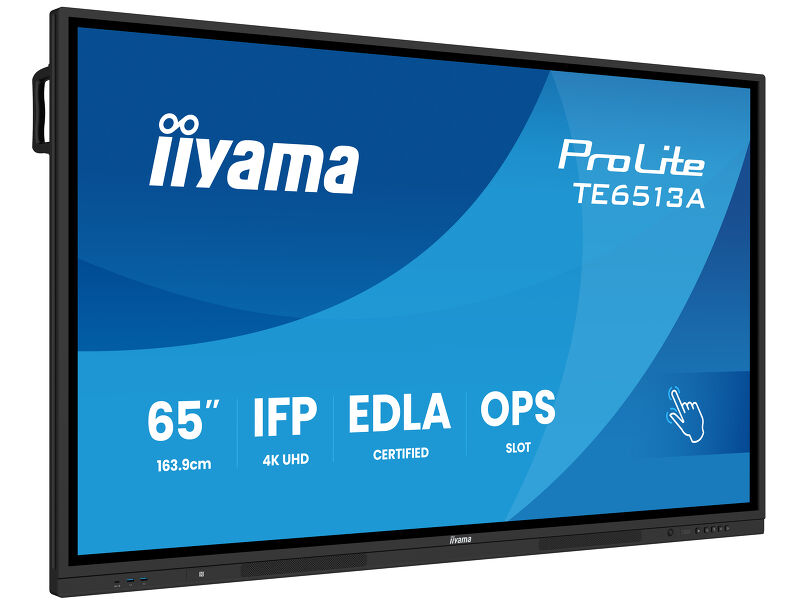

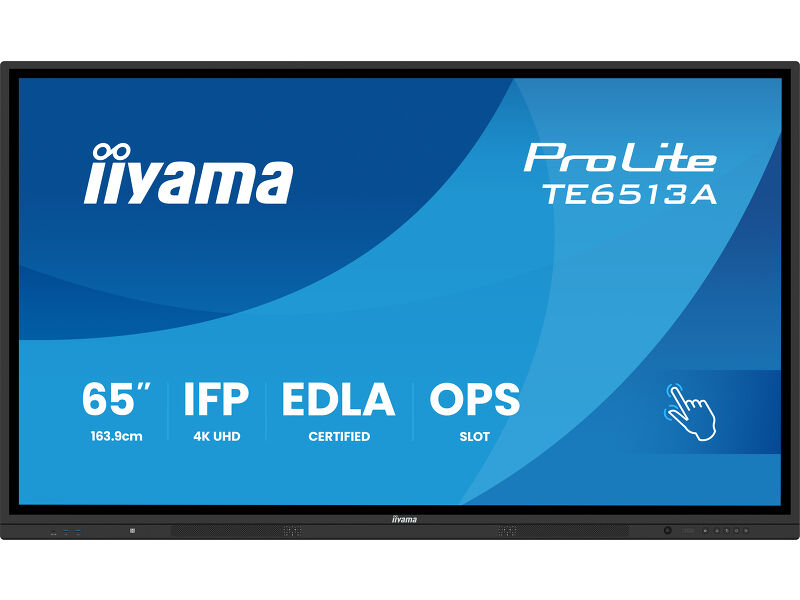

65" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise
The TE6513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero Airgap LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction.
Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, and iiControl (DMS), it integrates seamlessly into your ecosystem.
Enjoy advanced wireless sharing with the intuitive iiShare app for streamlined collaboration and enjoy added features like a PIR motion sensor for energy efficiency and NFC Reader for security. Perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
Empower your presentations with iiWare 2a1E, featuring featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
This feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.
iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.
The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.
The PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.
The Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.
The built-in NFC reader enables secure and fast authentication, allowing users to log in with a simple tap. Ideal for business and education, it enhances security and access control while streamlining user management. Perfect for seamless integration into modern workflows.
The OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.

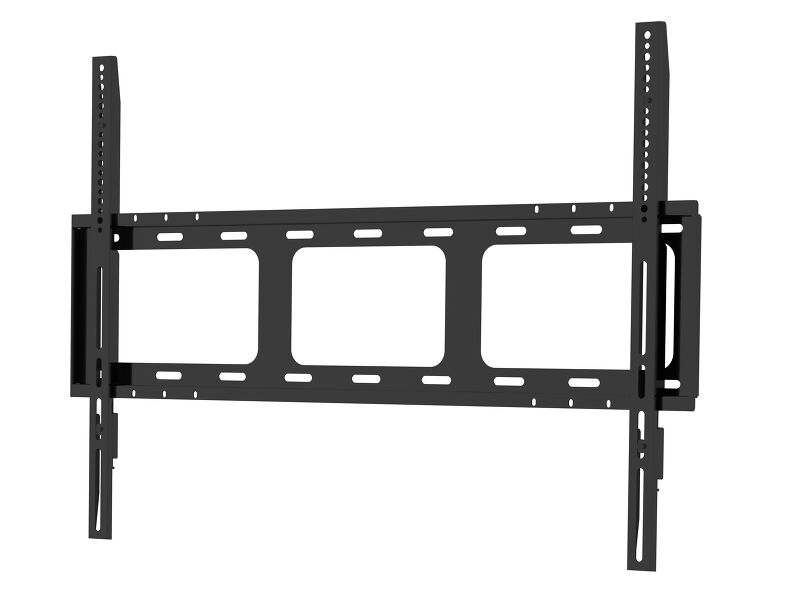

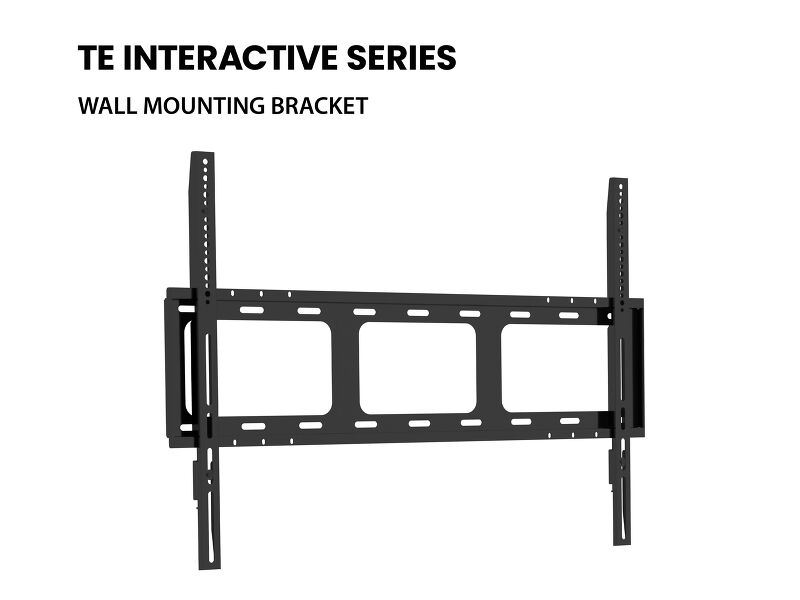

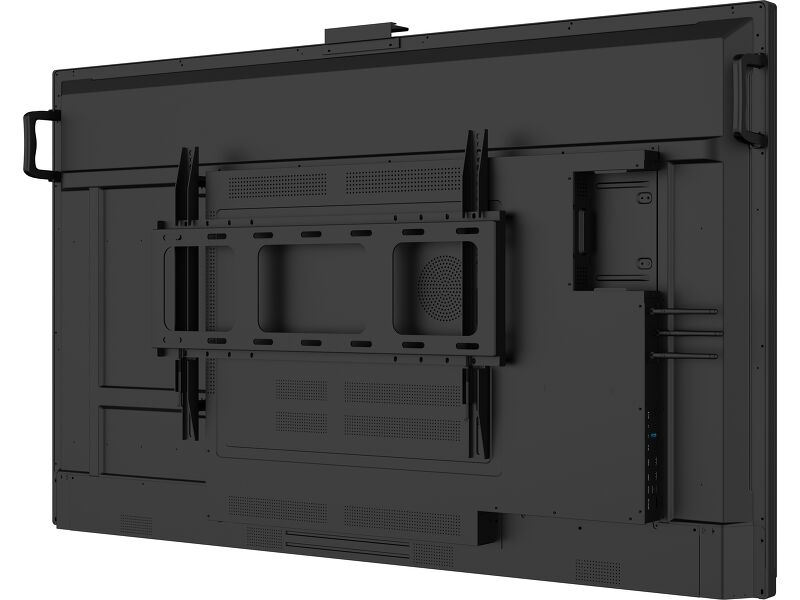

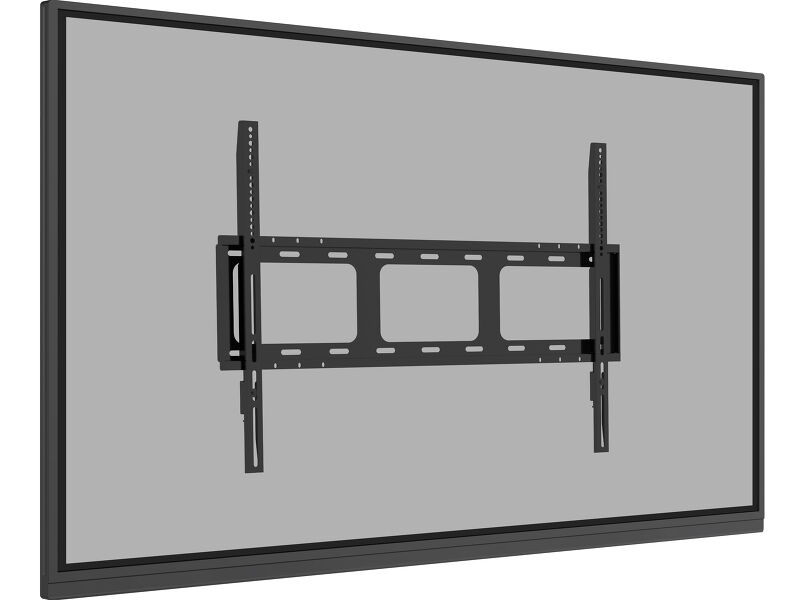

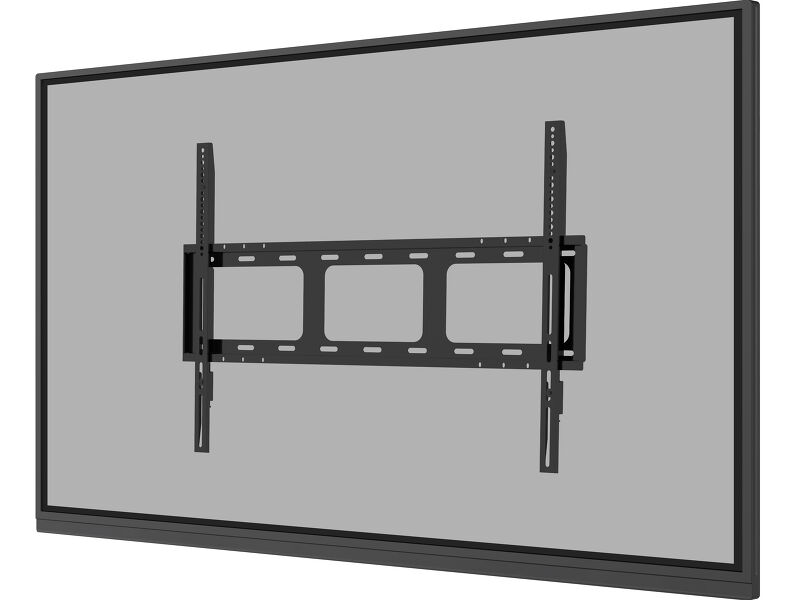

The included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.

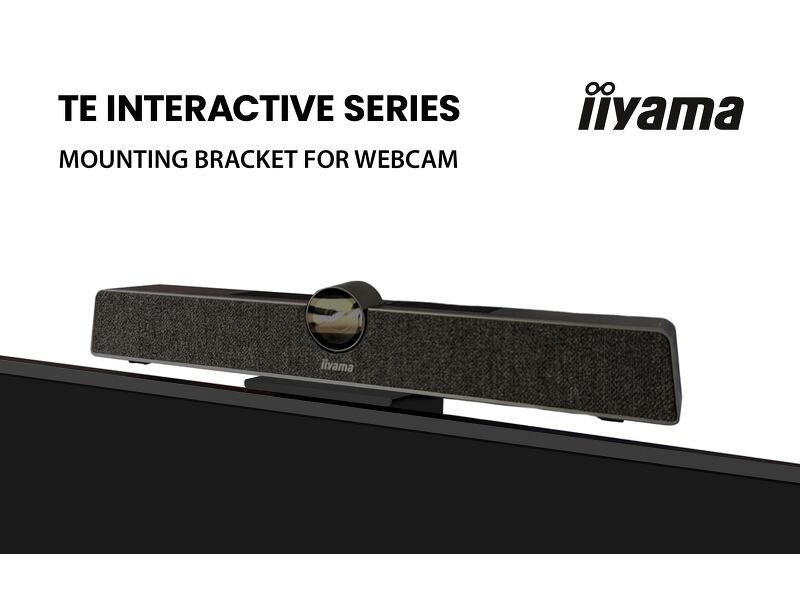

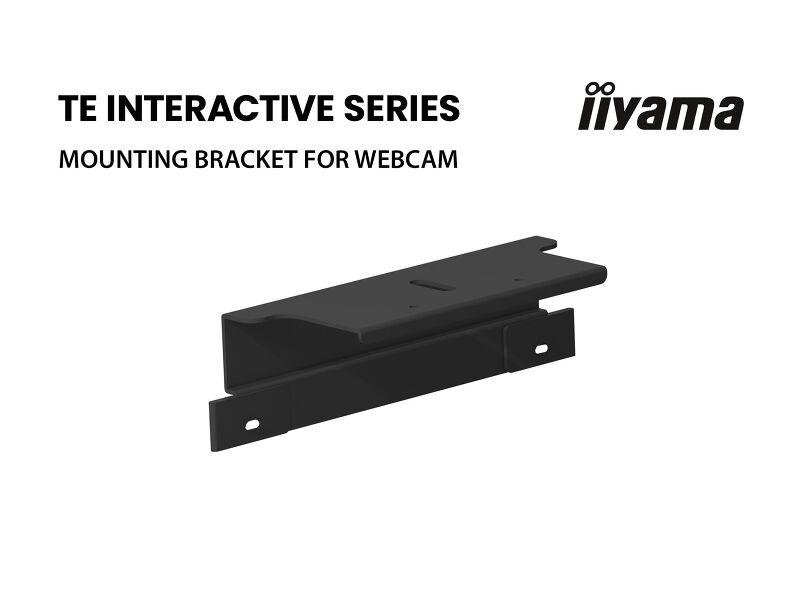

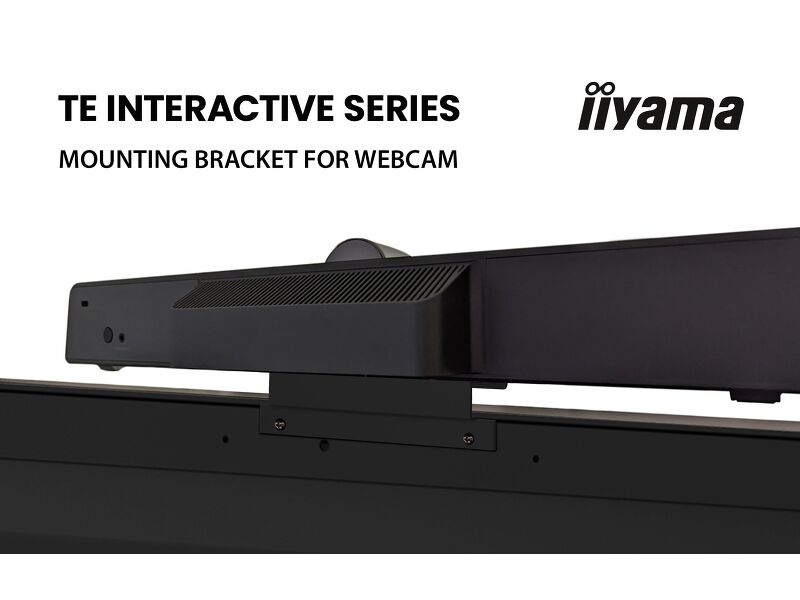

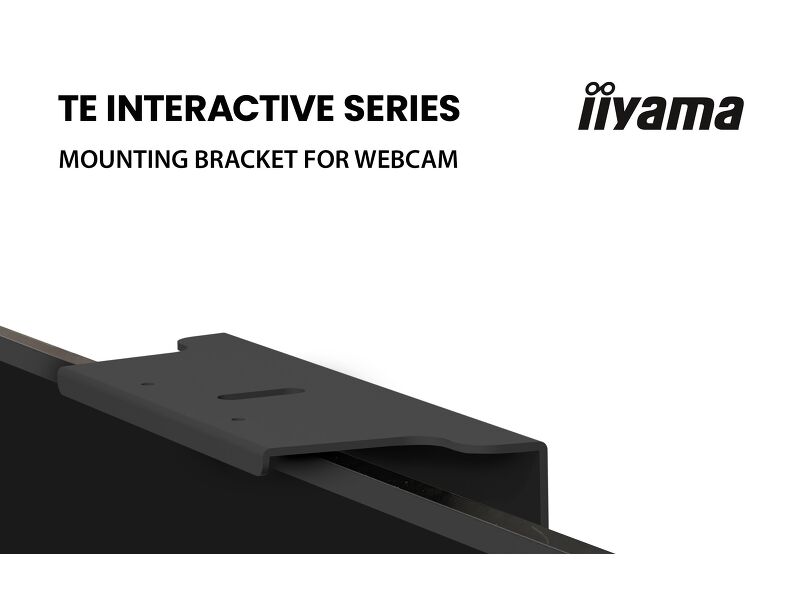

The built-in front-facing speakers with an integrated subwoofer support conferencing configurations with ultra clear sound. The included webcam bracket ensures secure and stable installation of a webcam. Ideal for conferencing, presentations, and interactive applications.
Design | Thin bezel |
Diagonal | 64.5", 163.9cm |
Panel | IPS |
Touch Glass | Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero Bonding |
Native resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
Aspect ratio | 16:9 |
Panel brightness | 450 cd/m² |
Light transmittance | 88% |
Static contrast | 1200:1 |
Response time (GTG) | 8ms |
Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
Horizontal Sync | 30 - 135kHz |
Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
Pixel pitch | 0.372mm |
Bezel colour and finish | black, matte |
Touch technology | PureTouch-IR⁺ |
Touch points | 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
Scan rate | 200Hz |
Touch accuracy | +- 1mm |
Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
Touch interface | USB |
Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
Palm rejection | yes |
Digital signal input |
HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1) DisplayPort x1 (1.2, max. 3840x2160 @60Hz) USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, 100W PD (1x front (network sharing 100M, 1x side), Data, Touch) |
Audio input | Mini jack x1 (Microphone) |
Monitor control input | RS-232c x1 |
Digital signal output | HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display)) |
Audio output |
S/PDIF (Optical) x1 Mini jack x1 (Headphone) Speakers 2 x 20W (Front facing + 20W Subwoofer) |
Monitor control output | OPS Slot x1 (Intel OPS 80pin) |
HDCP | 2.3 |
USB ports | x5 (media playback / peripherals / storage – front side: 2x 3.2 (Gen 1, 5Gbit,), 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), side: 1x 3.2 (Gen 1, 5Gbit, 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD)) |
RJ45 (LAN) | x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
Integrated software | iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
WiFi | yes (WiFi-6, Bluetooth 5.0``) |
Hardware | CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB |
Extra | Ambiant light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating) |
Kiosk mode | yes |
Media playback | yes |
Glass thickness | 3.2mm |
Glass hardness | 7H |
Housing (bezel) | metal |
OSD key lock | yes |
OSD languages | EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
Control buttons | Power, Home, Touch-freeze, Volume, Input (source) |
User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
Blue light reducer | yes |
Flicker free | yes |
Plug&Play | DDC2B |
Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
Orientation | landscape |
Fanless design | yes |

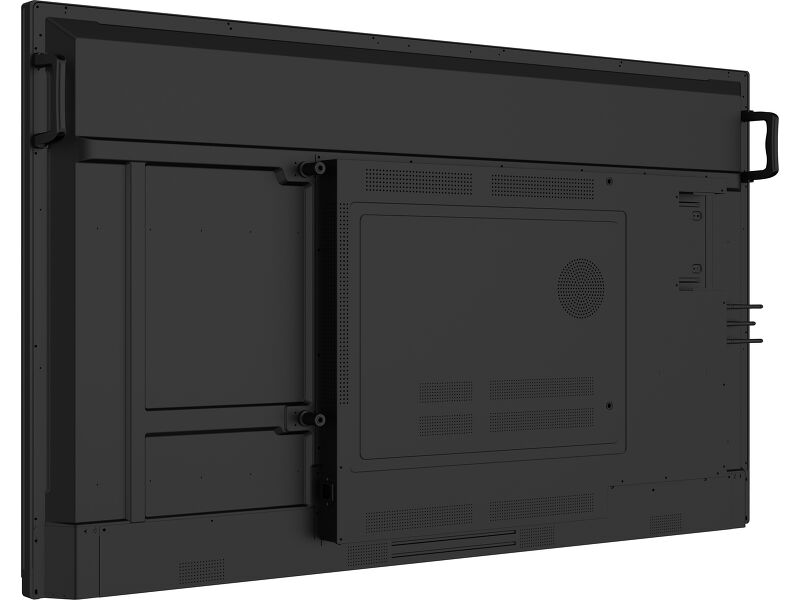

VESA mounting | 600 x 400mm |
MTBF | 50.000 hours (excluding backlight) |
Cables | power (EU 3m, UK 3m), USB (3m), HDMI (3m) |

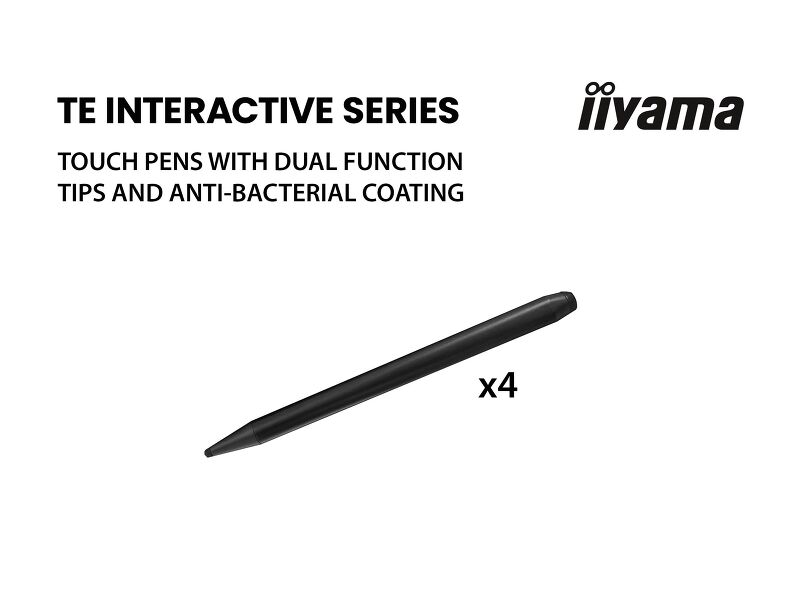

Touch pen | x4 (Dual function tips, anti-bacterial coating) |
Guides | quick start guide, safety guide |
Other | Wall Mounting Bracket (VESA 600x400), Webcam Mounting Bracket |
Remote control | yes (batteries included) |
Power supply unit | internal |
Power supply | AC 100 - 240V, 50/60Hz |
Power usage | 0.5W stand by |
Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS) |
REACH SVHC | above 0.1%: Lead |
Product dimensions W x H x D | 1489 x 891.5 x 87mm |
Box dimensions W x H x D | 1640 x 1010 x 185mm |
Weight (without box) | 39.3kg |
EAN code | 4948570124800 |
