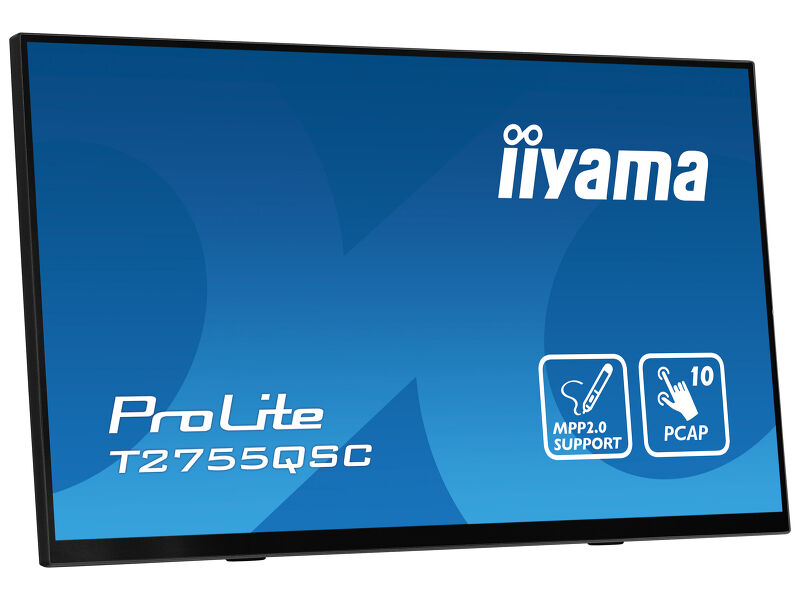

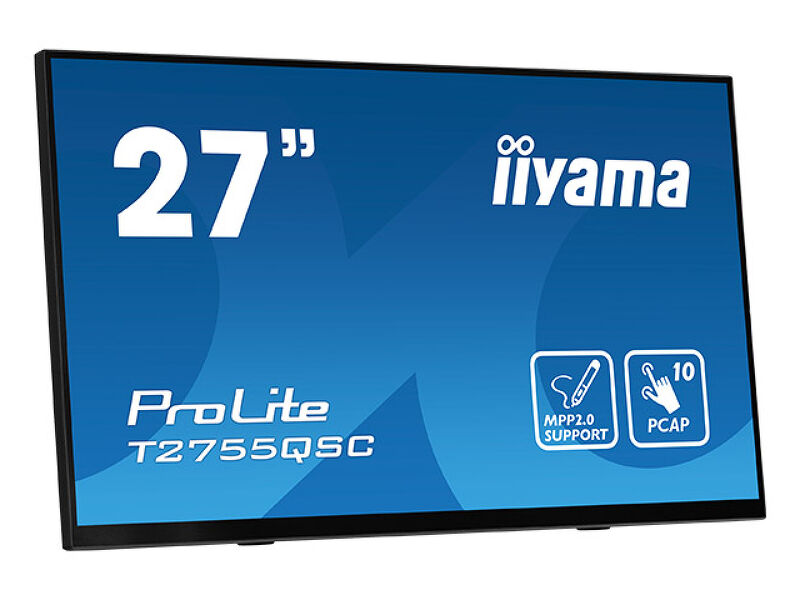

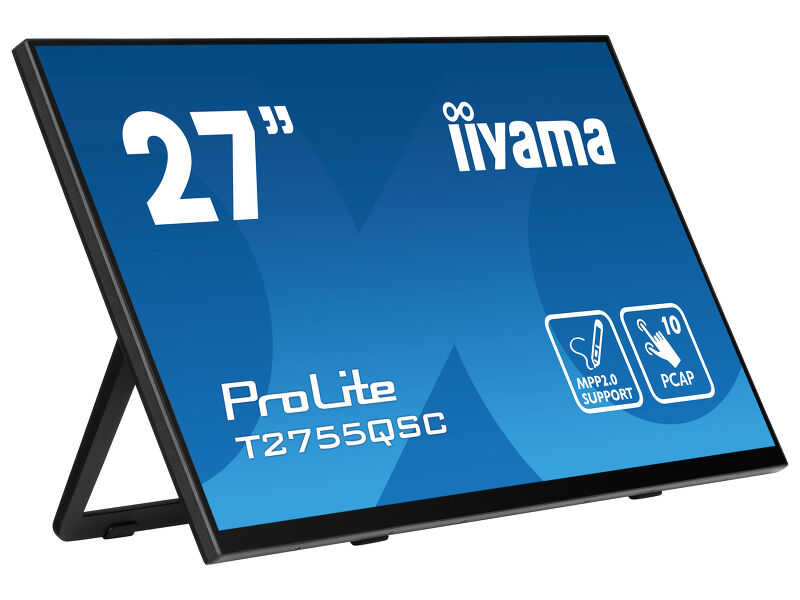

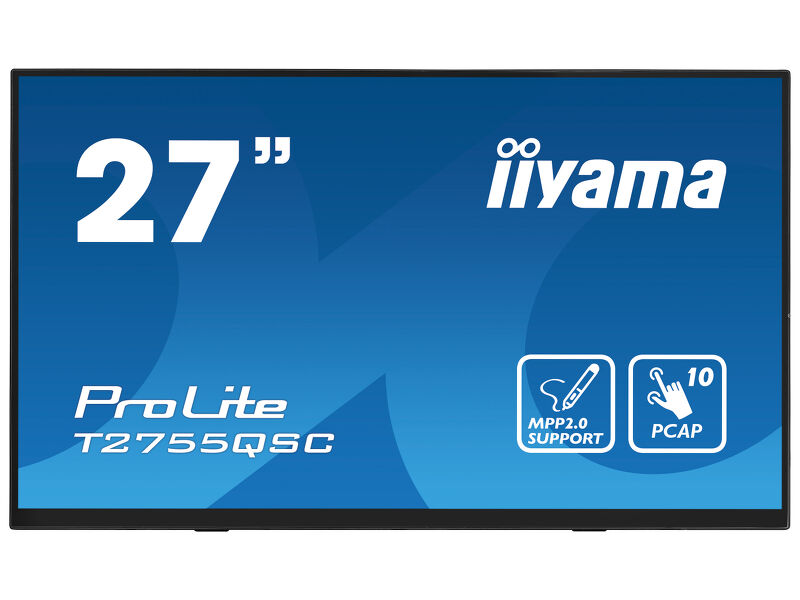

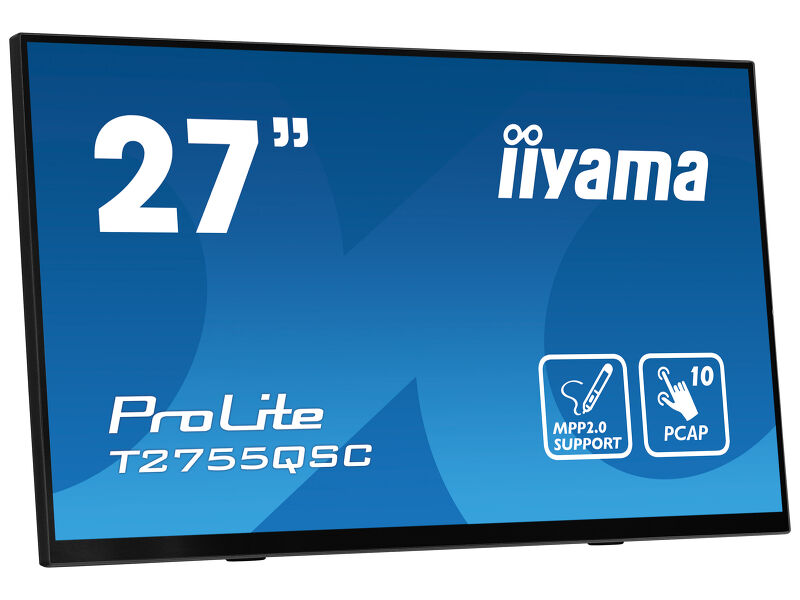

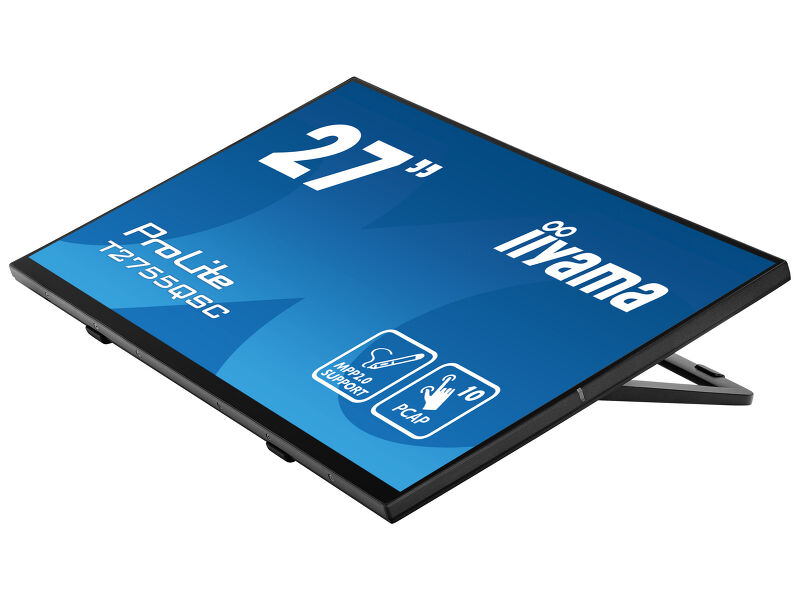

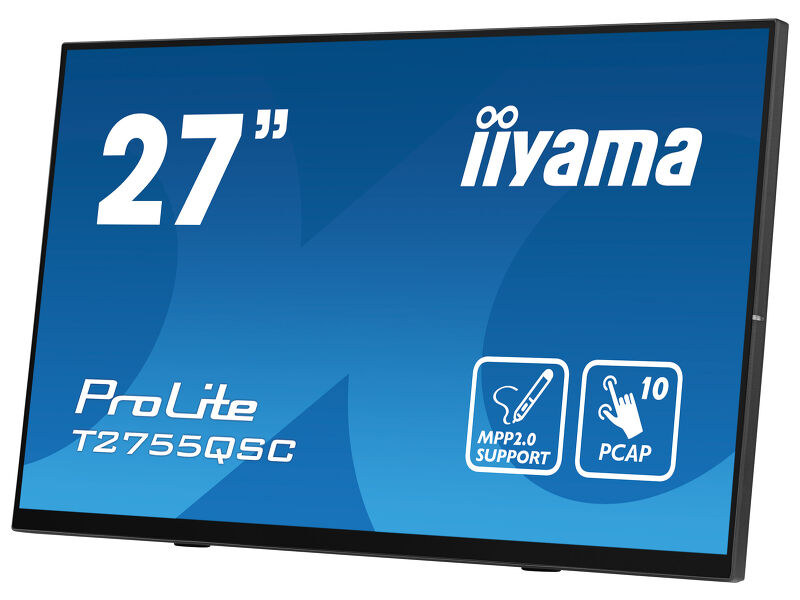

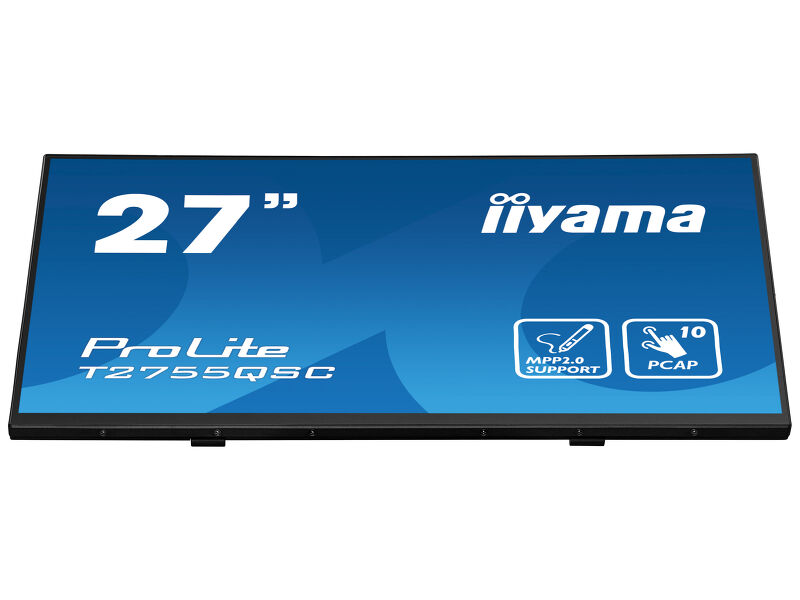

ProLite T2755QSC-B1
27” Optical Bonded PCAP 10pt IPS Touchscreen monitor with edge-to-edge glass, active stylus support (MPP 2.0), anti-fingerprint coating and a flexible stand
The ProLite T2755QSC with its WQHD (2560x1440) resolution and IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special anti-fingerprint coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints.

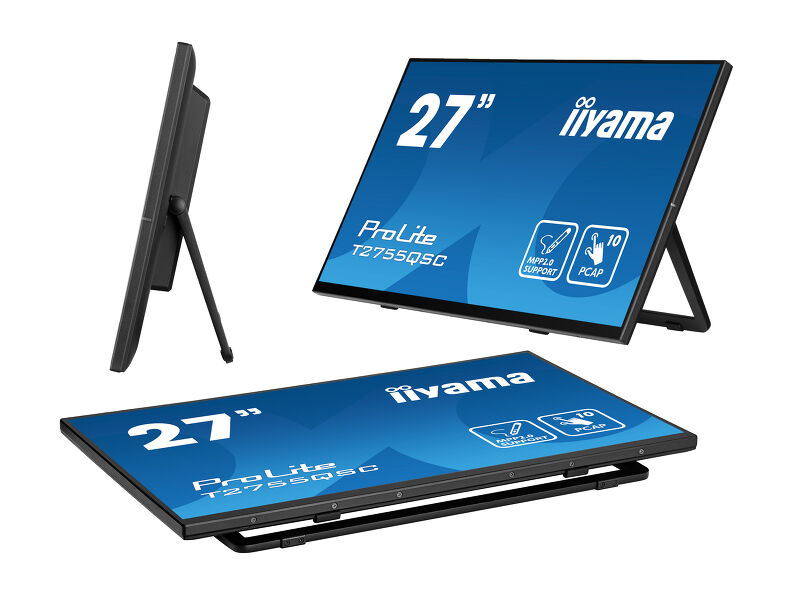

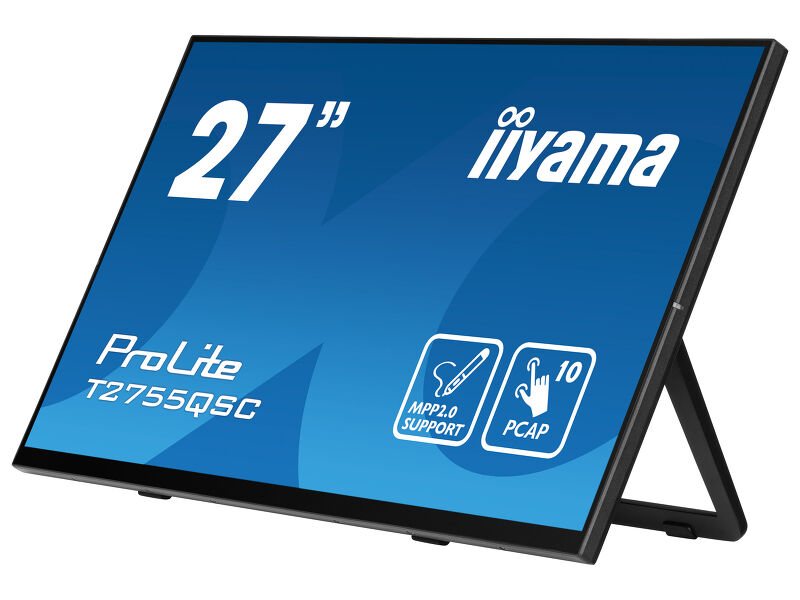

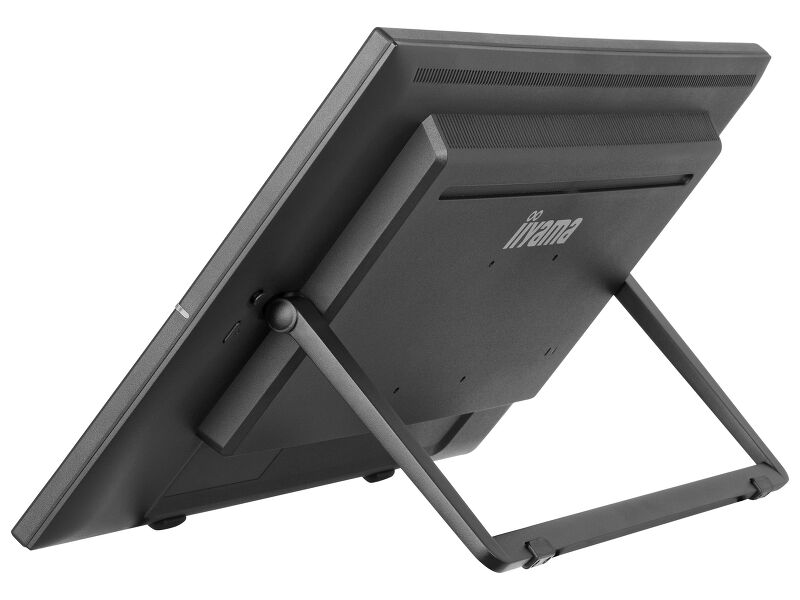

The monitor supports MPP2.0 (Microsoft Pen Protocol) technology, which is used in digital pens and styluses for use with compatible devices. The pen or stylus can interact with the ProLite T2755QSC, allowing users to write, draw, and navigate on the screen. It is very precise and supports tilt functionality, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of creative applications.
-

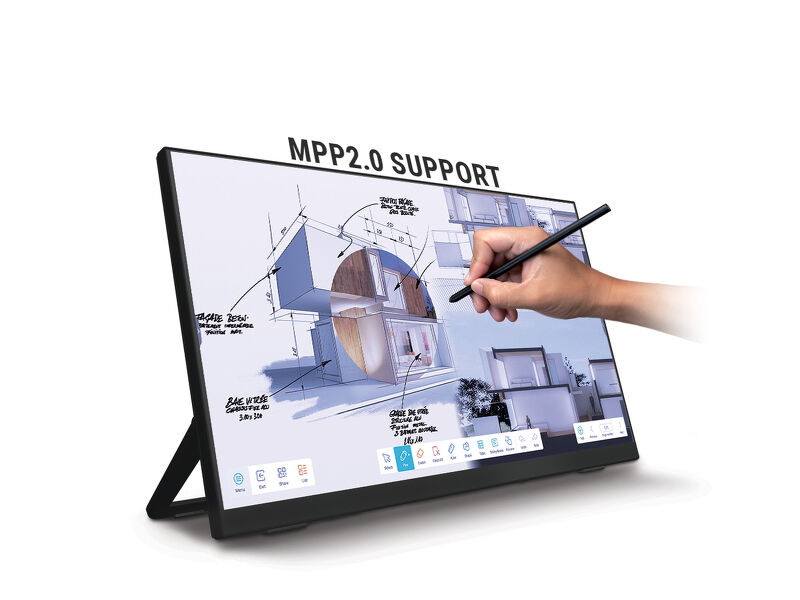

MPP2.0 Support
Microsoft Pen Protocol (MPP) is a technology used in digital pens and styluses for use with compatible devices. The protocol enables the pen or stylus to interact with the device, allowing users to write, draw, and navigate on the screen. The 2.0 version is more responsive to the user's touch giving a more precise control when writing or drawing on the screen. It also supports tilt functionality, which allows the pen to detect the angle at which it is held, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.
-
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
-
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
-
WQHD
With true WQHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
-
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Technical specification
DISPLAY CHARACTERISTICS
| Design | Edge to edge glass |
| Diagonal | 27", 68.4cm |
| Panel | IPS |
| Native resolution | 2560 x 1440 @75Hz (3.7 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 400 cd/m² |
| Brightness | 360 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 |
| Response time (GTG) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit |
| Horizontal Sync | 30 - 100kHz |
| Viewable area W x H | 597 x 336mm, 23.5 x 13.2" |
| Pixel pitch | 0.233mm |
| Bezel colour and finish | black, matte |
TOUCH
| Touch technology | bonded PCAP |
| Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | yes |

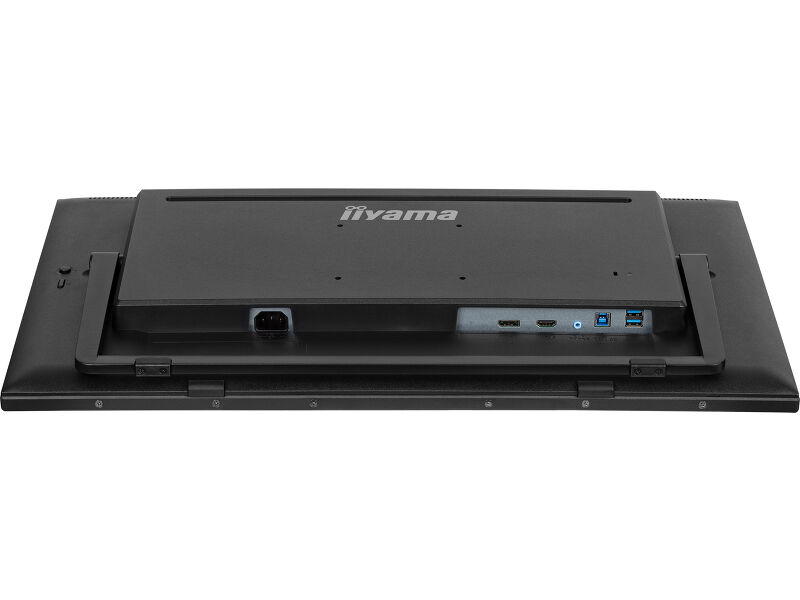

INTERFACES / CONNECTORS / CONTROLS
| Digital signal input |
HDMI x1 DisplayPort x1 |
| Audio output |
Mini jack x1 Speakers 2 x 1W |
| HDCP | yes |
| USB HUB | x2 (3.2 Gen 1 (5Gbps, DC5V, 900mA)) |
FEATURES
| Extra | anti-fingerprint coating, MPP2.0 |
| Glass hardness | 7H |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons | Press/enter, right/volume, left/eco/exit, up/signal select, down, power |
| User controls | Picture adjust (brightness, contrast, i-Style Colour, adv. contrast, ECO, OverDrive, X-Res technology), colour settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer | yes |
| Flicker free | yes |
| Plug&Play | DDC2B |

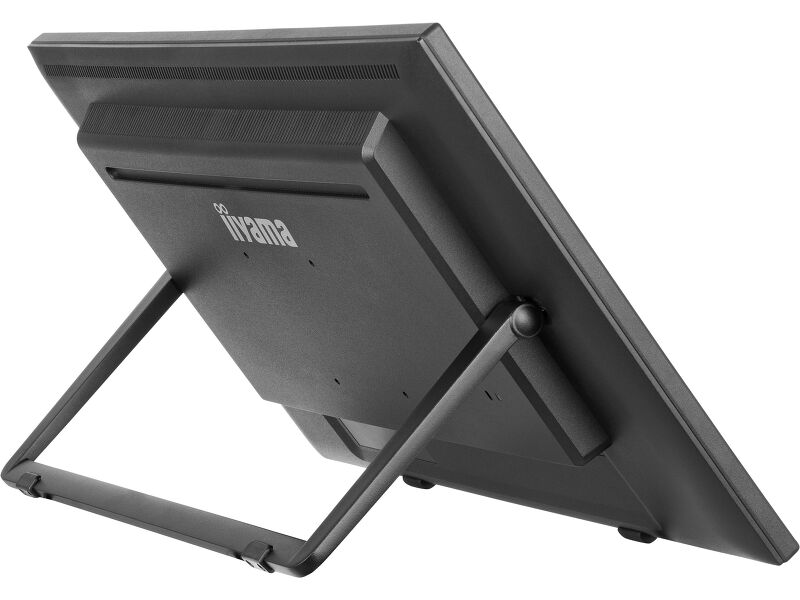

MECHANICAL

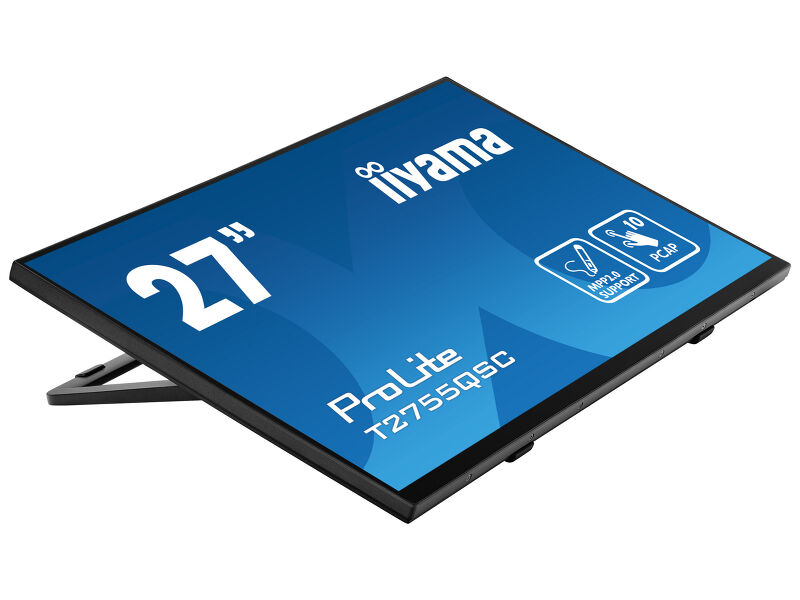

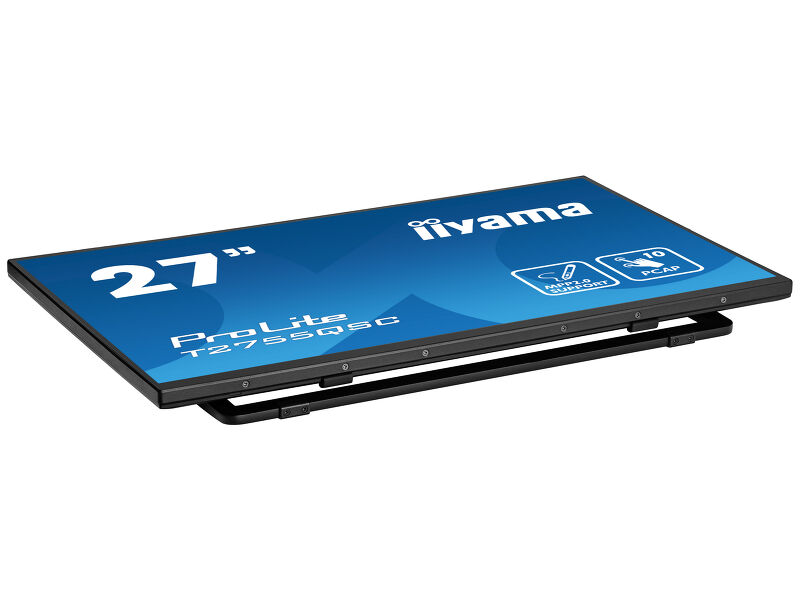

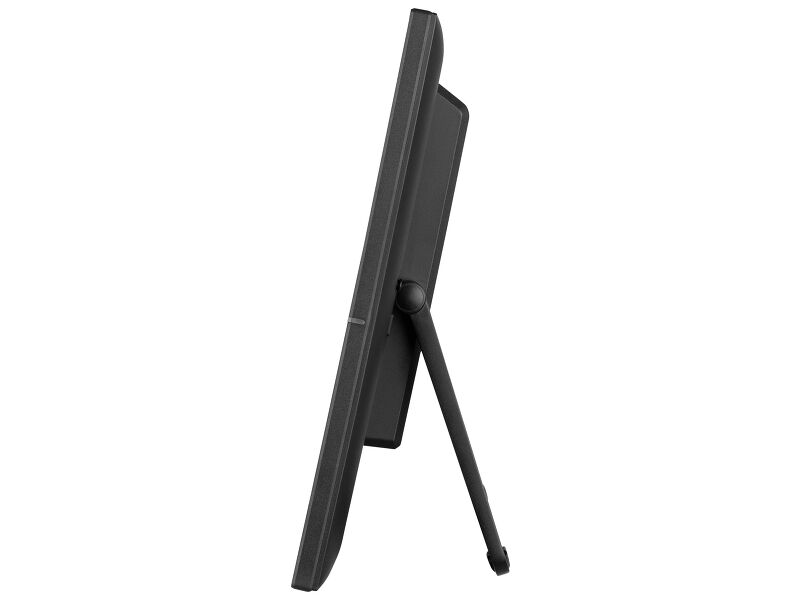

| Tilt angle | 15° up; 70° down |
| VESA mounting | 100 x 100mm |
| MTBF | 50000 hours (excluding backlight) |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI |
| Guides | quick start guide, safety guide |
| Other | spiral tube |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 35W typical, 1.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 614 x 364.5 x 49mm |
| Box dimensions W x H x D | 710 x 460 x 130mm |
| Weight (without box) | 5.8kg |
| Weight (with box) | 7.3kg |
| EAN code | 4948570122981 |
RELATED INFORMATION
| Product series | ProLite T2455MSC-B1, ProLite T2255MSC-B1, ProLite T2755MSC-B1 |
