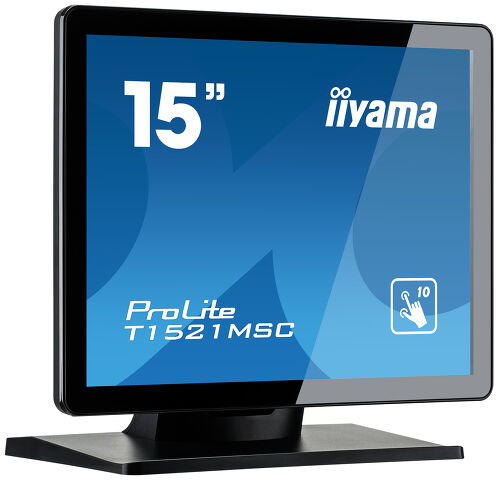

ProLite T1521MSC-B1 (EOL) Replaced by: ProLite T1521MSC-B2
15" Projective Capacitive 10pt touchscreen
The ProLite T1521MSC-B1 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B1 is an incredibly powerful touch solution, perfect for instore retail purposes.
Speakers-
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
-
Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.
-
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
-
Speakers
This LED monitor is equipped with two stereo speakers.
-
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Technical specification
DISPLAY CHARACTERISTICS
| Design | Edge to edge glass |
| Diagonal | 15", 38cm |
| Panel | TN |
| Native resolution | 1024 x 768 (0.8 megapixel) |
| Aspect ratio | 4:3 |
| Panel brightness | 370 cd/m² |
| Brightness | 325 cd/m² with touch |
| Light transmittance | 88% |
| Static contrast | 800:1 |
| Response time (BTB) | 8ms |
| Viewing zone | horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° |
| Colour support | 16.7mln |
| Horizontal Sync | 31.4 - 60kHz |
| Viewable area W x H | 304 x 228mm |
| Pixel pitch | 0.297mm |
| Bezel colour and finish | black, matte |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Audio output | Speakers 2 x 2W |
FEATURES
| Glass thickness | 1.2mm |
| Glass hardness | 7H |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, RU, JP, NL |
| Control buttons | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| User controls | picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), colour (colour temp, picture mode), audio (volume, mute), other (reset, OSD time, OSD H position, OSD V position, language), information |
| Plug&Play | DDC2B |
MECHANICAL
| Tilt angle | 70° up; 10° down |
| VESA mounting | 75 x 75mm |
| Cable management system | yes |
ACCESSORIES INCLUDED
| Cables | power, VGA, USB |
| Guides | quick start guide, safety guide |
| Other | AC adapter, mylar sheet (for VESA mount) |
POWER MANAGEMENT
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 20W typical, 0.5W stand by, 0.5W off mode |
SUSTAINABILITY
| Regulations | CB, CE, RoHS support, ErP, WEEE, CU, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 340.5 x 308 x 198mm |
| Weight (without box) | 3.5kg |
| EAN code | 4948570114412 |
Downloads
| User manual | T1521MSC-usermanual-e-revJ.pdf | Download |
| Technical specification | ProLite T1521MSC-B1 - en.pdf | Download |
| Drawing | T1521MSC.pdf | Download |
| EU Energy Label | T1521MSC-B1 EU Energy Label pdf data(357577).pdf | Download |
| UA Energy Label | T1521MSC-B1 EU Energy Label pdf data(357577).pdf | Download |
| UK Energy Label | T1521MSC-B1 UK Energy Label pdf data(357577).pdf | Download |
Drivers/ Firmware / Software
| T1521MSC driver 1 | T1521MSC driver 1.0.0.11 for XP.zip | Download |
