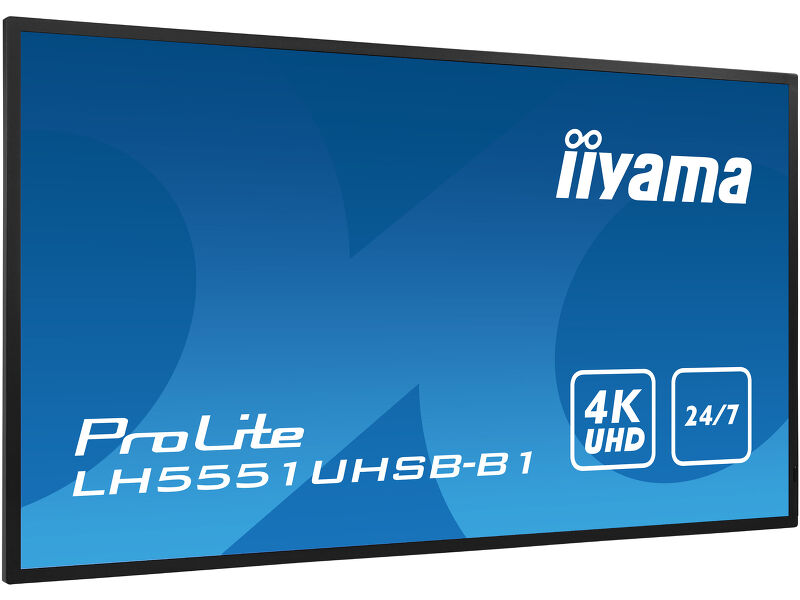

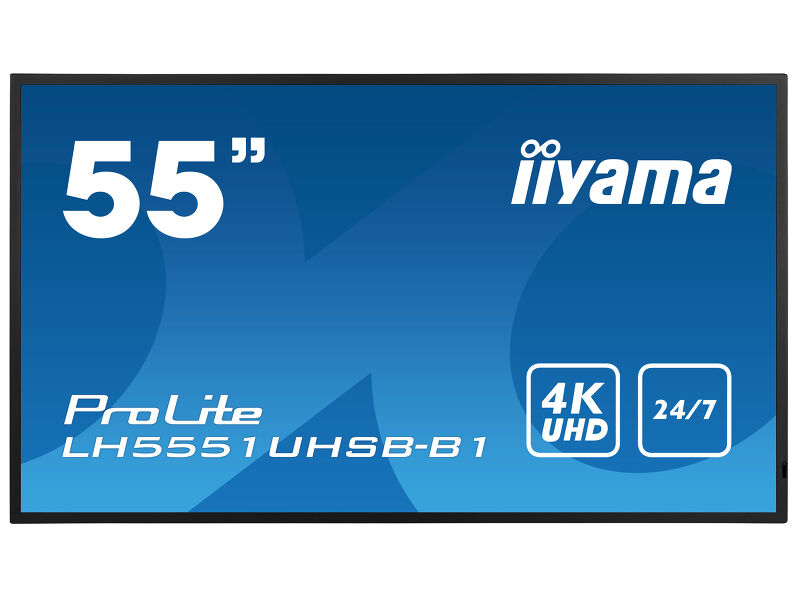

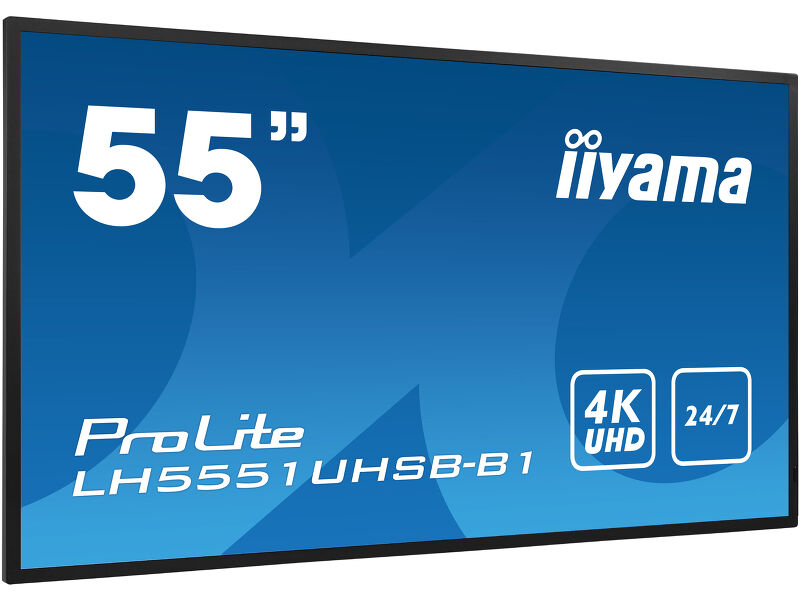

55” Professional 24/7 Digital Signage display with 4K UHD resolution and 800cd/m² high brightness performance
This 800cd/m² high brightness professional large format display with a 4K UHD resolution (3840x2160) delivers dynamic and sharp content. Providing vibrant, detailed and sublime images this screen is perfect for environments where performance and reliability are mission critical.
Designed to perform in continual, around the clock environments, the LH5551UHSB can be installed and utilised in landscape and portrait orientation. The slim bezel and commercial display is VESA mountable and the OSD menu can be controlled with both control buttons and an included remote control. The LH5551UHSB offers businesses an easy and effective solution to help capture their audience's attention.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
24/7 displays are designed for a continuous operation.
LAN control enables making adjustments in the display OSD menu through your network (software not included).
This LED monitor is equipped with two high quality stereo speakers.
| Design | Thin bezel |
| Diagonal | 54.6", 138.68cm |
| Panel | IPS |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 800 cd/m² |
| Static contrast | 1200:1 |
| Response time (GTG) | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) |
| Horizontal Sync | 15 - 160kHz |
| Viewable area W x H | 1209.6 x 680.4mm, 47.6 x 28.6" |
| Bezel width (sides, top, bottom) | 11.3mm, 11.3mm, 11.3mm |
| Pixel pitch | 0.315mm |
| Bezel colour and finish | black, glossy |
| Digital signal input |
HDMI x2 (max. 3840x2160 @60Hz, RGB 444) DisplayPort x2 (max. 3840x2160 @60Hz) |
| Monitor control input |
RS-232c x1 RJ45 (LAN) x1 IR x1 (Φ3.5 stereo mini) |
| Digital signal output | DisplayPort x1 (max. 3840x2160 @60Hz, Daisy Chain) |
| Audio output | Speakers 2 x 10W |
| Monitor control output |
RS-232c x1 IR loop through x1 (Φ3.5 stereo mini) |
| HDCP | yes |
| USB ports | x1 (2.0 for service only, DC5V, 500mA) |
| Extra | Intel® SDM-L |
| Max. non-stop operating time | 24/7 |
| Anti image retention | yes |
| Housing (bezel) | metal |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL |

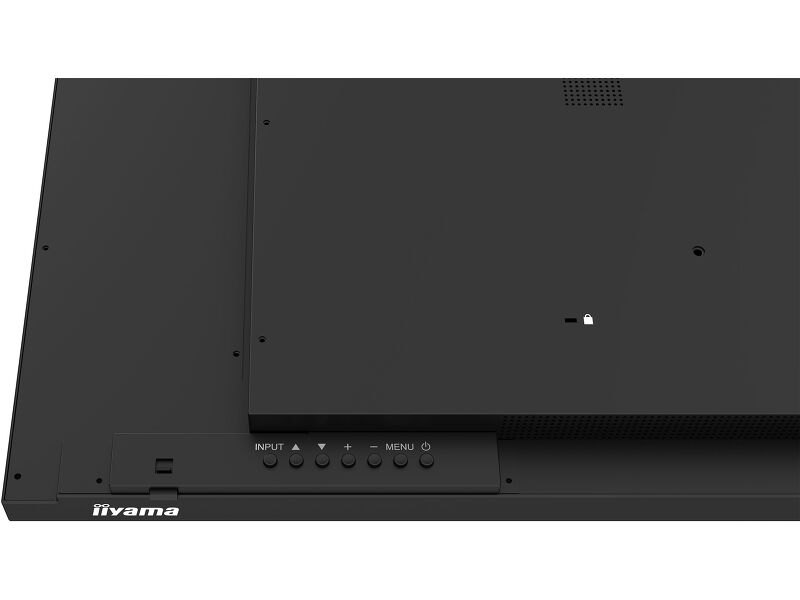

| Control buttons | Input select, Up, Down, Plus, Minus, Menu Power |
| User controls | picture (brightness, contrast, sharpness, black level, gamma selection, ACR, Overdrive, aspect), colour (colour temperature, colour control), audio (volume, mute, maximum volume, minimum volume), OSD (H-Position, V-position, transparency, turn off, rotation, language, power off), tiling (tiling, H-monitors, V-monitors, H-Position, V-position, H-fill, V-fill, frame comp., switch on delay), configuration 1 (switch on state, anti-image retention, RS232-routing, standby control, boot on source, power LED light, factory reset), configuration 2 (logo, moitor ID, heat status, monitor info, IR control keyboard control, HDMI version, DP version), advanced option (date and time, schedule, HDMI with one wire, auto signal detection, standby mode, FM upgrade) |

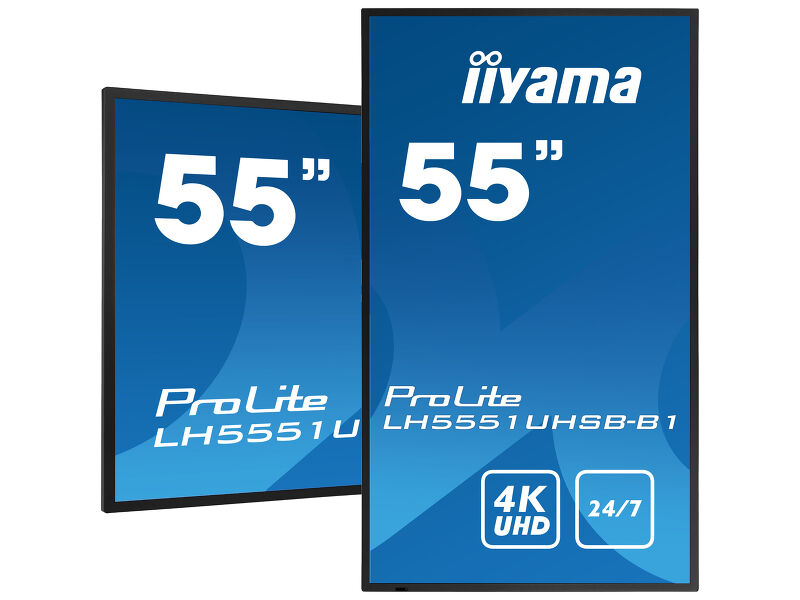

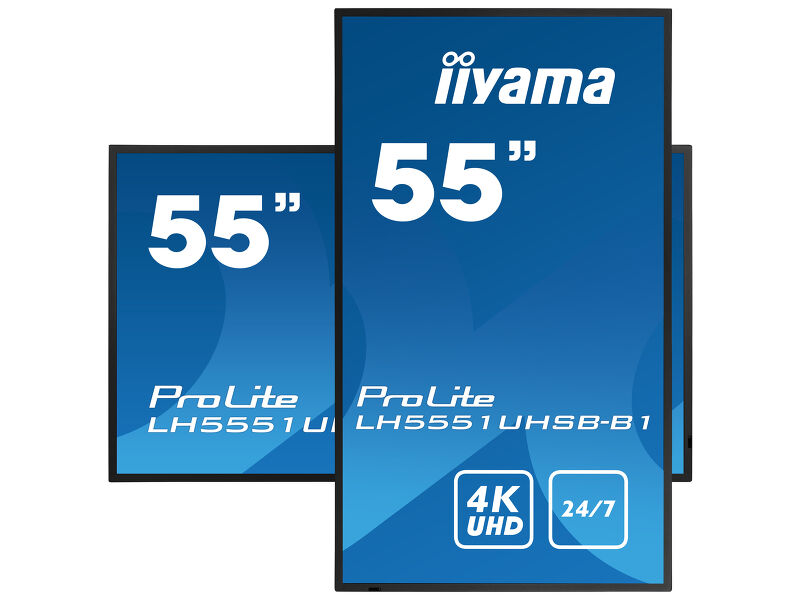

| Orientation | landscape, portrait |
| VESA mounting | 100 x 100mm, 400 x 400mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50.000 hours (excluding backlight) |

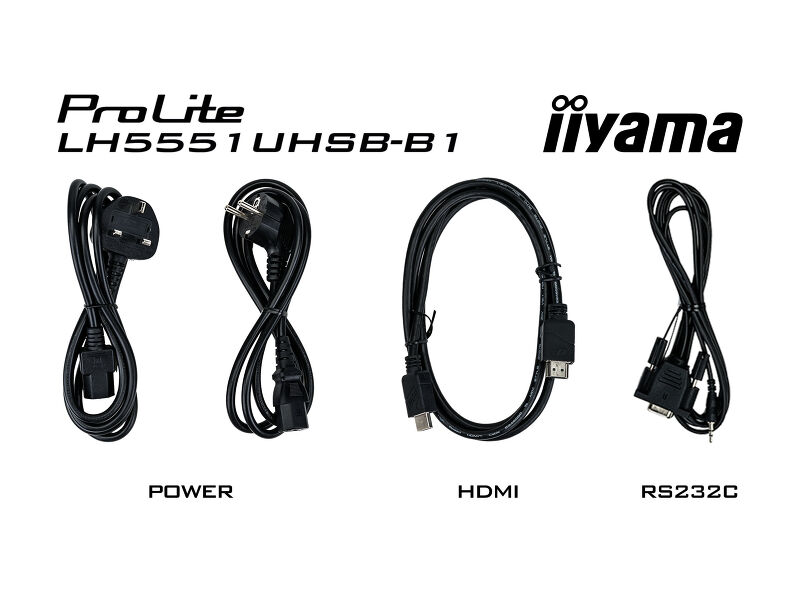

| Cables | power, HDMI, RS-232c |
| Guides | quick start guide, safety guide |
| Remote control | yes (batteries included) |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 183W typical, 0.5W stand by, 0.3W off mode |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Product dimensions W x H x D | 1236.5 x 707.5 x 64.5mm |
| Weight (without box) | 26kg |
| EAN code | 4948570118410 |
