Reliable home and office solution

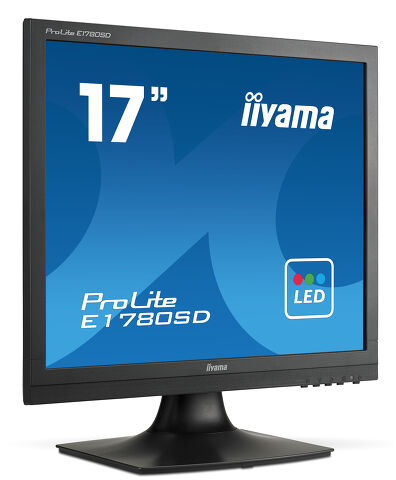

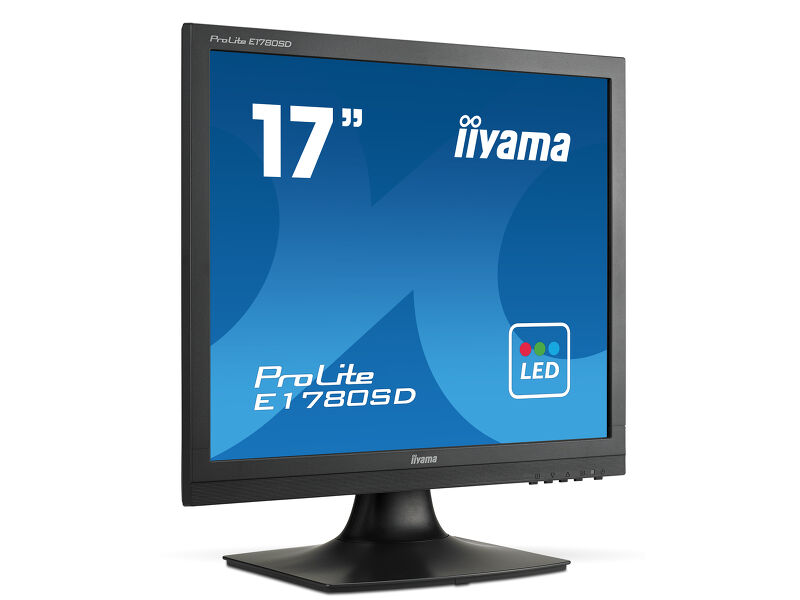

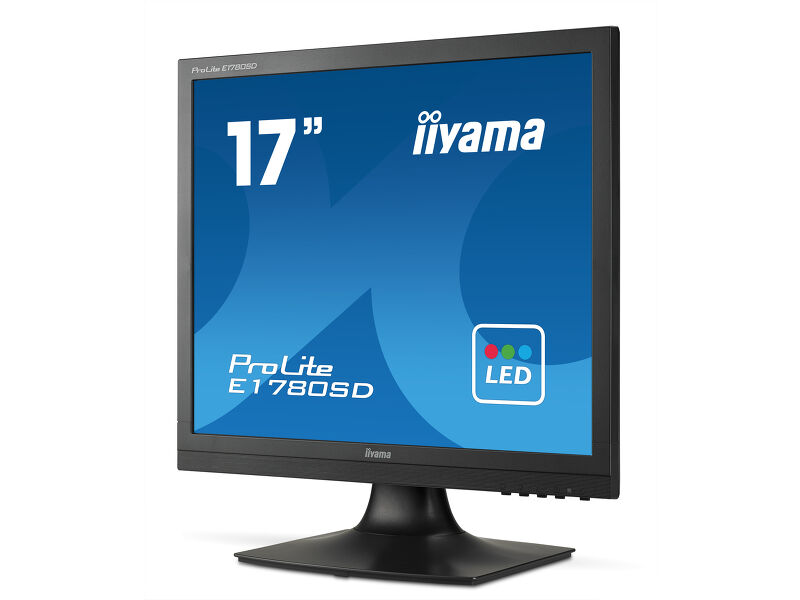

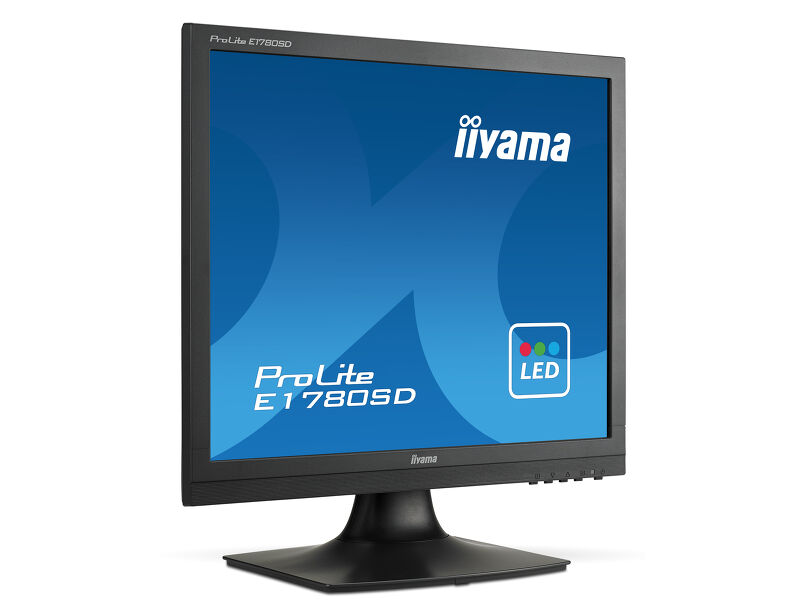

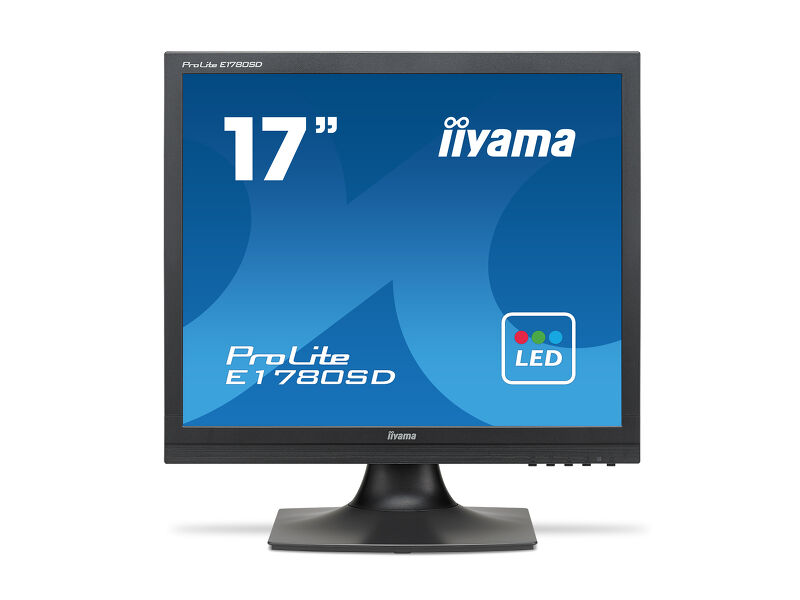

The 17’’ ProLite E1780SD is a LED-backlit monitor with good response time, high contrast and sRGB and gamma correction functions that permit even the finest nuances of colour to be set accurately. The ProLite E1780SD includes DVI and VGA connectivity and is available in black.
This LED monitor is equipped with two high quality stereo speakers.
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
| Diagonal | 17", 43cm |
| Panel | TN LED, matte finish |
| Native resolution | 1280 x 1024 (1.3 megapixel) |
| Aspect ratio | 5:4 |
| Panel brightness | 250 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 12M:1 |
| Response time (GTG) | 5ms |
| Viewing zone | horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 24 - 80kHz |
| Viewable area W x H | 337.9 x 270.3mm, 13.3 x 10.6" |
| Pixel pitch | 0.264mm |
| Colour | matte |

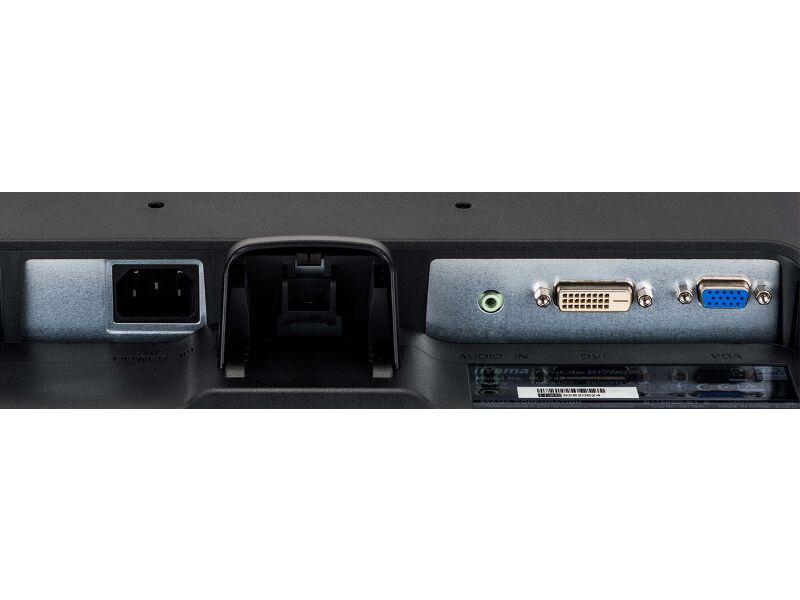

| Signal input |
VGA x1 DVI x1 |
| HDCP | yes |
| OSD languages | EN, DE, FR, CN, RU, JP, NL, PL |
| Control buttons | Power, Select / Input Button, Scroll Up / Audio Adjust Button, Scroll Down / i-Style Colour Button, Menu Button |
| Speakers | 2 x 1W |
| Display position adjustments | tilt |
| Tilt angle | 20° up; %2° down |

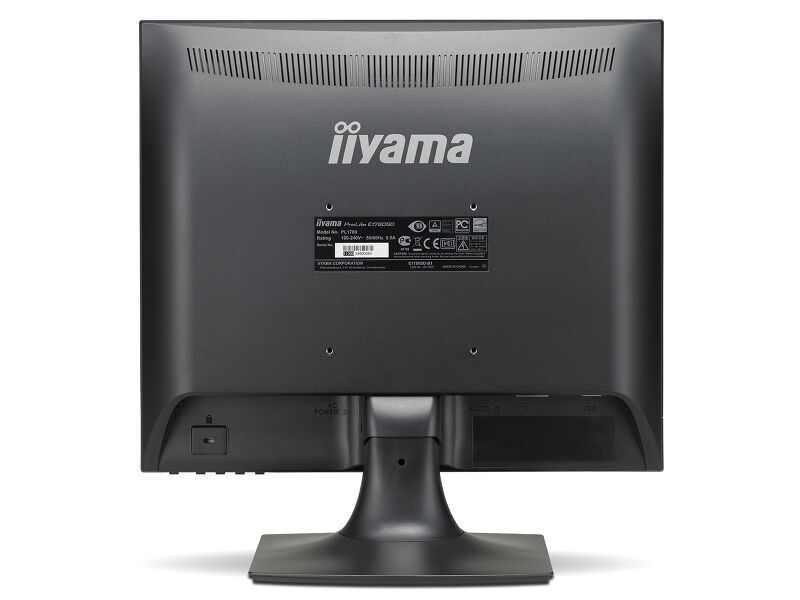

| VESA mounting | 100 x 100mm |
| Cables | power, DVI, Audio |
| Other | quick start guide, safety guide |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 14W typical, 0.5W stand by, 0.5W off mode |
| Regulations | CE, TÜV-Bauart, VCCI-B, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 370 x 379.5 x 178mm |
| Weight (without box) | 2.6kg |
| EAN code | 4948570113002 |
