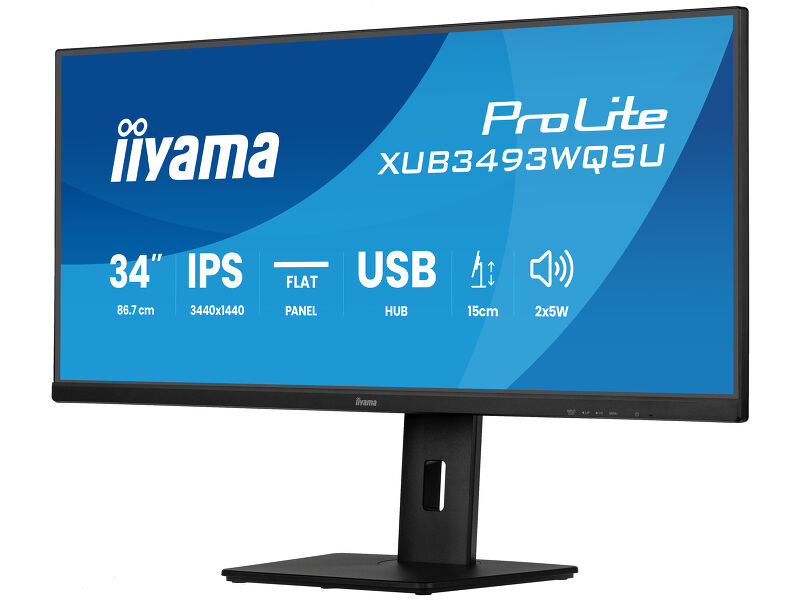

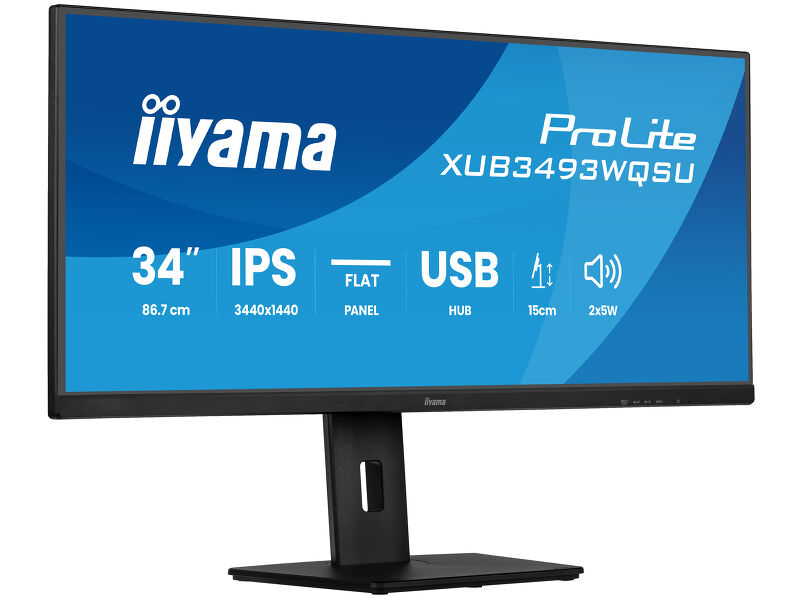

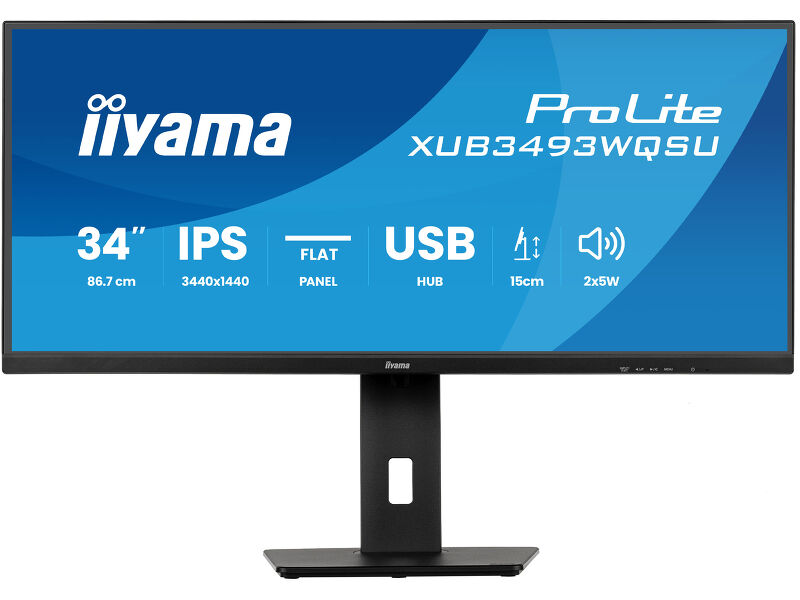

34” IPS ultra-wide flat screen with PiP, PBP and height adjustable stand
With a 21:9 UWQHD resolution, the ProLite XUB3493WQSU provides an extended desktop space ideal for working with multiple applications side by side. The IPS panel ensures accurate colour reproduction and wide viewing angles, suitable for both detailed work and media consumption. Equipped with Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities, the monitor allows you to display content from two different sources simultaneously. This is especially useful for professionals who need to monitor multiple systems or compare data across devices without the need for a second screen.
The 150 mm height-adjustable stand helps you maintain an ergonomic posture, while flicker-free technology and a blue light reducer contribute to reduced eye fatigue. The XUB3493WQSU offers a practical and flexible solution for users who value efficiency, clarity, and comfort.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.
PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
| Diagonal | 34", 86.7cm |
| Panel | IPS panel technology LED |
| Native resolution | 3440 x 1440 @120Hz (4.9 megapixel UWQHD) |
| Aspect ratio | 21:9 |
| Panel brightness | 400 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 80M:1 |
| Response time (MPRT) | 1ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit (sRGB: 100%, NTSC: 74%) |
| Horizontal Sync | 30 - 185kHz |
| Viewable area W x H | 799.8 x 334.8mm, 31.5 x 13.2" |
| Pixel pitch | 0.233mm |
| Colour | matte, black |

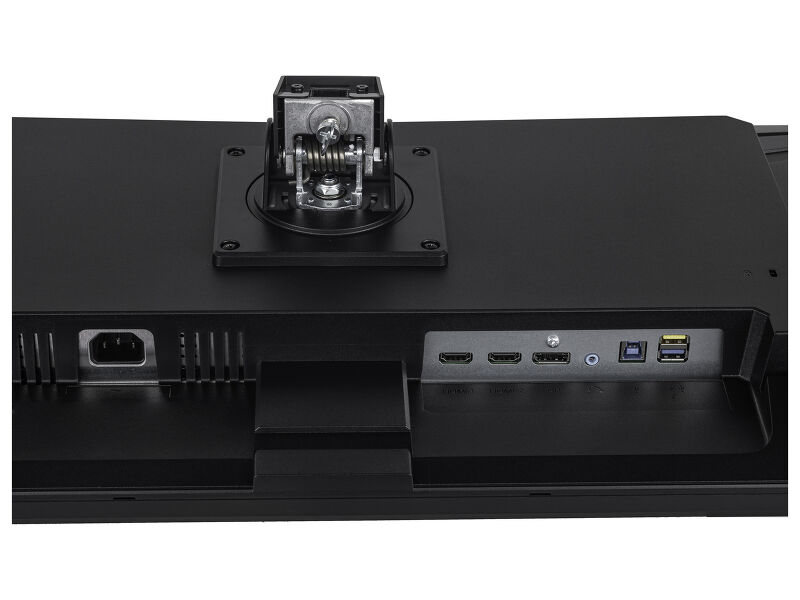

| Signal input |
HDMI x2 (v.2.0) DisplayPort x1 (v.1.2) |
| USB HUB | x4 ((2x Type A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type C (5Gbps, 7.5W))) |
| HDCP | yes |
| Blue light reducer | yes |
| Flicker free | yes |
| Adaptive Sync support | HDMI & Display Port: 3440 x 1440 @48-120Hz |
| HDR | yes |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |

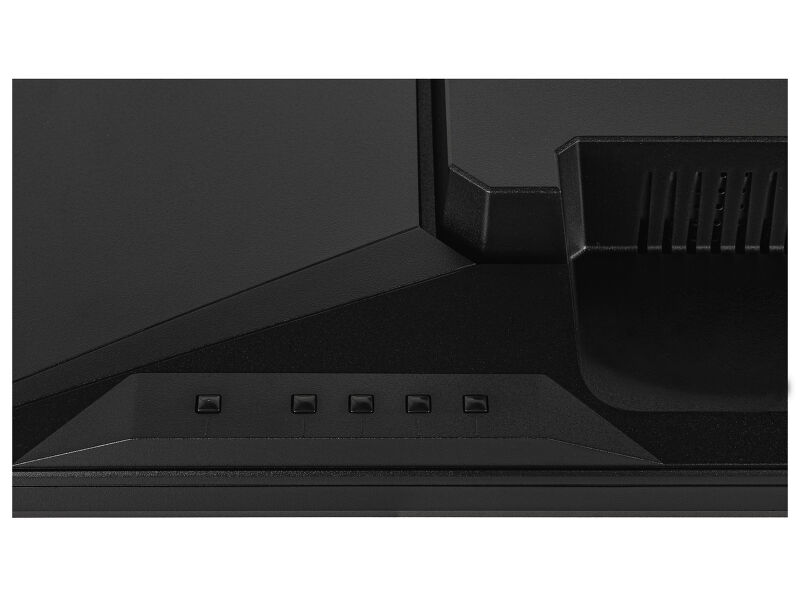

| Control buttons | Power, Menu, Adjust/Volume/Mute, Adjust/Shortcut, Input/Exit |
| User controls | picture (video mode adjust, brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-res Technology ), colour adjust (colour temperature, user colour, i-Style colour, blue light reducer, gamma), PiP/PbP (PiP/PbP mode, sub win input, PiP size, PiP position, swap, audio input), input select (input source), audio (volume, mute), language, OSD (OSD H. position, OSD V. position, OSD background, OSD time out), setup menu (reset, USB charge, DDC/CI Control, HDMI range, HDR, Adaptive Sync, motion blur red., opening logo, power LED, information |
| Speakers | 2 x 5W |
| Convenience | Kensington-lock™ prepared, DDC/CI, Mac OSX |

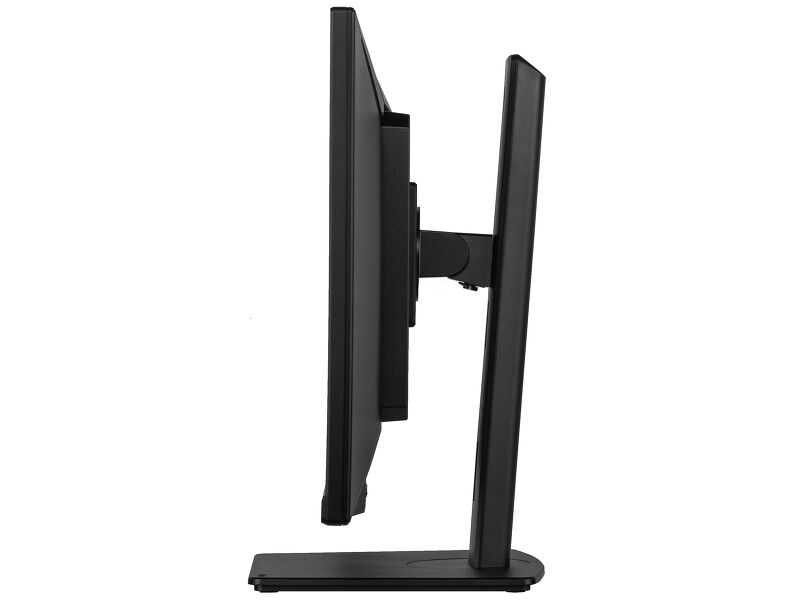

| Display position adjustments | height, swivel, tilt |
| Height adjustment | 150mm |
| Swivel stand | 90°; 45° left; 45° right |

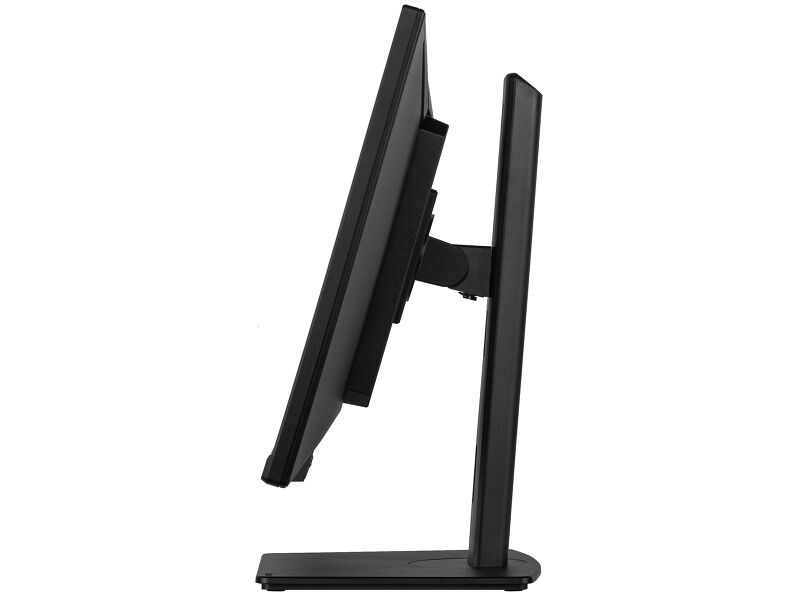

| Tilt angle | 23° up; 5° down |

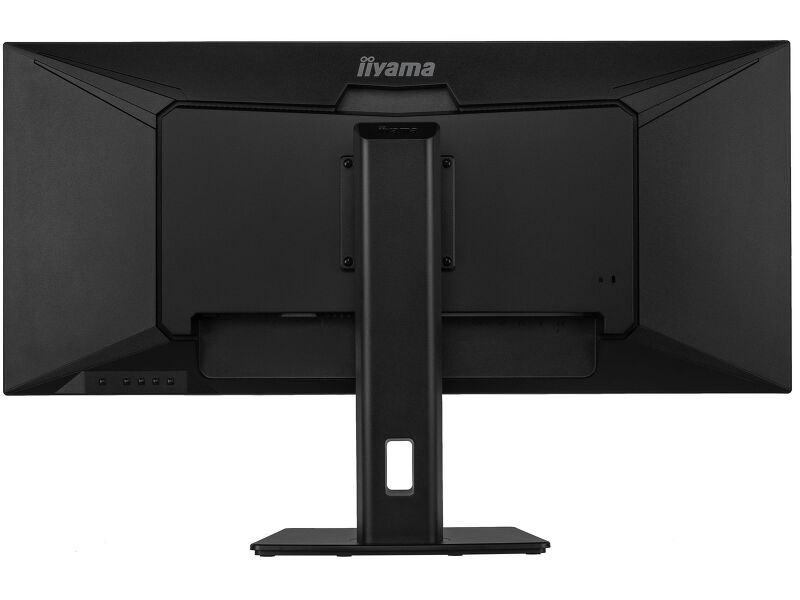

| VESA mounting | 100 x 100mm |
| Cable management system | yes |

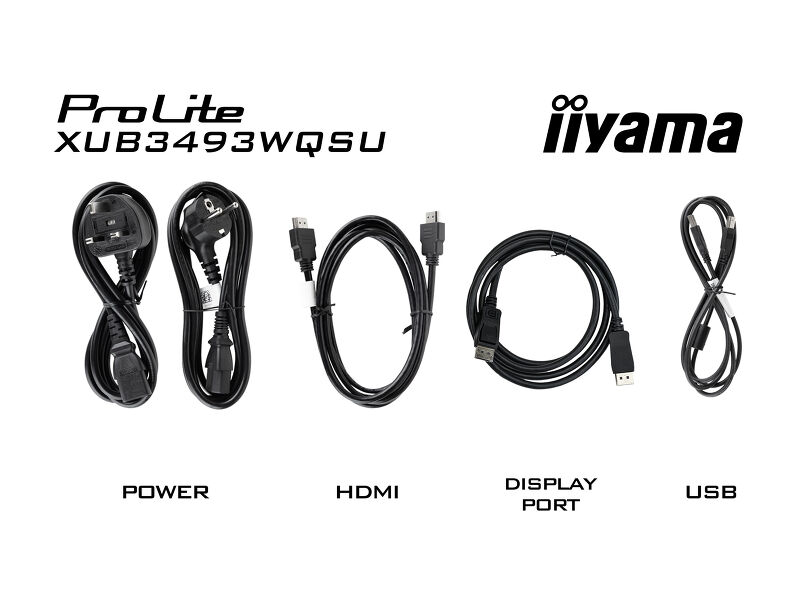

| Cables | power, USB, HDMI, DP |
| Other | quick start guide, safety guide |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 44W typical, 0.5W stand by, 0.3W off mode |
| Regulations | CE, TÜV-GS, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 817 x 428.5 (572.5) x 245.5mm |
| Box dimensions W x H x D | 900 x 188 x 456mm |
| Weight (without box) | 9.6kg |
| Weight (with box) | 11.9kg |
| EAN code | 4948570125609 |
Yes, Adaptive Sync is compatible with AMD FreeSync and NVIDIA G-Sync.
MBR cannot be selected when FreeSync/AdaptiveSync is activated, because MBR can interfere with the FreeSync/Adaptive Sync technology as they have different methods of improving motion clarity. MBR reduces motion blur (response time), while Adaptive Sync/FreeSync addresses stuttering. We recommend activating Adaptive Sync/FreeSync on systems with fluctuating or unstable frame rates. MBR performs best on powerful systems that maintain a consistently high frame rate.
If your monitor is displaying a "No Signal" message, please check the following:
1. Ensure the cables are properly connected at both ends.
2. Select the correct signal input (HDMI/DP) or choose AUTO.
For guidance on selecting an input while the screen is in standby mode, please consult the user manual. On desktop monitors, common methods include pressing the INPUT, AUTO, or "2" buttons, or moving the joystick backward.
Yes, your iiyama monitor will work with your Apple Mac system. However, it depends on the signal input how to connect. Since Apple Mac systems from 2020 onwards only have Thunderbolt 3 (USB-C) ports for video output, you have two options:
1. Connect directly to the USB-C signal input on your iiyama monitor.
2. In case your monitor only has HDMI or Displayport, you will need a Mac-compatible dongle that supports one of the video inputs available. Apple offers a USB-C Digital AV Multiport Adapter (MW5M3AM) that can be used for this purpose.
To resolve the issue of a blinking picture, please follow these steps:
1. Inspect the Signal Cable.
Ensure the signal cable is securely connected at both ends and free from any physical damage. Avoid any sharp bends or squishing of the cable.
2. Use a Shorter Cable.
If possible, use a cable shorter than 3 meters and connect the monitor directly to a wall power socket, avoiding the use of adapters.
3. Disable FreeSync/Adaptive Sync.
For desktop or gaming monitors, try disabling FreeSync or Adaptive Sync in the monitor's settings menu.
