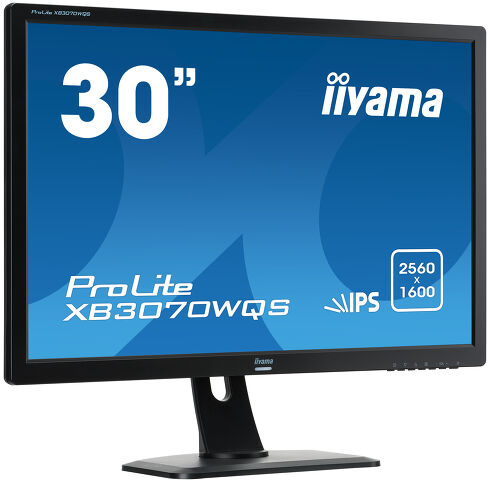

ProLite XB3070WQS-B1 (EOL)

30” AH-IPS LED-backlit screen capable of displaying 109% AdobeRGB, 146% sRGB and 104% NTSC colours

The high colour gamut iiyama XB3070WQS is the perfect choice for graphic and web-design. It features WQS (2560 x 1600) resolution offering huge workspace allowing users to display and manipulate multiple applications at the same time. The AH-IPS matrix guarantees high performance with accurate and consistent colour reproduction, wide viewing angles and a fast response time. Optimal viewing comfort is guaranteed by the height adjustable stand.

WQS

16: 10; 2560 x 1600 ( 4.1 megapixel)
AH-IPS

The AH-IPS panel technology guarantees consistent colour reproduction with wide viewing angles and high contrast and therefore it is especially recommended for graphics design and other applications which require colours to be displayed accurately. The response time of the panel allows for smooth playback while watching films and playing games, making the IPS the best all-round technology suitable for both business and home use.
High colour gamut

Colour gamut tells you how large the colour range of a monitor is. High colour gamut panels can display a wider range of truly deep and vivid colours.
Height Adjustable Stand

A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.
Speakers and headphones

Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

O
Technical specification

Show all Hide all

DISPLAY CHARACTERISTICS

Diagonal	30", 75.6cm
Panel	AH-IPS LED, matte finish
Native resolution	2560 x 1600 (4.1 megapixel WQS)
Aspect ratio	16:10
Panel brightness	350 cd/m²
Static contrast	1 000:1
Advanced contrast	5M:1
Response time (GTG)	5ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln (AdobeRGB: 109%, sRGB: 146%, 104% (NTSC))
Horizontal Sync	24 - 80kHz
Viewable area W x H	641.3 x 400.8mm, 25.2 x 15.8"
Pixel pitch	0.251mm
Colour	matte

INTERFACES / CONNECTORS / CONTROLS

Signal input	VGA x1 DVI x1 HDMI x1 DisplayPort x1
HDCP	yes
Headphone connector	yes

FEATURES

Blue light reducer	yes
Flicker free	yes
OSD languages	EN, DE, FR, CN, RU, JP, NL, PL
Control buttons	Power, Volume +, Volume -, Input/ Select/ Blue Light Reducer, Scroll up/ Colour Adjust, Scroll down/ i-Style Colour, Menu
User controls	picture (brightness, contrast, ACR, ECO mode, OD), input select, audio (volume, mute, audio input), colour adjust, information, manual image adjust (H./V. position, clock, phase, sharpness, video mode adjust, blue light reducer), setup menu (OSD setup menu, language, opening logo, LED, auto image adjust, memory recall)
Speakers	2 x 3W
Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX

MECHANICAL

Display position adjustments	height, swivel, tilt
Height adjustment	107mm
Swivel stand	90°; 45° left; 45° right
Tilt angle	17° up; 0° down
VESA mounting	100 x 100mm
