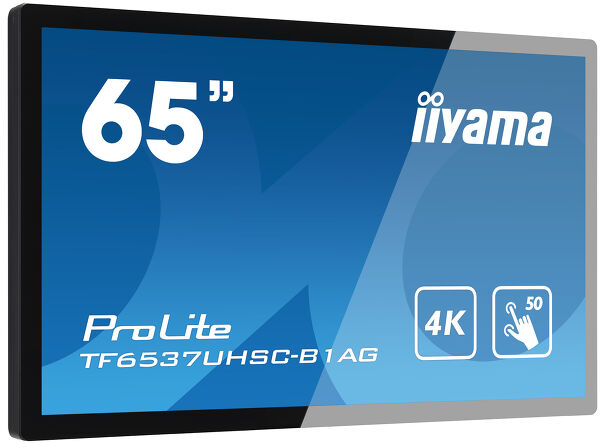

65" 4K PCAP touchscreen built into an eye catching edge-to-edge glass bezel
The ProLite TF6537UHSC-B1AG is an excellent 4K (3840 x 2160 pixels) 65" display, offering a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch) the monitor displays an incredibly sharp and crisp image. With Projective Capacitive 50 point touch technology, the ProLite TF6537UHSC-B1AG delivers seamless and accurate touch response. Featuring an IPS Edge LED LCD screen technology, it offers exceptional colour performance and wide viewing angles. ProLite TF6537UHSC-B1AG is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks and Interactive Presentations.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
24/7 displays are designed for a continuous operation.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Palm rejection is a way to disregard signal from finger while using the pen mode. When you touch the screen with a pen, and your palm is touching the monitor, palm rejection is activated and the screen does not recognize touch made with the finger. If the screen is not touched for 1 second, it will automatically return to the finger mode.
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
|Panel||IPS LED, AG coated glass|
|Native resolution||3840 x 2160 ((RGBW) 8.3 megapixel)|
|Brightness||500 cd/m² typical|
|Brightness||400 cd/m² with touch|
|Static contrast||1000:1 typical|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||30 - 135KHz|
|Vertical Sync||24 - 75Hz|
|Viewable area W x H||1430.4 x 805.6mm, 56.3 x 31.7"|
|Bezel colour and finish||black|
|Touch technology||projective capacitive|
|Touch points||50 (multitouch (50 compatible touch points - HID, only with supported OS), activated by finger)|
|Touch interface||USB, RS-232c|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||
|Digital signal output||DisplayPort x1|
|Audio output||Speakers 2 x 8W|
|Max. non-stop operating time||24/7|
|60950 Ball drop test||yes|
|OSD languages||EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL|
|Control buttons||Power, Left/ Volume+, Right/ Volume-, Auto/Exit, Input Select/OK, Menu|
|User controls||display mode, display function (disp rotate, LR ratio, input swap, PIP position, PIP transparancy, PIP size) select region, picture (backlight, brightness, contrast, sharpness) colour (gamma, temperature, colour effect, colour format, hue, saturation) advance (aspect ratio, over scan, DP option, DP MST) input, audio (volume, mute, audio source) schedule (schedule on/off, current time, timer set, input select, reset) other (reset, menu time, OSD H. position, OSD V. position, language, transparancy, rotate, border width, border colour, fan, model info, LAN, wake up, serial, logo, auto power down) information|
|Plug&Play||DDC2B, Mac OSX|
|Orientation||landscape, portrait, face-up|
|Cables||power, USB, HDMI, DP|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||105W typical, 0.5W stand by, 0.5W off mode|
|Regulations||CE, TÜV-Bauart, CU|
|Energy efficiency class||A+|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||1530.5 x 905.5 x 67.5mm|
|Weight (without box)||60kg|
|Energy efficiency class||A+|
|Visible screen diagonal||164cm; 64.5"; (65" segment)|
|ON mode power consumption||108.4W|
|Annual energy consumption||158kWh/annum*|
|Power in Standby||0.5W stand by|
|Power in OFF Mode||0.5W off mode|
|Resolution||3840 x 2160|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
