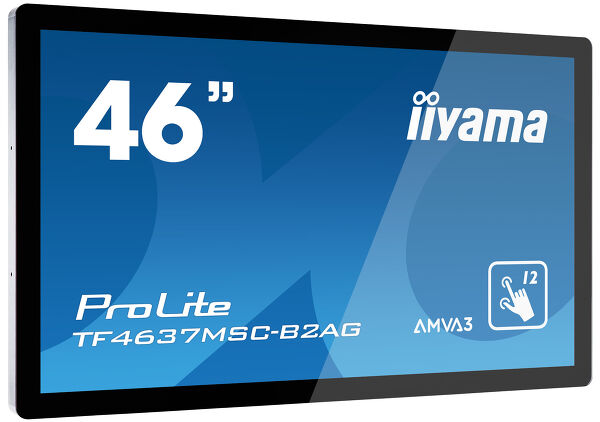

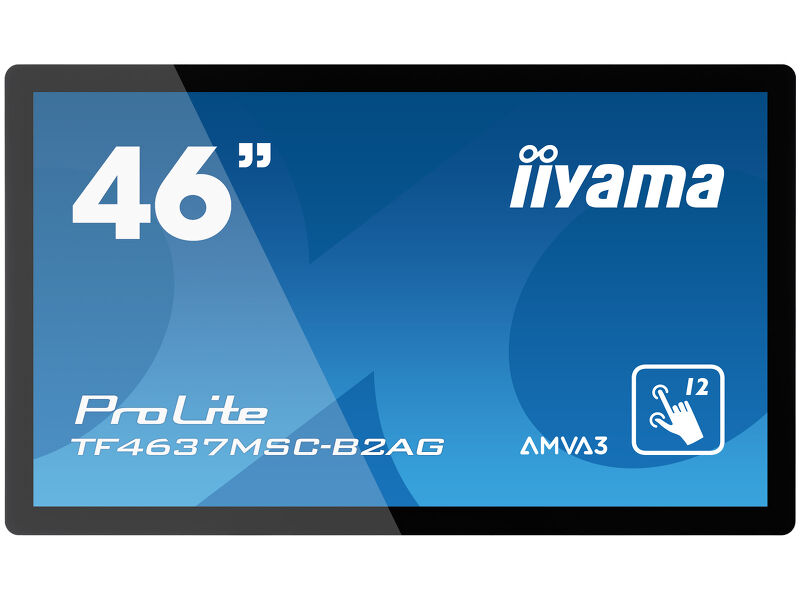

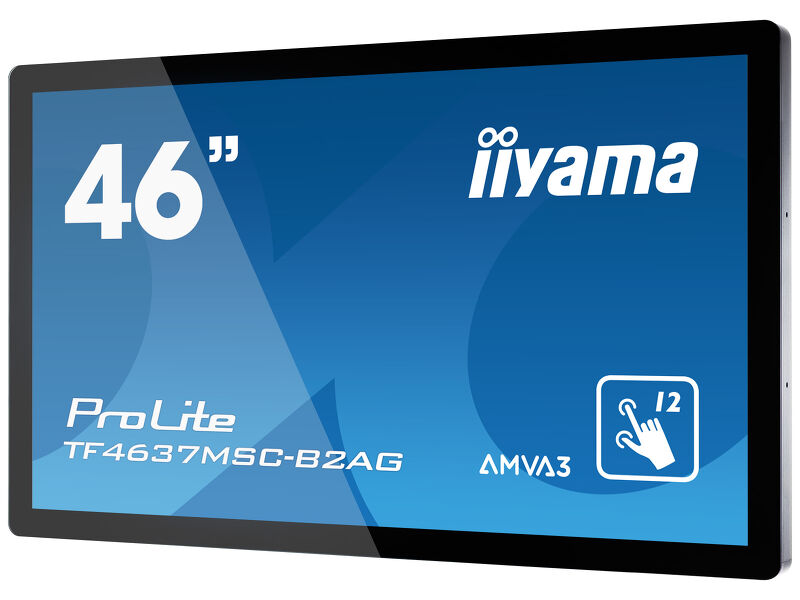

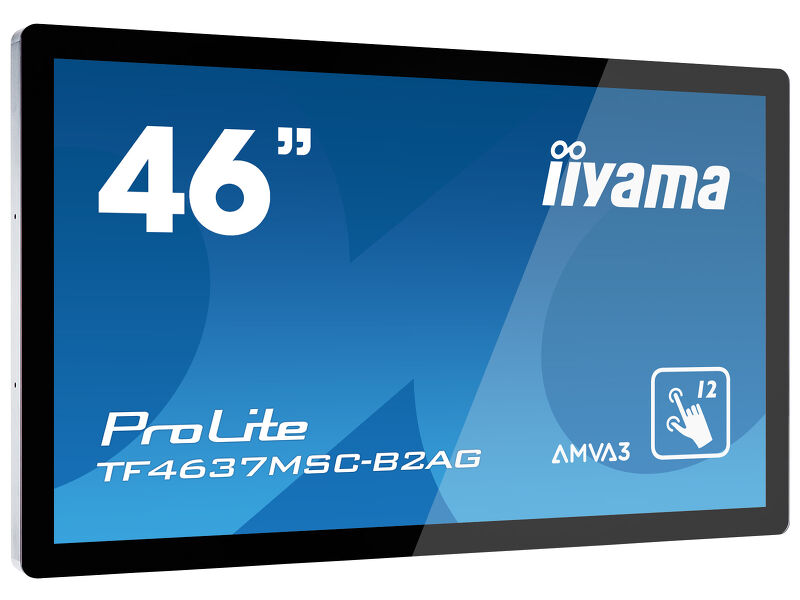

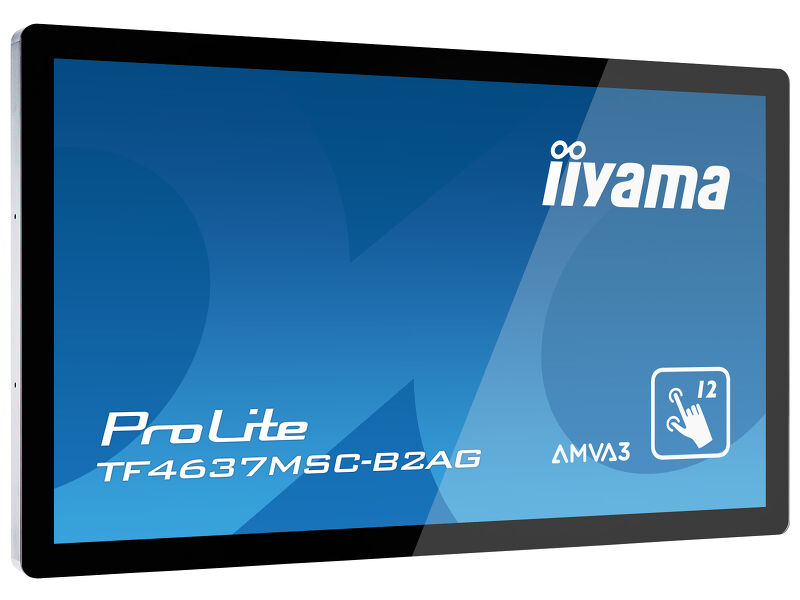

46" 12pt open frame PCAP touch monitor built into an eye catching bezel with edge-to-edge glass
With 1920x1080 Full HD resolution and Projective Capacitive 12 point touch technology, the ProLite TF4637MSC-B2AG delivers seamless and accurate touch response. Featuring an AMVA3 Edge LED LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with a rugged bezel and the panel withstands the 60950-1 ball drop test, making it suitable for demanding environments like table top integration. The open frame ProLite TF4637MSC-B2AG is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks, Gaming and Interactive Presentations.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Open frame monitors are an ideal solution for kiosk integrators and Instore Retail.
24/7 displays are designed for a continues operation.
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
|Panel||AMVA3 LED, AG coated glass|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||500 cd/m² typical|
|Brightness||420 cd/m² with touch|
|Static contrast||4 000:1 typical|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln (6bit + A-FRC)|
|Horizontal Sync||31.47 - 67.5KHz|
|Vertical Sync||47 - 63Hz|
|Viewable area W x H||1018.08 x 572.67mm, 40.1 x 22.5"|

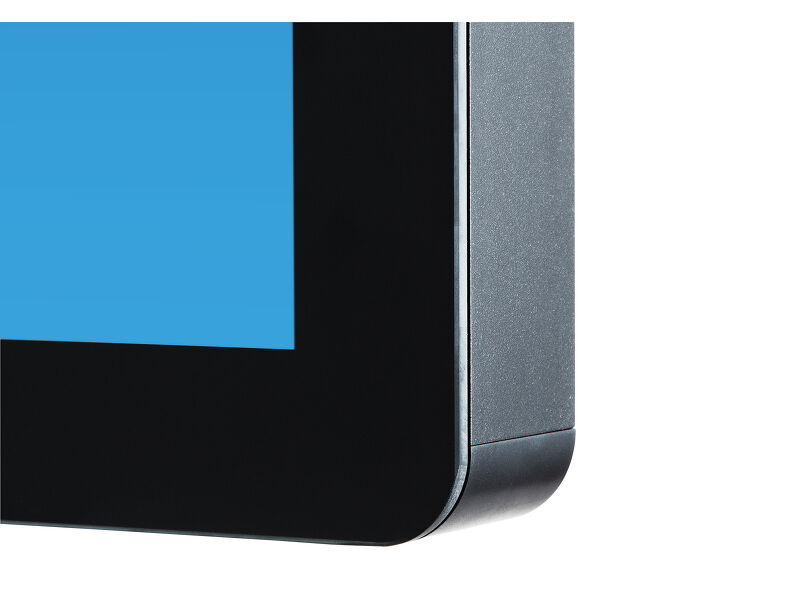

|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||12 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Touch interface||USB, RS232|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

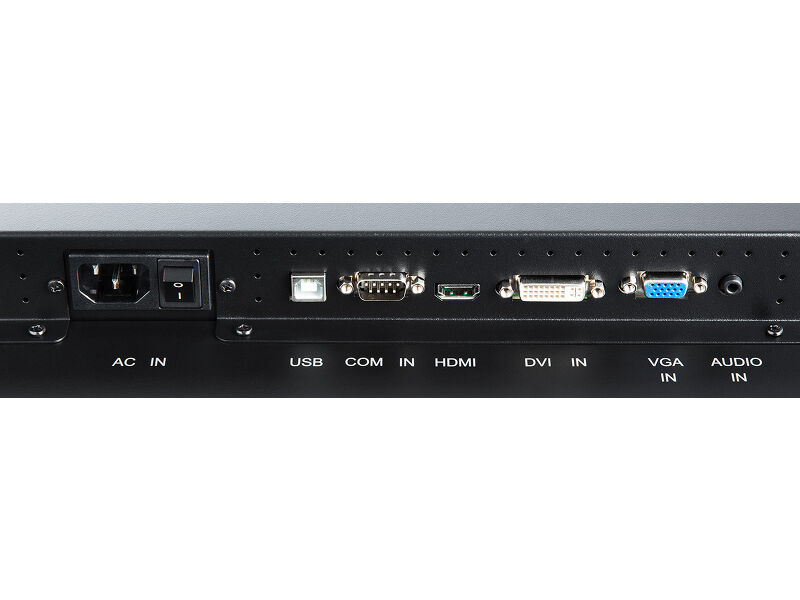

|Analog signal input||VGA (x1)|
|Digital signal input||DVI (x1), HDMI (x1)|
|Audio input||Mini jack (x1)|
|Monitor control input||IR (x1)|
|Audio output||Speakers (2 x 7W)|
|Max. non-stop operating time||24/7|
|60950 Ball drop test||yes|
|Impact testing||IP1 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, RU, NL, PL|

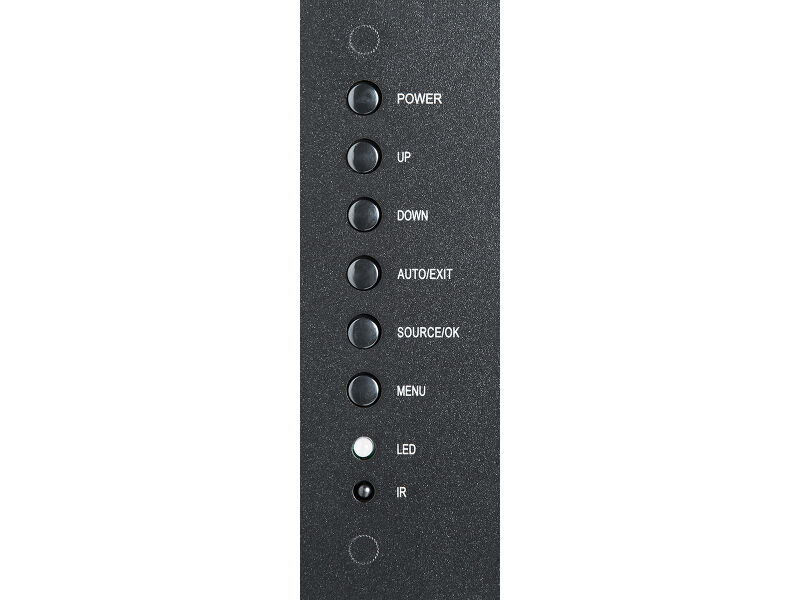

|Control buttons||Power, Scroll up/ Volume+, Scroll down/ Volume-, Auto/Exit, Input Select/OK, Menu|
|User controls||contrast, brightness, colour settings, display adjust (aspect ratio, gamma, sharpness, H. position, V. position, clock, phase, auto adjust) other settings (language, OSD time out, volume, mute, fan, anti image retention, opening logo, factory reset) schedule settings (date and time, timer day set, on timer input select, reset) input source, information|

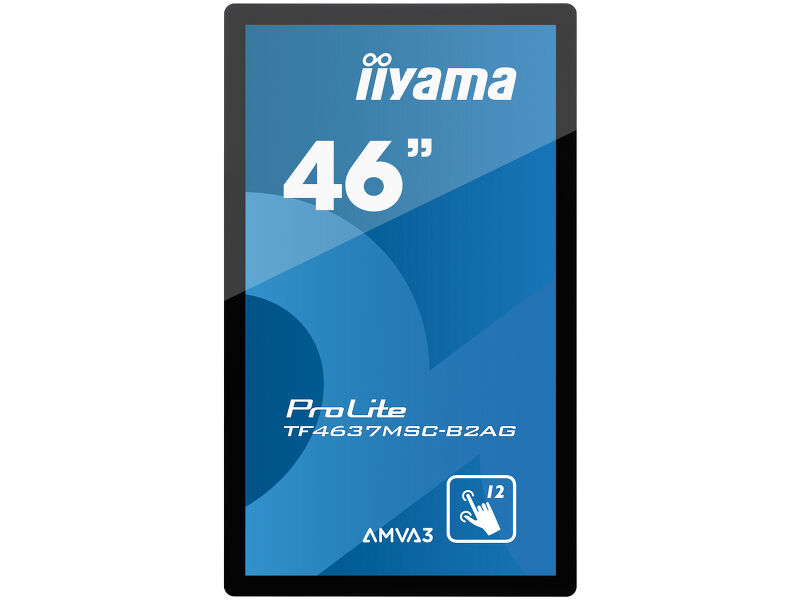

|Orientation||landscape, portrait, face-up|

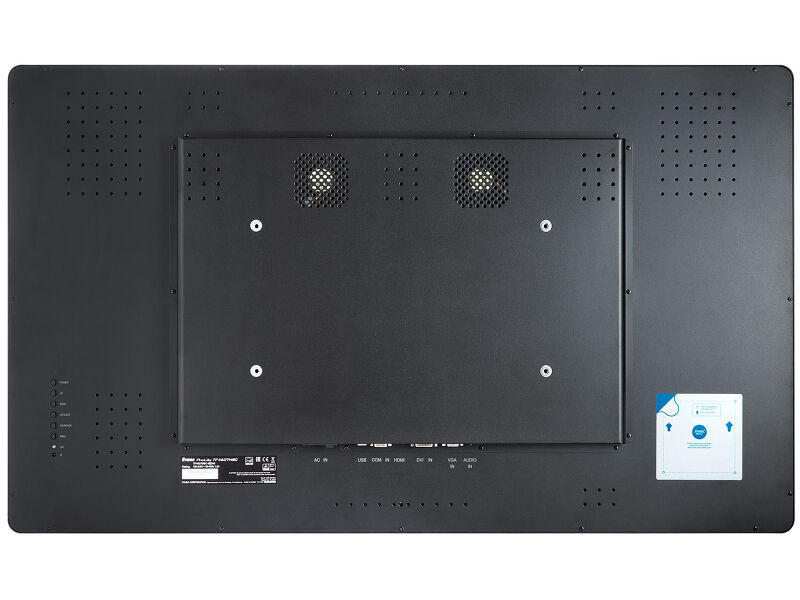

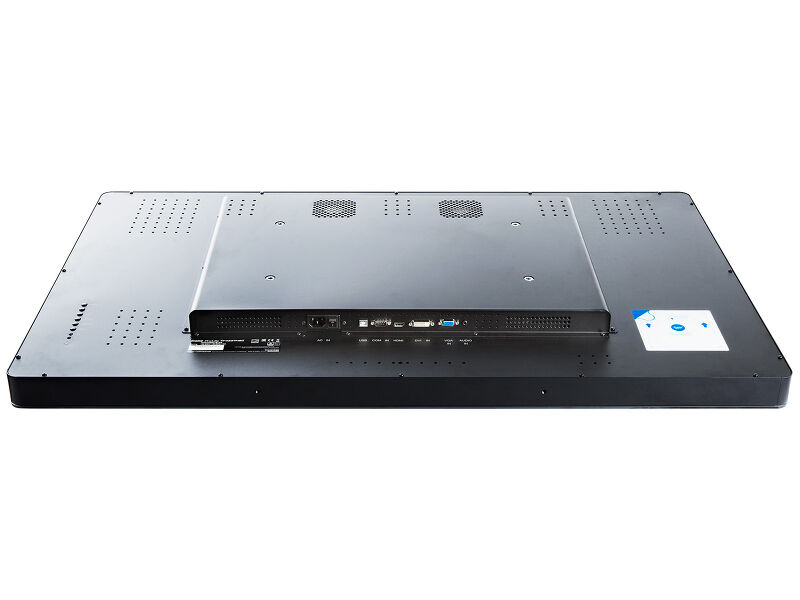

|VESA mounting||400 x 200mm|
|Cables||power, VGA, DVI, USB|
|Guides||quick start guide, safety guide|

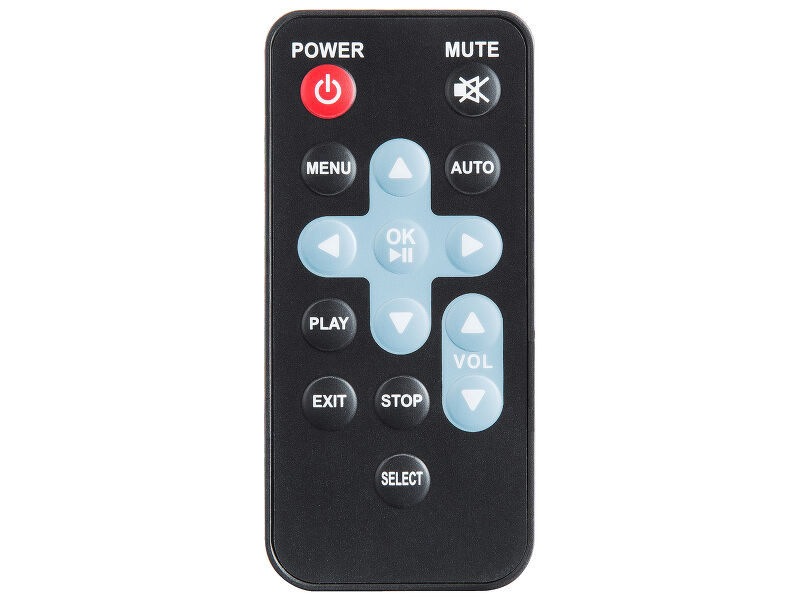

|Remote control||yes (batteries included)|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||90W typical, 0.5W stand by|
|Regulations||CE, TÜV-Bauart, CU|
|Energy efficiency class||B|

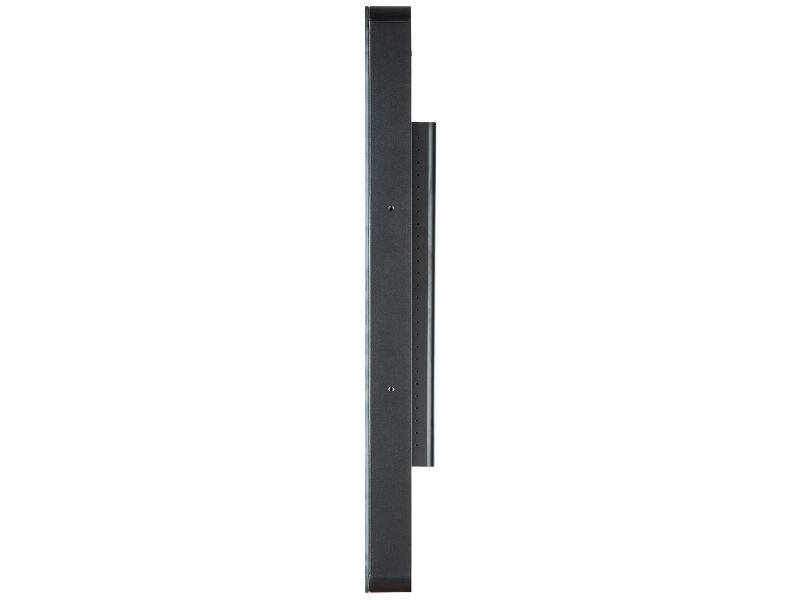

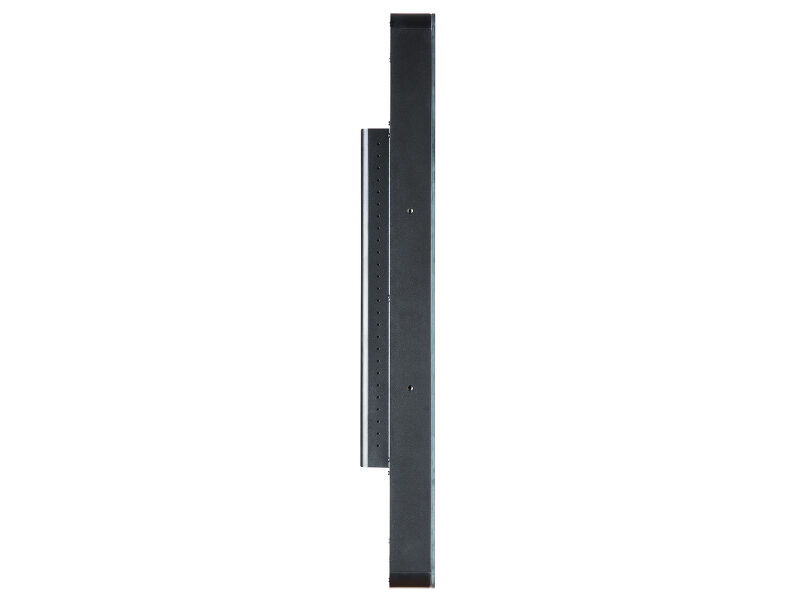

|Product dimensions W x H x D||1100 x 654.5 x 89mm|
|Weight (without box)||34kg|
|Energy efficiency class||B|
|Visible screen diagonal||117cm; 46"; (46" segment)|
