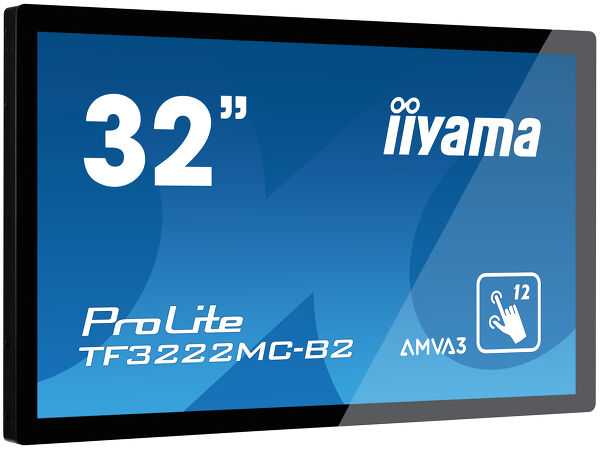

32” 12pt open frame touch monitor built into an eye catching slim bezel with high brightness
With 1920x1080 Full HD resolution and Projective Capacitive 12 point touch technology, the ProLite TF3222MC-B2 delivers seamless and accurate touch response. Featuring AMVA3 LED LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage. The high brightness (500cd/m²) ensures crispy and clear images, resulting in outstanding information transmission performance, even in bright environments. In addition to the superb image quality, the screen comes with a rugged bezel, making it suitable for demanding environments. The open frame ProLite TF3222MC-B2 is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks, Gaming and Interactive Presentations.
AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Palm rejection is a way to disregard signal from finger while using the pen mode. When you touch the screen with a pen, and your palm is touching the monitor, palm rejection is activated and the screen does not recognize touch made with the finger. If the screen is not touched for 1 second, it will automatically return to the finger mode.
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
|Panel||AMVA3 Edge LED|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||500 cd/m² typical|
|Brightness||425 cd/m² with touch|
|Static contrast||3000:1 typical|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||31.47 - 67.5KHz|
|Vertical Sync||47 - 63Hz|
|Viewable area W x H||698.4 x 392.8mm, 27.5 x 15.5"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||12 (HID, only with supported OS)|
|Touch method||capacitive stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||DVI x1|
|Max. non-stop operating time||20/7|
|Water and dust protection||IP54 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, RU, NL, PL|
|Control buttons||Menu, Scroll up/ Left, Scroll down/ Right, Return/ Exit/ Input, Power|
|User controls||picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H. position, V. position, clock, phase), colour (temp, picture mode), advanced (aspect, image retention, OSD rotation, opening logo), input, other (reset, OSD time, OSD H. position, OSD V. position, language), information|
|VESA mounting||200 x 200mm|
|Cables||power, VGA, USB|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||48W typical, 1.5W stand by, 1.5W off mode|
|Regulations||CB, CE, TÜV-Bauart, CU, cULus|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||748.5 x 450 x 63mm|
|Weight (without box)||12.8kg|
