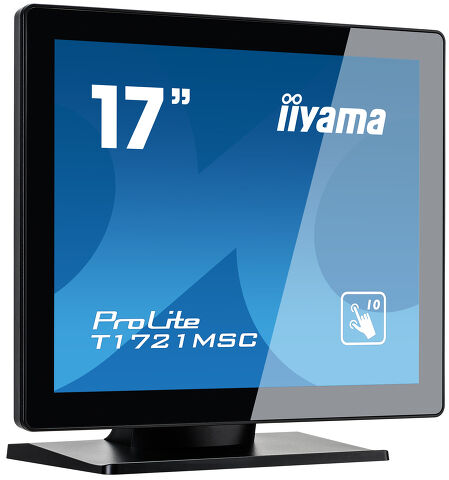

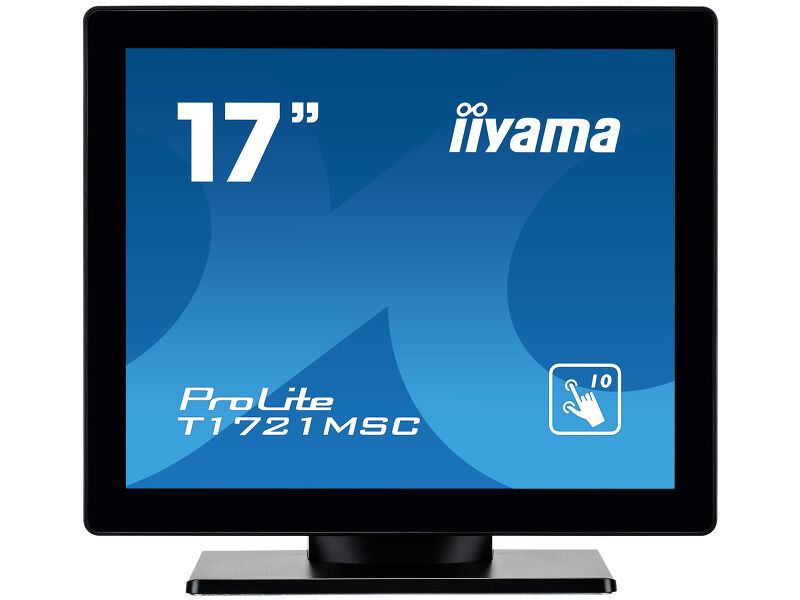

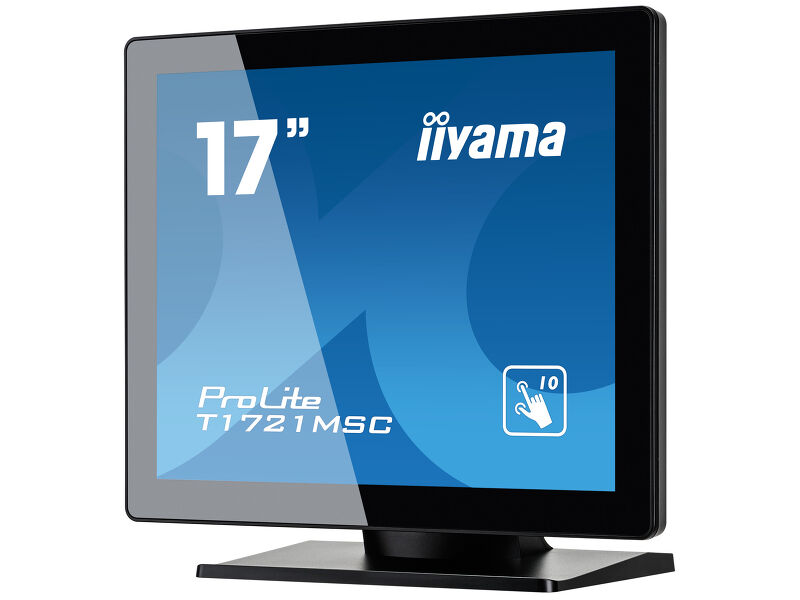

17" touchscreen featuring 10 touch points and PCAP technology

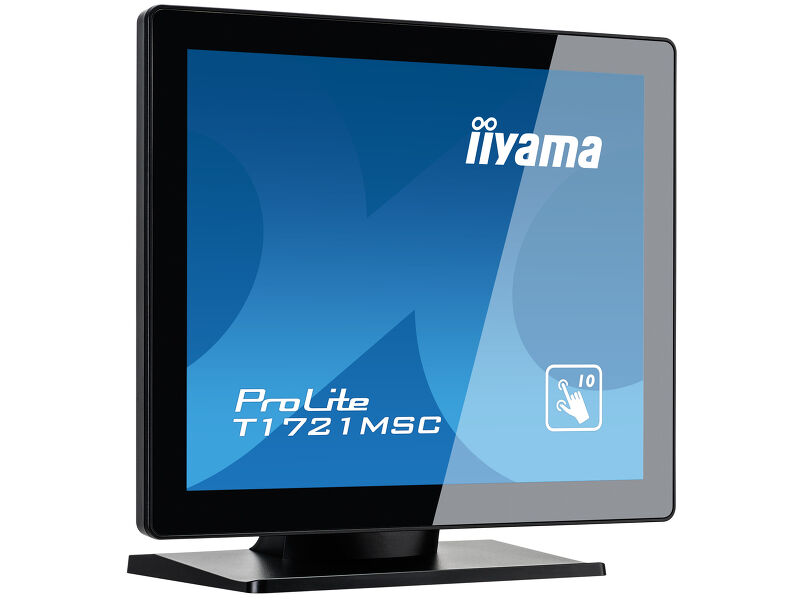

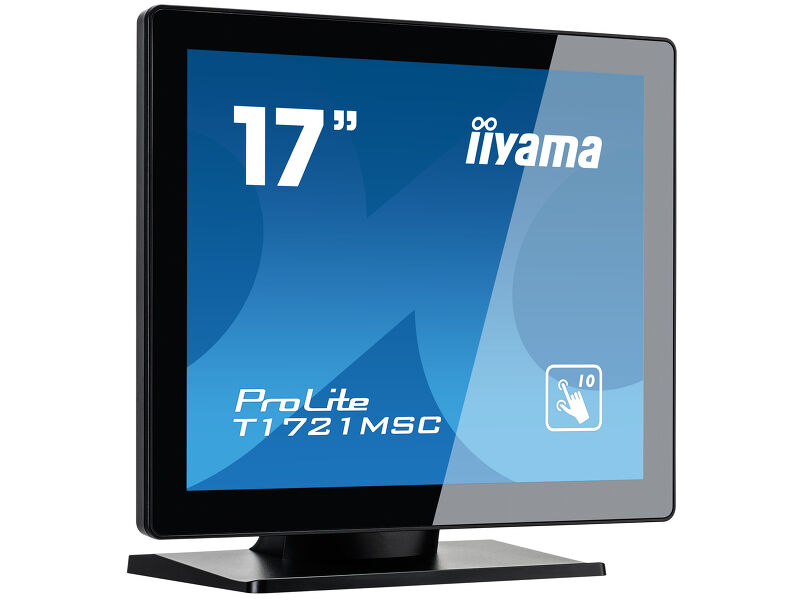

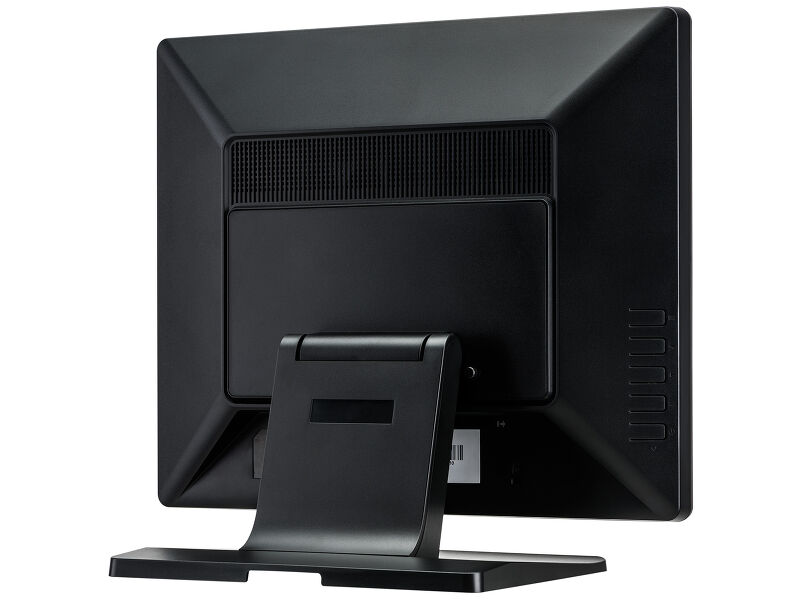

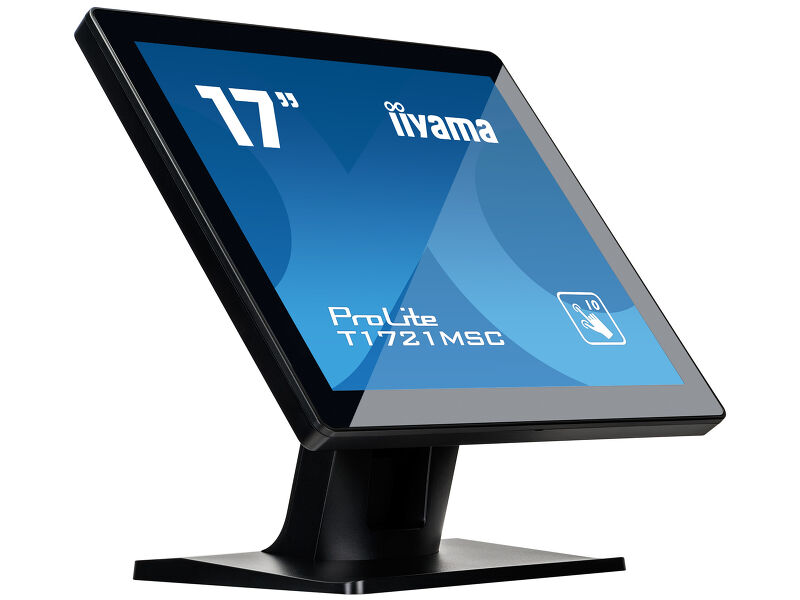

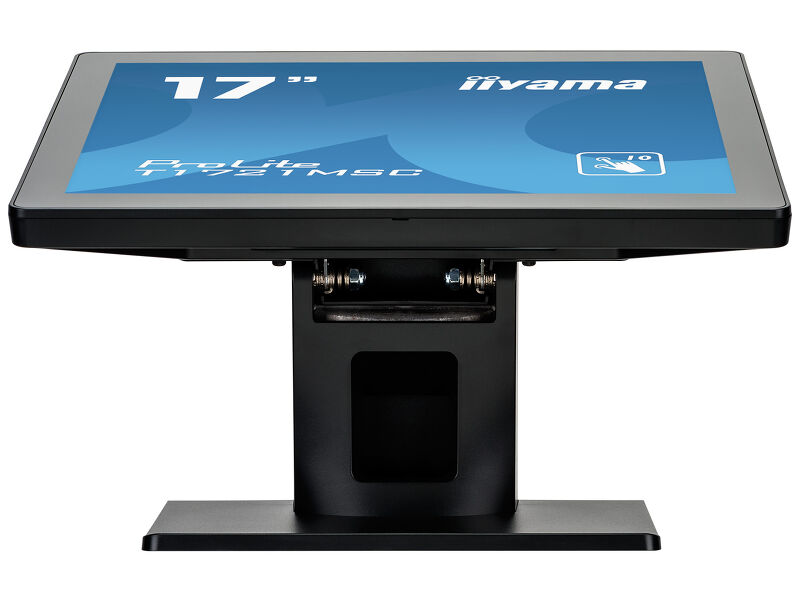

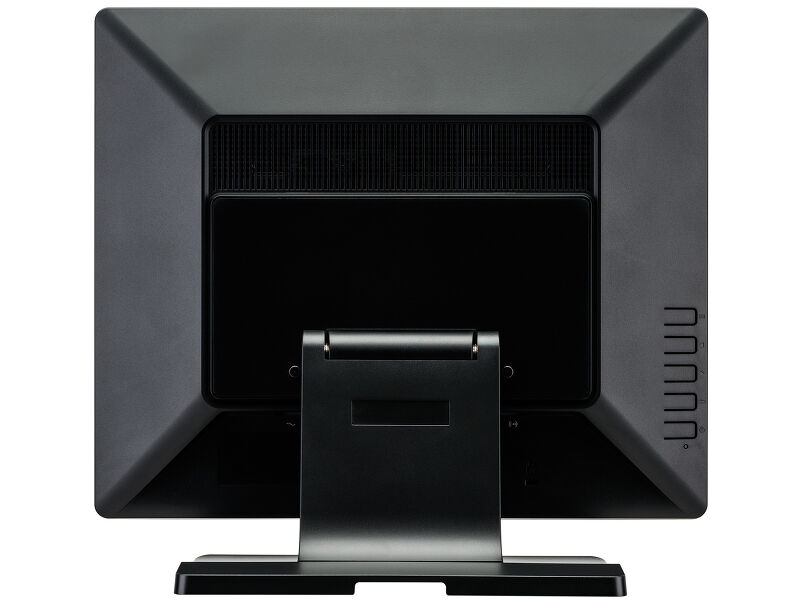

The ProLite T1721MSC-B1 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B1 is an incredibly powerful touch solution, perfect for instore retail purposes.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
This LED monitor is equipped with two stereo speakers.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
|Design||Edge to edge glass|
|Native resolution||1280 x 1024 (1.3 megapixel)|
|Panel brightness||250 cd/m²|
|Brightness||215 cd/m² with touch|
|Response time (GTG)||5ms|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Horizontal Sync||31.4 - 80kHz|
|Viewable area W x H||338 x 270.5mm, 12 x 9"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

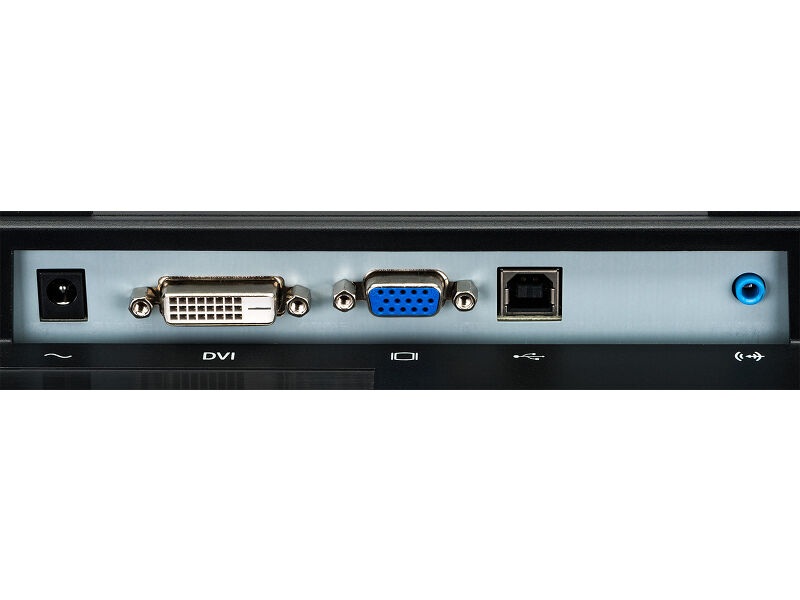

|Analog signal input||VGA x1|
|Digital signal input||DVI x1|
|Audio output||Speakers 2 x 2W|
|Water and dust protection||IPX3 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|

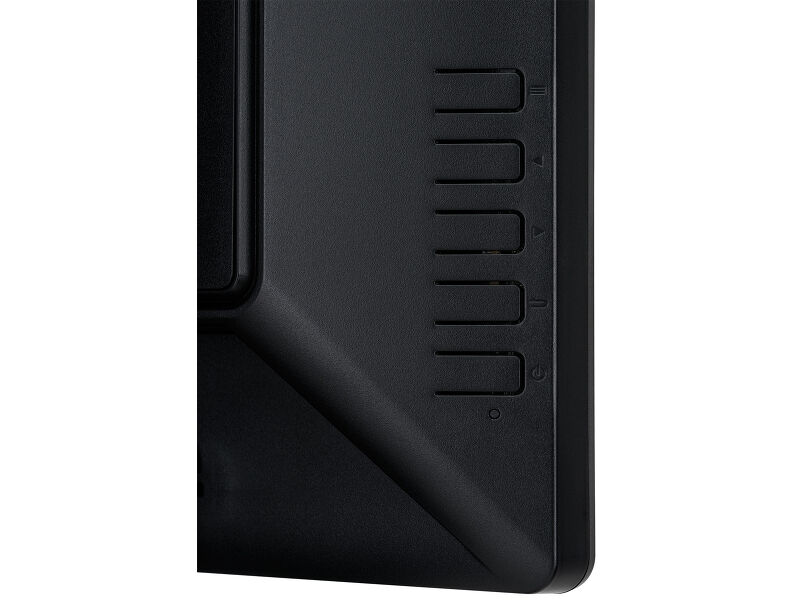

|Control buttons||Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power|
|User controls||picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute) other (reset, OSD time, OSD H position, OSD V position, language) information|

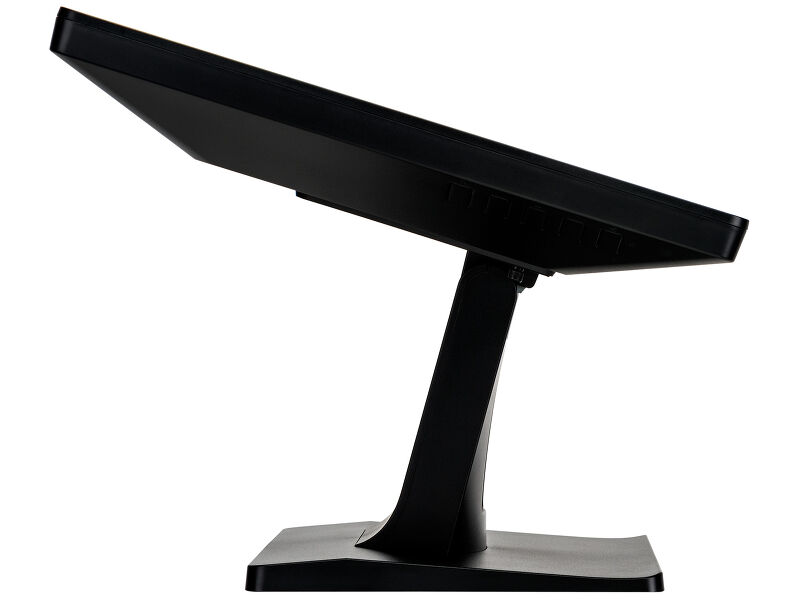

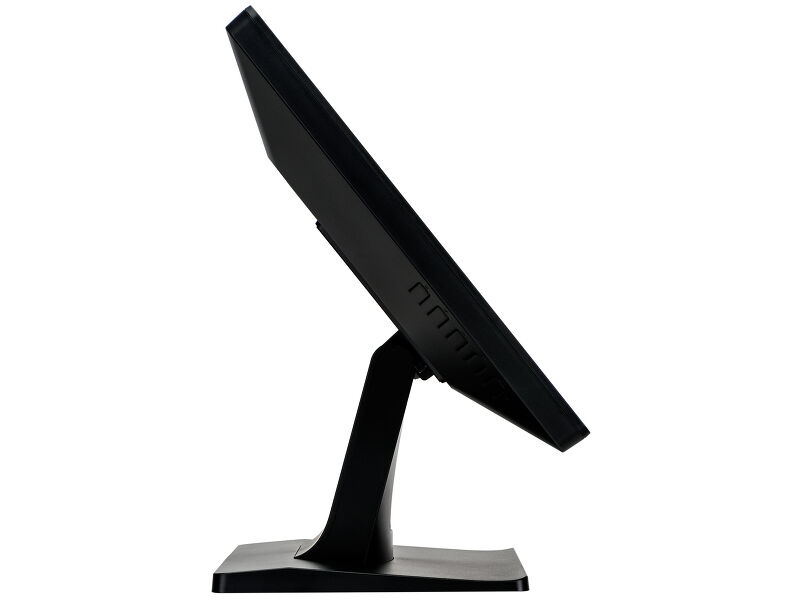

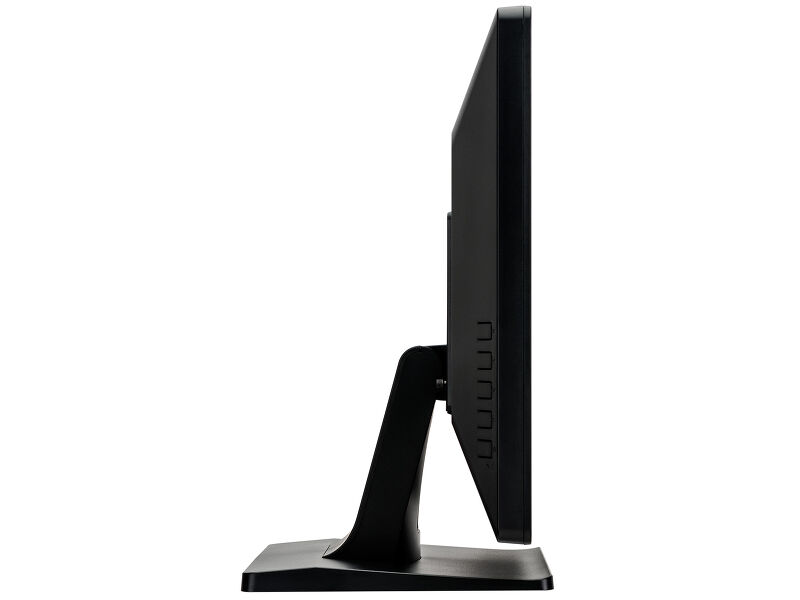

|Tilt angle||70° up; 10° down|
|VESA mounting||100 x 100mm|
|Cable management system||yes|

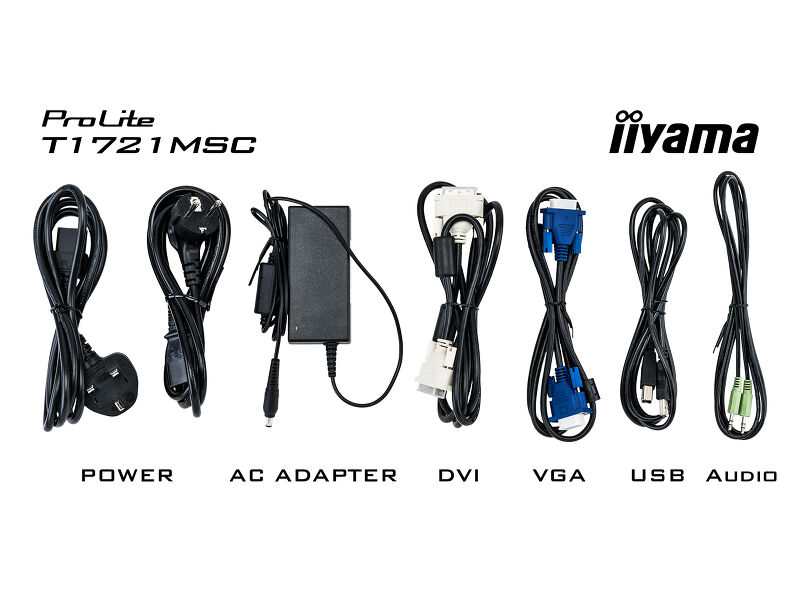

|Cables||power, VGA, DVI, USB, Audio|
|Guides||quick start guide, safety guide|
|Other||AC adapter, mylar sheet (for VESA mount)|
|Power supply unit||external|
|Power supply||DC 12 V|
|Power usage||20W typical, 3W stand by, 3W off mode|
|Regulations||CE, TÜV-Bauart, RoHS support, ErP, WEEE, cULus, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||F|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||392.5 x 364 x 198mm|
|Weight (without box)||4.4kg|
