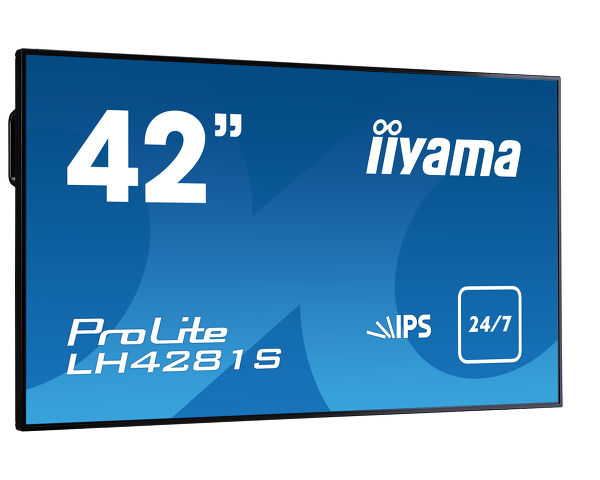

42” large format display, 24/7 operation and OPS PC slot
The professional appearance of the ProLite LH4281S incorporates a slim design featuring a sleek bezel. Featuring IPS panel technology this elegant display ensures exceptional colour accuracy and vivid, life-like quality from all angles. The LED-backlit technology guarantees low power consumption and reliable long-term operation. Built in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications. Landscape and Portrait friendly, ProLite LH4281S is designed for a continuous operation. Perfect for true impact in Digital Signage and an ideal solution for a video wall set-up.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Build in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.
A daisy chain is a wiring scheme in which multiple devices are wired together in sequence or in a ring. It enables a connection of a series of devices using a single connection between each two devices, using DisplayPort/HDMI input and a DisplayPort/HDMI output. The output connects to the next downstream display. This cabling arrangement, with one DisplayPort/HDMI cable between each set of monitors, provides a simple, less cluttered system configuration.
LAN control enables making adjustments in the display OSD menu through your network (software not included).
|Aspect ratio||16 : 9|
|Panel||IPS LED, matte finish|
|Native resolution||Full HD 1080p, 1920 x 1080 ( 2.1 megapixel)|
|Brightness||500 cd/m² typical|
|Contrast||1 300 : 1 typical|
|Viewing zone||horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up/down: 89°/ 89°|
|Display area h x w||521.96 x 927.94 mm; 20.5" x 36.5"|
|Pixel pitch h x v||0.4833 x 0.4833 mm|
|Horizontal sync||30 - 83kHz|
|Vertical sync||50 - 76Hz|
|Display colours||1.07 billion|
|Max. non-stop operating time||24 hours/day|
|Expansion solution||OPS slot|
|Video IN||VGA, DVI, 2xHDMI, DisplayPort, Comp. RCA|
|Video OUT||DVI, DisplayPort 1.2 (daisy chain)|
|Audion IN||RCA (L/R), MiniJack|
|Audio OUT||RCA (L/R), MiniJack, speakers|
|Controls||RS232C (IN/OUT), RJ45 (LAN), IR (IN/OUT)|
|USB Media Player||yes|
|Inputs||USB 2.0 (media playback / peripherals)|
|Plug & Play||VESA DDC2B™|
|Controls||On-Screen-Display in 14 languages (EN, DE, NL, FR, IT, ES, RU, PL, CZ, TU, Chinees, PT, Arabic, JP) controlled by back controls or a remote control|
|User controls||picture (picture style, restore style, backlight, colour, sharpness, noise reduction, MPEG artifact reduction, digital crystal clear, advanced, game or computer, format and edges) sound (sound style, restore style, bass, treble, balance, surround mode, audio out, advanced) tiling (enable, H. monitors, V. monitors, position, frame comp.) general settings (menu language, monitor ID, auto search, clock, scheduling, sleep timer, easylink, auto adjust, local KB lock, RC lock, pixel shift, smart power, wake on lan, switch on state, LED, switch delay, logo, APM, information OSD, displayport ver. network control port, factory settings) network settings (view network settings, network configuration, static IP configuration, digital media renderer-DMR, network name)|
|Speakers||2 x 10 W (Stereo)|
|Regulations||CB, CE, CU, TÜV-Bauart|
|VESA mounting||200 x 200 mm|
|External controls||remote control|
|Orientation||landscape / portait|
|Included accessories||power cable, DVI signal cable, HDMI signal cable, mDP-DP signal cable, DisplayPort signal cable, RS232C cable, remote control, 2x battery, POP-label, EU Energy label, iiyama logo sticker, quick start guide, safety guide|
|Power supply||AC 100 - 240 V, 50 / 60 Hz, 2.5A|
|Power Supply Unit||internal|
|Power usage||110 W typical; max. 0.5 W in Power management mode|
|Power management||VESA DPMS|
|Energy efficiency class||C|
|On Mode Power Consumption||111.6W|
|Annual Energy Consumption||163 kWh/annum*|
|Visible Screen Diagonal||106 cm; 41.9"; ( 42'' segment )|
This is information under Regulation (EU) No 1062/2010.
*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
|Dimensions w x h x d||947 x 541 x 71 mm|
