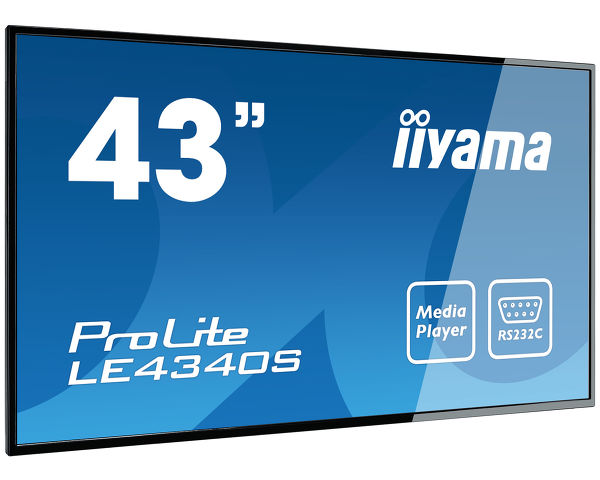

ProLite LE4340S - a 43” Full HD professional large format display with USB media playback
ProLite LE4340S is a 43'' Full HD, professional and fan-less LED-backlit display. Incorporating the latest Commercial Grade AMVA panel technology, the display guarantees great viewing from all angles, high brightness and exceptional colour clarity. A wide range of video and audio inputs ensures compatibility with multiple platforms. ProLite LE4340S is prepared for easy installation using the VESA wall mount. This display will suit a massive range of applications including public signage, retail, exhibitions and conference centres, POS/POI, control rooms and production facilities.
AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
LAN control enables making adjustments in the display OSD menu through your network (software not included).
This LED monitor is equipped with two stereo speakers.
|Panel||AMVA3 LED, matte finish|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||350 cd/m² typical|
|Static contrast||3 000:1 typical|
|Response time (GTG)||8ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Horizontal Sync||30 - 83kHz|
|Viewable area W x H||940.9 x 529.25mm, 37 x 20.8"|
|Bezel colour and finish||black, matte|
|Analog signal input||
Component video x1 (RGB Y(CVBS)/Pb/Pr)
|Digital signal input||
RCA (L/R) x1
Mini jack x1
|Monitor control input||
RJ45 (LAN) x1
RCA (L/R) x1
Speakers 2 x 10W
|Monitor control output||
IR loop through x1
|USB ports||x1 (v.2.0 media playback)|
|Max. non-stop operating time||12/7|
|OSD languages||EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL|
|User controls||picture (picture mode, reset, backlight, contrast, brightness, hue, colour, sharpness, advanced, format and edges), sound (sound mode, reset, bass, treble, Audio out, advanced), general settings (language, monitor ID, ECO mode, auto search, clock, scheduling, sleep timer, auto switch off, auto adjust, pixel shift, control settings, opening logo, factory settings), network settings (view network settings, network settings, static IP configuration, digital media renderer, wake on LAN, network name)|
|Plug&Play||DDC2B, Mac OSX|
|VESA mounting||400 x 400mm|
|Cables||power, VGA, DVI, RS-232c|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||73W typical, 0.5W stand by, 0.5W off mode|
|Regulations||CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH|
|Energy efficiency class (Regulation (EU) 2017/1369)||G|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||968 x 559.5 x 61mm|
|Weight (without box)||8.7kg|
|Technical specification||ProLite LE4340S-B1 - gb_en.pdf||Download|
|UK Energy Label||LE4340S-B1 UK Energy Label pdf data(356909).pdf||Download|
|iiyama LAN and RS-232 Commands LExx40S series||iiyama LAN and RS-232 Commands LExx40S series.zip||Download|
