ProLite XUB2294HSU-B1 (EOL) Replaced by: ProLite XUB2294HSU-B2

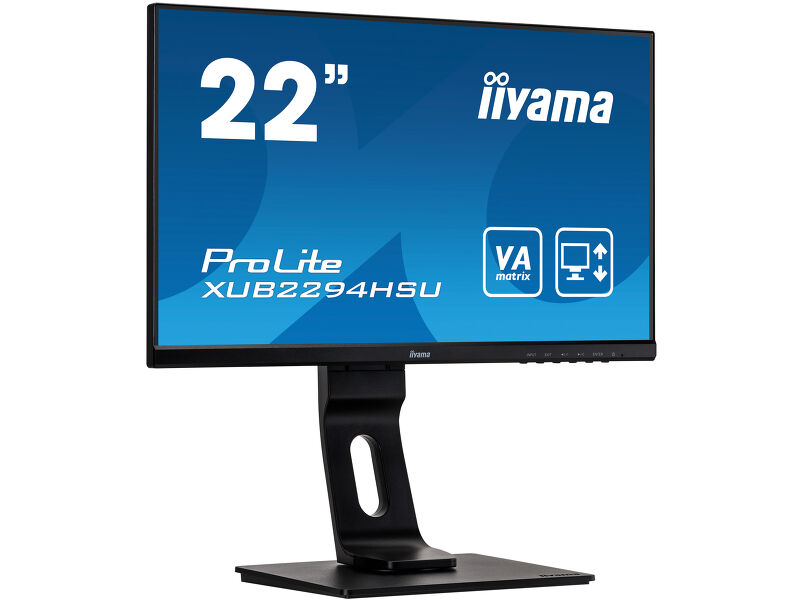

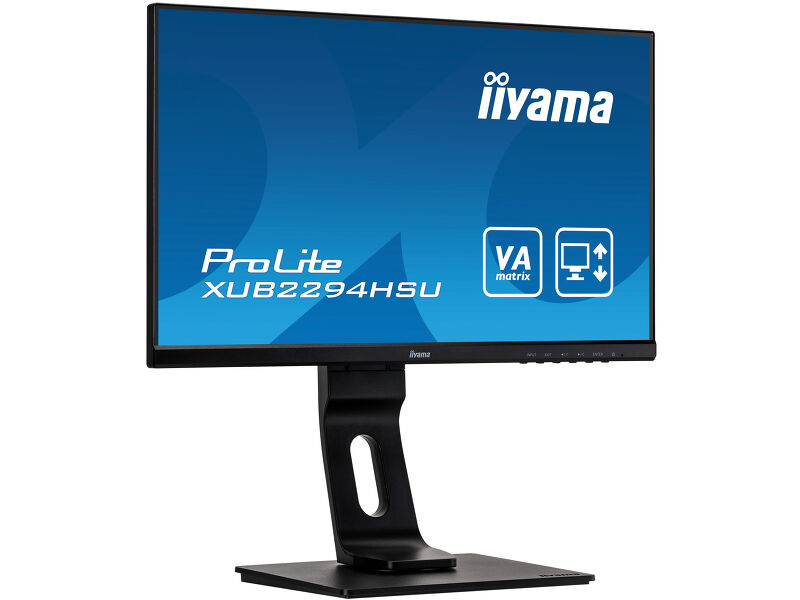

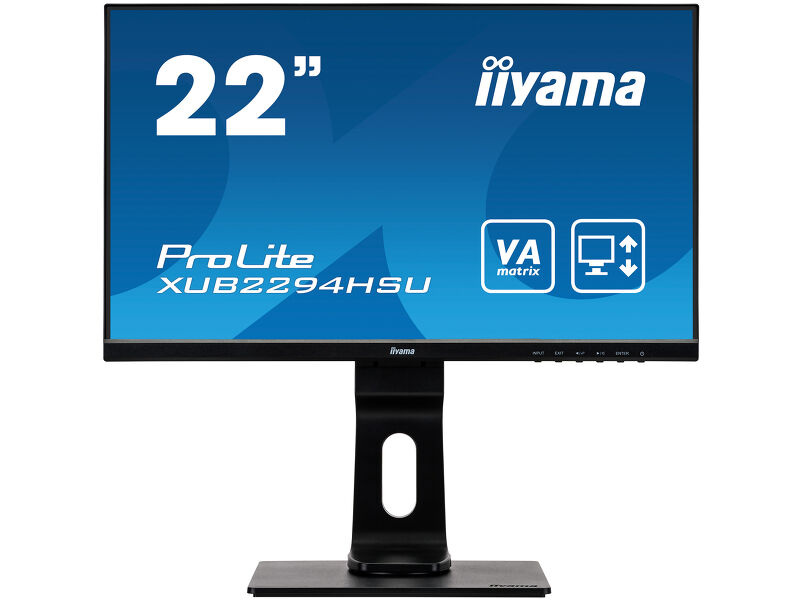

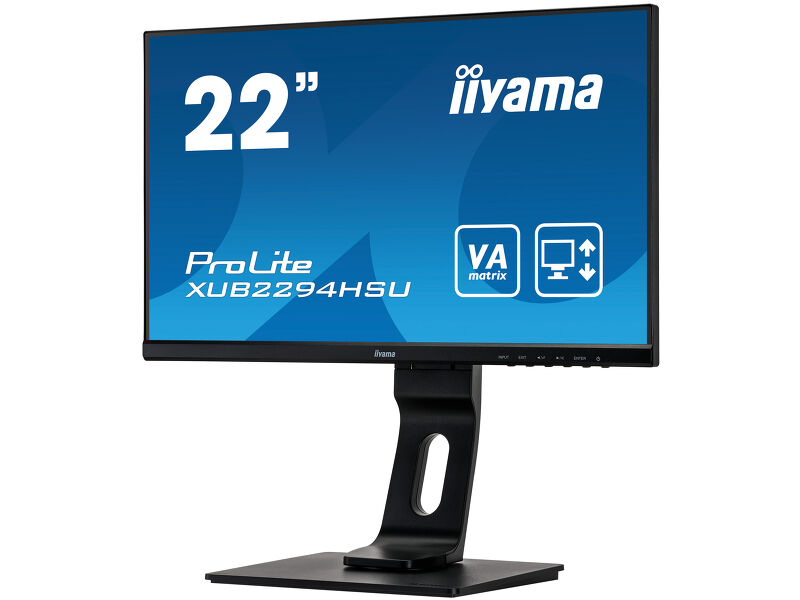

22” Full HD monitor with VA panel and a height adjustable stand
The ProLite XUB2294HSU featuring VA panel technology guarantees accurate and consistent colour reproduction with wide viewing angles. Triple input configuration (VGA, HDMI, DisplayPort) and a USB hub assure compatibility with many platforms. The height adjustable stand with PIVOT function allows you to easily adjust the monitor position to your preferences making it a solid solution for both home and the office.
-
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
-
HAS + Pivot

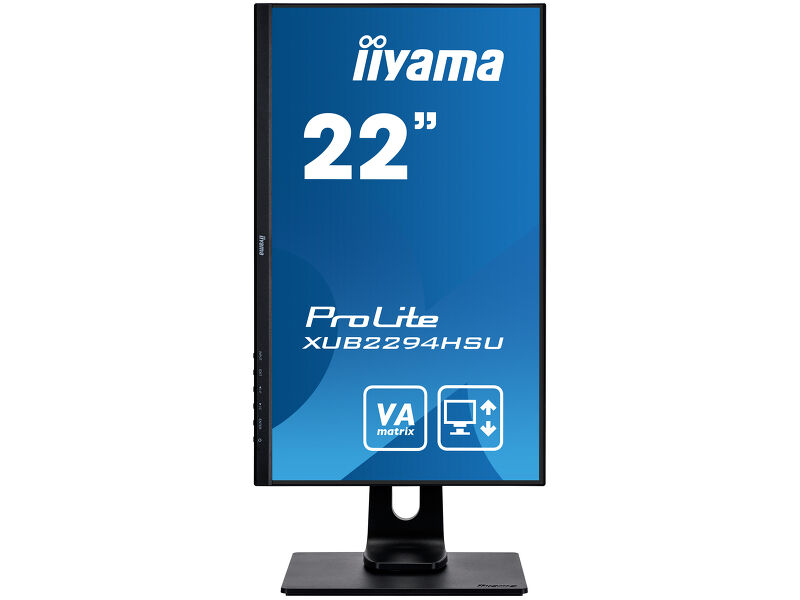

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
-
Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
-
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
-
Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
Technical specification
DISPLAY CHARACTERISTICS
| Design | ultra slim |
| Diagonal | 21.5", 54.6cm |
| Panel | VA, matte finish |
| Native resolution | 1920 x 1080 @75Hz (HDMI&DisplayPort, 2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 250 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 476 x 267.8mm, 18.7 x 10.5" |
| Pixel pitch | 0.248mm |
| Colour | matte |

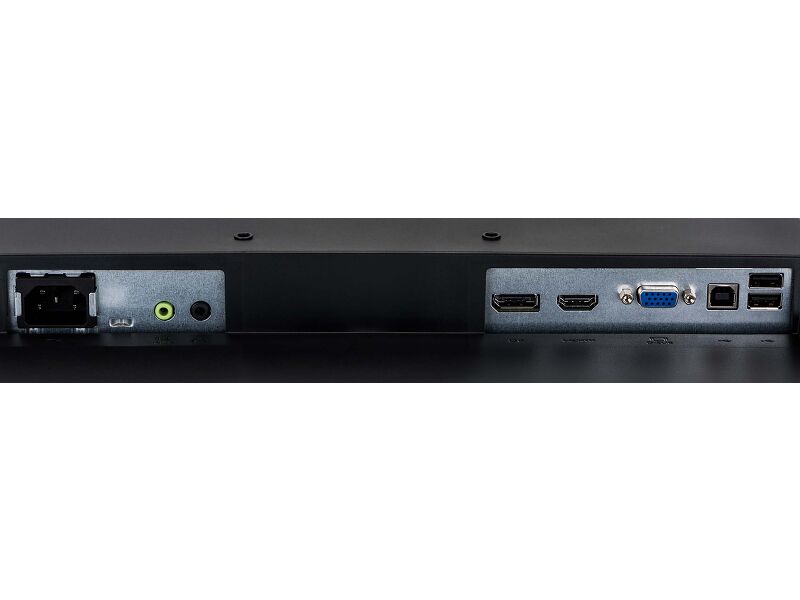

INTERFACES / CONNECTORS / CONTROLS
| Signal input |
VGA x1 (1920 x 1080 @60Hz) HDMI x1 (1920 x 1080 @75Hz) DisplayPort x1 (1920 x 1080 @75Hz) |
| USB HUB | x2 (v.2.0) |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| Flicker free | yes |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons | Power, Menu/ Select, Scroll up/ Volume, Scroll Down/ ECO, Exit, Input |
| User controls | auto adjust, picture adjust (brightness, contrast, ECO, Blue Light Reducer, ACR, OD), geometry (H. position, V. position, pixel clock, phase), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, display information), input select (input source), audio settings (volume, mute, audio input) |
| Speakers | 2 x 1W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
MECHANICAL

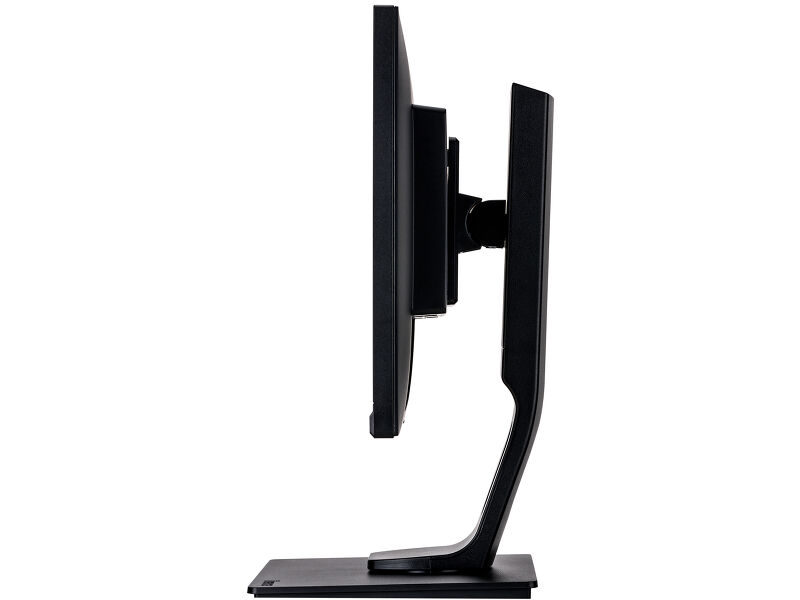

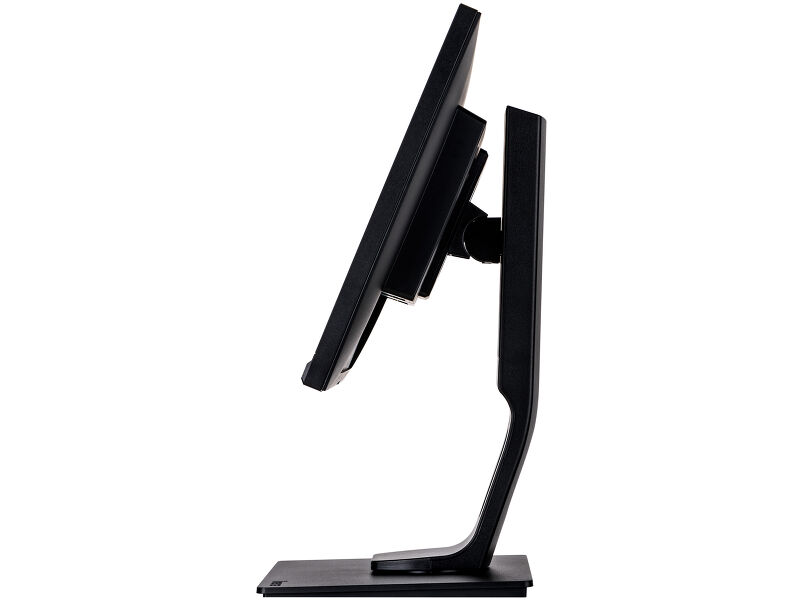

| Display position adjustments | height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment | 130mm |
| Rotation (PIVOT function) | 90° |
| Swivel stand | 90°; ° left; 45° right |
| Tilt angle | 22° up; 5° down |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 5°C - 35°C |
| Storage temperature range | - 20°C - %2°C |
ACCESSORIES INCLUDED

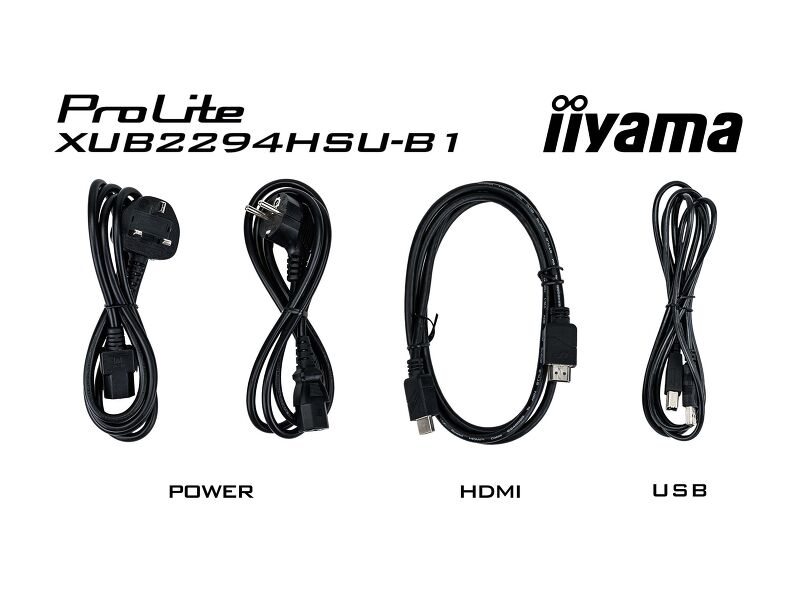

| Cables | power, USB, HDMI |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 19W typical, 0.3W stand by, 0.26W off mode |
SUSTAINABILITY
| Regulations | TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 488.5 x 352 (482) x 210mm |
| Box dimensions W x H x D | 690 x 370 x 190mm |
| Weight (without box) | 4.7kg |
| EAN code | 4948570116928 |
COMPATIBLE ACCESSORIES
| Mounts / Stands / Brackets | DS1002C-B1, DS1002D-B1, DS1001C-B1 |
Downloads
| Technical specification | ProLite XUB2294HSU-B1 - ie_en.pdf | Download |
| Drawing | XUB2294HSU.pdf | Download |
| EU Energy Label | XUB2294HSU-B1 EU Energy Label pdf data(366778).pdf | Download |
| UA Energy Label | XU_XUB2294HSU-1 Ukraine Energy Label pdf data.pdf | Download |
| UK Energy Label | XUB2294HSU-B1 UK Energy Label pdf data(366778).pdf | Download |
