ProLite T2752MSC-W1 (EOL) Replaced by: ProLite T2752MSC-W1AG
27” Optical Bonded PCAP 10pt touchscreen monitor with IPS panel technology, edge-to-edge glass design and anti-fingerprint coating

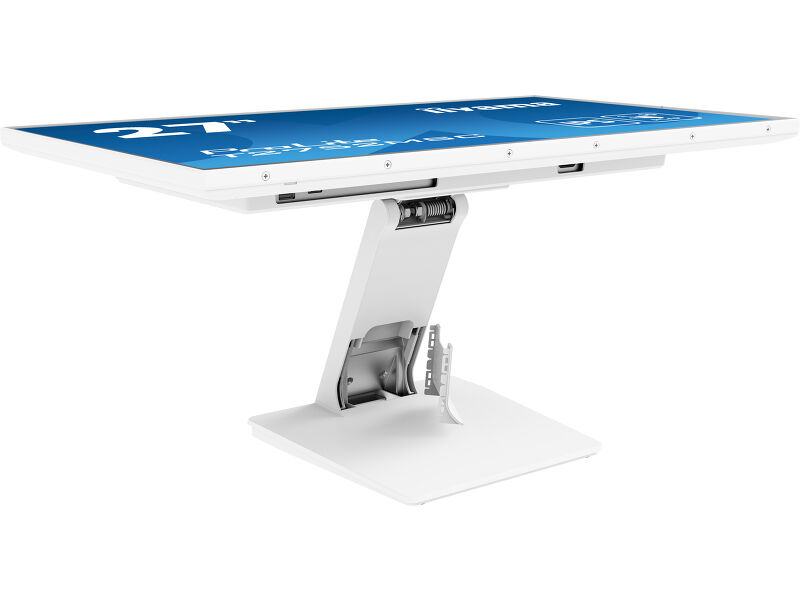

The ProLite T2752MSC-W1 with its Full HD (1920x1080) resolution and with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. A perfect choice for a vast array of applications.
Available also in black : ProLite T2752MSC-B1
Speakers-
IPS Technology
Ensure perfect visibility from any position - The IPS panel delivers vivid, consistent colors and wide viewing angles, ideal for dynamic retail environments and busy commercial spaces.
-
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
-
Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
-
Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.
-
Speakers
This LED monitor is equipped with two stereo speakers.
Technical specification
DISPLAY CHARACTERISTICS
| Diagonal | 27", 68.6cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @60Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 400 cd/m² |
| Brightness | 360 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 with touch |
| Response time (GTG) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 598 x 336mm, 23.5 x 13.2" |
| Pixel pitch | 0.311mm |
TOUCH
| Touch technology | optical bonding PCAP |
| Touch interface | USB |
| Palm rejection | yes |
FEATURES
| Extra | anti-fingerprint coating |
| Glass hardness | 7H |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons | Press/enter, right/volume, left/eco/exit, up/signal select, down, power |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer | yes |
| Plug&Play | DDC2B |
MECHANICAL

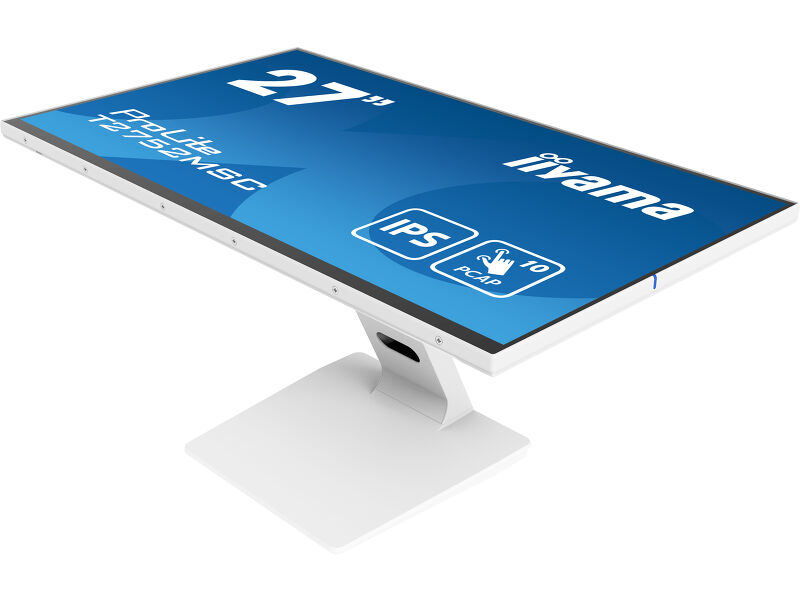

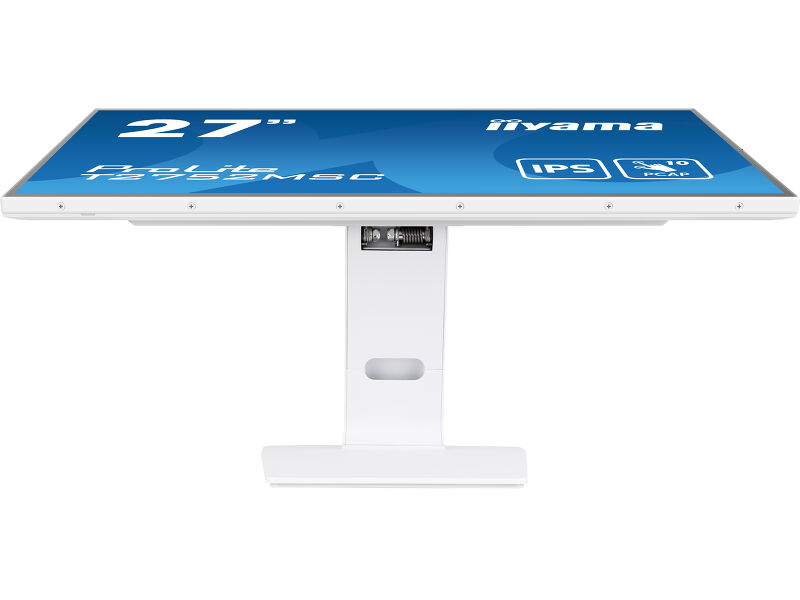

| Orientation | landscape, face-up |

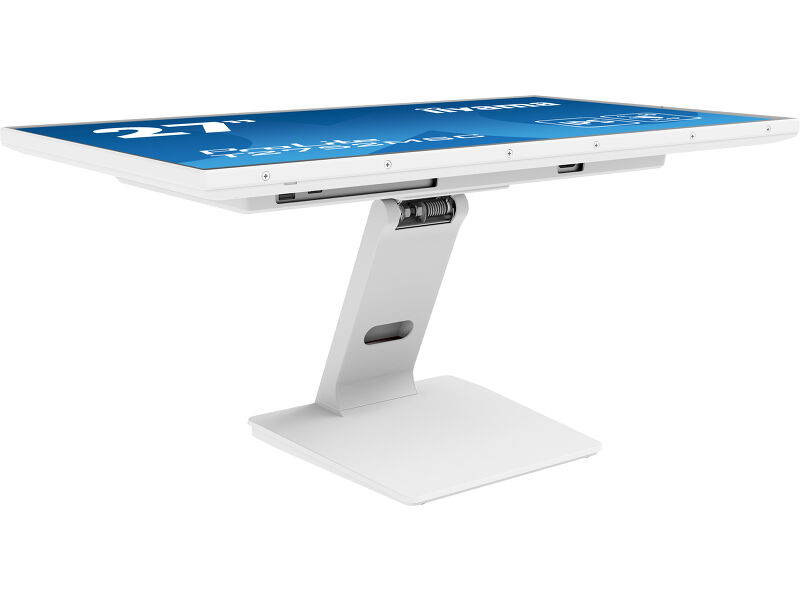

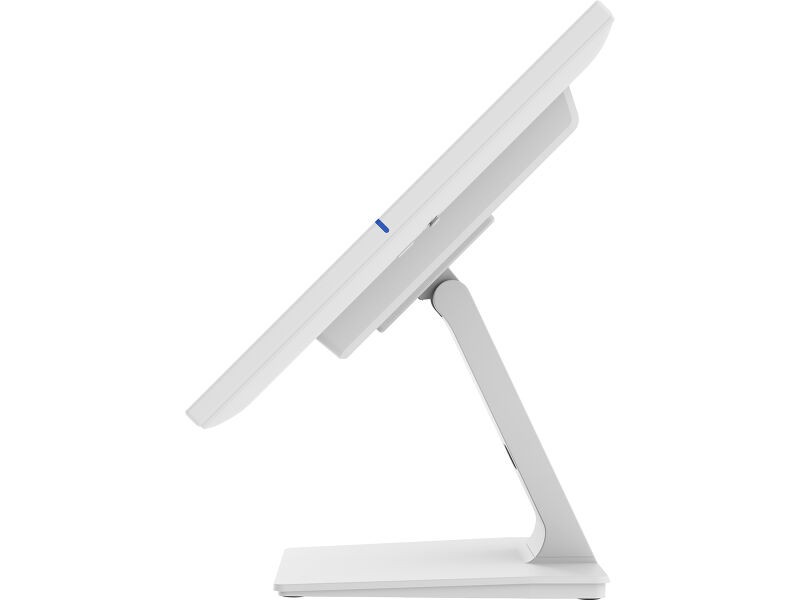

| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| MTBF | 50000 hours (excluding backlight) |
ACCESSORIES INCLUDED

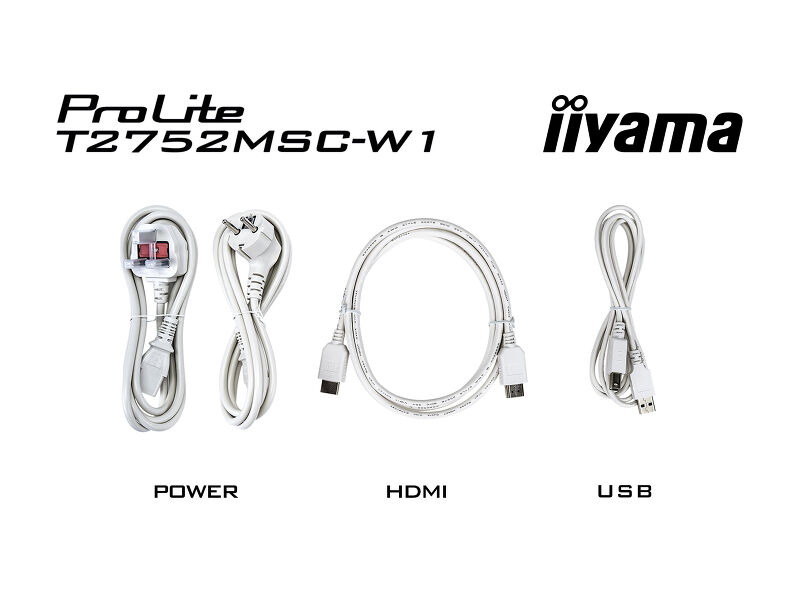

| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Guides | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | yes |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 21W typical, 1.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 614 x 403 x 239.5mm |
| Box dimensions W x H x D | 710 x 465 x 160mm |
| Weight (without box) | 6.7kg |
| Weight (with box) | 8.4kg |
| EAN code | 4948570123001 |
