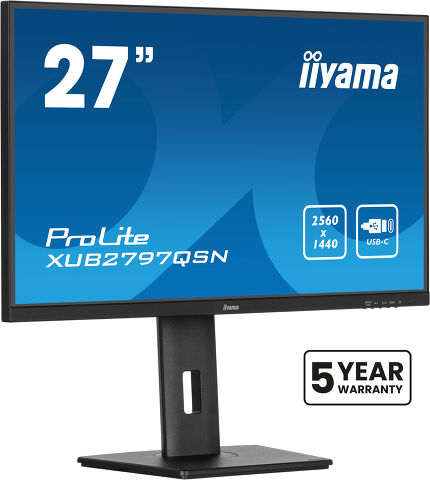

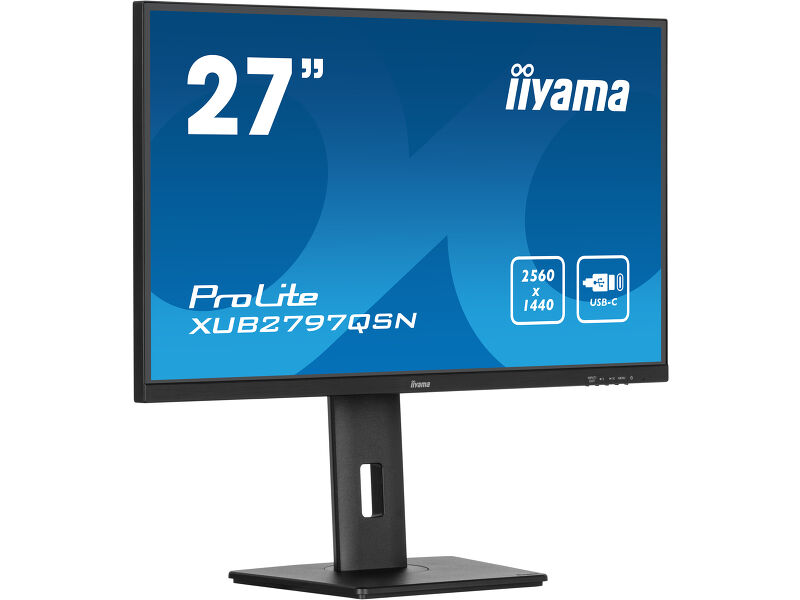

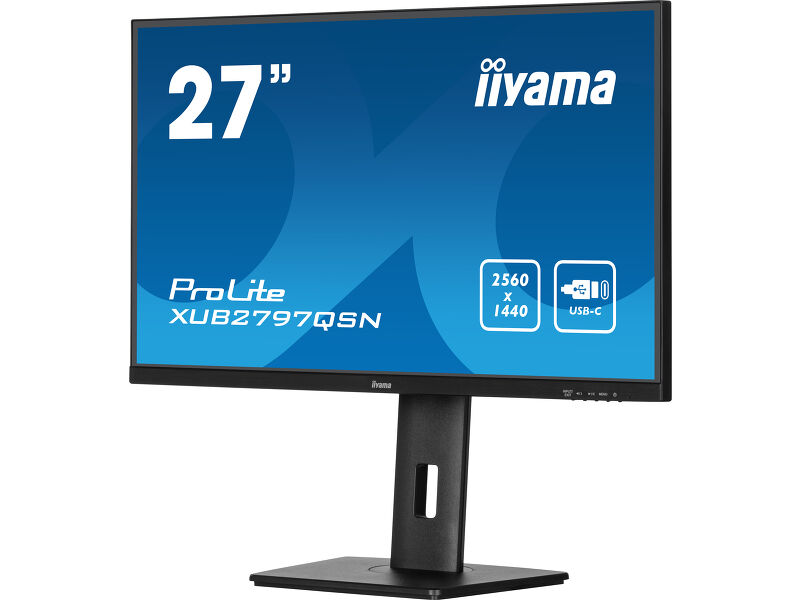

27’’ QHD IPS technology panel with USB-C dock and RJ45 (LAN)
Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.
Available also without USB-C dock: XUB2797QSU-B1.
Available also in white: ProLite XUB2797QSN-W1
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
This LED monitor is equipped with two high quality stereo speakers.
Design | 3-side borderless |
Diagonal | 27", 68.5cm |
Panel | IPS Panel Technology LED, matte finish |
Native resolution | 2560 x 1440 @100Hz (3.7 megapixel QHD) |
Aspect ratio | 16:9 |
Panel brightness | 250 cd/m² |
Static contrast | 1300:1 |
Advanced contrast | 80M:1 |
Response time (MPRT) | 1ms |
Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) |
Horizontal Sync | 30 - 151kHz |
Viewable area W x H | 596.7 x 335.7mm, 23.5 x 13.2" |
Pixel pitch | 0.233mm |
Colour | matte, black |

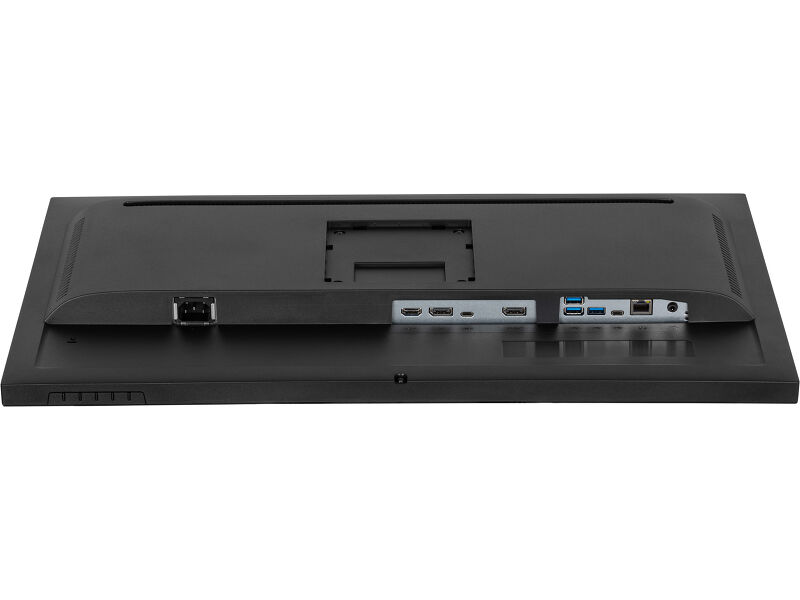

Signal input |
HDMI x1 (v.2.0) DisplayPort x1 (v.1.4) USB-C x1 (PD 65W) |
Signal output | DisplayPort x1 (Daisy Chain MST max. 2560 x 1440) |
USB HUB | x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 15W)) |
USB-C DOCK | x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit)) |
HDCP | yes |
Headphone connector | yes |
RJ45 (LAN) | x1 |
Blue light reducer | yes |
Flicker free | yes |
Adaptive Sync support | yes |
Extra | i-Style colour |
OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
Control buttons | Power, Menu, Up / Right / Volume, Down /Left / Shortcut, Input / Exit |
User controls | picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute) |
Speakers | 2 x 2W |
Convenience | Kensington-lock™ prepared, DDC2B |

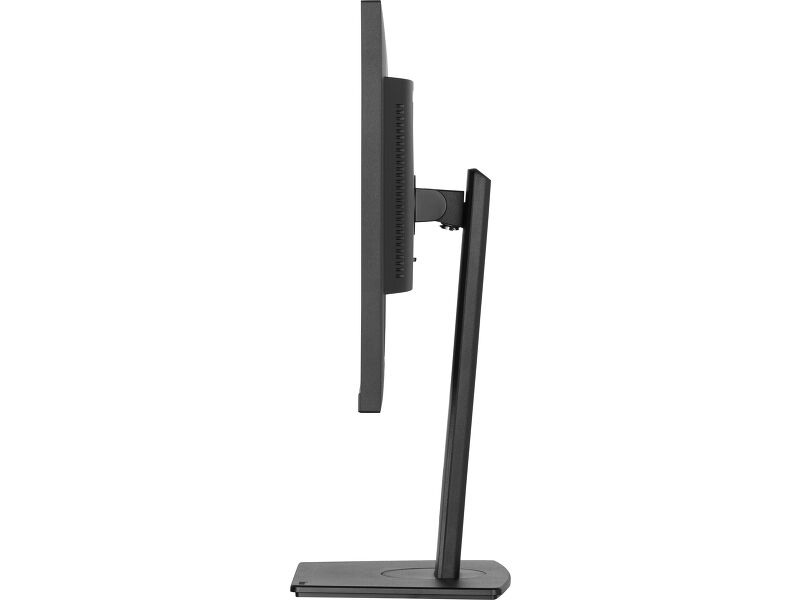

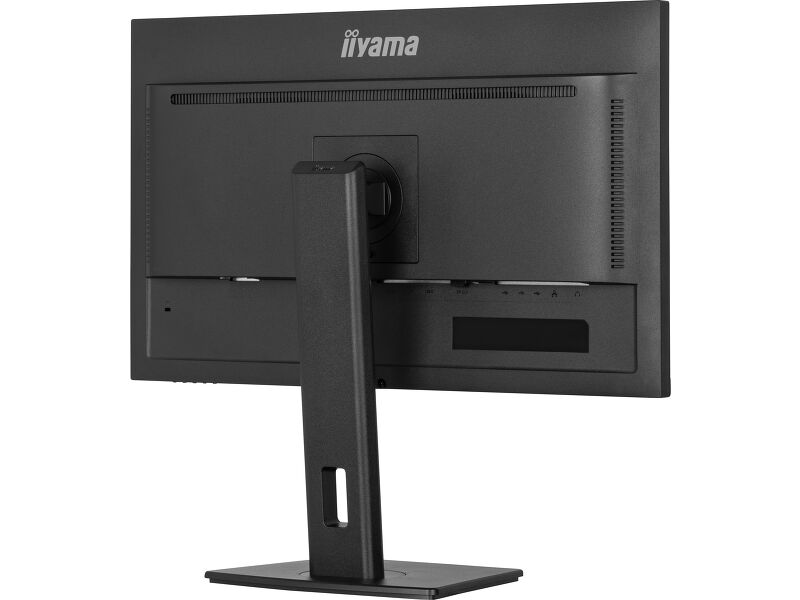

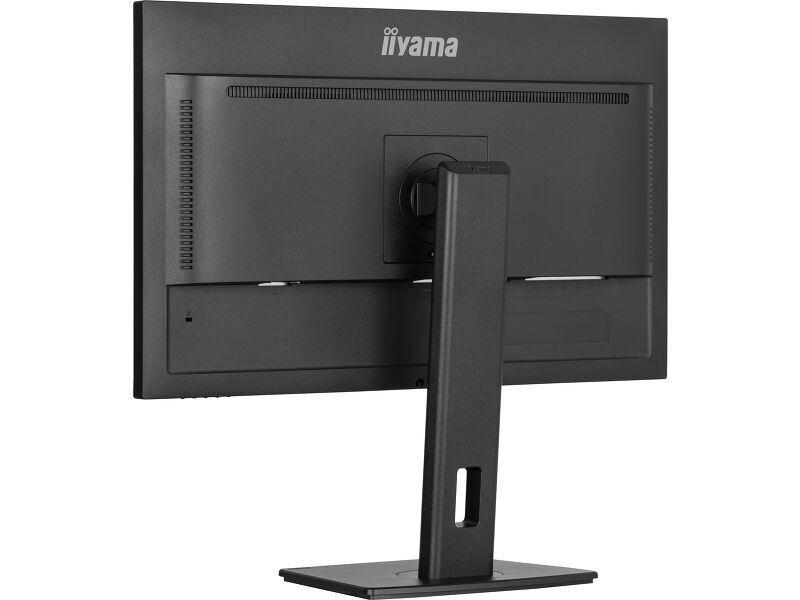

Display position adjustments | height, swivel, tilt, pivot (rotation both sides) |
Height adjustment | 150mm |
Rotation (PIVOT function) | 90° |
Swivel stand | 90°; 45° left; 45° right |

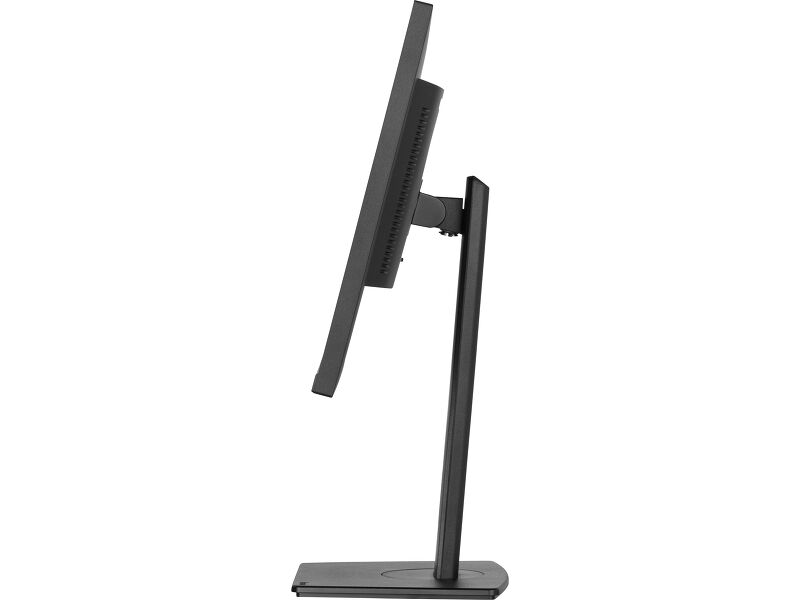

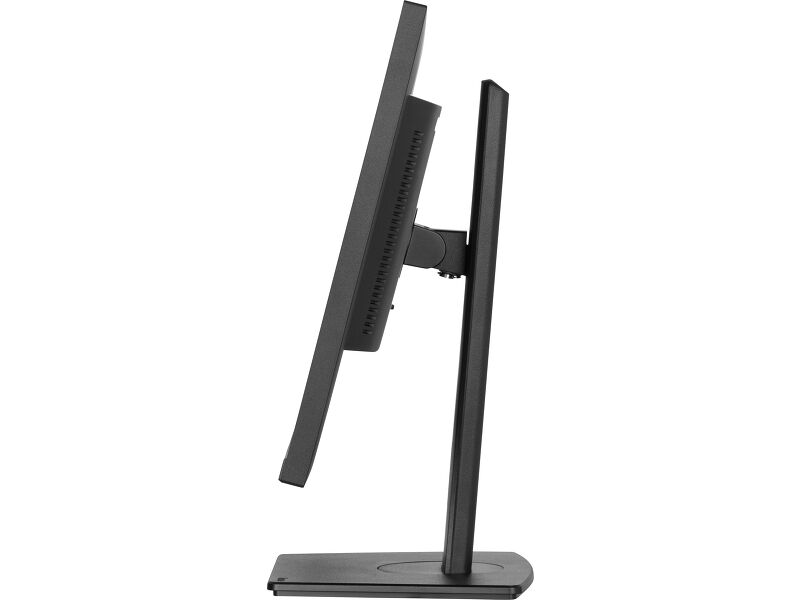

Tilt angle | 23° up; 5° down |

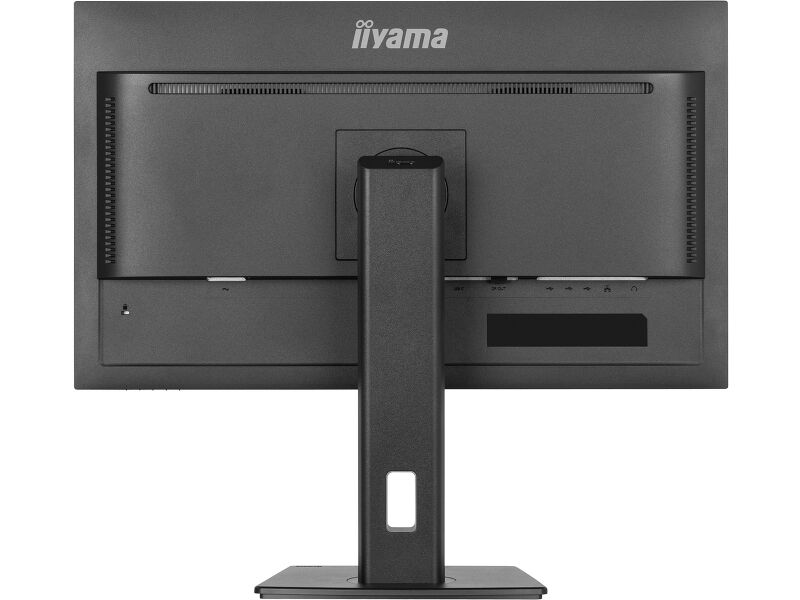

VESA mounting | 100 x 100mm |
Cable management system | yes |

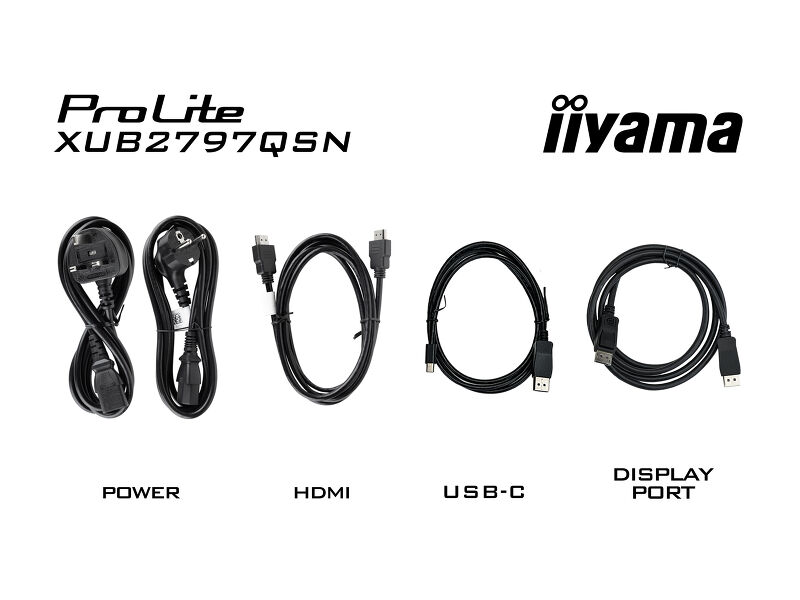

Cables | power, HDMI, DP, USB-C |
Other | quick start guide, safety guide |
Power supply unit | internal |
Power supply | AC 100 - 240V, 50/60Hz |
Power usage | 26W typical, 0.5W stand by, 0.3W off mode |
Regulations | TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
Energy efficiency class (Regulation (EU) 2017/1369) | F |
REACH SVHC | above 0.1%: Lead |

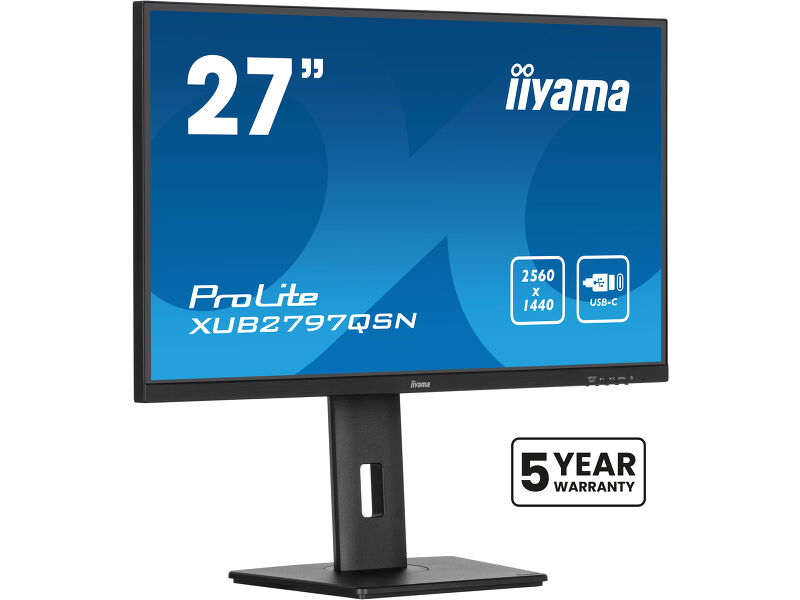

Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
Product dimensions W x H x D | 613.5 x 400.5 (550.5) x 209.5mm |
Box dimensions W x H x D | 679 x 427 x 130mm |
Weight (without box) | 6.1kg |
Weight (with box) | 8.7kg |
EAN code | 4948570123285 |
