10pt touch open frame monitor with AG-coating and high brightness

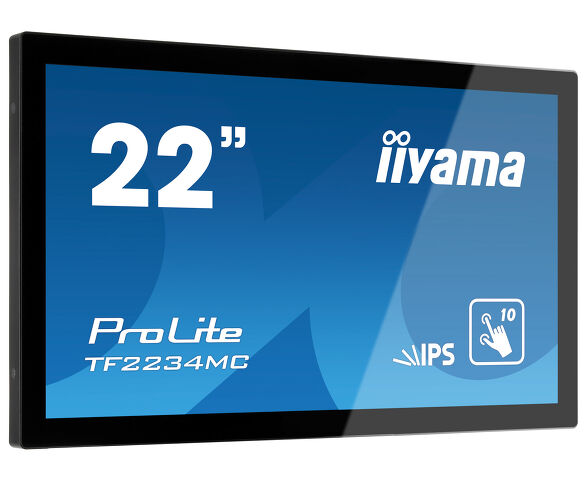

The ProLite TF2234MC uses PCAP touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display.
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
|Panel||IPS LED, AG coated glass|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||350 cd/m² typical|
|Brightness||300 cd/m² with touch|
|Static contrast||1 000:1 with touch|
|Viewing zone||horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||30.0 - 84.0KHz|
|Vertical Sync||56 - 76Hz|
|Viewable area W x H||476.6 x 268.1mm, 18.8 x 10.6"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||
|Impact testing||IPIP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, RU, JP, NL, PL|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select/ Auto, Power|
|User controls||Picture (contrast, brightness, auto adjust, H.position, V.position, H.size, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position), option (reset, language, source select, display mode, factory)|
|Orientation||landscape, portrait, face-up|
|VESA mounting||100 x 100mm|
|Cables||power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)|
|Guides||quick start guide, safety guide|
|Other||AC adapter, Touch Panel Driver Disk (CD-ROM), L-Bracket|
|Power supply unit||external|
|Power supply||DC DC 12 V|
|Power usage||18W typical, 1W stand by, 1W off mode|
|Regulations||CE, TÜV-Bauart, CU, cULus, VCCI|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||517.5 x 313.5 x 46mm|
|Weight (without box)||4.4kg|
