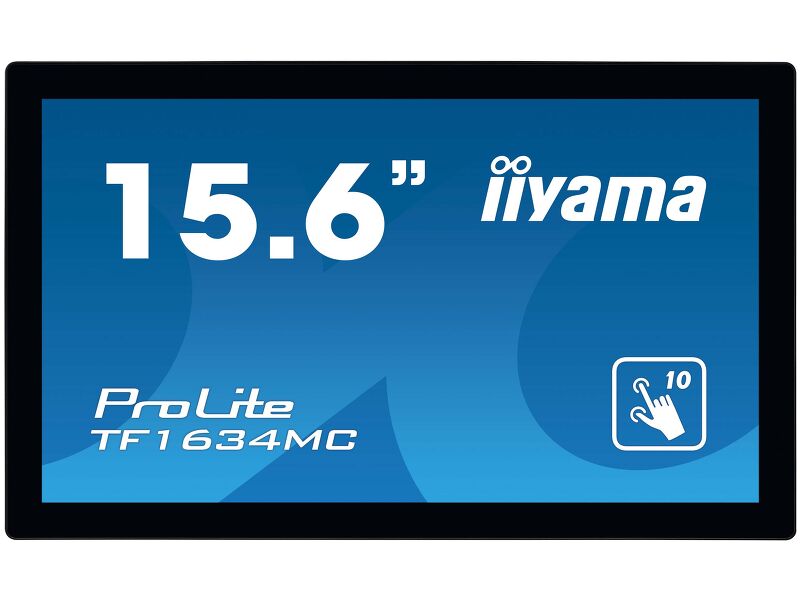

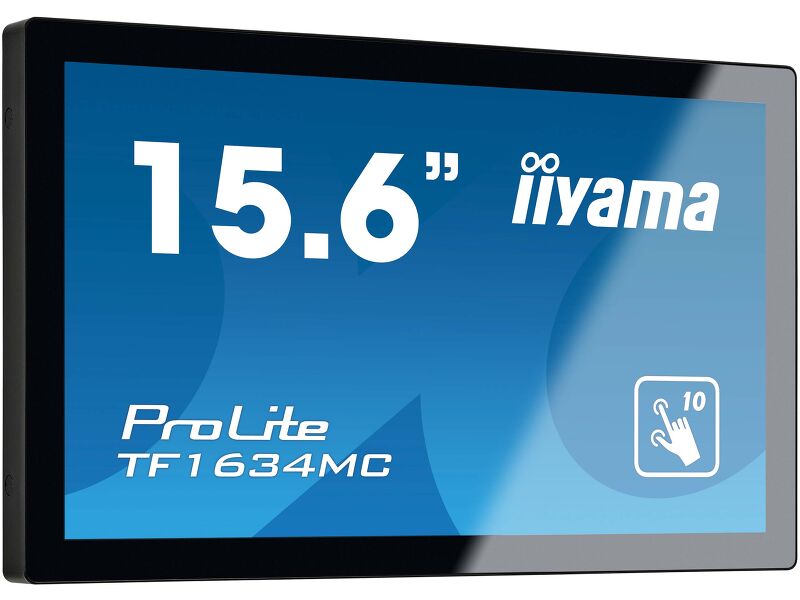

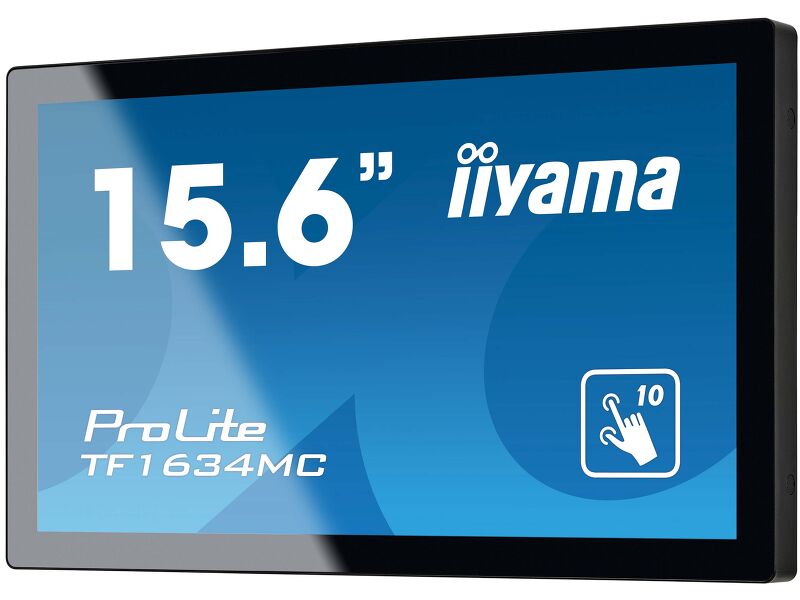

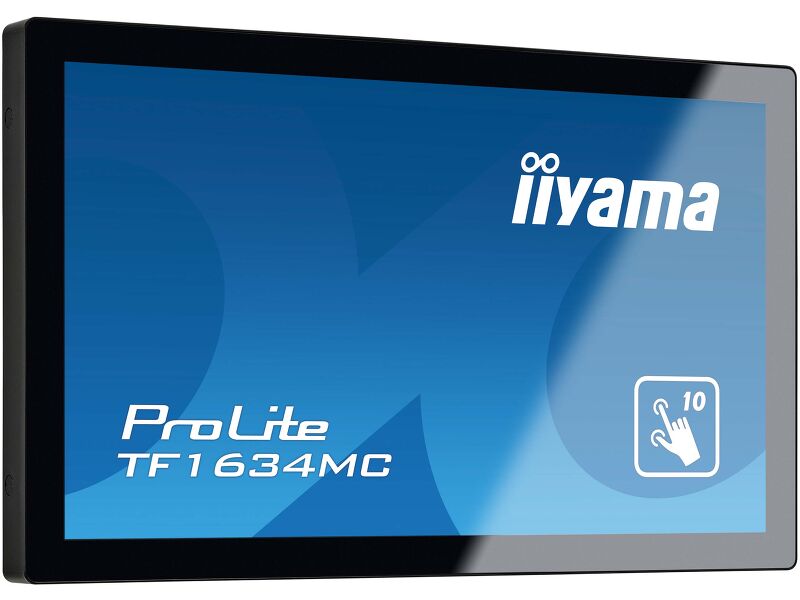

15.6’’ open frame 10pt touch monitor
The ProLite TF1634MC 15.6" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant from the front. For ease of installation in any environment the ProLite TF1634MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators and Instore Retail.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

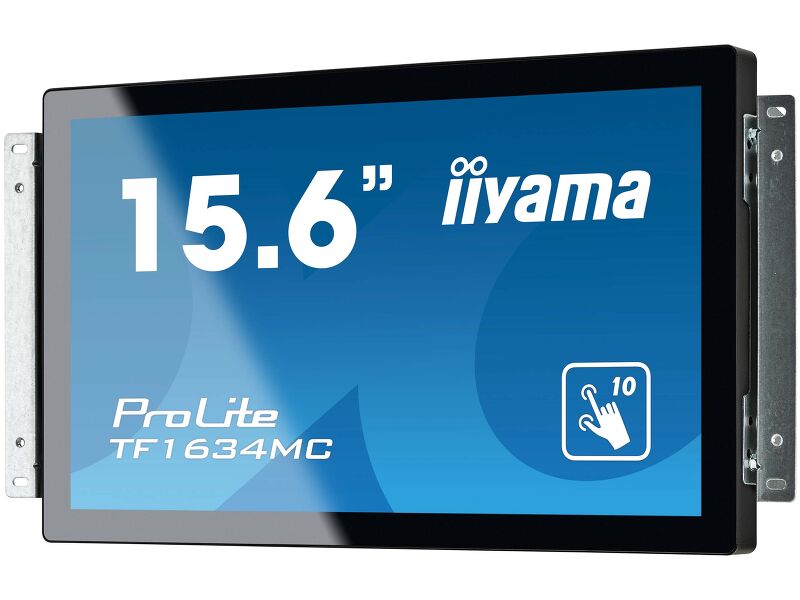

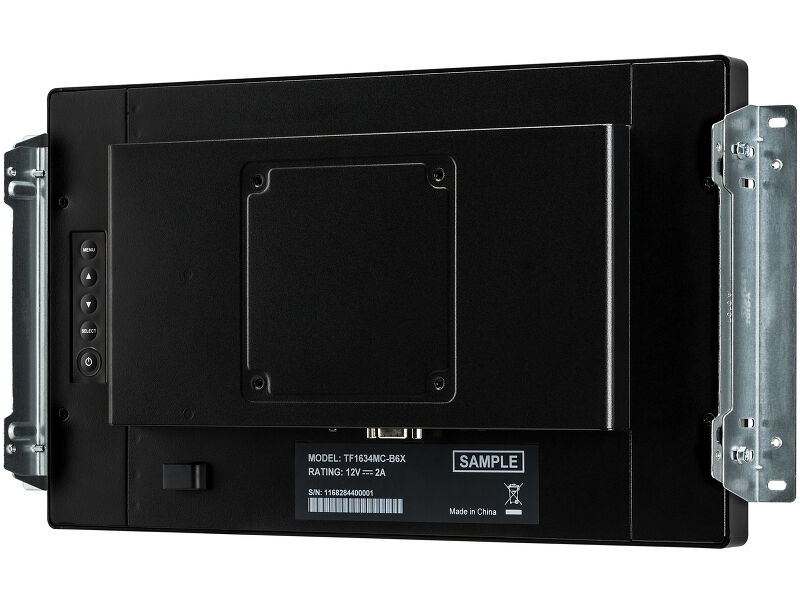

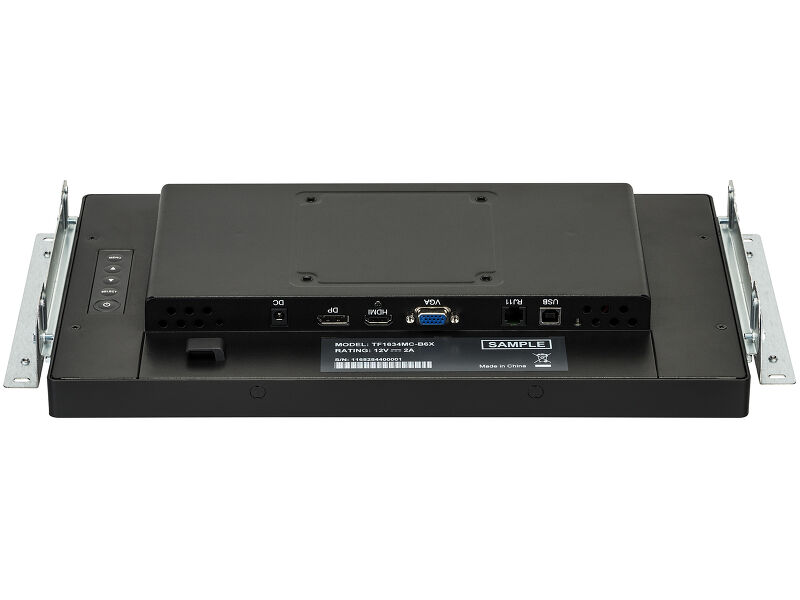

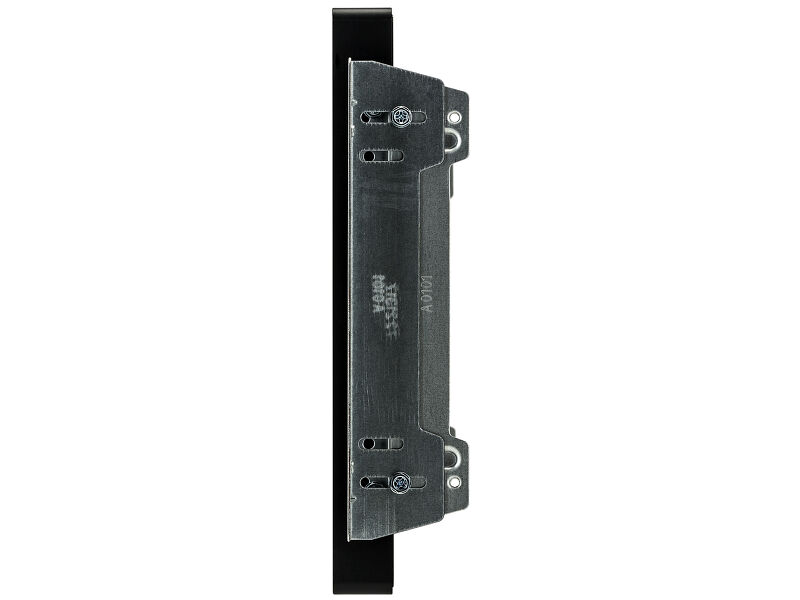

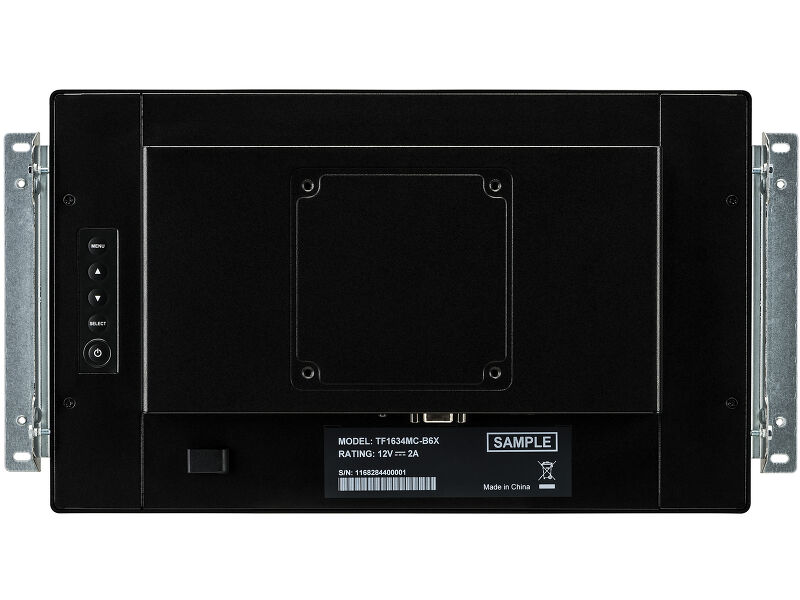

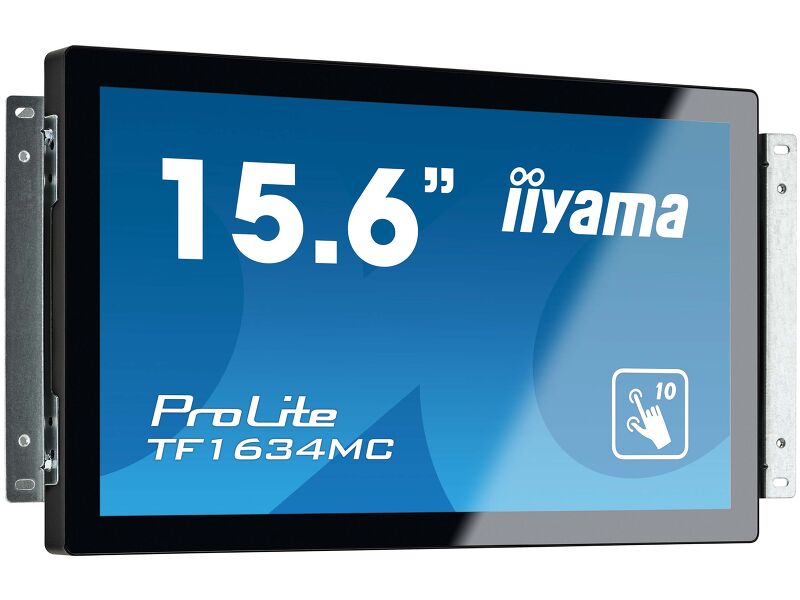

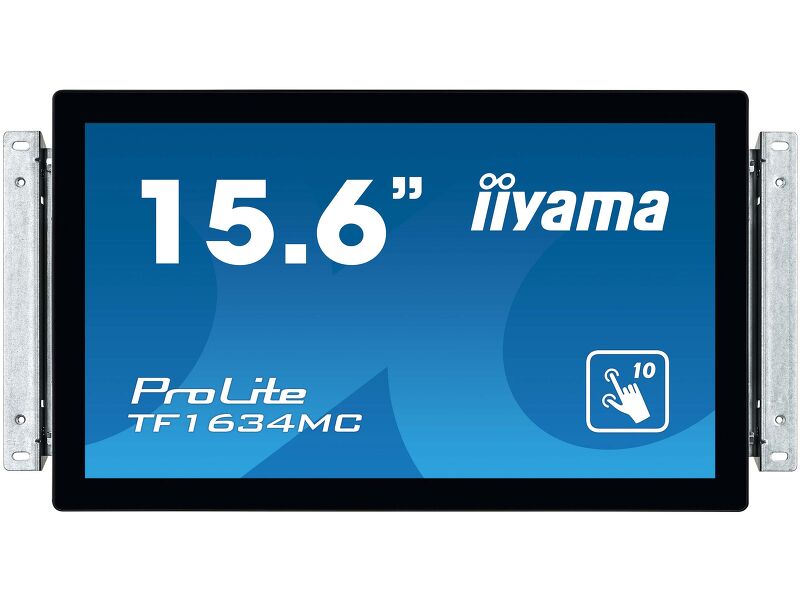

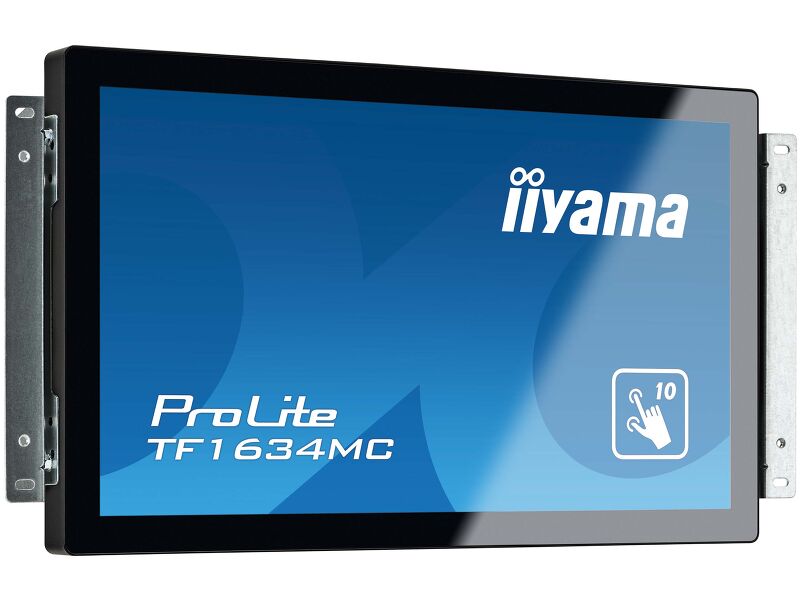

This open frame monitor is equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
|Design||Edge to edge glass, Open Frame|
|Native resolution||1366 x 768 (1.0 megapixel)|
|Panel brightness||400 cd/m²|
|Brightness||360 cd/m² with touch|
|Static contrast||500:1 with touch|
|Response time (GTG)||8ms|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Horizontal Sync||31.4 - 60.3kHz|
|Viewable area W x H||344.2 x 193.5mm, 13.6 x 7.6"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

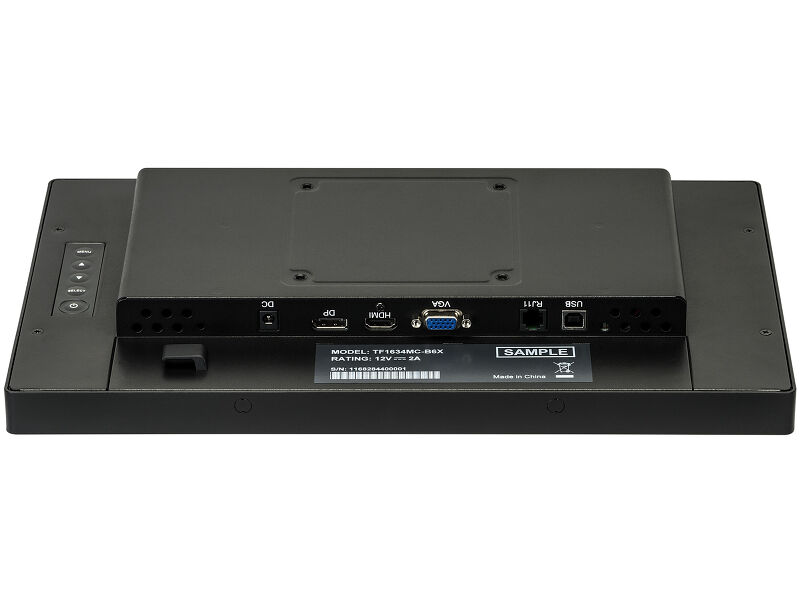

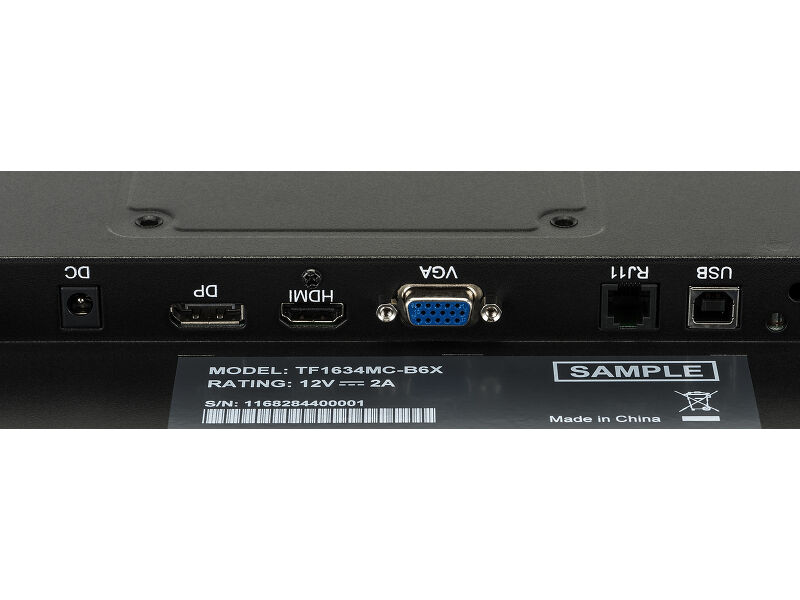

|Analog signal input||VGA x1|
|Digital signal input||
|Water and dust protection||IP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|

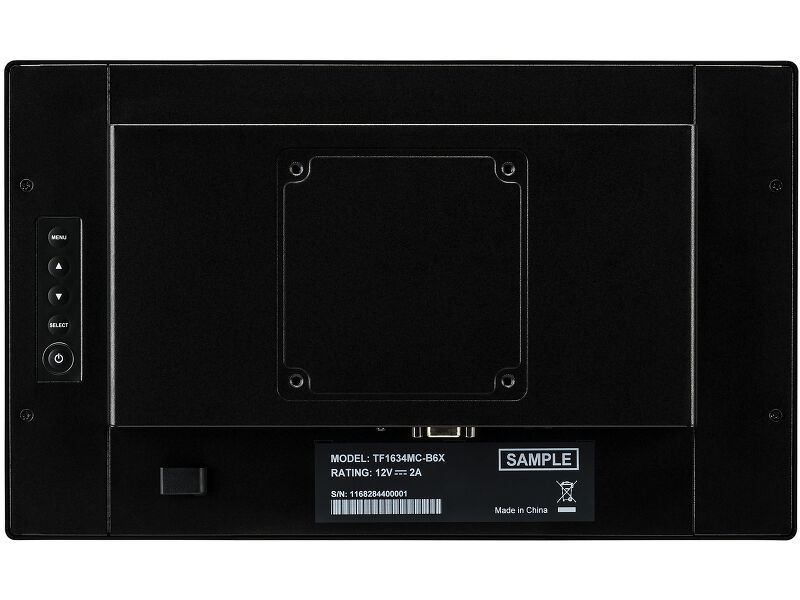

|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power|
|User controls||picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, factory)|

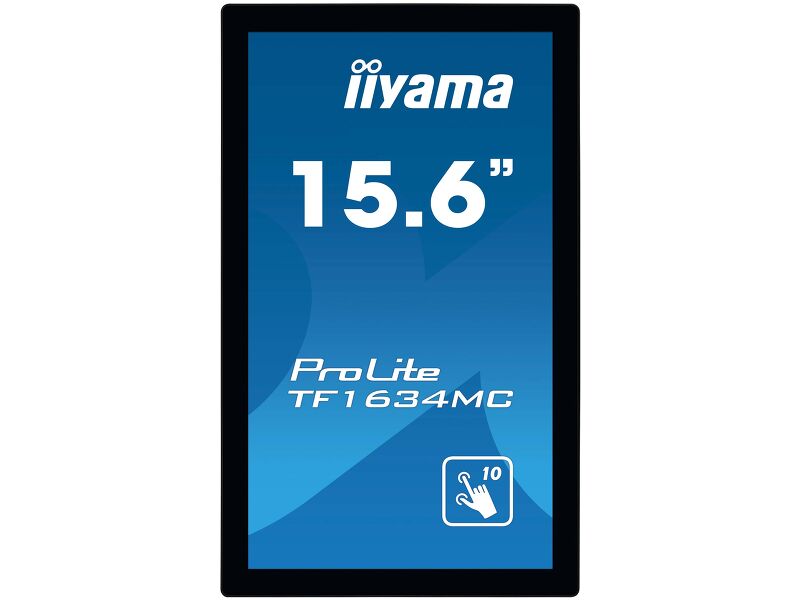

|Orientation||landscape, portrait, face-up|

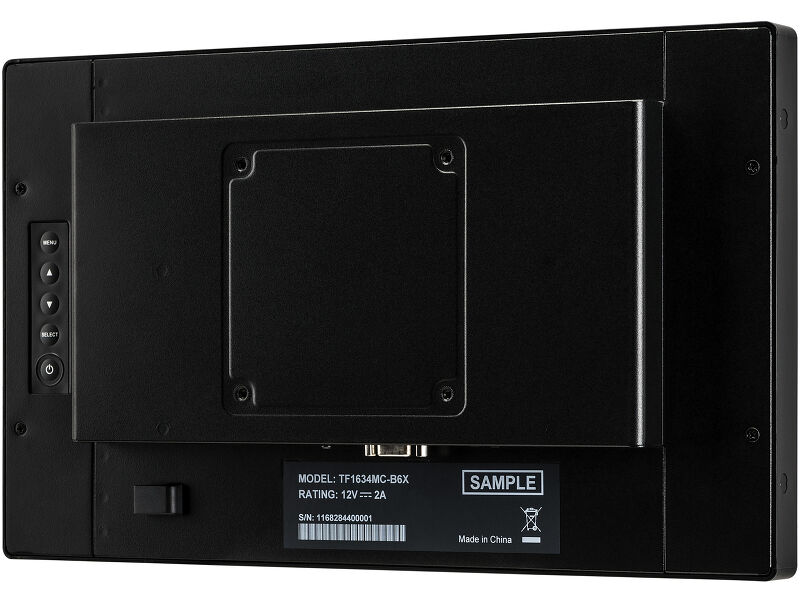

|VESA mounting||100 x 100mm|

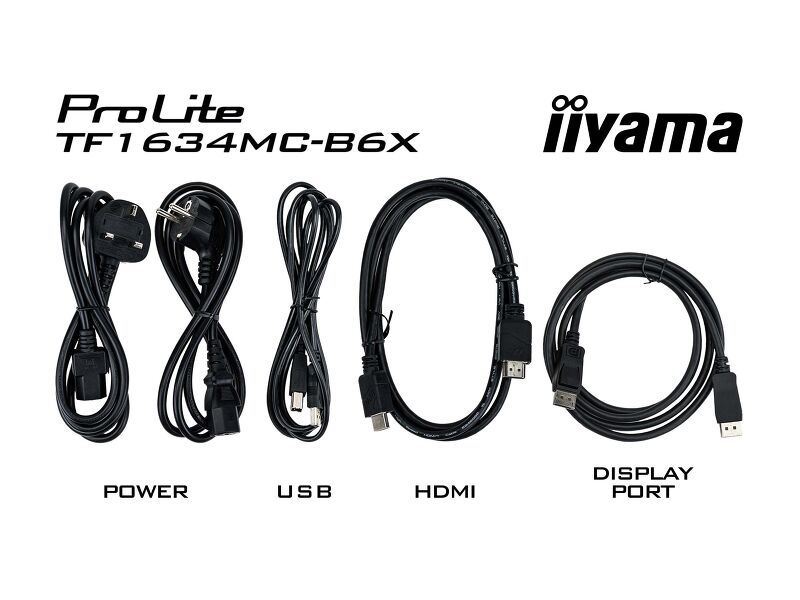

|Cables||power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)|
|Guides||quick start guide, safety guide|
|Other||AC adapter, Touch Panel Driver Disk (CD-ROM), L-bracket|
|Power supply unit||external|
|Power supply||DC 12 V|
|Power usage||16W typical, 2W stand by, 2W off mode|
|Regulations||CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, VCCI, REACH|
|REACH SVHC||above 0.1%: Lead|
|Product dimensions W x H x D||381 x 230.5 x 46mm|
|Weight (without box)||3.5kg|
