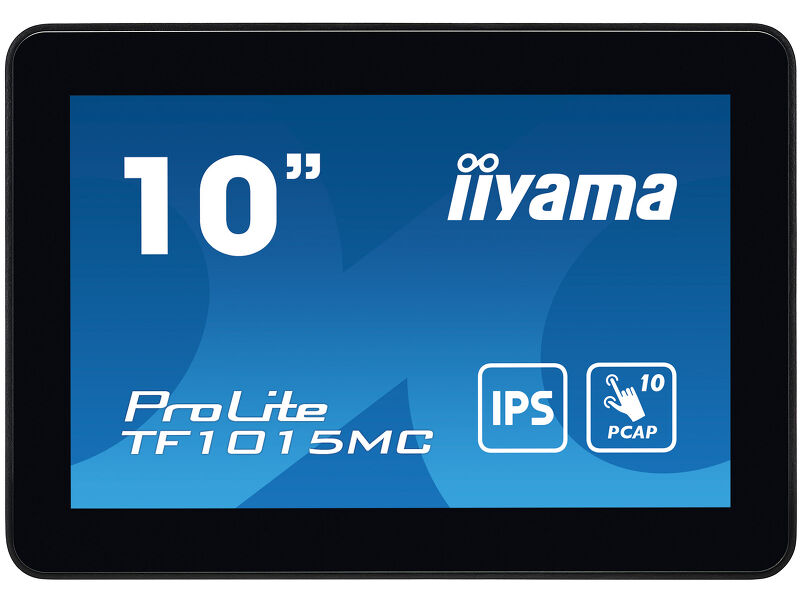

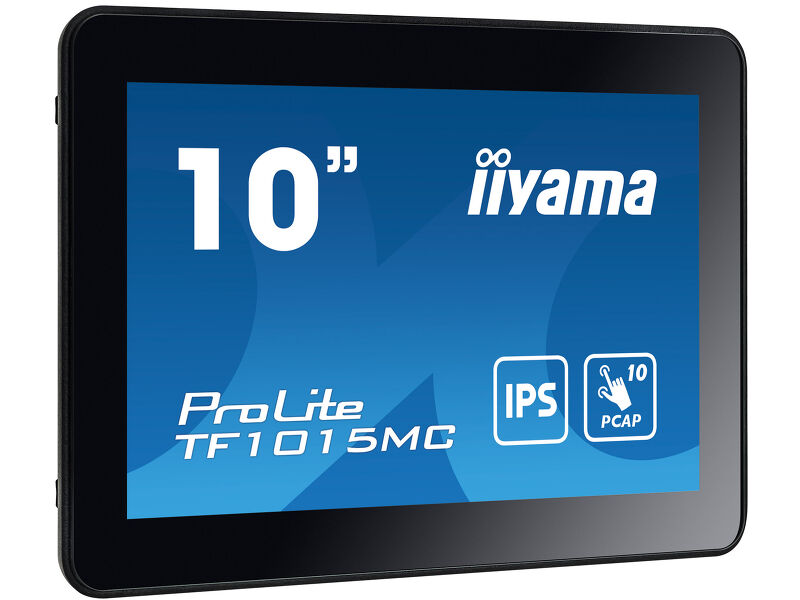

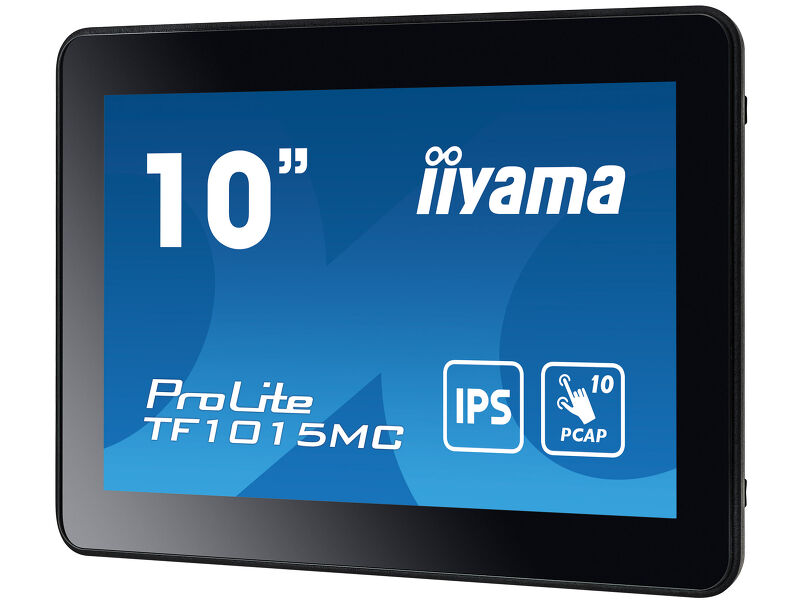

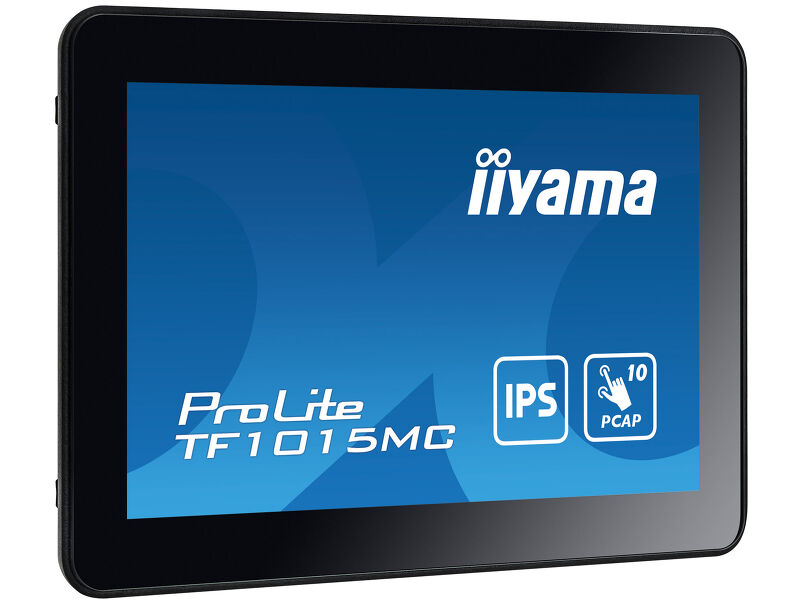

10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
| Design | Open Frame |
| Diagonal | 10.1", 25.7cm |
| Panel | IPS |
| Native resolution | 1280 x 800 (1 megapixel) |
| Aspect ratio | 16:10 |
| Panel brightness | 500 cd/m² |
| Brightness | 425 cd/m² with touch |
| Light transmittance | 85% |
| Static contrast | 800:1 |
| Response time (BTB) | 29ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 49.7kHz |
| Viewable area W x H | 216.96 x 135.6mm, 8.5 x 5.3" |
| Pixel pitch | 0.1695mm |
| Bezel colour and finish | black |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| Palm rejection | yes |

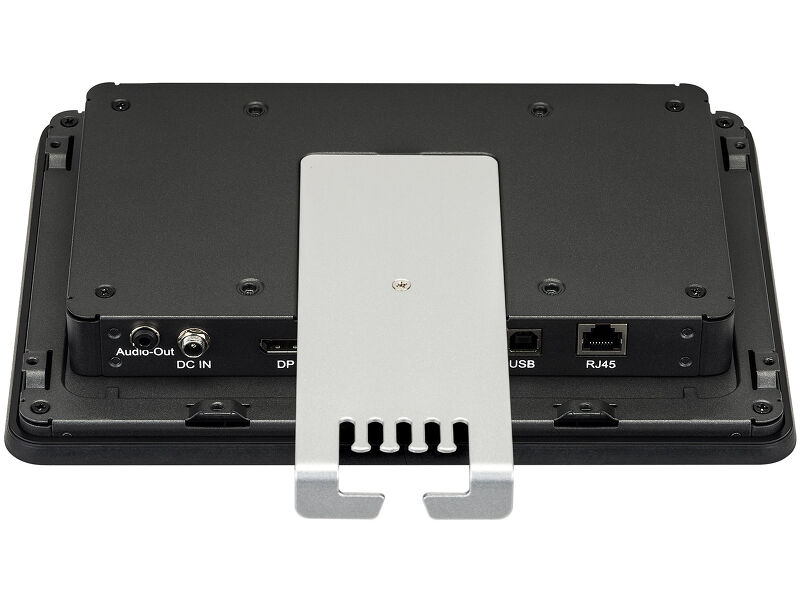

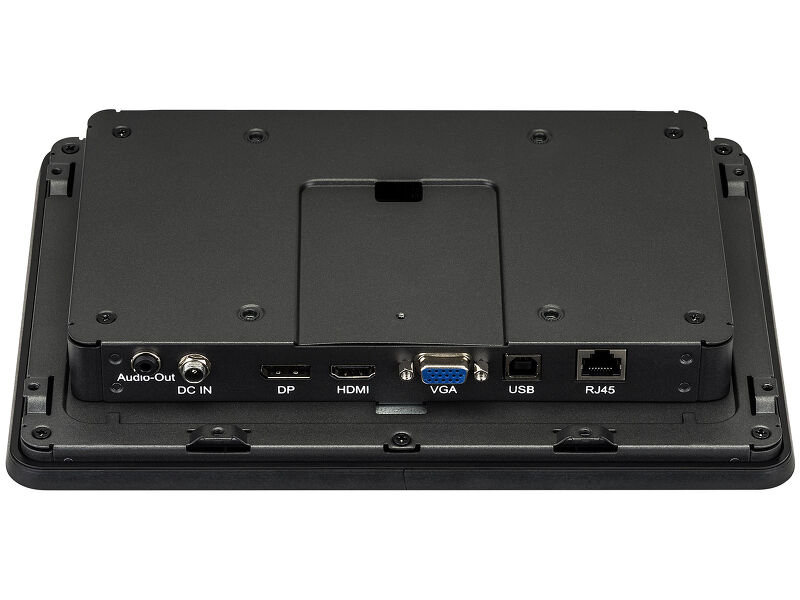

| Analog signal input | VGA x1 |
| Digital signal input |
HDMI x1 DisplayPort x1 |
| Monitor control input | RJ45 (LAN) x1 |
| Audio output | Mini jack x1 |
| HDCP | yes |
| USB ports | x1 |
| Extra | anti-fingerprint coating, touch through-glass |
| Glass thickness | 3.3mm |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Water tight seal | yes |
| OSD key lock | yes |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
| Orientation | landscape, portrait, face-up |

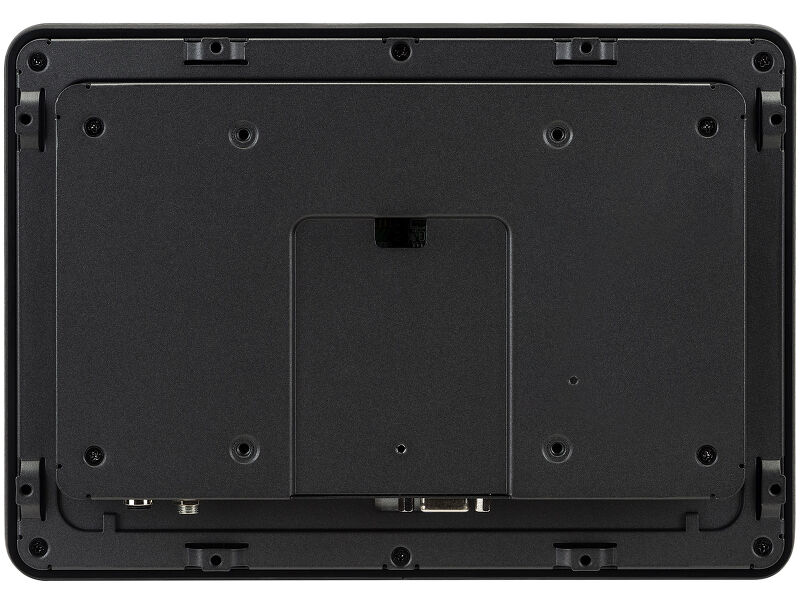

| VESA mounting | 100 x 100mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours |

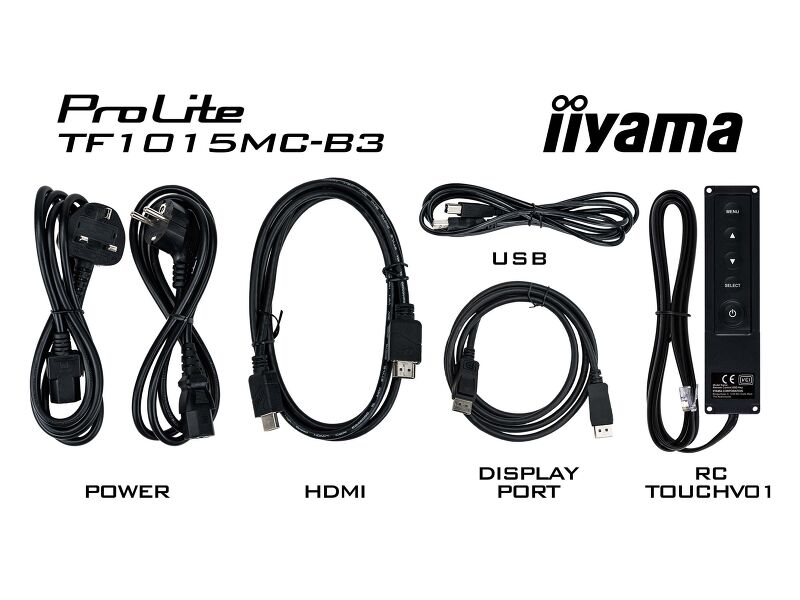

| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, external control pad |
| Cable cover | yes |
| Remote control | yes |
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 6W typical, 1.5W stand by, 0.3W off mode |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | C |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 260.5 x 183.5 x 39.5mm |
| Box dimensions W x H x D | 310 x 160 x 370mm |
| Weight (without box) | 1.4kg |
| Weight (without stand) | 2.7kg |
| EAN code | 4948570124107 |
| Mounts / Stands / Brackets | OMK2-1 |
| Product series | ProLite TF2415MC-B2, ProLite TF1515MC-B2, ProLite TF1215MC-B1, ProLite TF3215MC-B2 |
| Related products | OMK2-1 |
