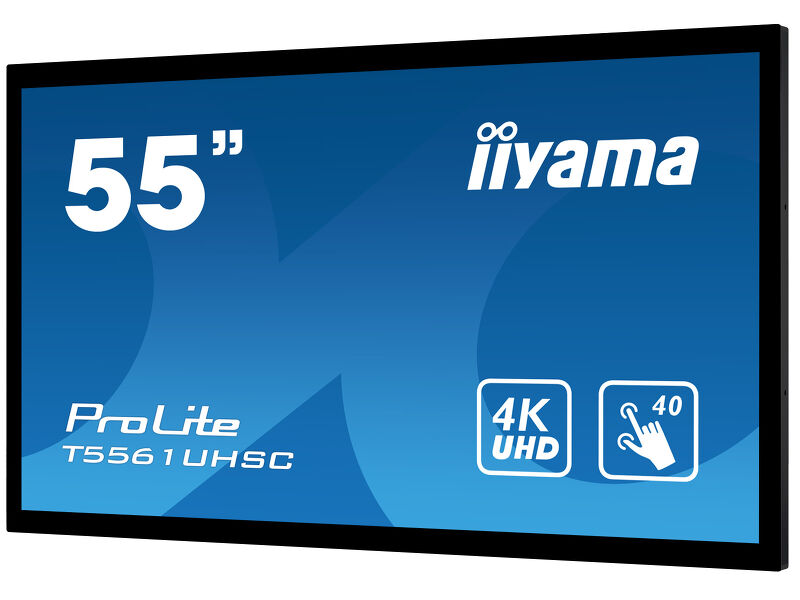

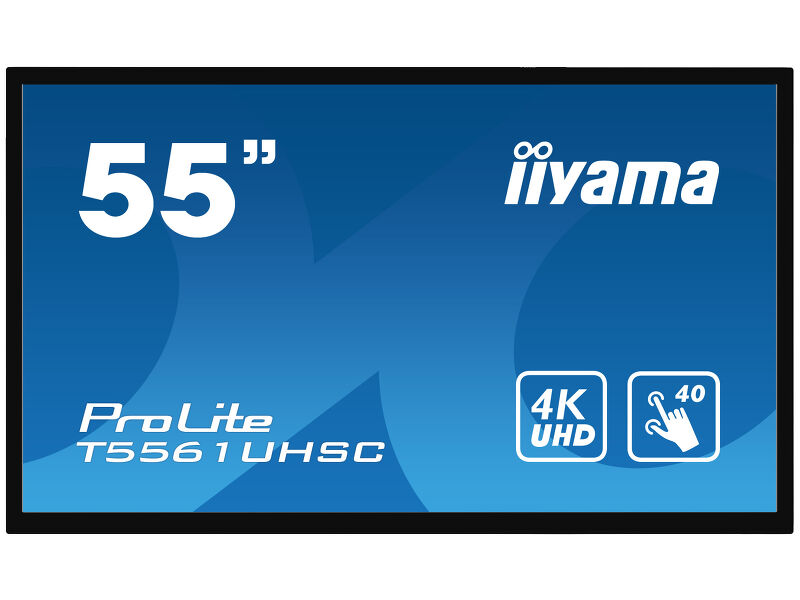

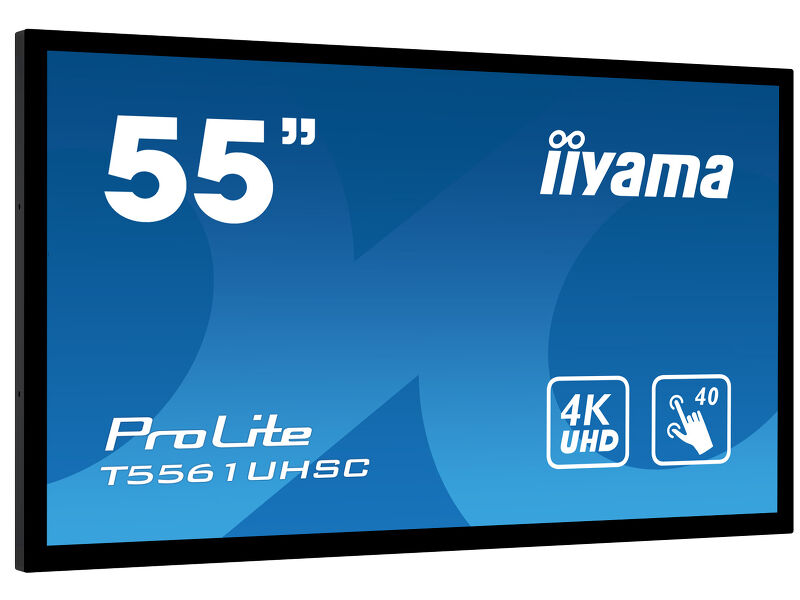

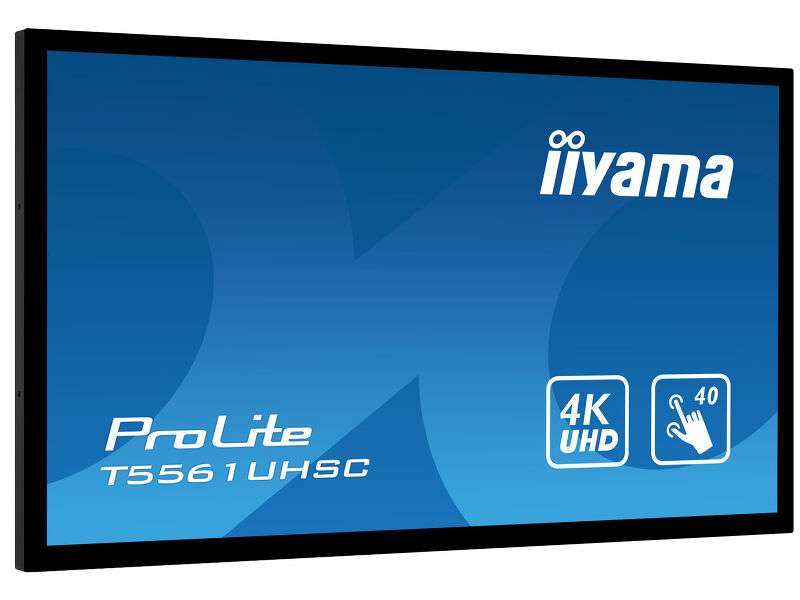

55" 40pt PCAP touch monitor with edge-to-edge glass and Intel® SDM slot
The 4K UHD (3840x2160) T5561UHSC is the ideal interactive display solution for education, interactive Digital Signage and in-store communications. The Projective Capacitive (PCAP) touch technology with 40 touch points ensures a seamless and accurate touch response.

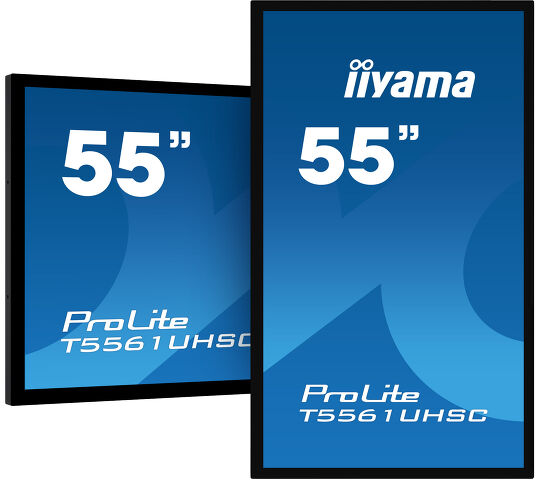

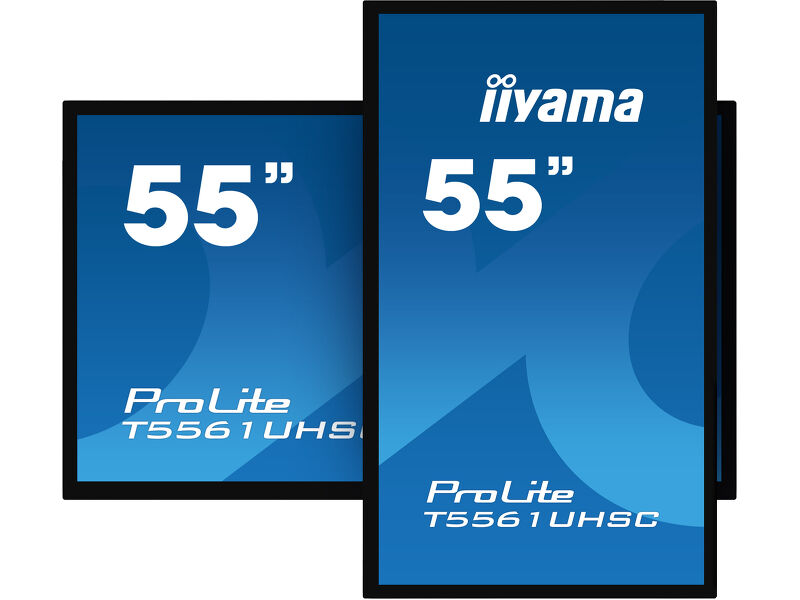

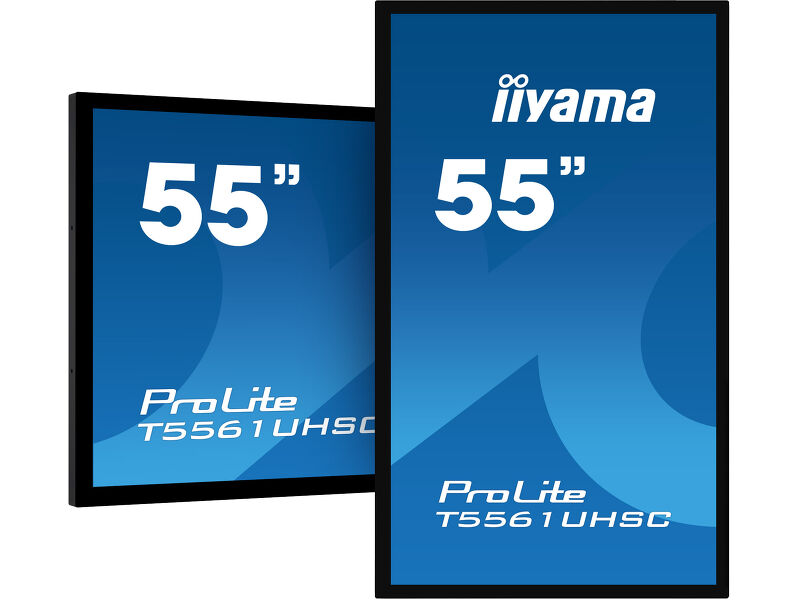

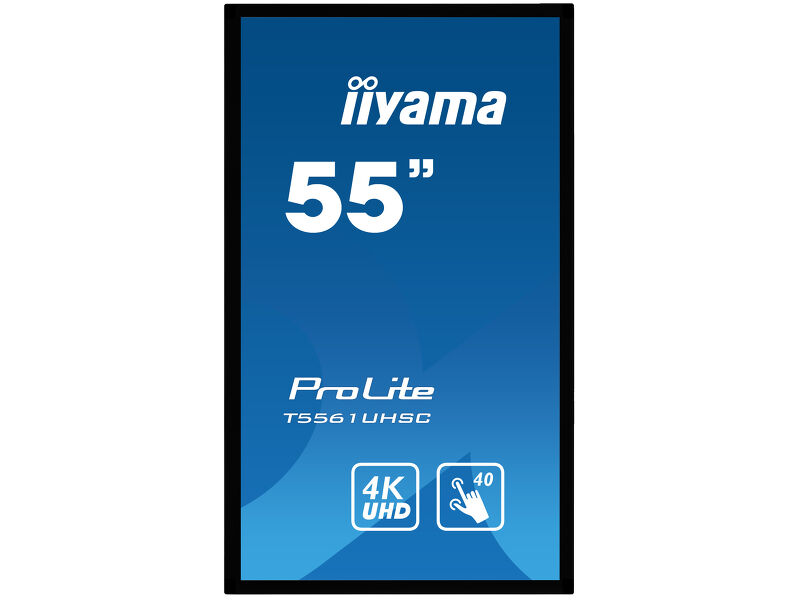

Featuring scratch-resistant metal housing with 60950-1 ball-drop proof, edge-to-edge glass and an IPS panel; this display can be used in landscape and portrait orientation in the most demanding environments for maximum flexibility and accessibility. This through glass touch screen has capacity to work through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
24/7 displays are designed for a continuous operation.
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management.
|Design||Edge to edge glass|
|Native resolution||3840 x 2160 @60Hz (8.2megapixel 4K UHD, HDMI & DisplayPort)|
|Brightness||450 cd/m² typical|
|Brightness||420 cd/m² with touch|
|Static contrast||1100:1 typical|
|Response time (GTG)||6ms|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln 8bit|
|Horizontal Sync||30 - 81kHz|
|Viewable area W x H||1209.6 x 680.4mm, 47.6 x 26.8"|
|Bezel width (sides, top, bottom)||20mm, 20mm, 20mm|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||40 (HID, only with supported OS)|
|Touch method||finger, glove (latex), capacitive stylus|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Through-Glass||6mm (2 points touch)|
|Digital signal input||
DVI x1 (max. 1920x1200 @60Hz)
HDMI x2 (v.2.0 x1 max. 3840x2160 @60Hz, v.1.4 x1 max. 3840x2160 @30Hz)
DisplayPort x1 (v.1.2 max. 3840x2160 @60Hz)
|Audio input||Mini jack x1 (3.5mm)|
Mini jack x1
Speakers 2 x 8W
|Monitor control output||OPS Slot x1 (SDM-L)|
|USB ports||x1 (touch screen I/F)|
|Extra||DC out for Mini-PC, slot for Smart Display Module (SDM-L), anti-fingerprint coating|
|Max. non-stop operating time||24/7|
|60950 Ball drop test||yes|
|Water and dust protection||IP65 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/Brightness, Scroll down/Mute, Select/Auto, Power|
|User controls||picture (contrast, brightness, H Position, V Position, phase, clock, auto), advanced (colour temperature, sharpness), OSD (timeout, position, H Position, V Position, touch switch, image shift), option (reset, language, source selection, display mode, volume, mute, auto dim.)|
|VESA mounting||400 x 400mm|
|Mini PC mount||VESA 100 x 100, NUC INTEL|
|Operation temperature range||0°C - 40°C|
|Storage temperature range||- 20°C - 60°C|

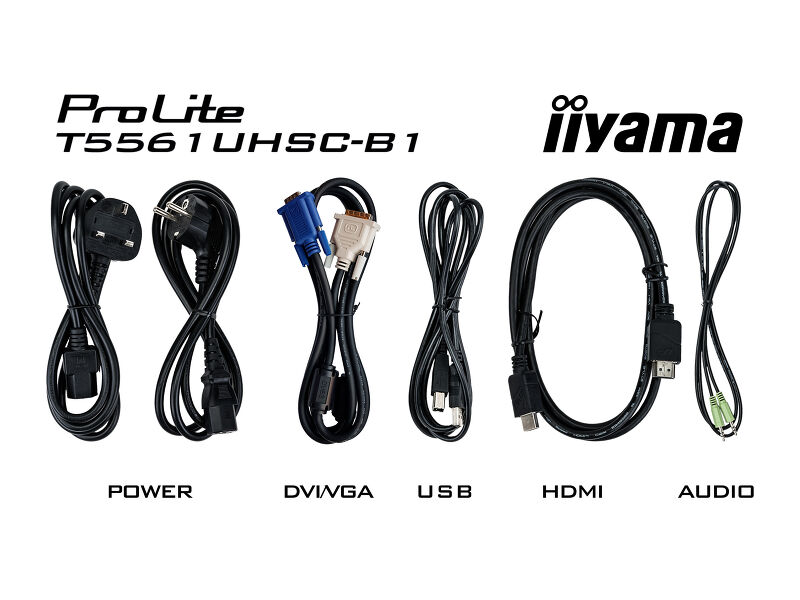

|Cables||power, DVI-I-VGA, USB, HDMI, Audio|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||110W typical, 2.0W stand by, 0.45W off mode|
|Regulations||CB, CE, EAC, RoHS support, ErP, WEEE, REACH|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||1247.5 x 732.5 x 81mm|
|Weight (without box)||30.7kg|
|Energy efficiency class||C|
|Visible screen diagonal||139cm; 55"; (55" segment)|
|ON mode power consumption||164W|
|Annual energy consumption||240kWh/annum*|
|Power in Standby||2.0W stand by|
|Power in OFF Mode||0.41W off mode|
|Resolution||3840 x 2160|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
