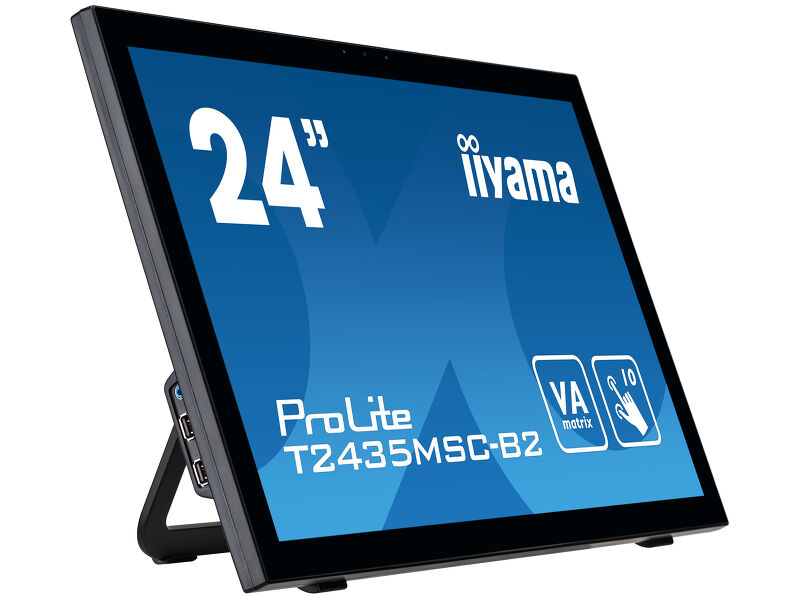

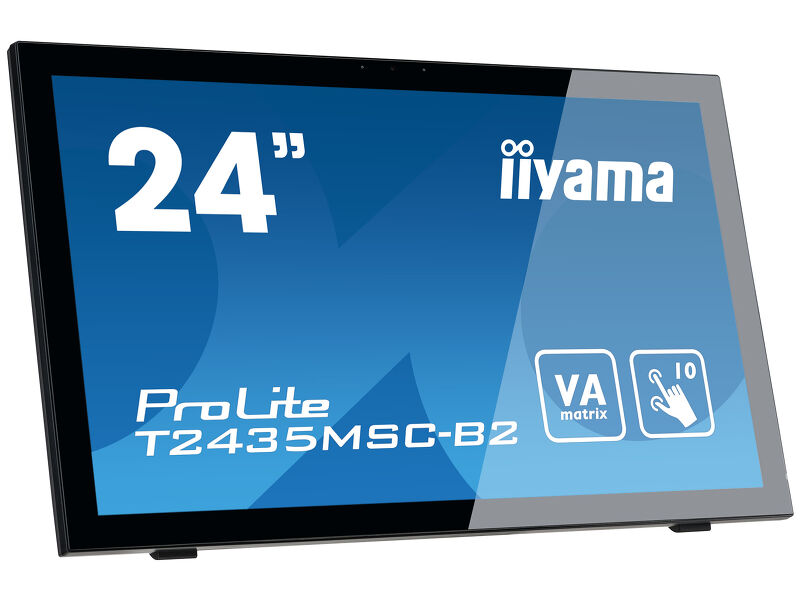

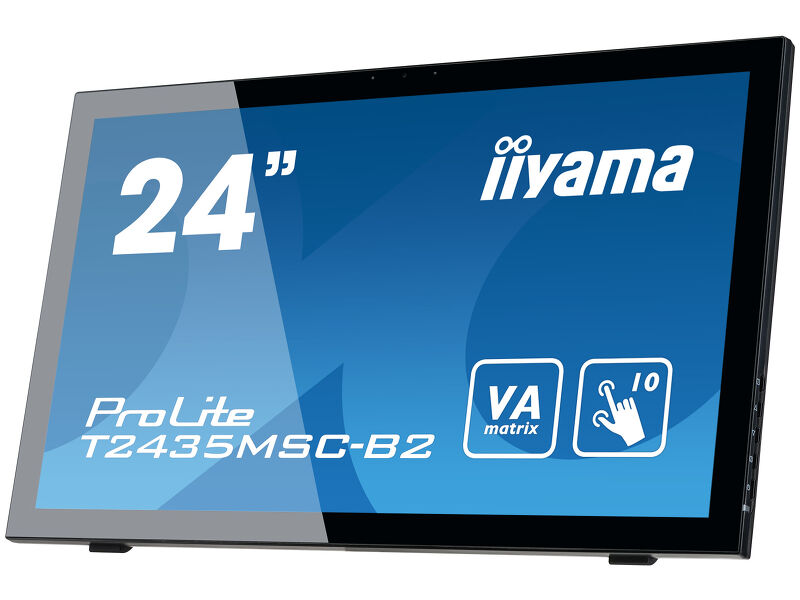

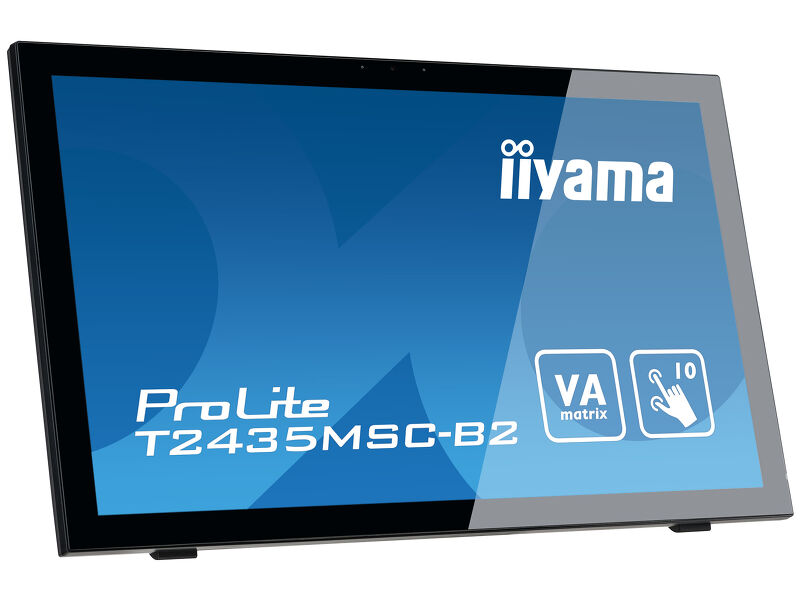

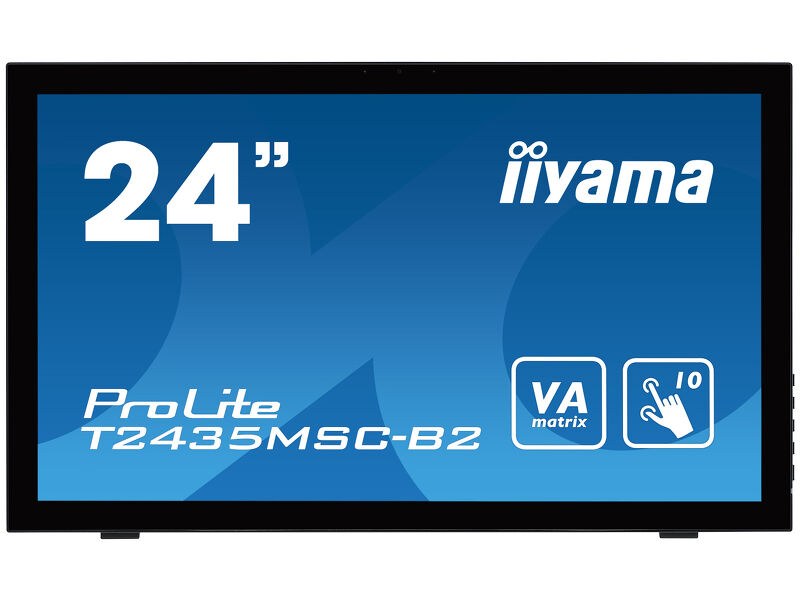

24" 10 point multi-touch monitor with edge-to-edge glass and webcam

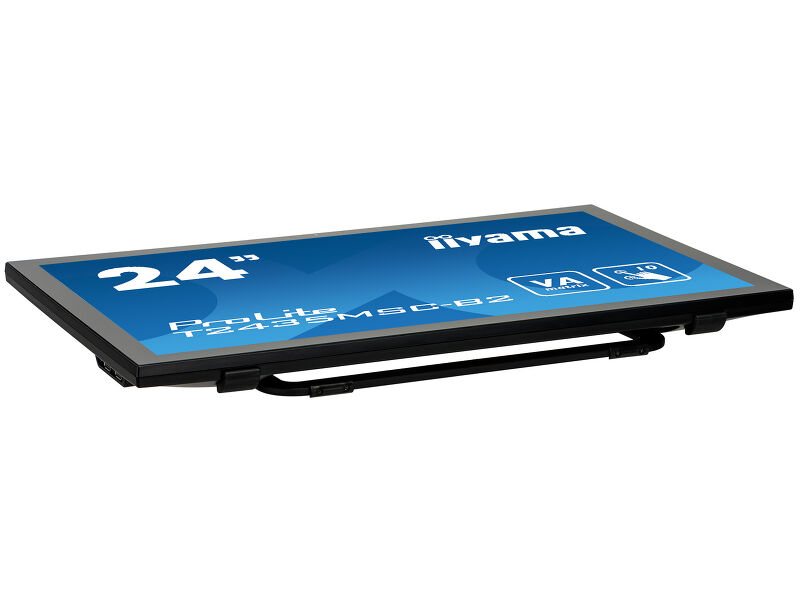

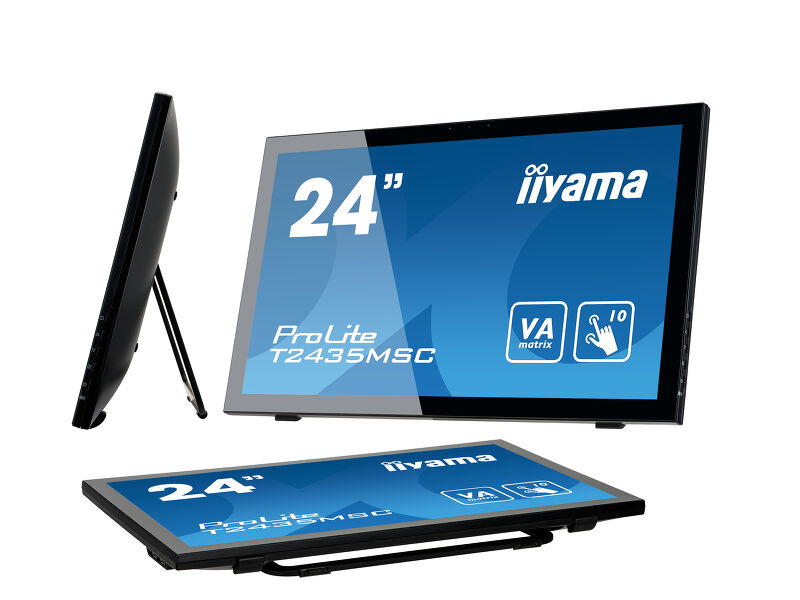

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T2435MSC delivers seamless and accurate touch response. Featuring VA LED-backlit LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2435MSC comes equipped with several video inputs and a USB 2.0 HUB as well as integrated stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, InStore Retail, Gaming and Interactive Presentations purposes.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor's brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.
|Design||Edge to edge glass|
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||250 cd/m² typical|
|Brightness||215 cd/m² with touch|
|Static contrast||3 000:1 typical|
|Viewing zone||horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||30 - 80KHz|
|Vertical Sync||55 - 75Hz|
|Viewable area W x H||521.28 x 293.22mm, 20.5 x 11.5"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

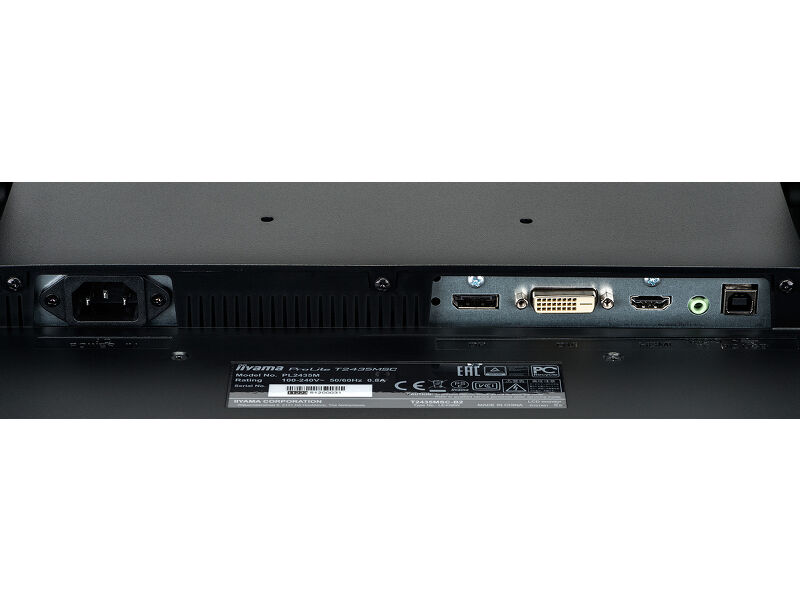

|Digital signal input||
Mini jack x1
Speakers 2 x 1W

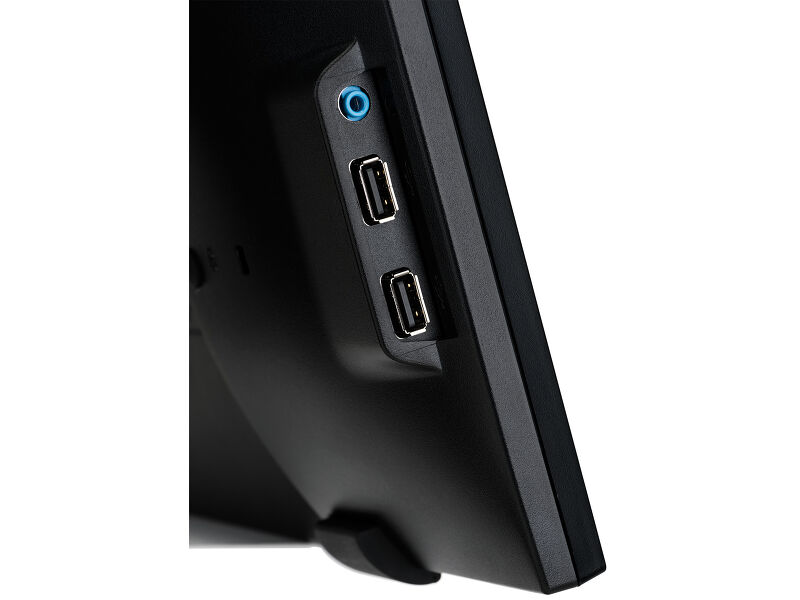

|USB HUB||x2 (v.2.0)|

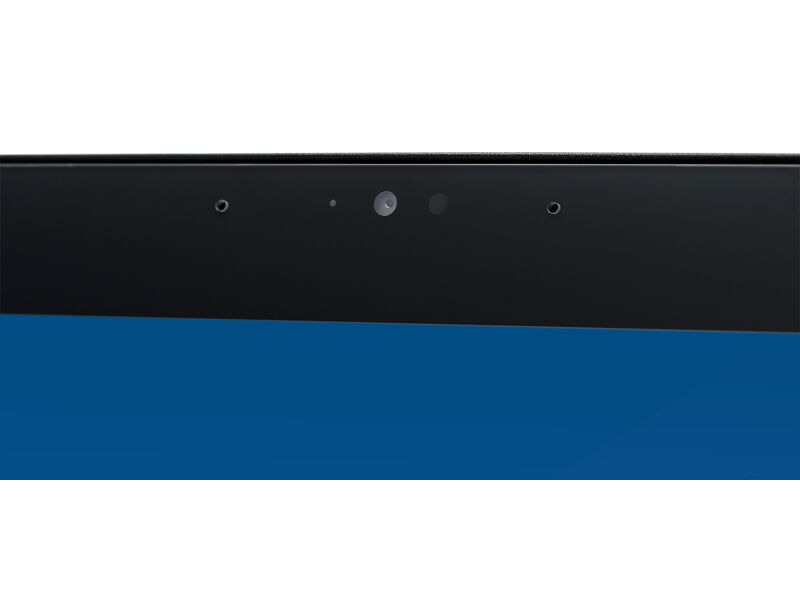

|Extra||integrated webcam and microphone|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, CN, RU, JP, CZ, NL, PL|
|Control buttons||Menu, Scroll up/ Audio Adjust, Scroll down/ i-Style Colour, Select/ Input select, Power|
|User controls||picture adjust (contrast, brightness, ACR, ECO mode, overdrive), input select, audio adjust (volume, mute, audio input), colour adjust, information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language, OSD position, OSD time out, OSD background, opening logo, LED), memory recall|

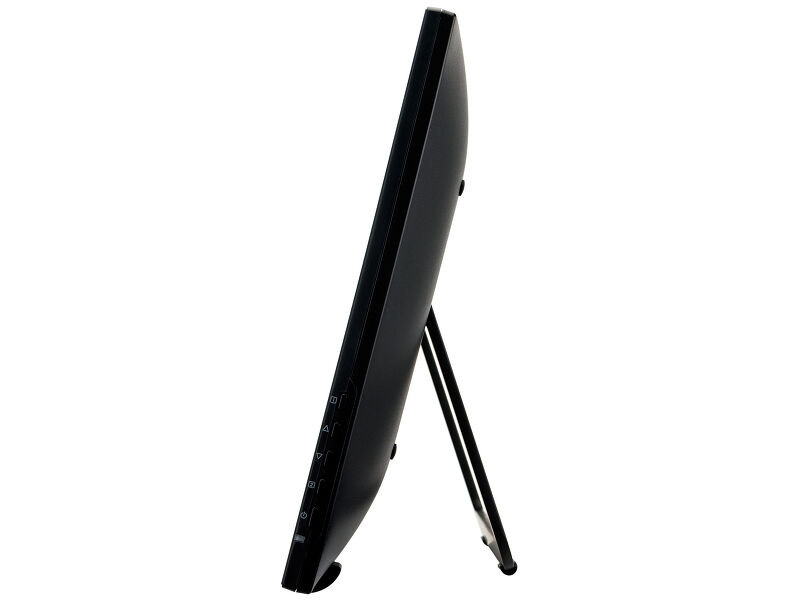

|Tilt angle||15° up; 70° down|

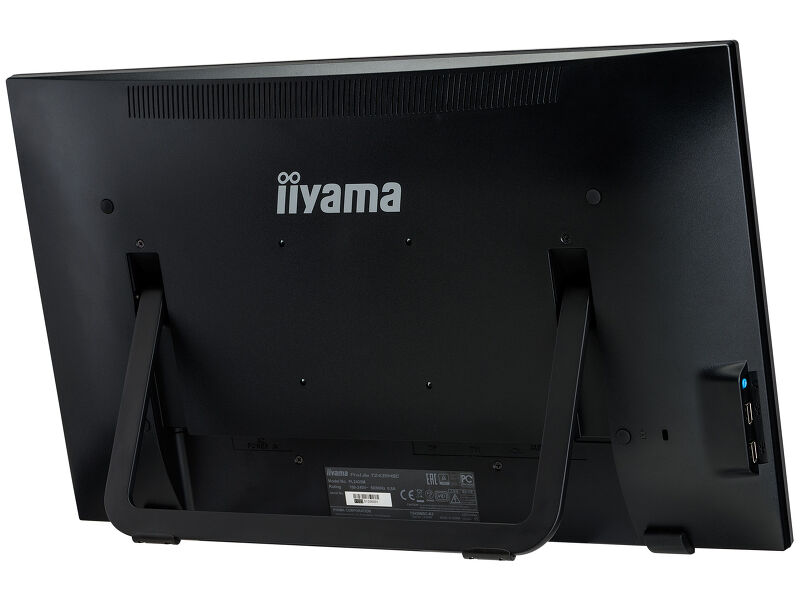

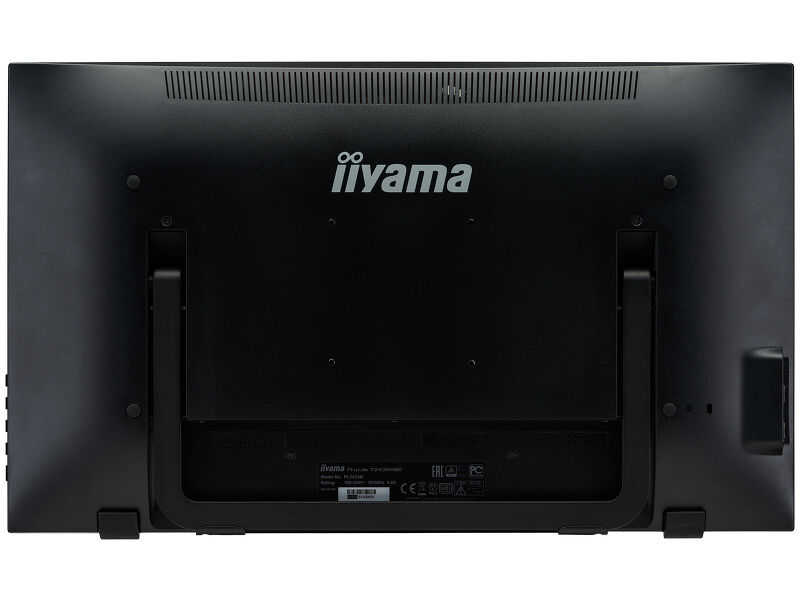

|VESA mounting||100 x 100mm|
|Cables||power, DVI, USB, Audio, mDP - DP|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||24.1W typical, 0.38W stand by, 0.32W off mode|
|Regulations||CE, TÜV-Bauart, VCCI-B, PSE, CU, cULus|
|Energy efficiency class||A|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||571 x 347.5 x 44.5mm|
|Weight (without box)||6.2kg|
|Energy efficiency class||A|
|Visible screen diagonal||60cm; 23.6"; (24" segment)|
|ON mode power consumption||24W|
|Annual energy consumption||35kWh/annum*|
|Power in Standby||0.38W stand by|
|Power in OFF Mode||0.32W off mode|
|Resolution||1920 x 1080|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
