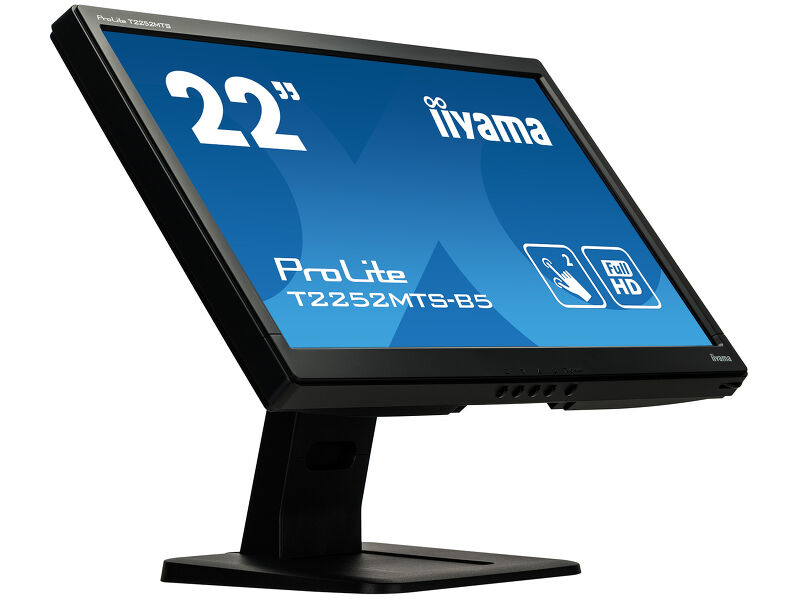

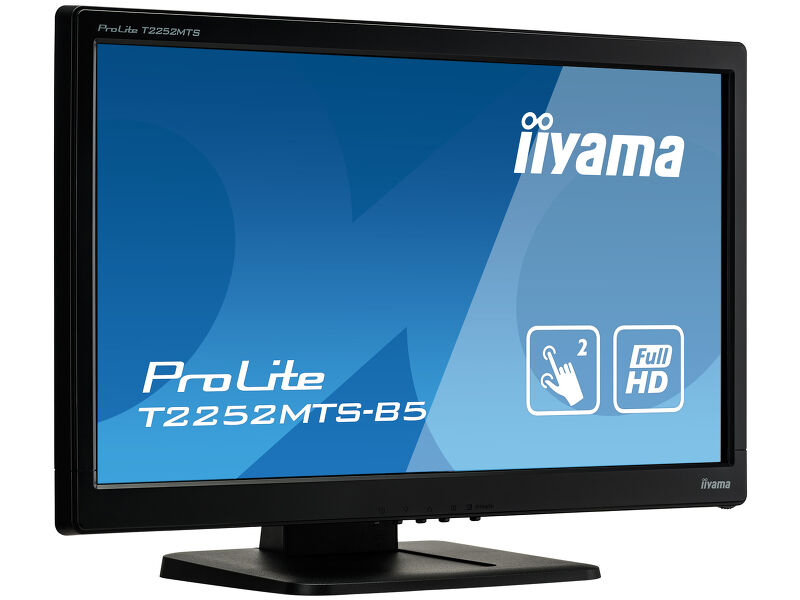

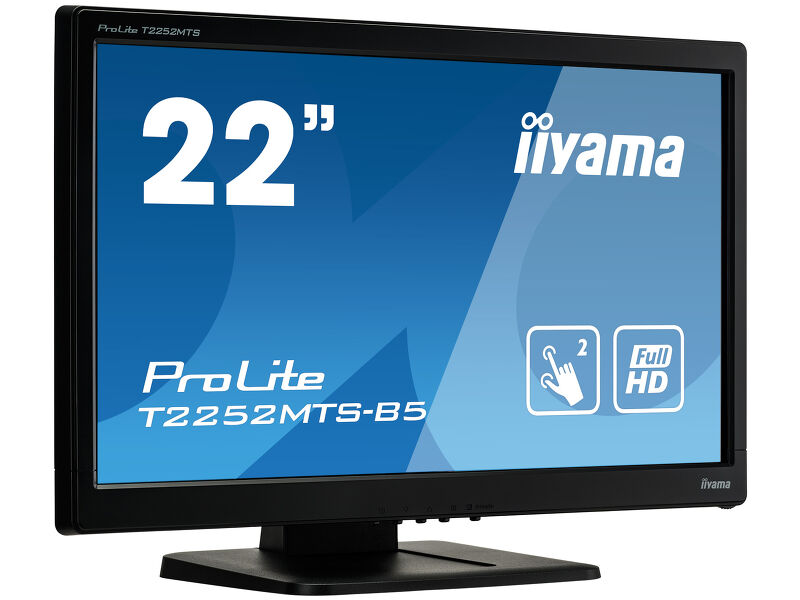

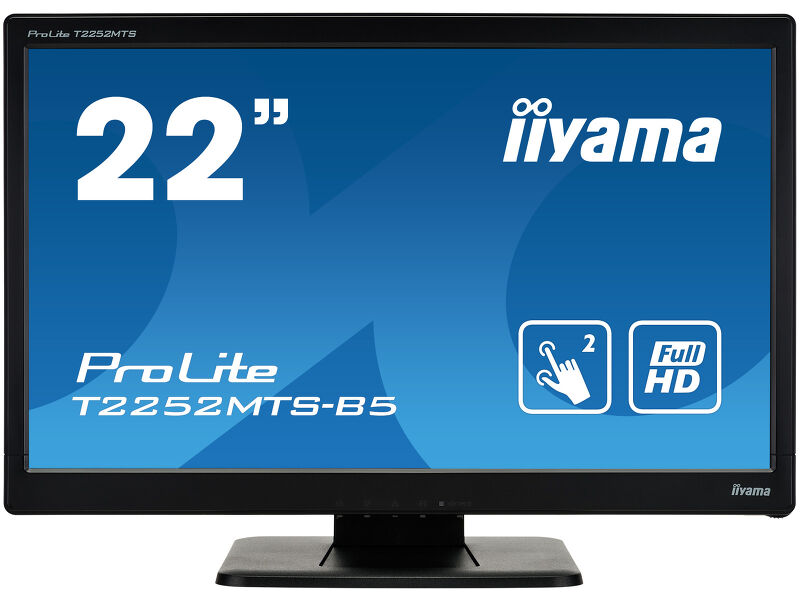

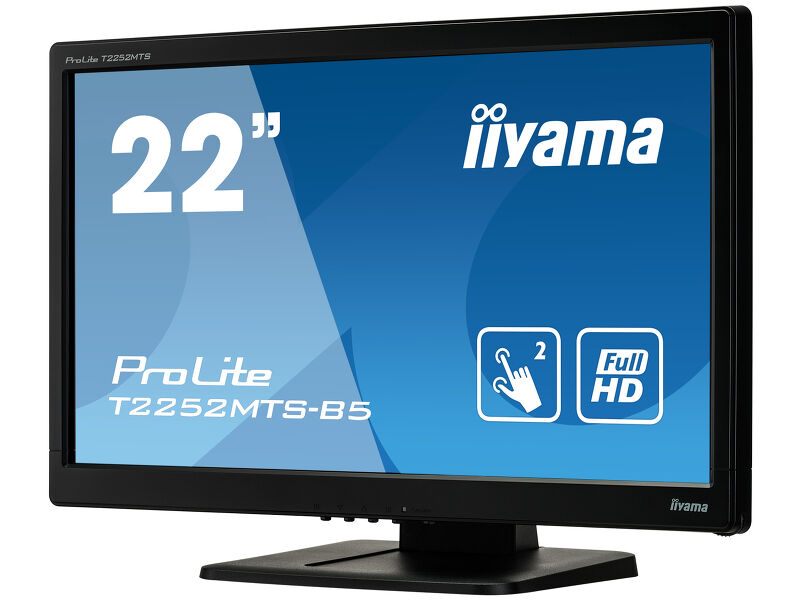

22" Dual Touch screen, based on Optical Touch Screen Technology
The T2252MTS is Windows® compatible and ready for the emerging business and consumer software packages. The monitor lets you browse the web, email and draw while working on multiple screens, docking or typing on the on-screen keyboard. You can scroll and rotate pictures, draw, zoom in and out using certain tap, flick, grab and pincer gestures. The multi touch is not only fast but also fun to work with. Multiple inputs (VGA/ HDMI/ DVI) are available for flexible connectivity along with USB for the Touch Interface.
This technology uses cameras. A touch event is registered with great accuracy when light is blocked by a finger or stylus. It’s the only touch technology that does not rely on an overlay or substrate to register a touch, so it's impossible to physically "wear out" the touchscreen. In fact you don’t really have to physically touch the screen.
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
This LED monitor is equipped with two high quality stereo speakers.
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
|Native resolution||1920 x 1080 (2.1 megapixel Full HD)|
|Brightness||250 cd/m² typical|
|Brightness||220 cd/m² with touch|
|Static contrast||1000:1 typical|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||30 - 80KHz|
|Vertical Sync||55 - 75Hz|
|Viewable area W x H||476.64 x 268.11mm, 18.8 x 10.6"|
|Bezel colour and finish||black, matte|
|Touch points||2 (HID, only with supported OS)|
|Touch method||stylus, finger, glove|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|

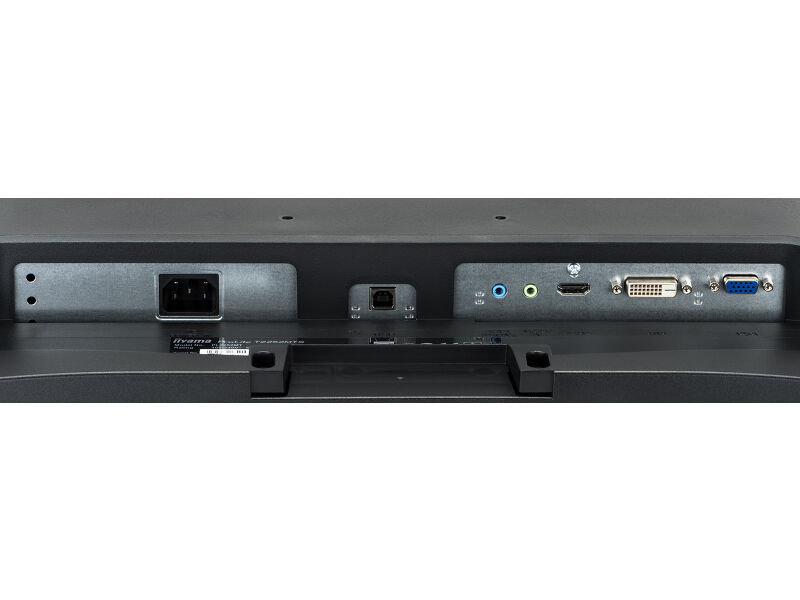

|Analog signal input||VGA x1|
|Digital signal input||
Mini jack x1
Speakers 2 x 1W
|OSD key lock||yes|
|OSD languages||EN, DE, FR, CN, RU, JP, NL, PL|

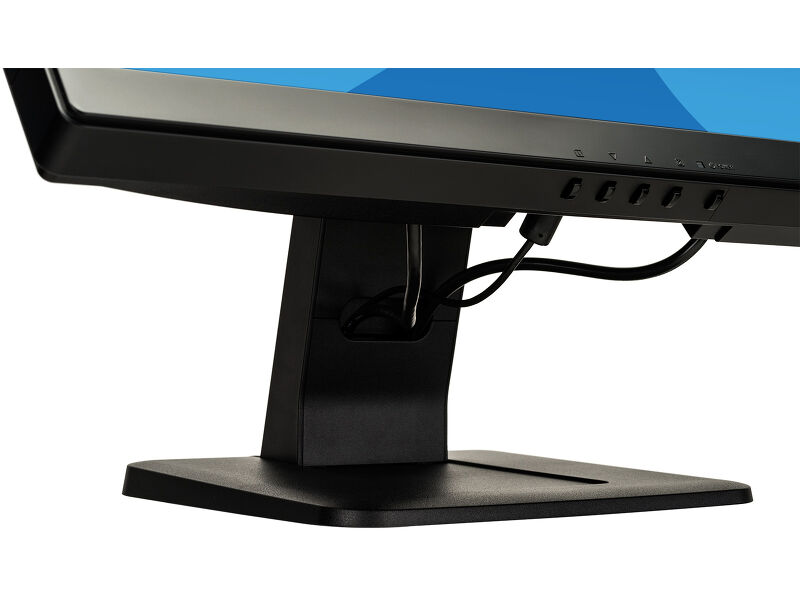

|Control buttons||Power, Select/ Input Select, Scroll up/ Audio, Scroll down/ i-Style Colour, Menu|
|User controls||auto adjust, picture adjust (contrast, brightness, ACR, ECO, OD), input select, audio (volume, mute, HDMI audio), colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (H./V. position, clock, phase, sharpness, video mode adjust, blue light reducer), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED), memory recall|
|Blue light reducer||yes|

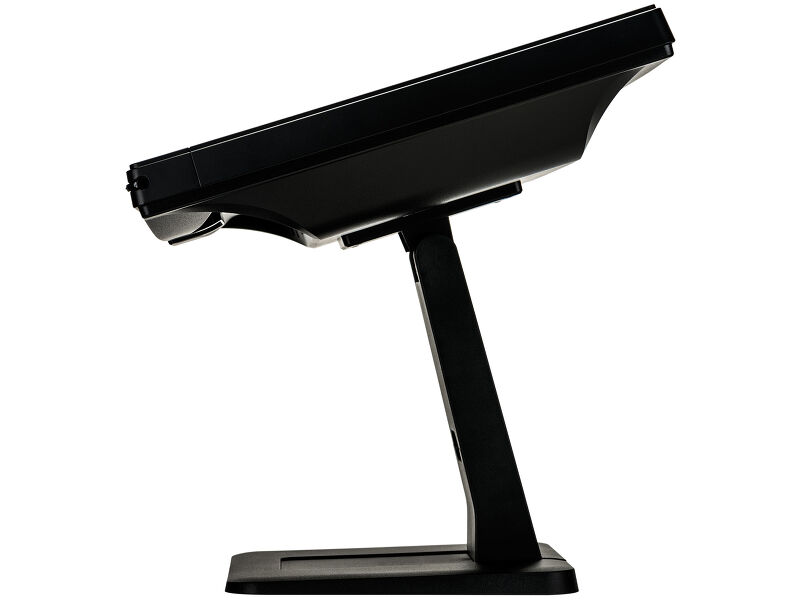

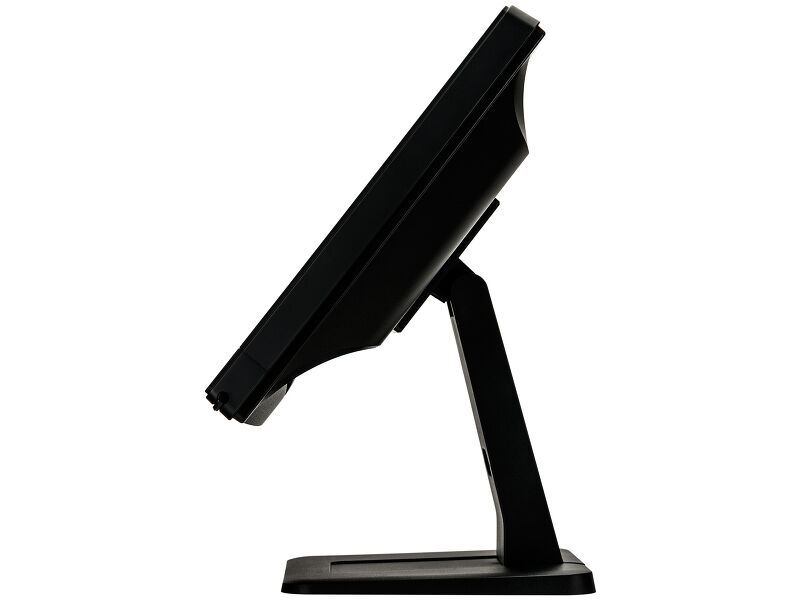

|Tilt angle||73° up; 3° down|

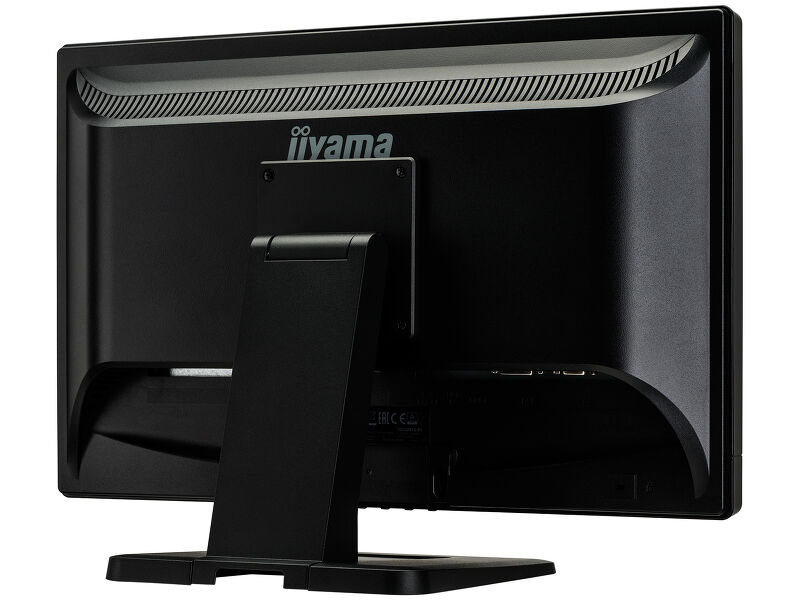

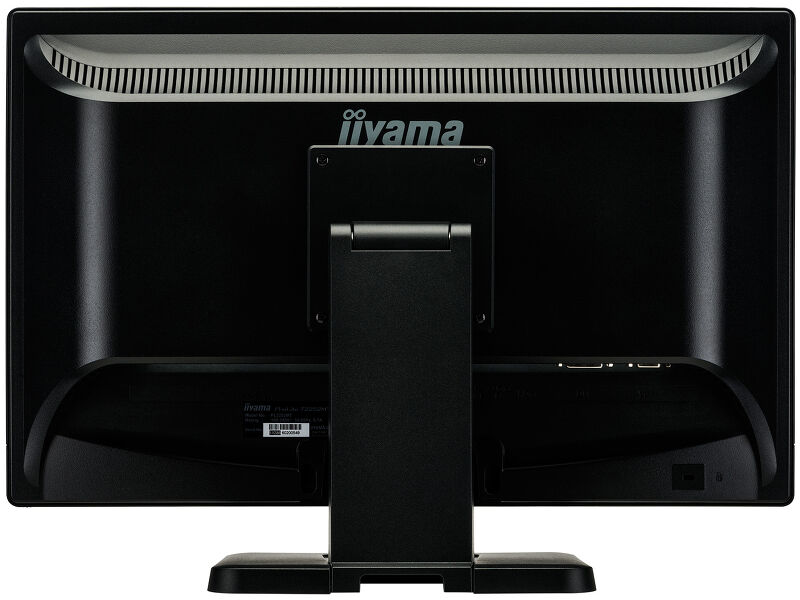

|VESA mounting||100 x 100mm|
|Cables||power, VGA, DVI, USB, Audio|
|Guides||quick start guide, safety guide|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||15W typical, 0.5W stand by|
|Regulations||CE, TÜV-Bauart, Energy Star , CU|
|Energy efficiency class||A|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||516.5 x 371.5 x 220.5mm|
|Weight (without box)||5.7kg|
|Energy efficiency class||A|
|Visible screen diagonal||54.7cm; 21.5"; (22" segment)|
|ON mode power consumption||20.2W|
|Annual energy consumption||30kWh/annum*|
|Power in Standby||0.5W stand by|
|Resolution||1920 x 1080|
This is information under Regulation (EU) No 1062/2010.*Based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
