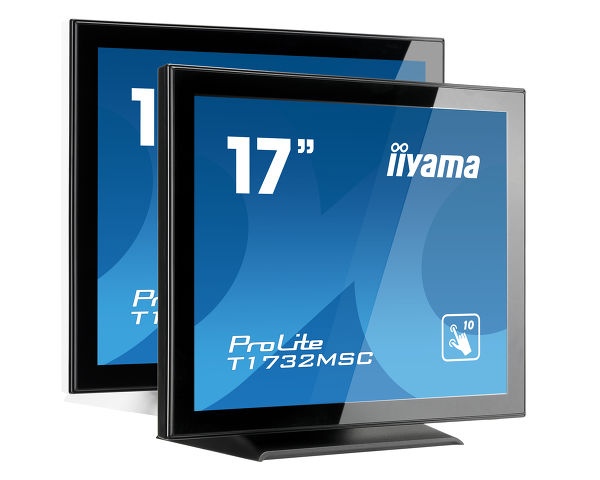

17" Projective Capacitive 10pt touch screen
The ProLite T1732MSC 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. Available in black and white.
Available also in white: ProLite T1732MSC-W1X

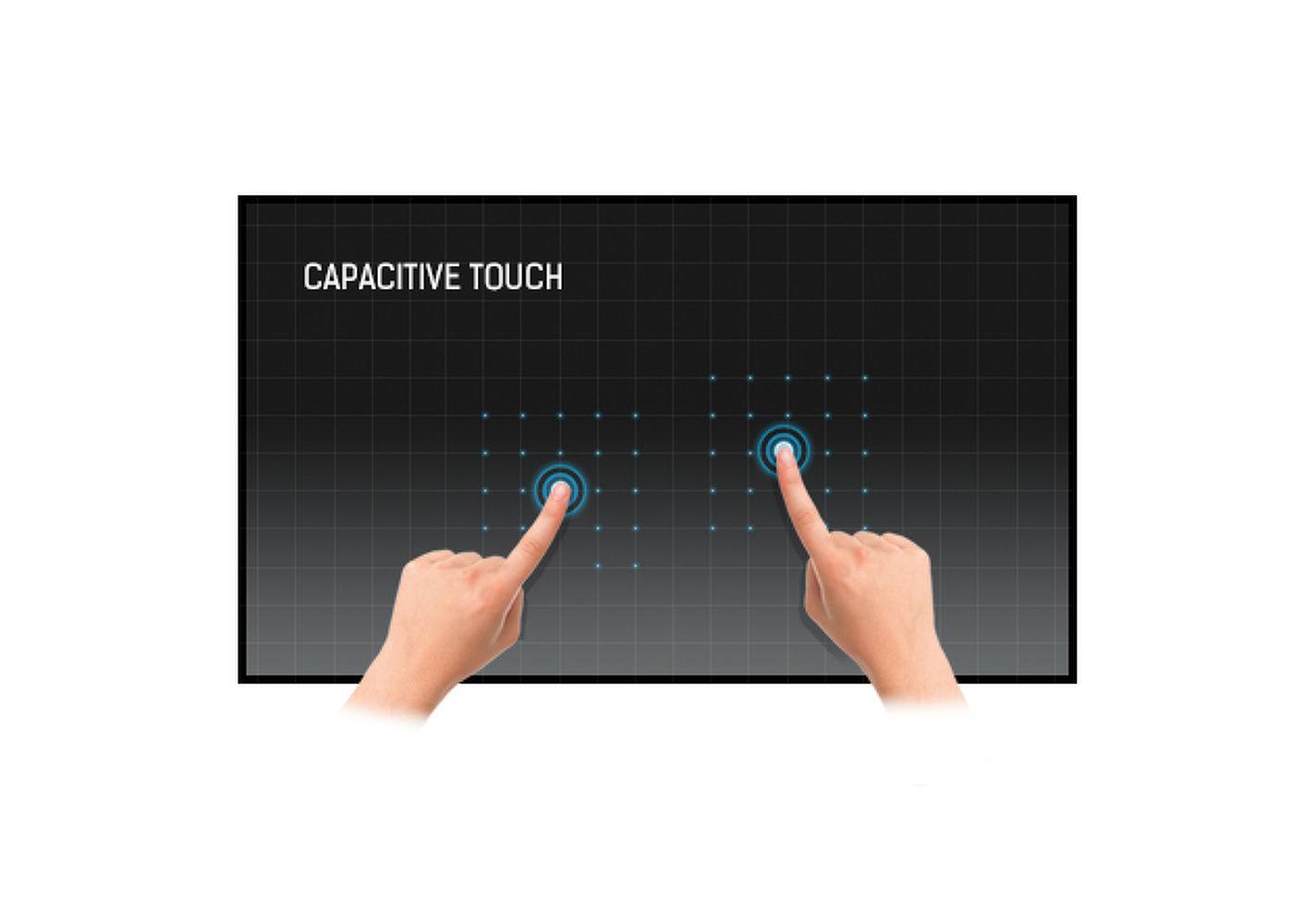

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
This LED monitor is equipped with two high quality stereo speakers.
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
|Design||Edge to edge glass|
|Native resolution||1280 x 1024 (1.3 megapixel)|
|Brightness||250 cd/m² typical|
|Brightness||225 cd/m² with touch|
|Static contrast||1 000:1 with touch|
|Response time (GTG)||5ms|
|Viewing zone||horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°|
|Colour support||16.7mln 8bit (6bit + Hi-FRC)|
|Horizontal Sync||31,4 - 80KHz|
|Vertical Sync||56 - 75Hz|
|Viewable area W x H||338 x 270.5mm, 13.3 x 10.6"|
|Bezel colour and finish||black, matte|
|Touch technology||projective capacitive|
|Touch points||10 (HID, only with supported OS)|
|Touch method||stylus, finger, glove (latex)|
|Supported operating systems||All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.|
|Analog signal input||VGA x1|
|Digital signal input||DVI x1|
|Audio output||Speakers 2 x 1W|
|Water and dust protection||IP54 (front)|
|OSD key lock||yes|
|OSD languages||EN, DE, FR, ES, IT, CN, JP|
|Control buttons||Menu, Scroll up/ Brightness, Scroll down/ Mute, Select/ Auto, Power|
|User controls||contrast, brightness, auto adjust, H.position, V.position, H.size, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute|
|Tilt angle||90° up; 5° down|
|VESA mounting||100 x 100mm|
|Cable management system||yes|
|Cables||power, VGA, DVI, USB, Audio|
|Guides||quick start guide, safety guide|
|Other||Touch Panel Driver Disk (CD-ROM)|
|Power supply unit||internal|
|Power supply||AC 100 - 240V, 50/60Hz|
|Power usage||25W typical, 2W stand by, 2W off mode|
|Regulations||CB, CE, TÜV-Bauart, GOST, VCCI|
|Other||REACH SVHC above 0.1%: Lead|
|Product dimensions W x H x D||387 x 342 x 202mm|
|Weight (without box)||5.6kg|
