Precision meets performance

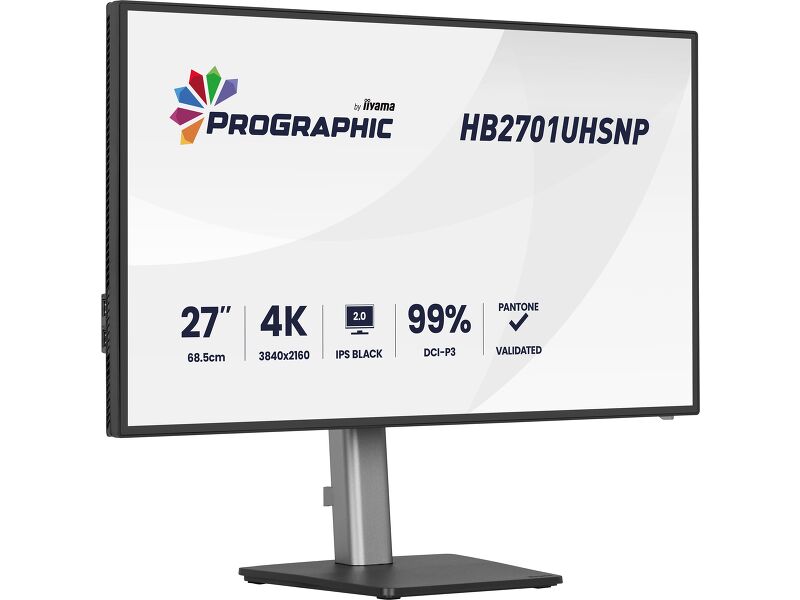

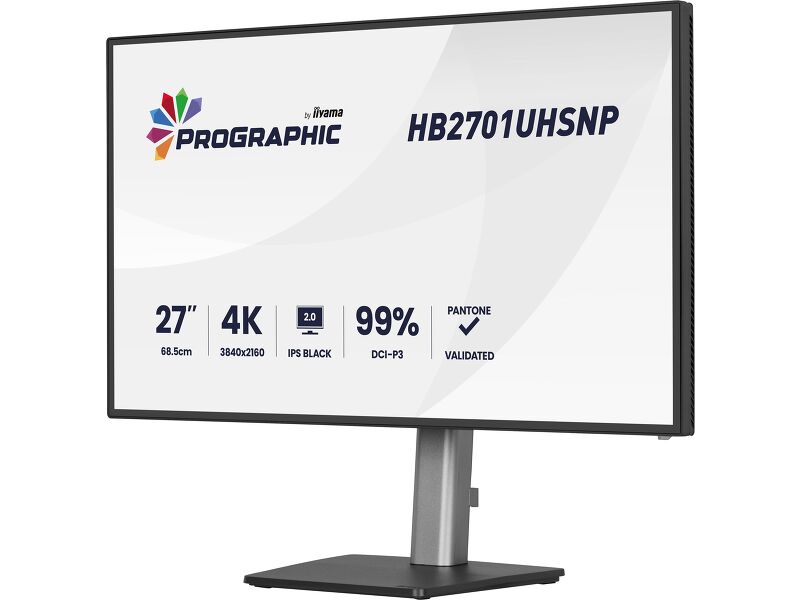

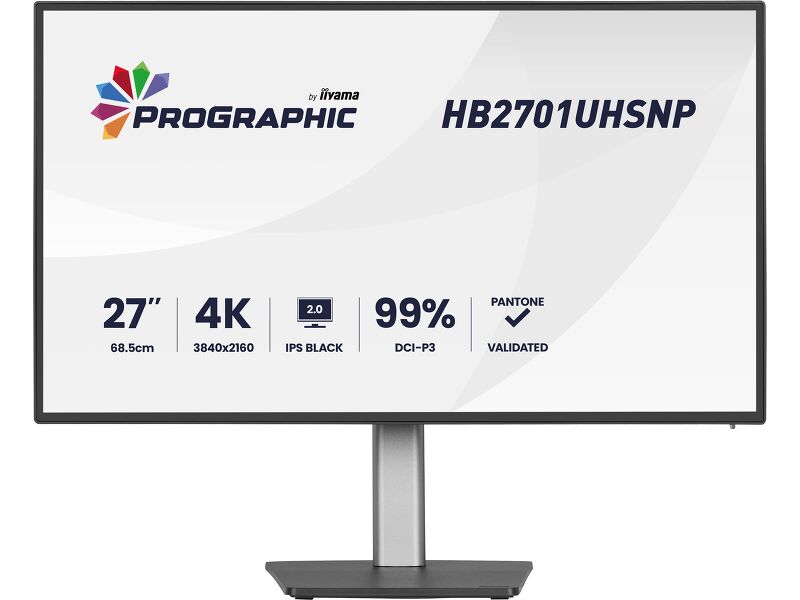

Work with confidence on the 27″ ProGraphic HB2701, a 4K UHD monitor engineered for designers, photographers, and content creators who demand uncompromising visual clarity.
Powered by IPS Black 2.0 technology, it delivers deeper contrast and richer blacks, ensuring every shadow and detail is revealed with stunning precision.
With 99% DCI-P3 coverage and Pantone Validated colour accuracy, your work translates seamlessly across print, video, and digital platforms. The AGLR anti-glare coating minimises reflections, keeping you focused whether you're in a bright studio or a dim workspace. These advanced features allow you to fully showcase your creativity and skills.
Designed for productivity, the HB2701 features a 150mm height-adjustable stand, USB-C docking, and a built-in KVM switch, giving you a clean, connected setup ready for effortless multitasking.
IPS Black 2.0 technology enhances contrast, deepens blacks, and delivers consistent colours across a broad viewing area. You'll catch more detail in shadowed regions and reduce the need for corrections, giving you full confidence during creative work.
ProGraphic monitors are Pantone Validated to ensure precise reproduction of Pantone Matching System colours widely used in design and print. This streamlines your workflow, minimizes revisions, and gives professionals across colour-critical fields the confidence to trust every hue.
With 99% coverage of the DCI-P3 colour space, ProGraphic monitors provide the accuracy needed for any visual project. Whether it’s digital content, print, or film, your work looks exactly how you intended so your audience sees what you see.
A 3000:1 contrast ratio allows ProGraphic monitors to expose subtle shadows and delicate tonal transitions. This means you see more of your image upfront, making editing and grading decisions easier and more accurate. No detail gets overlooked.
The advanced AGLR polarizer (anti-glare low reflective) cuts down on screen reflections more effectively than traditional AG coatings. It ensures clearer visibility and a more comfortable viewing experience, even in brightly lit spaces or during extended work sessions.

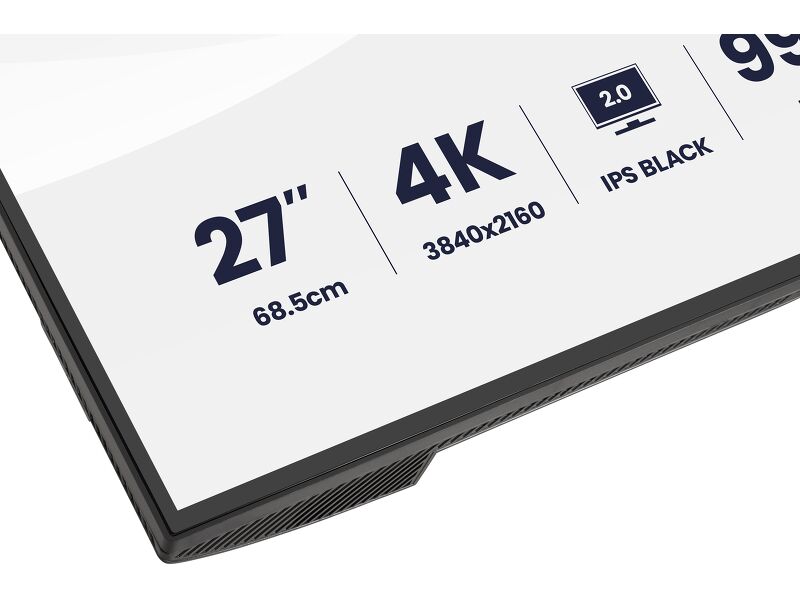

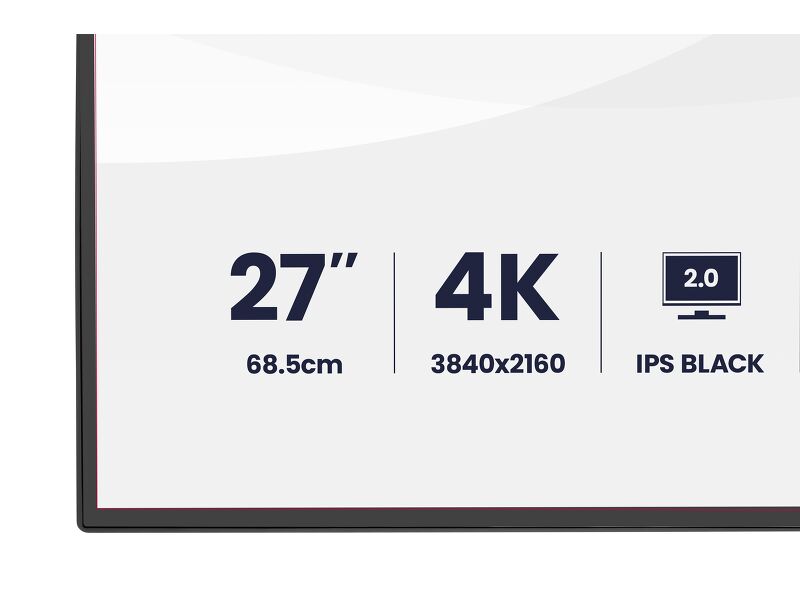

| Design | 4-side edge-to-edge |
| Diagonal | 27", 68.5cm |
| Panel | IPS Black 2.0, matte finish |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 450 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 8bit (DCI-P3 99%, sRGB: 100%; NTSC: 72%) |
| Horizontal Sync | 30 - 140kHz |
| Viewable area W x H | 596.7 x 335.7mm, 23.5 x 13.2" |
| Pixel pitch | 0.155mm |
| Colour | matte, black |

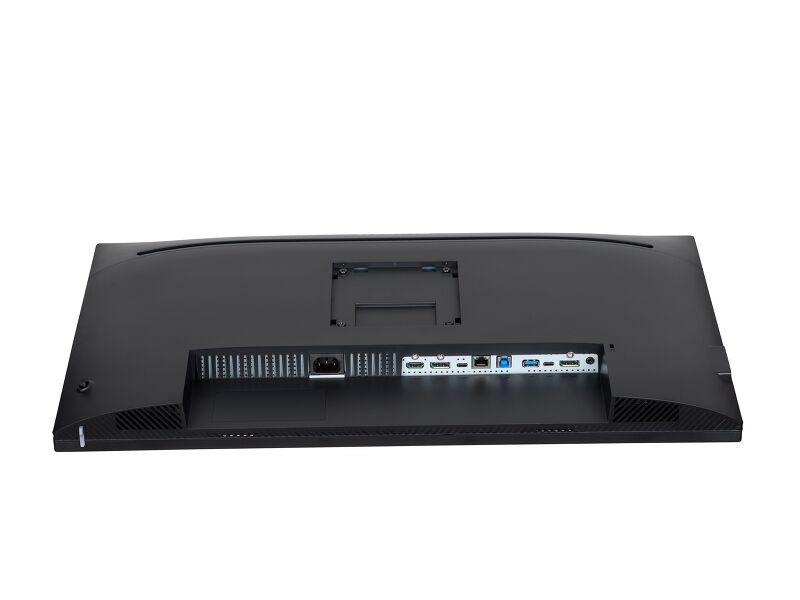

| Signal input |
HDMI x1 (v.2.0) DisplayPort x1 (v.1.2) USB-C x1 (PD 96W) |
| Signal output | DisplayPort x1 (Daisy Chain MST max. 2560 x 1440) |

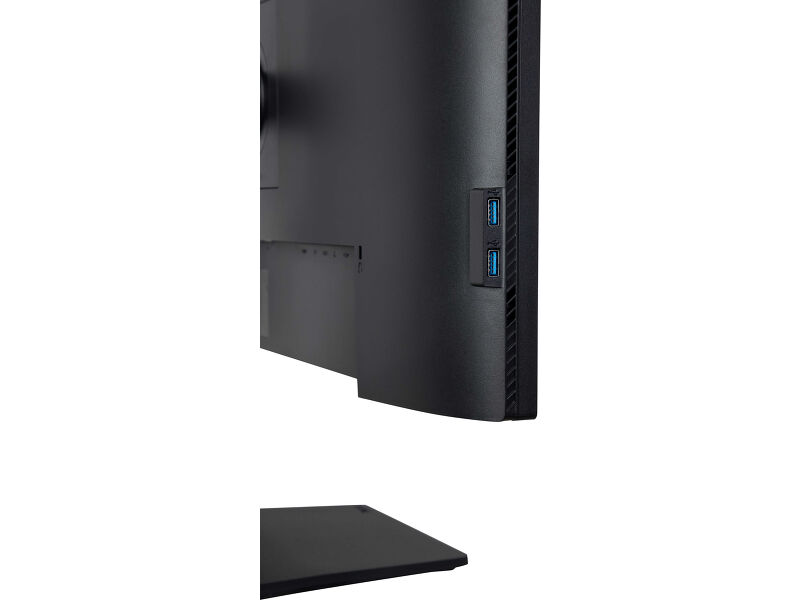

| USB HUB | x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 15W)) |
| USB-C DOCK | x1 (Power delivery 96W, LAN, DP out, (not supported on MAC) USB v.3.2 (Gen 1, 5Gbit)) |
| HDCP | yes |
| Headphone connector | yes |
| RJ45 (LAN) | x1 |
| KVM switch | yes |
| Blue light reducer | yes |
| Flicker free | yes |
| Extra | Delta E <2.0, EyeComfort, Low Blue Light Panel, Eyesafe® Certified, Pantone ValidatedTM, AGLR Polarizer (anti-glare low reflective) |
| HDR | HDR400 |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL, UA |

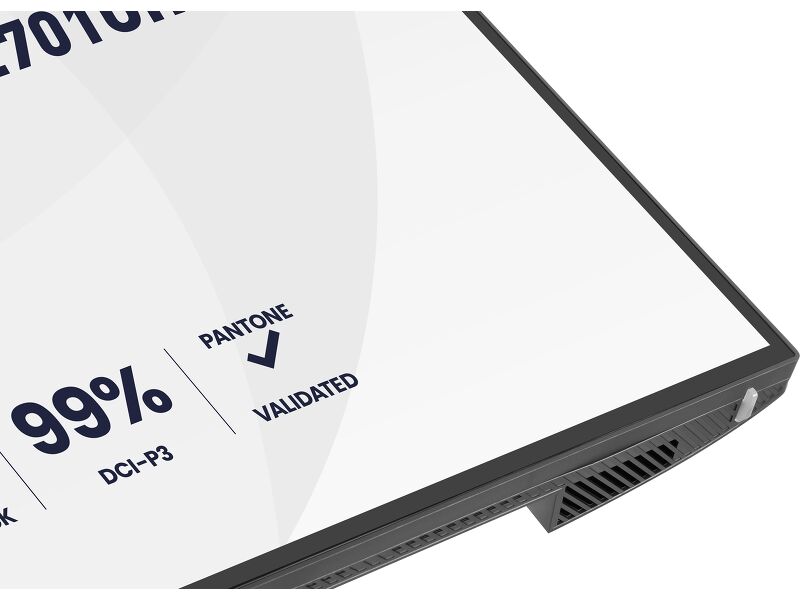

| Control buttons | Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut |
| User controls | picture adjust (contrast, brightness, uniformity, ACR, Eco, OD, gamma), colour settings (HDR, 6-axis, i-Style colour, colour space, RGB range, colour temp., user preset), PiP/PbP (PiP/PbP, sub source, PiP position, PiP size, swap), OSD (H/ position, V. position, OSD time, OSD background, DDC/CI control, display information), language, recall (recall all), miscellaneous (sharpness, video mode adjust, smart power, USB charge, MST DP-out, USB-C speed, shortcut key, opening logo, power LED, Mac address, FW version), KVM (HDMI, DP, USB-C), input select (input select, DisplayPort mode), audio settings (volume, mute, audio input) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B |

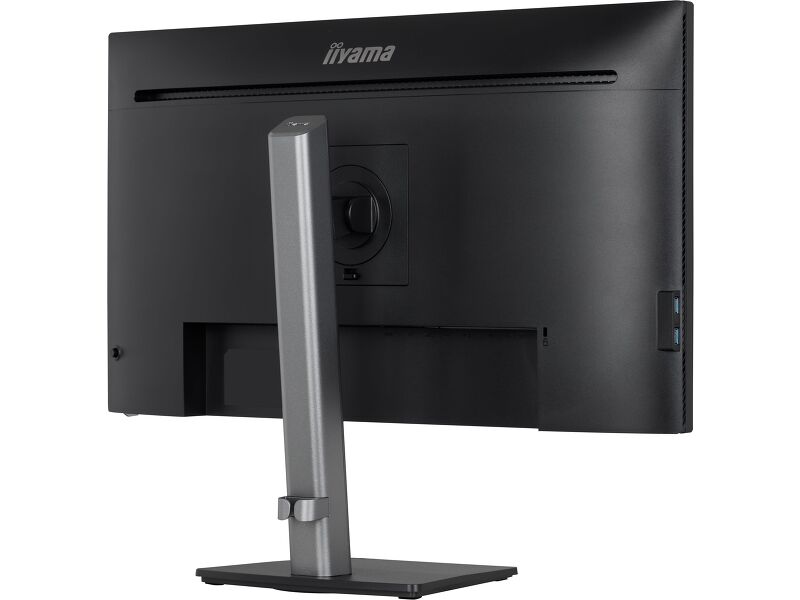

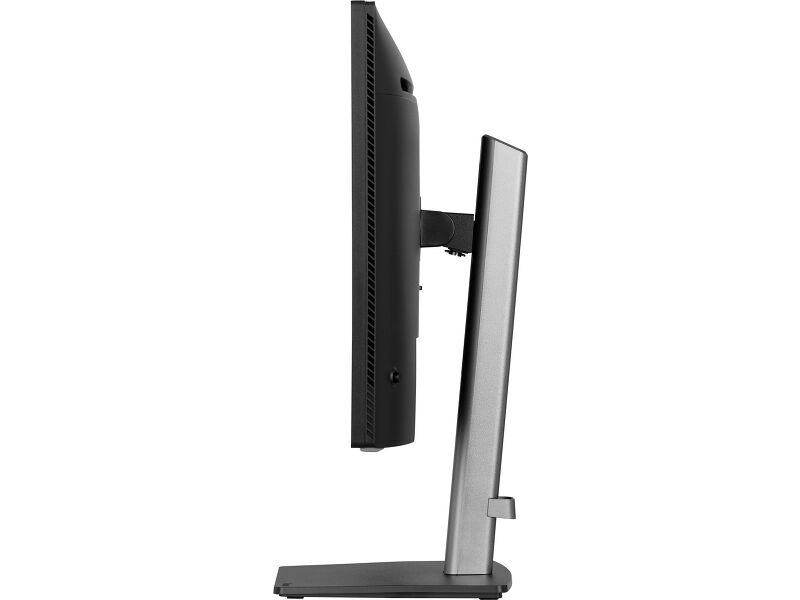

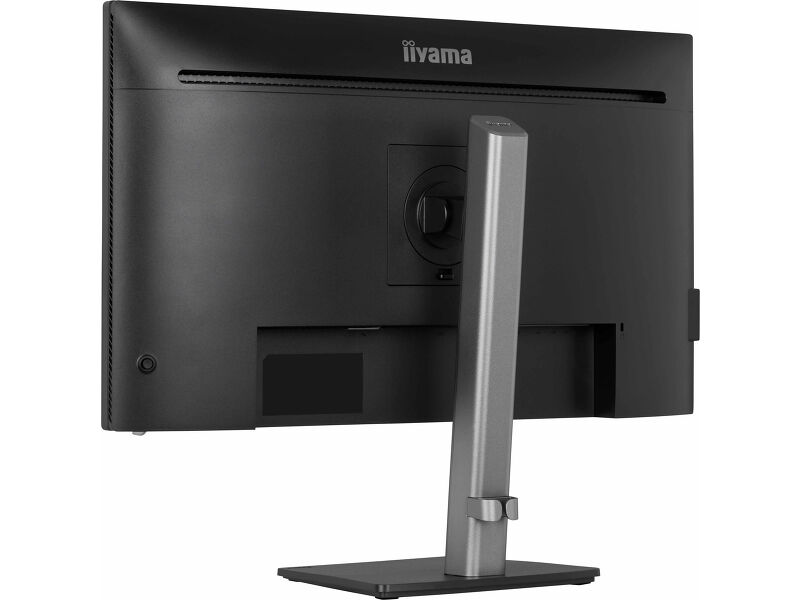

| Display position adjustments | height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment | 150mm |

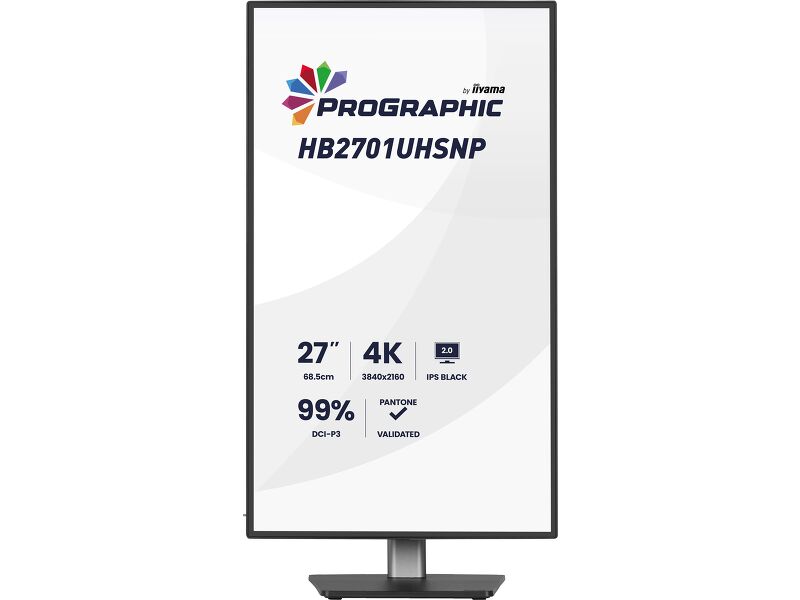

| Rotation (PIVOT function) | 90° |
| Swivel stand | 360°; 180° left; 180° right |

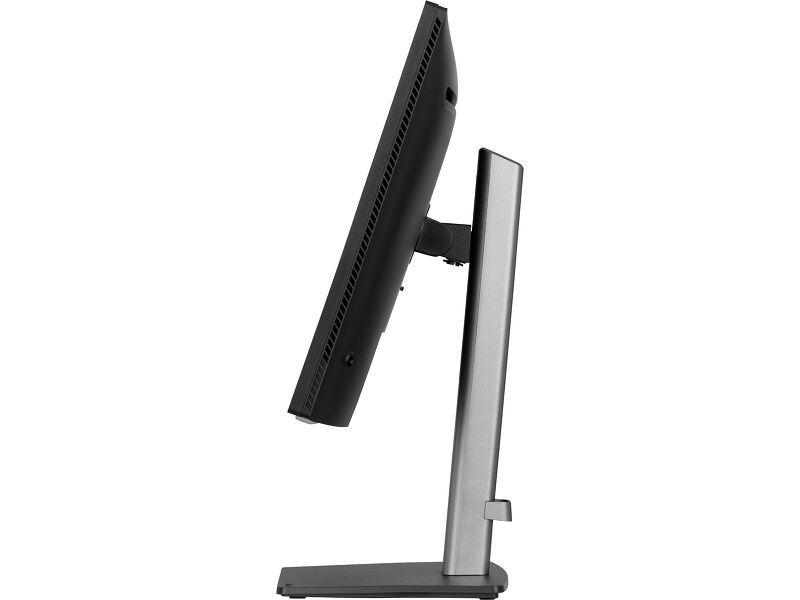

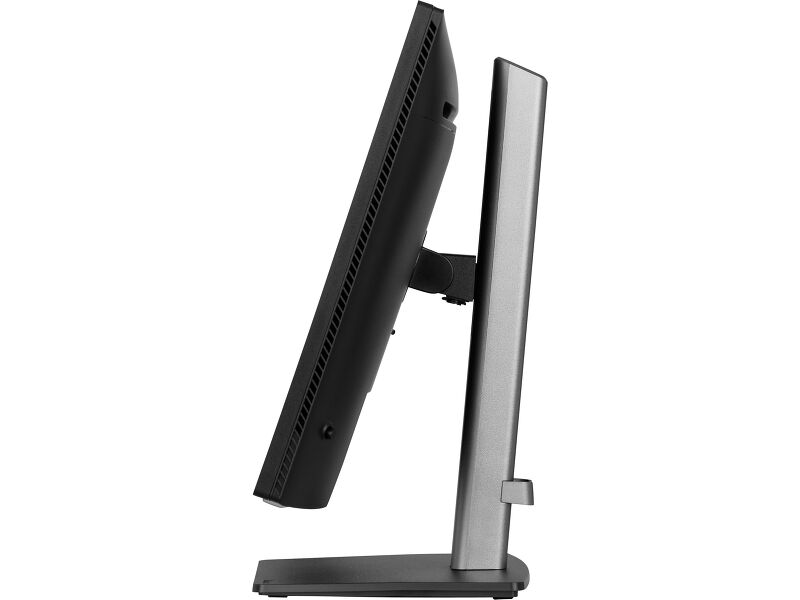

| Tilt angle | 23° up; 5° down |

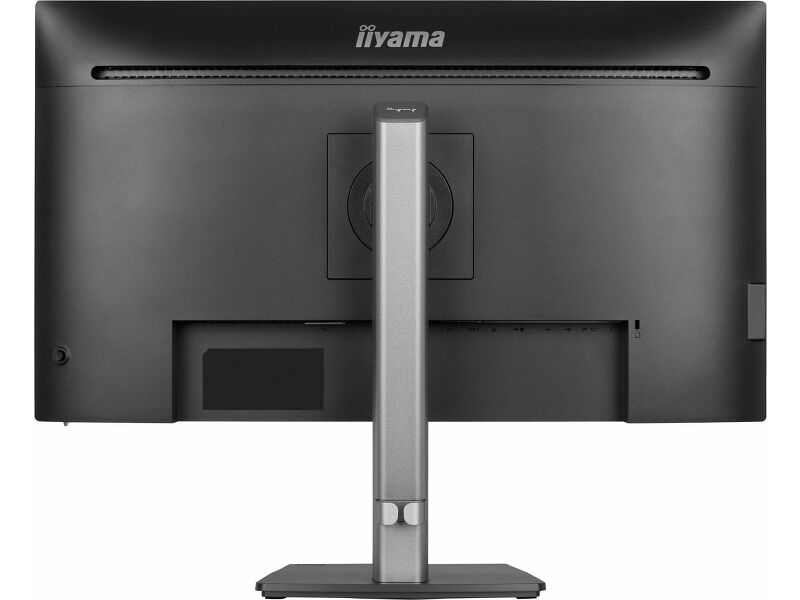

| VESA mounting | 100 x 100mm |
| Cable management system | yes |

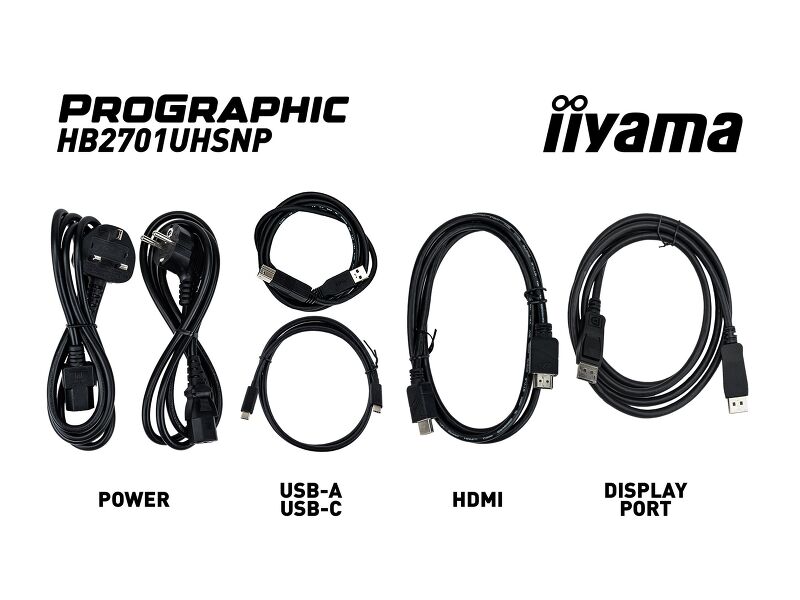

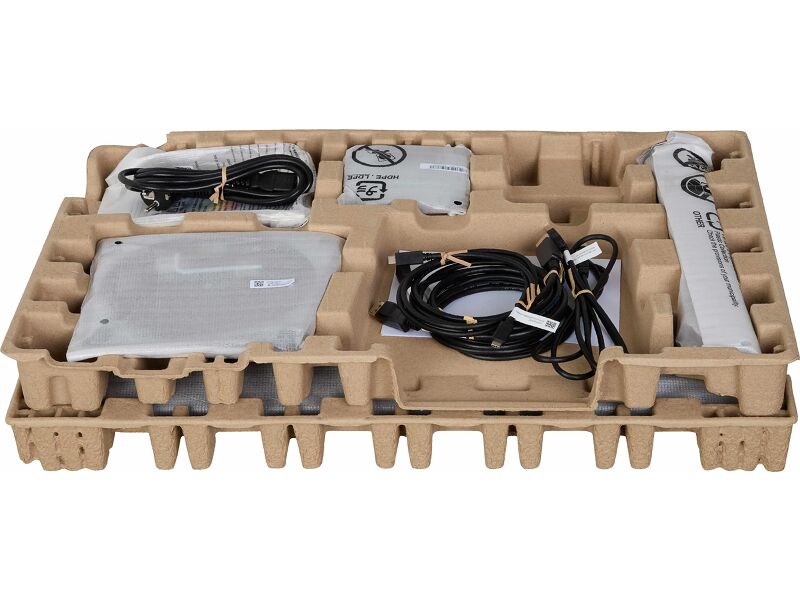

| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m), USB-C (1.0m) |
| Other | quick start guide, safety guide |
| Power supply unit | internal |
| Power supply | AC 120 - 240V, 50/60Hz |
| Power usage | 27W typical, 0.5W stand by, 0.3W off mode |
| Regulations | TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| EPEAT Silver | registration varies by country, go to www.epeat.net for details |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 614 x 404 (544) x 224.5mm |
| Box dimensions W x H x D | 688 x 463 x 138mm |
| Weight (without box) | 6.7kg |
| Weight (with box) | 9.7kg |
| EAN code | 4948570125401 |
