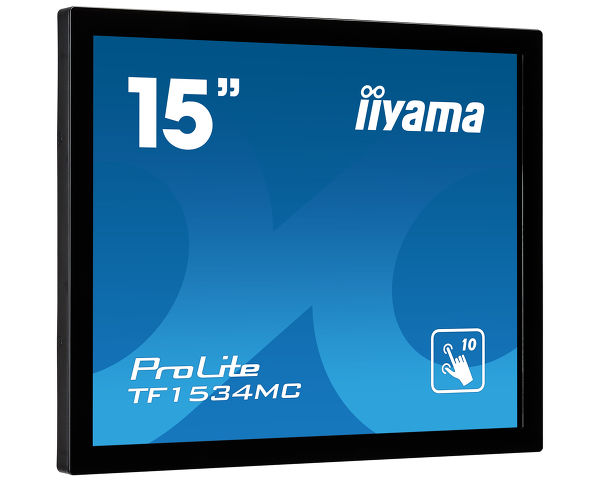

15’’ open frame 10pt touch monitor
The ProLite TF1534MC 15" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The higher brightness (350 cd/m²) ensures crispy and clear image, resulting in outstanding information transmission performance, even in bright environment. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant. For ease of installation in any environment the ProLite TF1534MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators and Instore Retail.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

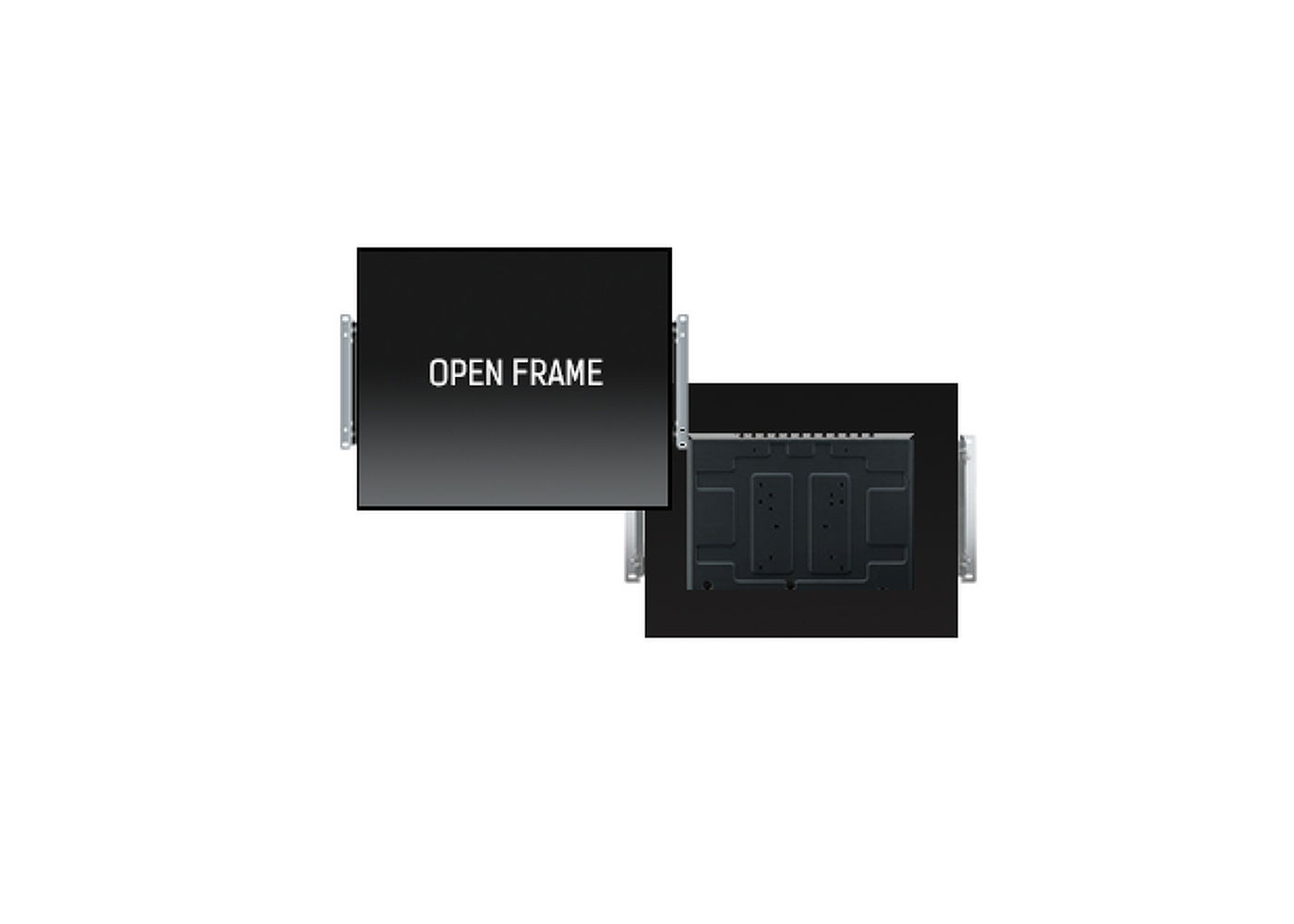

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

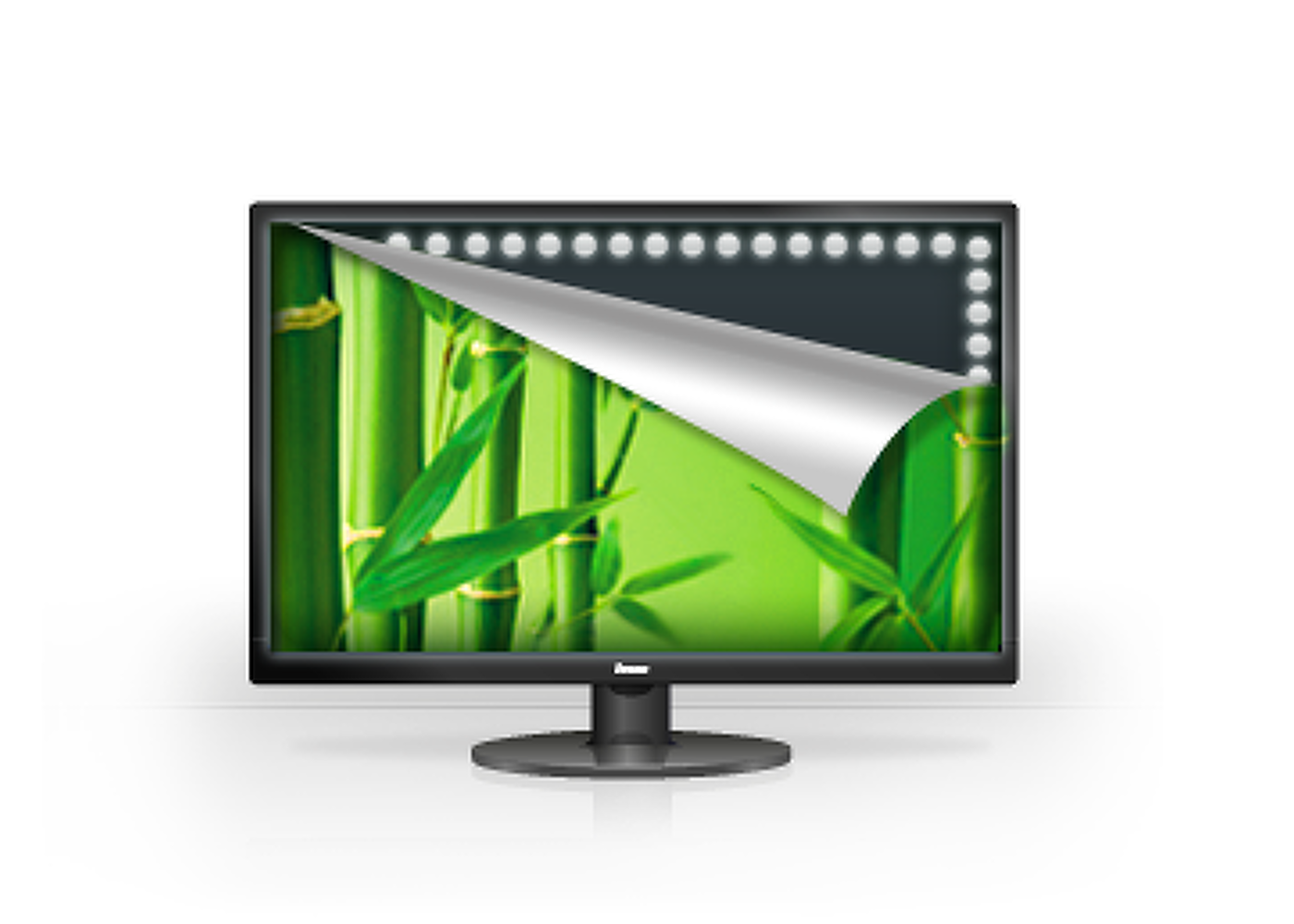

A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
|Aspect ratio||5 : 4|
|Native resolution||1024 x 768 ( 0.8 megapixel)|
|Brightness||370 cd/m² typical|
|Brightness||330 cd/m² with touch panel|
|Contrast||700 : 1 with touch panel|
|Response time||8 ms|
|Viewing zone||horizontal/vertical: 170°/ 160°; right/left: 85°/ 85°; up/down: 80°/ 80°|
|Display colour||16.2 million|
|Touchtechnology||projective capacitive, multitouch (10 compatible touch points - supported only under Windows® 7/8), activated by finger|
|Glass hardness||7H minimum|
|Display area h x w||228 x 304 mm; 9" x 12"|
|Pixel pitch h x v||0.264 x 0.264 mm|
|Horizontal sync||31,4 - 80 KHz|
|Vertical sync||56 - 75 Hz|
|Analog input connector||VGA|
|Digital input connector||DVI|
|Plug & Play||VESA DDC2B™|
|Controls||On-Screen-Display in 8 languages (DE, EN, ES, FR, IT, JP, Chinese - traditional and simplified) and 5 front controls (Menu, Scroll up/ Brightness, Scroll down/ Mute, Select/ Auto, Power)|
|User controls||contrast, brightness, auto adjust, H.position, V.position, H.size, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute|
|Safety||CE, CB, TÜV-Bauart, CU, cULus|
|VESA mounting||100 x 100 mm|
|Water and dust protection||IP65|
|Driver||multi-touch: Windows7/8 (HID compliant), single-touch: Vista, XP, 9X, 2000, CE, NT4), Linux, Mac (OSX)|
|Included accessories||power cable, VGA (D-Sub) signal cable, DVI-D signal cable, audio cable, USB cable, Touch Panel Driver Disk (CD-ROM), screw, quick start guide, safety guide|
|Optional accessories||remote control touchV01|
|Power supply||AC 100 - 240 V, 50 / 60 Hz|
|Power Supply Unit||internal|
|Power usage||20 W typical; max. 2 W in Power management mode|
|Power management||VESA DPMS|
|Dimensions w x h x d||337.5 x 265.5 x 44.5 mm|
