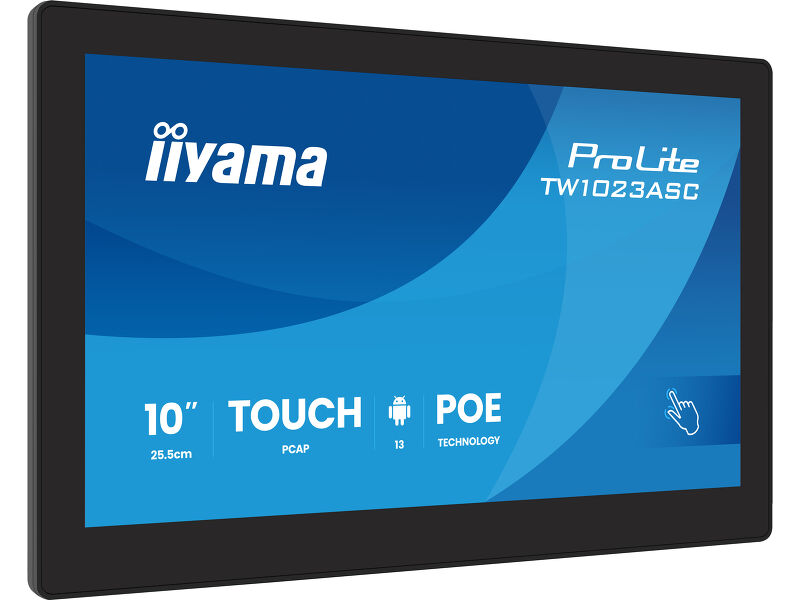

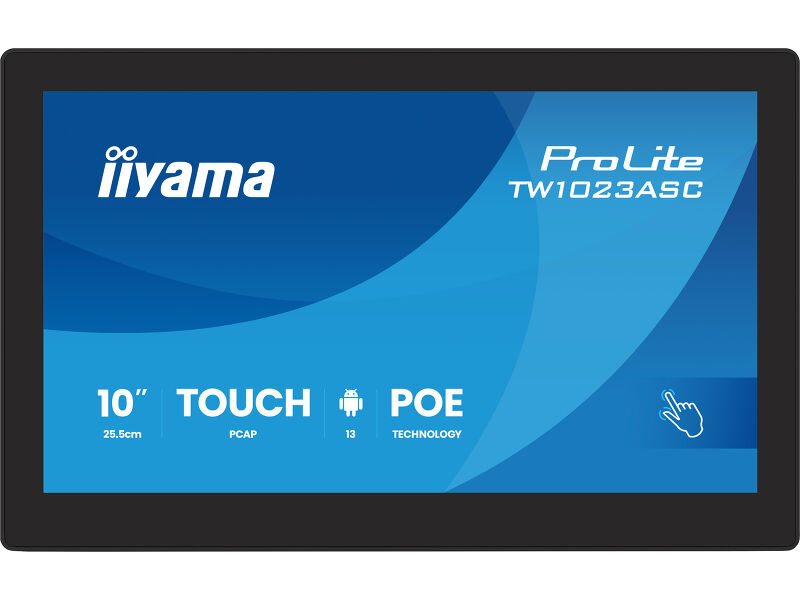

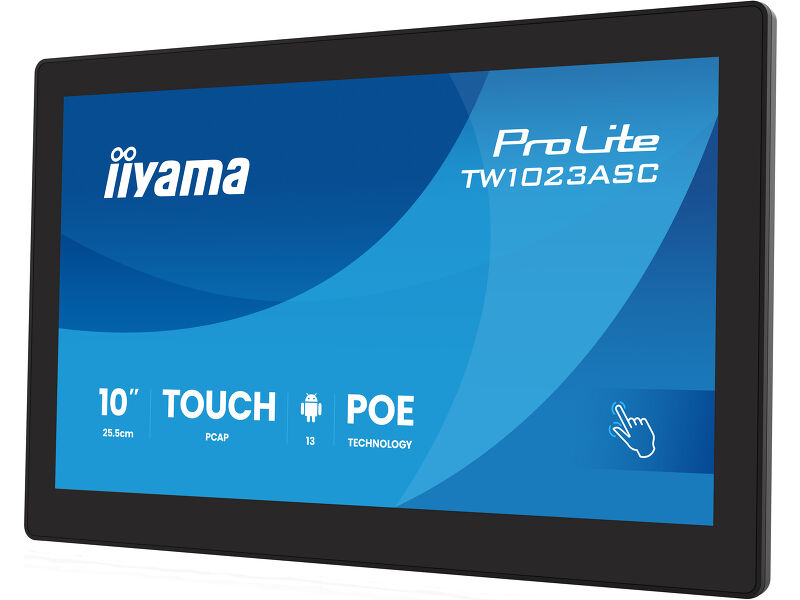

10.1” PCAP 10pt touchscreen PC with Android, POE Technology and iiSignage²
The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.

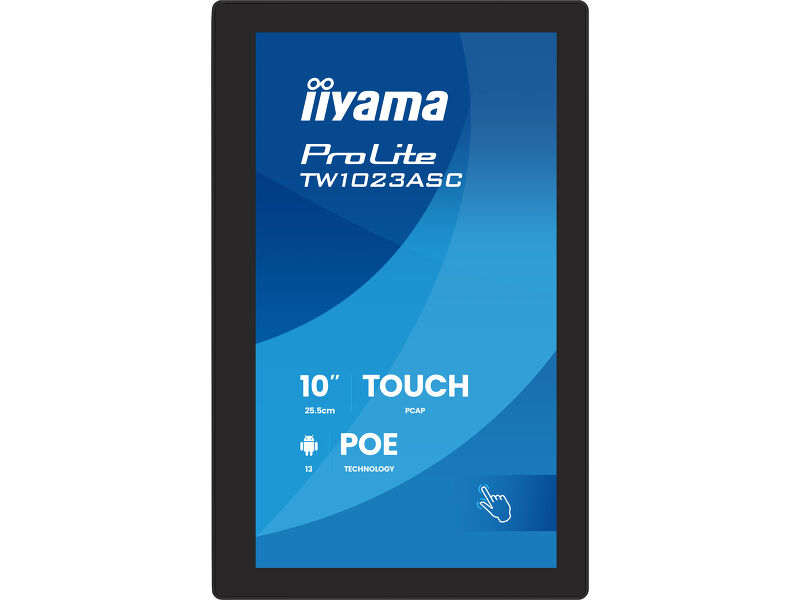

With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
Ethernet Üzerinden Güç teknolojisini (POE) destekleyen RJ45 (LAN) konektörü, tek bir kabloyla hem veri bağlantısı hem de güç sağlanmasına olanak tanır ve bu, birçok kablonun çevreye müdahale edeceği alanlarda kurulumu basitleştirir.
Android işletim sistemi sayesinde, ekranı ihtiyaçlarınıza göre kolayca özelleştirebilirsiniz, doğrudan uygulamaları yükleyerek.
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
Ekran Boyutu | 10.1", 25.5cm |
Diyagonal | 25.5cm |
Çözünürlük | 1280 x 800 (1 megapixel HD) |
En-Boy Oranı | 16:10 |
Panel Parlaklığı | 450 cd/m² |
Parlaklık | 385 cd/m² (Dokunmatik ile) |
Işık geçirgenliği | 86% |
Statik Kontrast | 1000:1 (Dokunmatik ile) |
Tepki süresi (GTG) | 25ms |
Görüntüleme Alanı | yatay/dikey: 160°/160°, sağ/sol: 80°/80°, yukarı/aşağı: 80°/80° |
Görüntülenebilir alan G x Y | 216.6 x 135.4mm, 8.5 x 5.3" |
Piksel Aralığı | 0.1692mm |
Dokunmatik Nokta Sayısı | 10 |

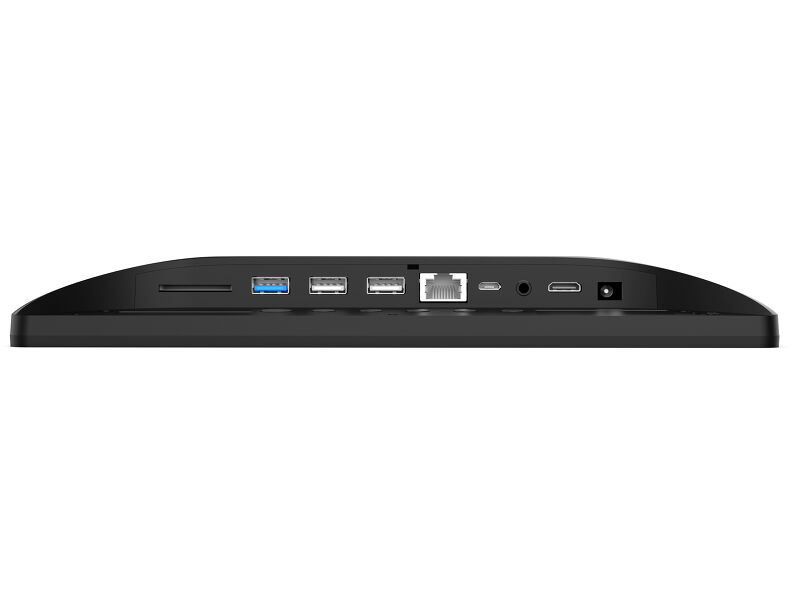

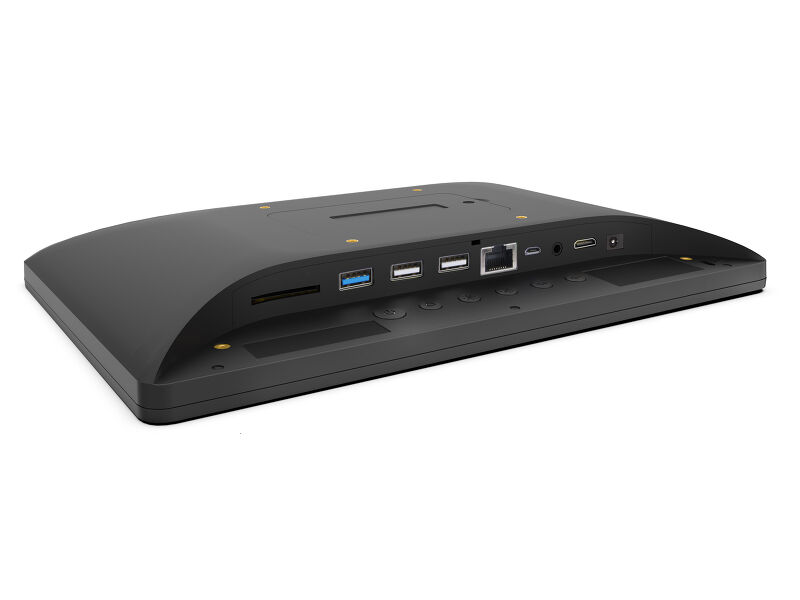

Ses girişi | Mini jack x1 |
Dijital sinyal çıkışı | HDMI x1 (mini HDMI, 1280x720 @60Hz) |
Ses çıkışı | Hoparlör 2 x 1.5W |
USB Portları | x4 (1 x 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 x 2.0 (DC5V, 500mA), 1 x MICRO with OTG) |
RJ45 (LAN) | x1 (PoE - IEEE802.3 at/Max. 30W) |
Mikrofon | x1 |
Dahili OS | Android 13 |
CPU | Rockchip RK3568 Quad-core up to 2.0GHz |
GPU | Mali G52 |
Disk | 32GB eMMC |
RAM | 4GB LPDDR4X |
WiFi | IEEE802.11a//b/g/n/ac |
Bluetooth | 5.2 |
Ekstra | Otomatik Döndürme, Dahili Web Kamerası (5 megapiksel), Mikrofon, SD Kart Yuvası, Parmak izi önleyici kaplama |
Kiosk Modu | evet |
Cam Kalınlığı | 1.25mm |
Cam Sertliği | 6H |
OSD tuş kilidi | evet |

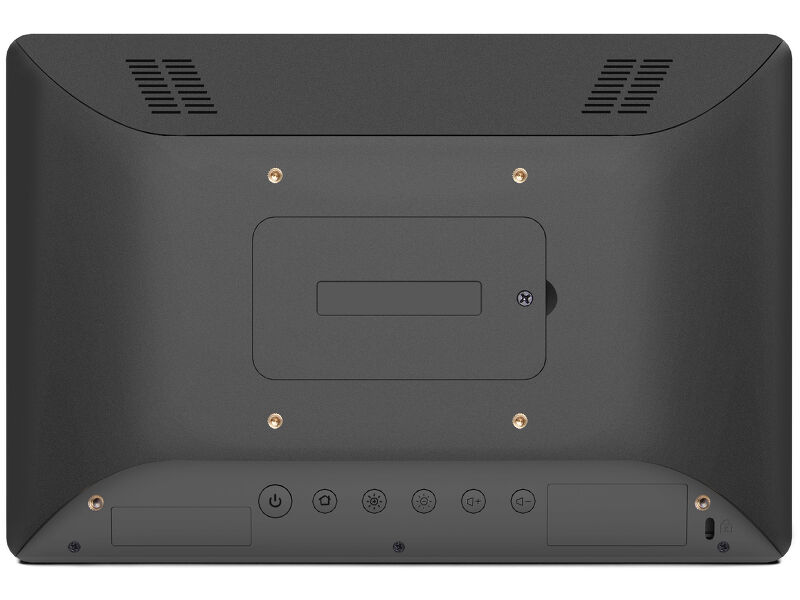

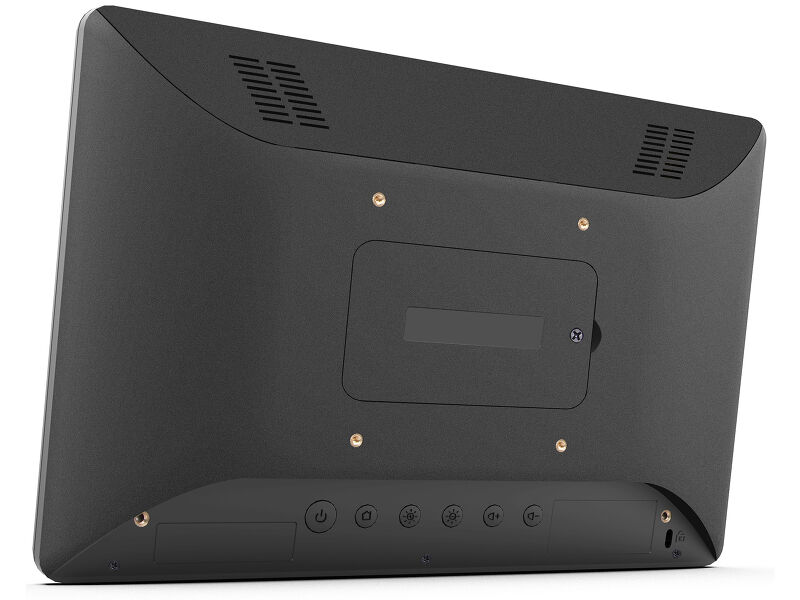

Kontrol Düğmeleri | Power, home, brightness +, brightness -, volume +, volume - |
Uygulamalar | lock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/ clock/ timer/ stopwatch, manage files and folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system preferences, sound recorder, play video files |
Flicker free | evet |
Kablo yönetim sistemi | evet |
Kablolar | güç (2.5m) |
Diğer | AC adaptörü, değiştirilebilir fişler (AB/BK) |
Kablo kapağı | evet |
Güç Kaynağı | DC 12 V |
Güç Tüketimi | 18W tipik, 0.5W stand by, 0.3W off mode |
Ürün boyutları G x Y x D | 255 x 172 x 30.5mm |
Kutu boyutları G x Y x D | 398 x 223 x 68mm |
Palet hacmi | 256pcs |
Palet boyutları G x Y x D | 1000 x 1200 x 2150mm |
Ağırlık (kutu hariç) | 0.8kg |
Ağırlık (kutu ile birlikte) | 1.36kg |
EAN kodu | 4948570126927 |
