15.6” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

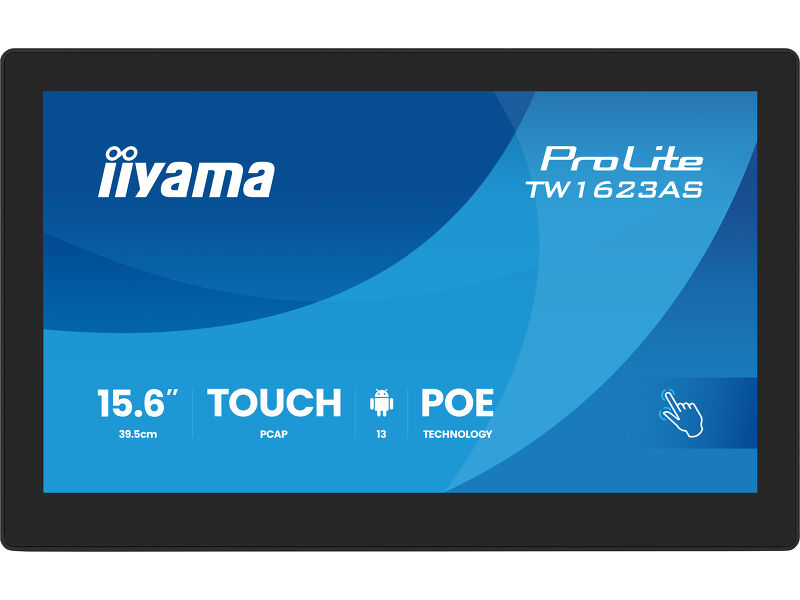

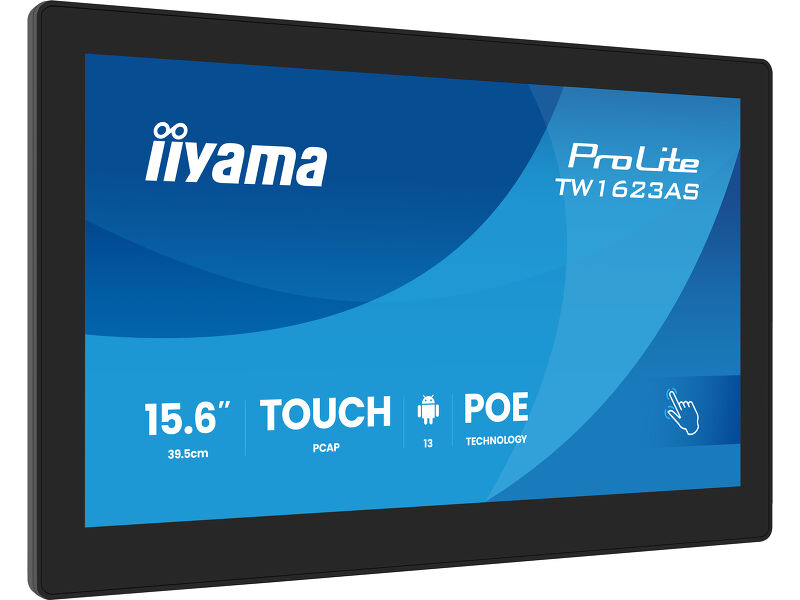

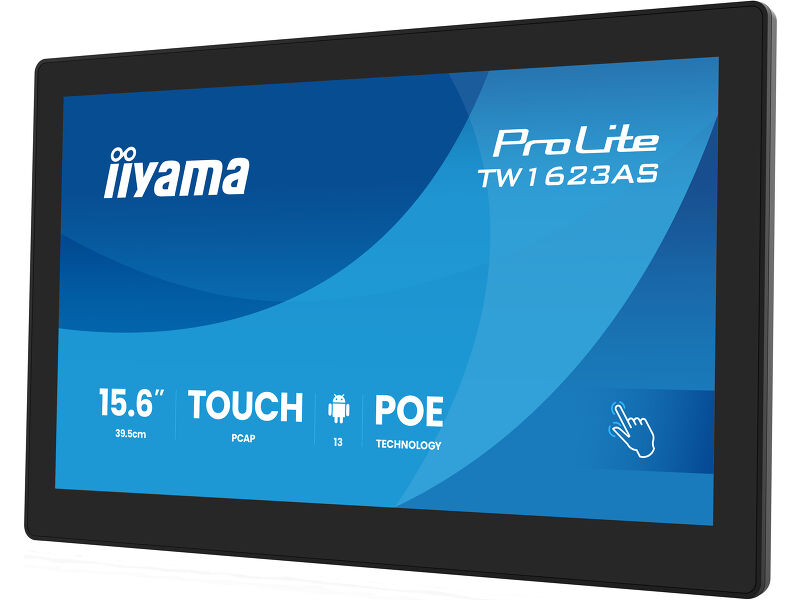

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.
With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
| Design | Edge to edge glass |
| Diagonal | 15.6", 39.5cm |
| Panel | IPS Panel Technology, LED |
| Native resolution | 1920 x 1080 (2 megapixel HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 450 cd/m² |
| Brightness | 385 cd/m² with touch |
| Light transmittance | 86% |
| Static contrast | 1000:1 with touch |
| Response time (GTG) | 30ms |
| Viewing zone | horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° |
| Colour support | 16.7mln 8bit |
| Viewable area W x H | 344.2 x 193.6mm, 13.5 x 7.6" |
| Pixel pitch | 0.1792mm |
| Bezel colour and finish | black, matte |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Digital signal output | HDMI x1 (mini HDMI, 1920x1080 @60Hz) |
| Audio output |
Mini jack x1 Speakers 2 x 2W |
| HDCP | yes |

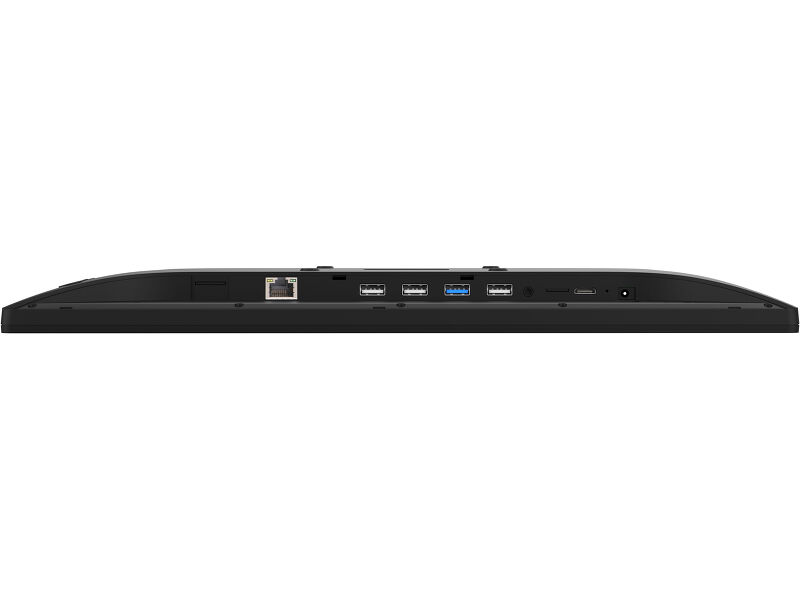

| USB ports | x3 |
| RJ45 (LAN) | x1 (PoE - IEEE802.3at/30W) |
| Microphone | x1 |
| Integrated software | Android 13 |
| CPU | Rockchip RK3568 Quad-core A55 up to 2.0GHz |
| GPU | Mali-G52 |
| Storage | 32GB eMMC |
| Memory | 4GB LPDDR4X |
| WiFi | IEEE802.11a//b/g/n/ac |
| Bluetooth | 5.2 |
| Extra | Auto-rotation, SD card slot, anti-fingerprint coating, anti-glare coating, PoE |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 1.8mm |
| Glass hardness | 6H |
| Control buttons | Power switch, volume/ button +, volume/ button - |
| Applications | Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video |

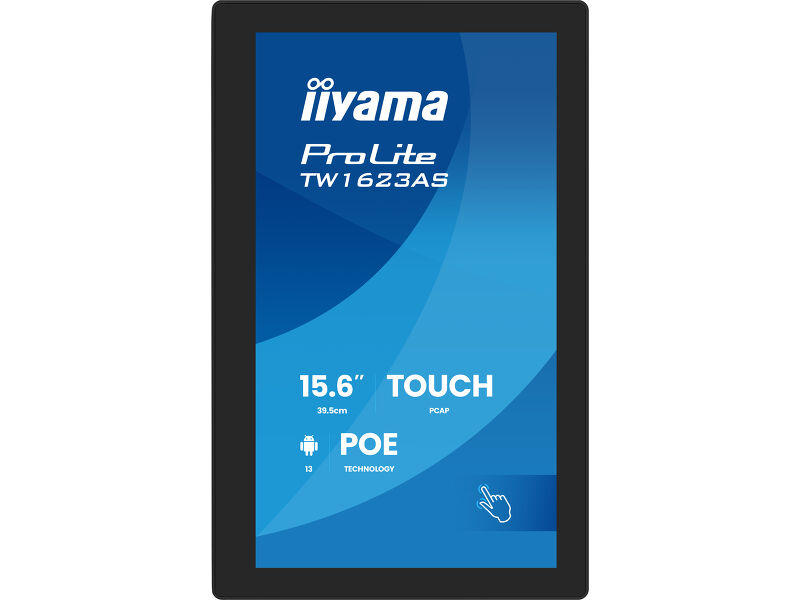

| Orientation | landscape, portrait, face-up |

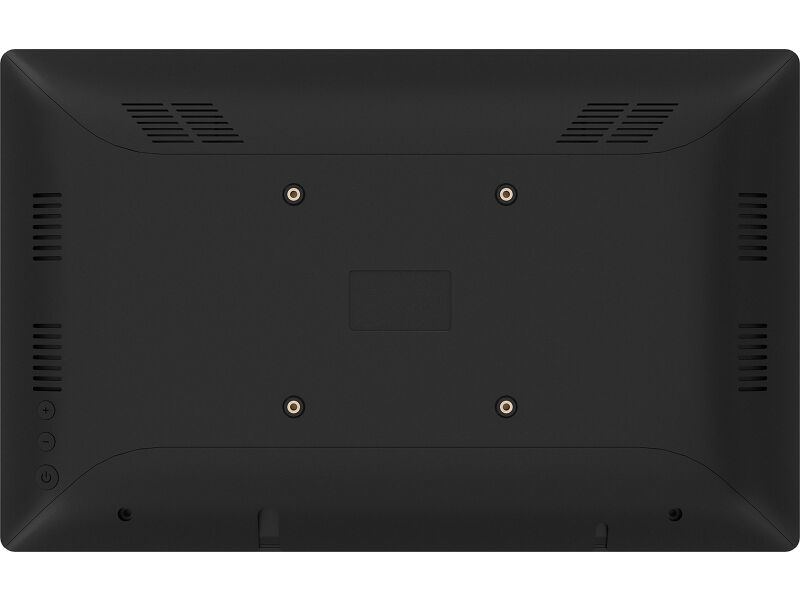

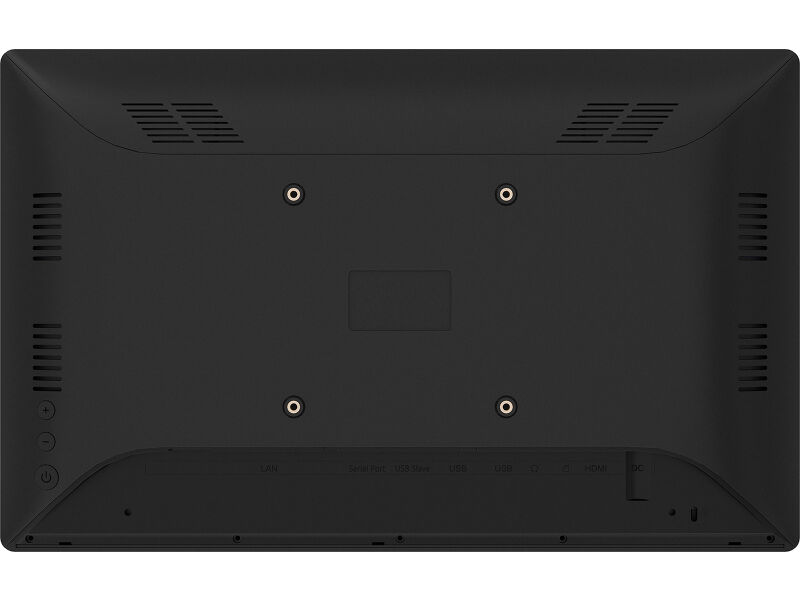

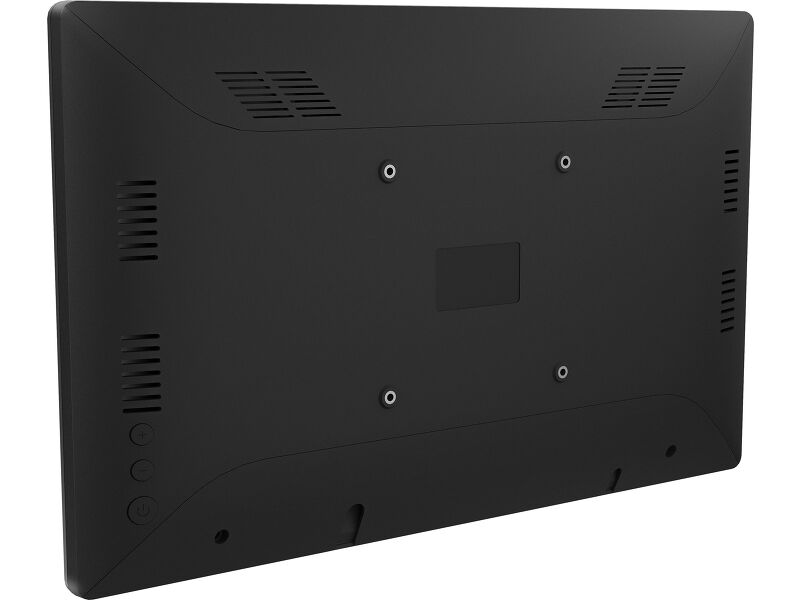

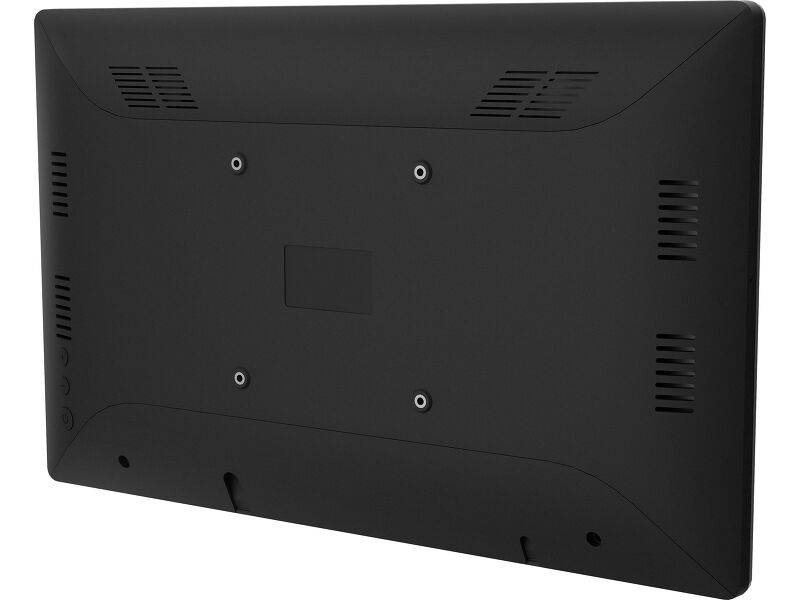

| VESA mounting | 100 x 100mm |
| Cable management system | yes |
| Guides | quick start guide, safety guide |
| Other | AC adapter, interchangeable plugs (EU/UK) |
| Cable cover | yes |
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 9W typical, 0.5W stand by, 0.3W off mode |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 387 x 244 x 30,5mm |
| Box dimensions W x H x D | 477 x 298 x 75mm |
| Weight (without box) | 1.5kg |
| Weight (with box) | 2.45kg |
| EAN code | 4948570126934 |
You can install apps on your iiyama monitor through the official Google Play Store. However, the functionality of these apps may vary, depending on the specific app you wish to install.
If your touch functionality is not working, please check the following:
1. Ensure your PC is connected to the monitor with the supplied USB cable.
2. Verify in the user manual that your operating system is supported by the screen.
When cleaning, please follow these guidelines to avoid damaging your Touch monitor:
1. Avoid using paper towels, abrasive cloths, or any harsh cleaning agents, as they can scratch the screen or damage the touch sensors.
2. Do not spray the cleaning solution directly onto the screen to prevent liquid from seeping into the monitor.
3. Avoid excessive cleaning, as it can wear out the screen over time.
4. For more details, please check our dedicated Cleaning page.
If your monitor is displaying a "No Signal" message, please check the following:
1. Ensure the cables are properly connected at both ends.
2. Select the correct signal input (HDMI/DP) or choose AUTO.
For guidance on selecting an input while the screen is in standby mode, please consult the user manual. On desktop monitors, common methods include pressing the INPUT, AUTO, or "2" buttons, or moving the joystick backward.
Yes, your iiyama monitor will work with your Apple Mac system. However, it depends on the signal input how to connect. Since Apple Mac systems from 2020 onwards only have Thunderbolt 3 (USB-C) ports for video output, you have two options:
1. Connect directly to the USB-C signal input on your iiyama monitor.
2. In case your monitor only has HDMI or Displayport, you will need a Mac-compatible dongle that supports one of the video inputs available. Apple offers a USB-C Digital AV Multiport Adapter (MW5M3AM) that can be used for this purpose.
3. If your iiyama monitor has touchscreen capabilities, please refer to the user manual to verify touch functionality compatibility with your Mac system.
To resolve the issue of a blinking picture, please follow these steps:
1. Inspect the Signal Cable.
Ensure the signal cable is securely connected at both ends and free from any physical damage. Avoid any sharp bends or squishing of the cable.
2. Use a Shorter Cable.
If possible, use a cable shorter than 3 meters and connect the monitor directly to a wall power socket, avoiding the use of adapters.
3. Disable FreeSync/Adaptive Sync.
For desktop or gaming monitors, try disabling FreeSync or Adaptive Sync in the monitor's settings menu.
