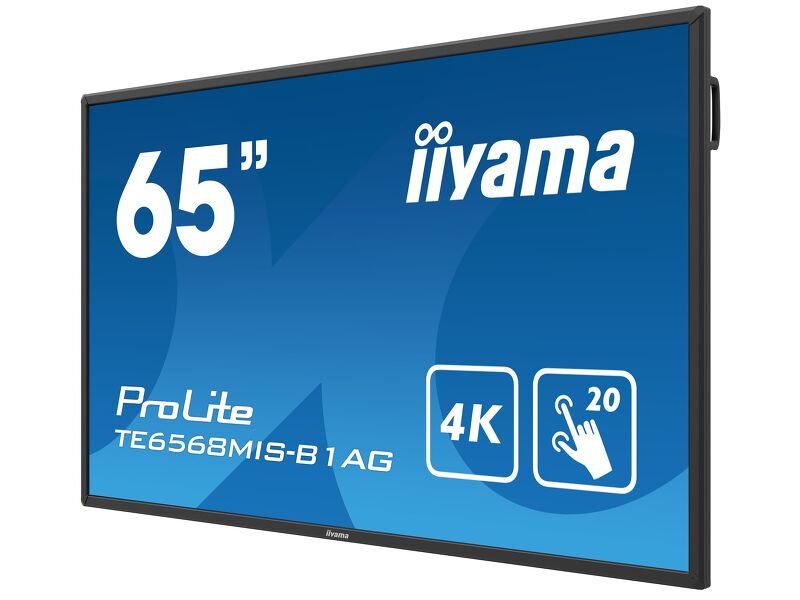

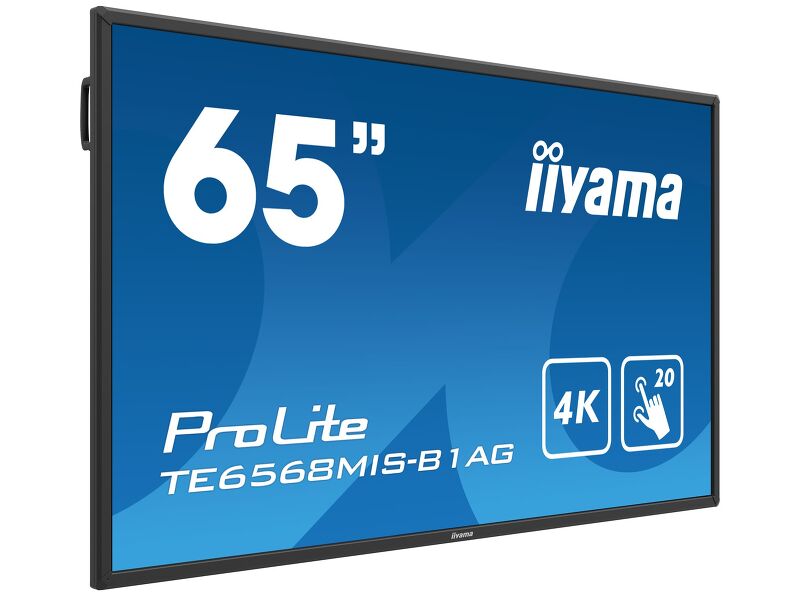

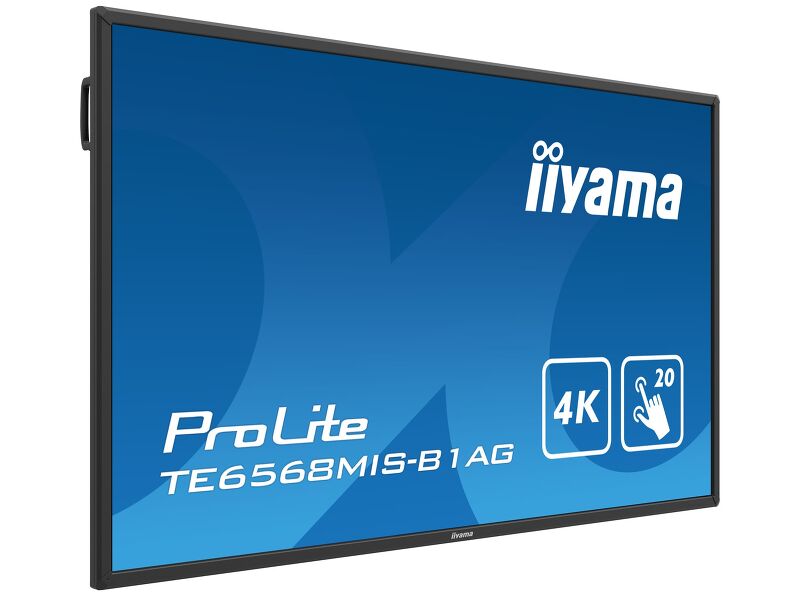

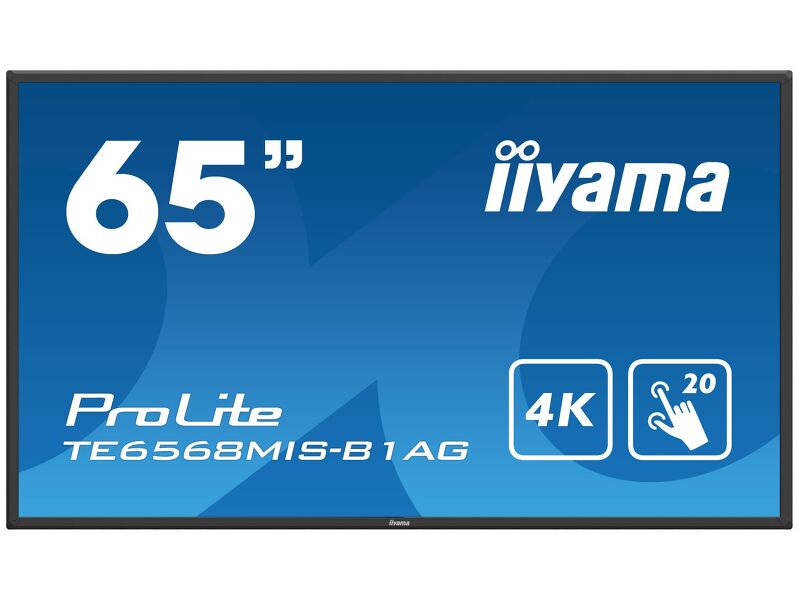

65’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software

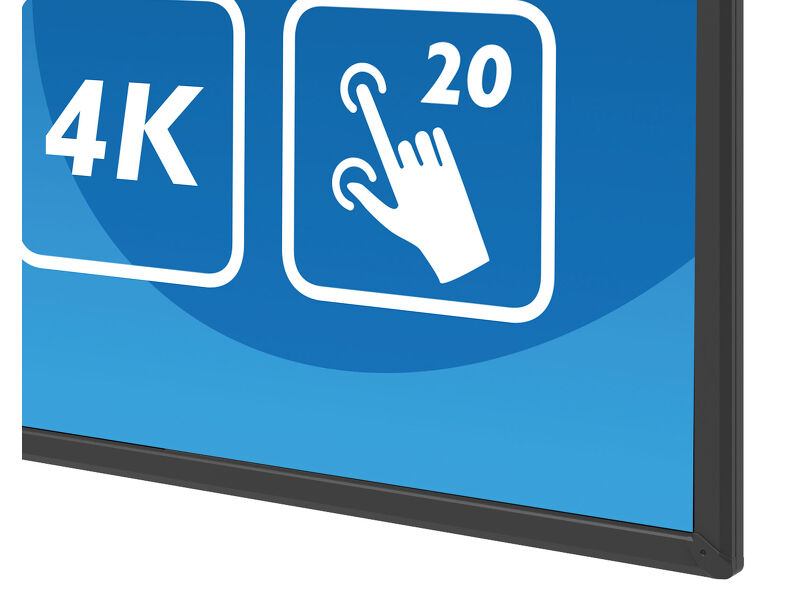

The TE6568MIS-B1AG is a perfect solution for educational and corporate use. Its 65’’ infrared 20-point touchscreen with integrated interactive Note writing software allows users to make annotations on files opened directly from a USB device or internal memory. The display also supports playback of presentations, high-resolution video and almost any other type of content stored on a USB device or internal memory. The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840 x 2160 - 8.3 megapixel) and a contrast ratio of 1200:1 guarantees stunning images with superb image quality from anywhere in the class or meeting room.
The anti-glare coating drastically reduces ambient reflection in high brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with 4 mm thick glass to ensure a long durability in high-use environments such as class rooms or meeting rooms.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with our additional WiFi module (OWM001).
The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically "wear out" the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
24/7 displays are designed for a continuous operation.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Make notes, sketch, draw, write and share your ideas with your team or students or save them to a cloud drive or USB-stick; collaboration was never easier. Turn your iiyama professional display into a interactive digital whiteboard with Note, our Android-based writing and annotation software.
| Diagonal | 65", 164cm |
| Panel | IPS Direct LED, Anti-glare coating |
| Native resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 350 cd/m² |
| Brightness | 310 cd/m² with touch |
| Light transmittance | 88% |
| Static contrast | 1200:1 |
| Response time (GTG) | 8ms |
| Viewing zone | horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support | 1.07B 10bit |
| Horizontal Sync | 30 - 80kHz |
| Viewable area W x H | 1428.48 x 803.52mm, 56.2 x 31.6" |
| Pixel pitch | 0.372mm |
| Bezel colour and finish | black, matte |
| Touch technology | infrared |
| Touch points | 20 (HID, only with supported OS) |
| Touch method | stylus, finger, glove |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Analog signal input |
VGA x1 RCA Composite x1 |
| Digital signal input |
HDMI x3 (v.2.0 x1, v.1.4a x2) DisplayPort x1 |
| Audio input | Mini jack x1 |
| Monitor control input |
RS-232c x1 RJ45 (LAN) x1 (Internet for Android only) |
| Digital signal output | HDMI x1 |
| Audio output |
S/PDIF (Optical) x1 Mini jack x1 Speakers 2 x 12W |
| HDCP | yes |
| USB ports | x3 (v.2.0 x2, v.3.0 x1 media playback / peripherals / storage) |
| WiFi | optional |
| Extra | integrated, interactive annotation tools and applications to browse the Internet, show documents, presentations, video, etc. |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Media playback | yes |
| Glass thickness | 4mm |
| Housing (bezel) | metal |
| OSD languages | EN, DE, FR, IT, RU, CZ, NL, PL |
| Control buttons | Power, Home, Return, Menu, Volume -, Volume + |
| User controls | General settings: Input, Brightness, Volume (volume, bass, treble, balance, sound mode, mute), Screen (aspect ratio, anti burn-in), Display (brightness, contrast, hue, sharpness, picture mode colour temp), Adjust H-position, V-position, clock, phase, auto), Advanced (wireless & networks, ethernet, share, device, display, storage, apps), Personal (security, language & input, start-up and shut-down, password, input setting, other setting), System (date & time, about device) |
| Plug&Play | DDC2B |
| Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| Orientation | landscape |
| Fanless design | yes |

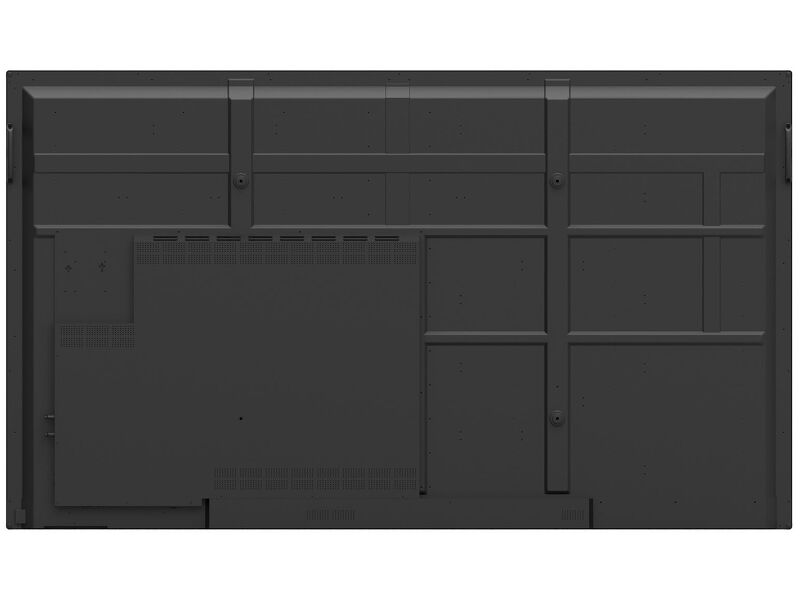

| VESA mounting | 600 x 400mm |
| Cables | power, VGA, USB, HDMI |
| Touch pen | x3 |
| Guides | quick start guide, safety guide |
| Remote control | yes (batteries included) |
| Power supply unit | internal |
| Power supply | AC AC - 100V, 240/V, 50Hz |
| Power usage | 205W typical, 0,5W stand by, 0,5W off mode |
| Regulations | CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH |
| REACH SVHC | above 0.1%: Lead |
| Product dimensions W x H x D | 1521.41 x 897.41 x 98.85mm |
| Weight (without box) | 45kg |
| EAN code | 4948570115464 |
| WIFI collaboration accessories | OWM001 |
